Машина для выдувания полиэтиленовой пластиковой пленки, машина для выдувания экструзионной пленки hdpe, цена

Product Overview

Description





use:

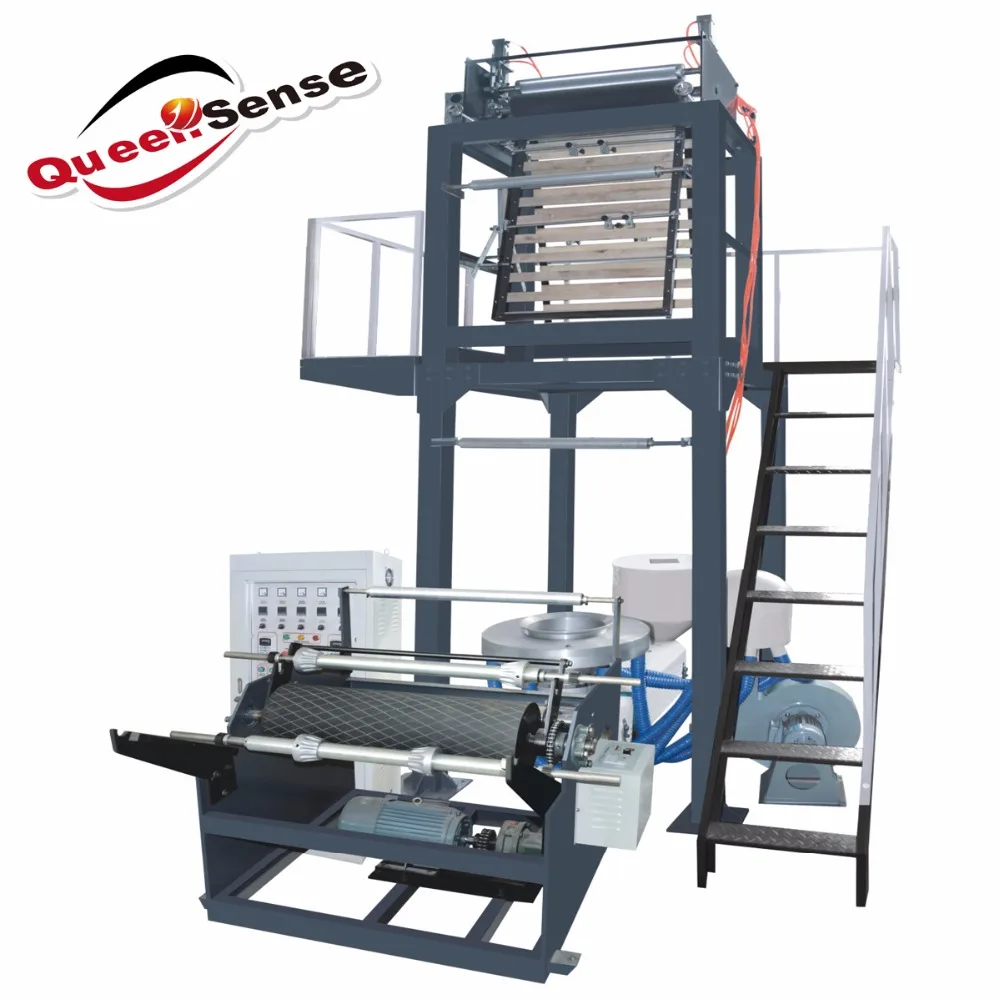

Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

^{OPTIONAL EQUIPMENT:}

1)AUTO  LOAD
2)AIR COMPRESSOR
3)SPECIAL DIE
4)DIE ROTARY DEVICE
5)BOUBLE SIDES  WINDER
6)  UP AND DOWN

Main Technical Variables:



Model	A50	A55	A65	A65-1
Diameter of screw	φ50	φ55	φ65	φ65
Rcduced diameter of film(mm)	100-600	200-800	300-1000	400-1200
Single-face Thickness of film(mm)	0.01-0.10	0.01-0.10	0.01-0.10	0.01-0.10
Max.Extrusion(Kg/h)	35	50	65	80
L/D	28:1	28:1	28:1	28:1
Power of main moto(kw)	11	15	18.5	22
Power of Tracion main moto(kw)	0.75	1.1	1.5	1.5
Heating Power(kw)	15	18	23	27
Outline diameter(L x W x H) (mm)	4800 x 1900 x 4100	5500 x 2100 x 4700	6500 x 2300 x 4900	6500 x 2500 x 5600
Weight(T)	1.5T	2T	2.3T	2.6T
