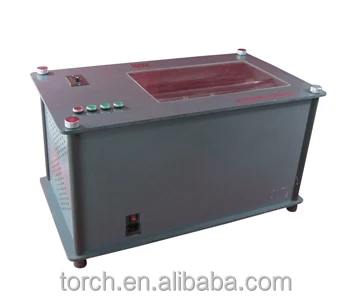

Небольшая автоматическая машина для распыления печатных плат для травления печатных плат PM142

Product Overview

Description

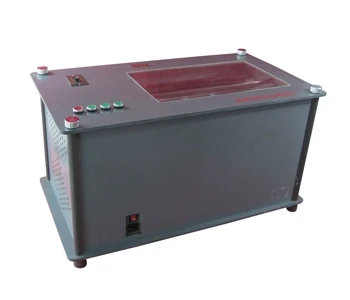

Small Automatic PCB Spray etching machine for PCB etching PM142

Introduction:
This spray etching machine extends the application about etch technology. It is widely used in laboratory and small-batch former manufacture. Develop, cleaning, etching can be finished by one equipment. It means more convenient. The particular spray technology can save the developing agent and the developing time greatly.


Features:
 1\\The whole body is made of light blue plastic. It is beautiful and easy to observe when being used.
 2\\Unique spray technology can save the developing agent and the developing time greatly.
 3\\Independent drainage design in every groove,convenient operation.
 4\\The clamp size of PCB can be adjusted;
 5\\Rapid Heating, constant temperature can keep at 45 C.
 6\\Developing groove and etching groove allocates thermometer, it is convenient to measure the temperature.
 7\\Anti-corrosion salver.
 8\\Adjustable corrosion ranged.

Add: If the user had any special request, please arrange with us.

Technology parameters:
 1\\max PCB developing size:500*300mm
  2\\developing way: double size spray
  3\\speed :90-120 seconds
  4\\liquor capacity:8-10L
  5\\head:8
  6\\heating temperature:40-50C
  7\\power consumption:2000W
  8\\power:AC220V
  9\\dimension:900*500*420mm
