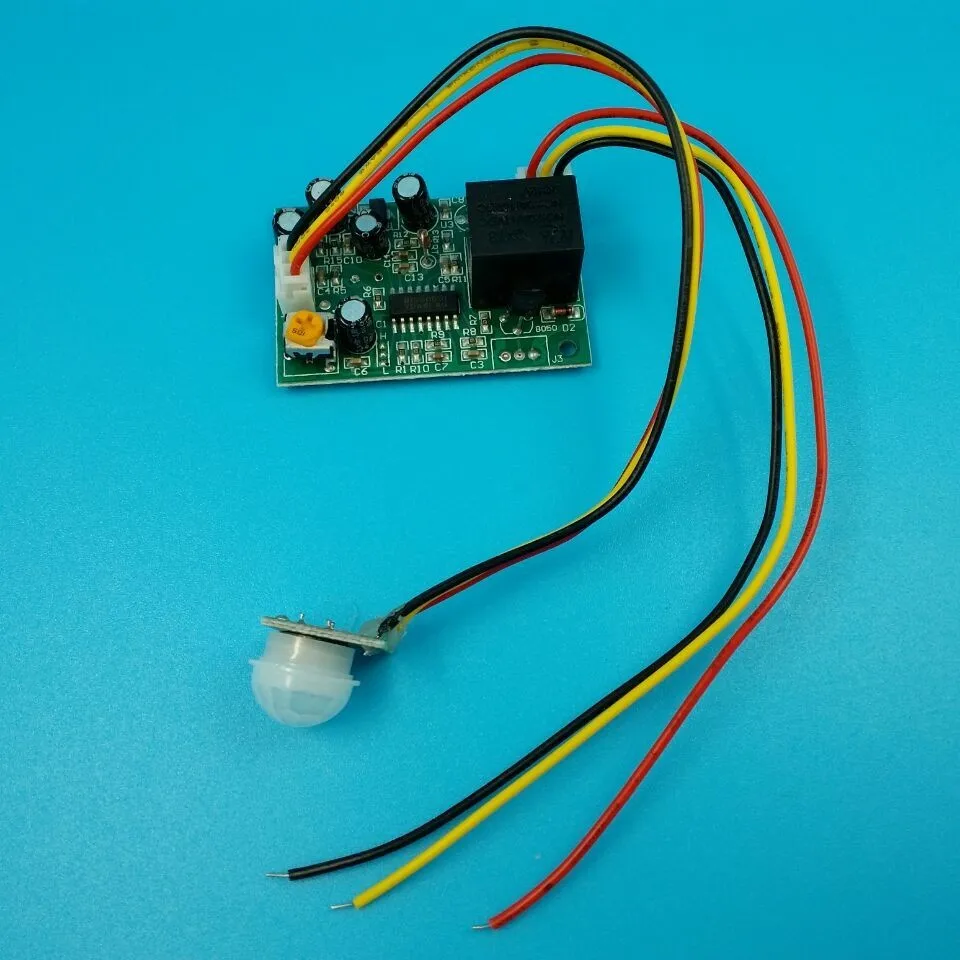

Split DC12V pir sensor human body motion induction module Adjustable delay Relay output high level/low level customizable

Product Overview

Description

The company for customers to design various types products of electronic, provide solutions, the price is cheap, first-class service.





Hello! We also have alibaba China  store, please click link for  details: //jianglongdianzi2011.1688.com

We also take OEM, ODM orders upon request, if you any questions, please feel free to contact us.



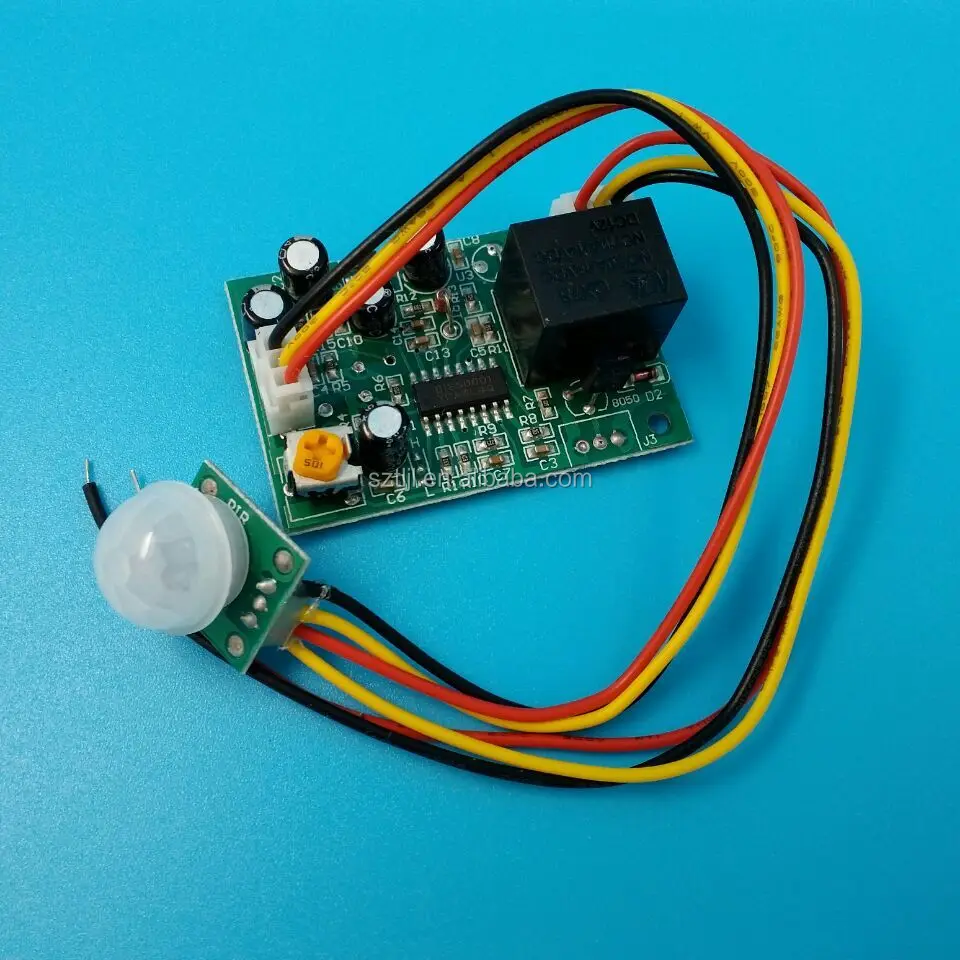

Split pir sensor induction switch module operating instruction

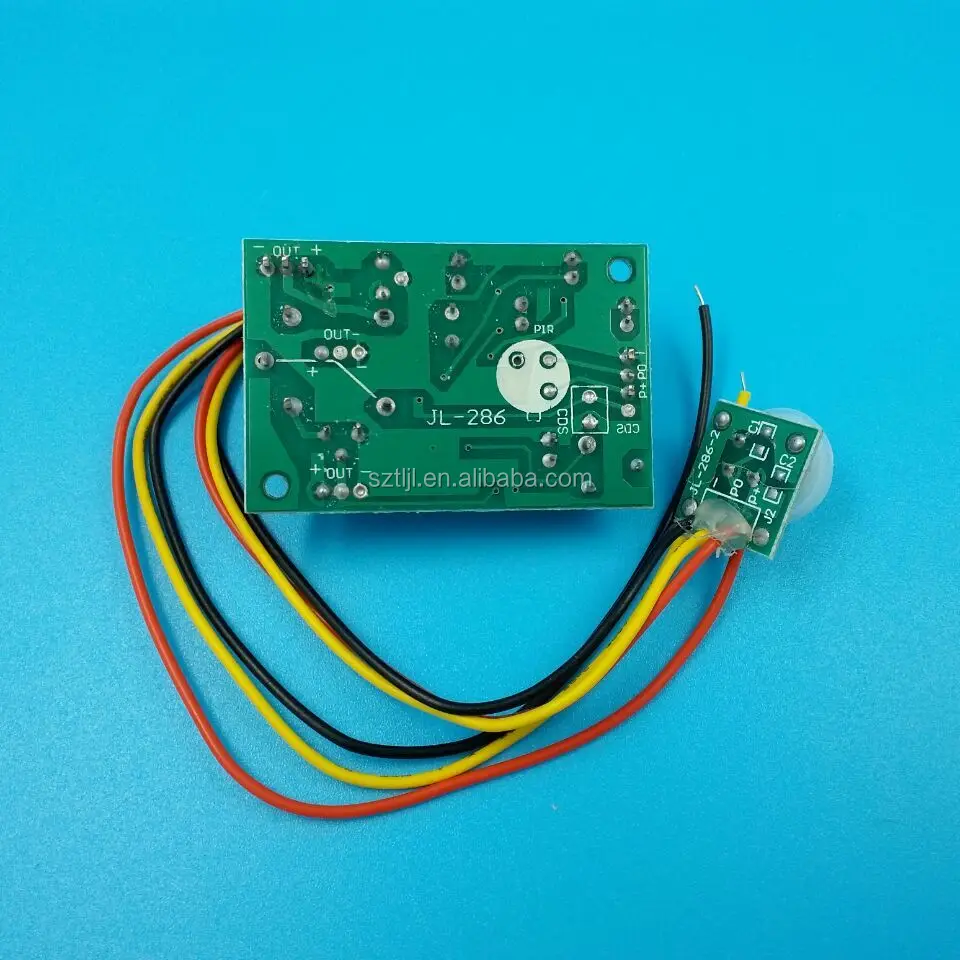

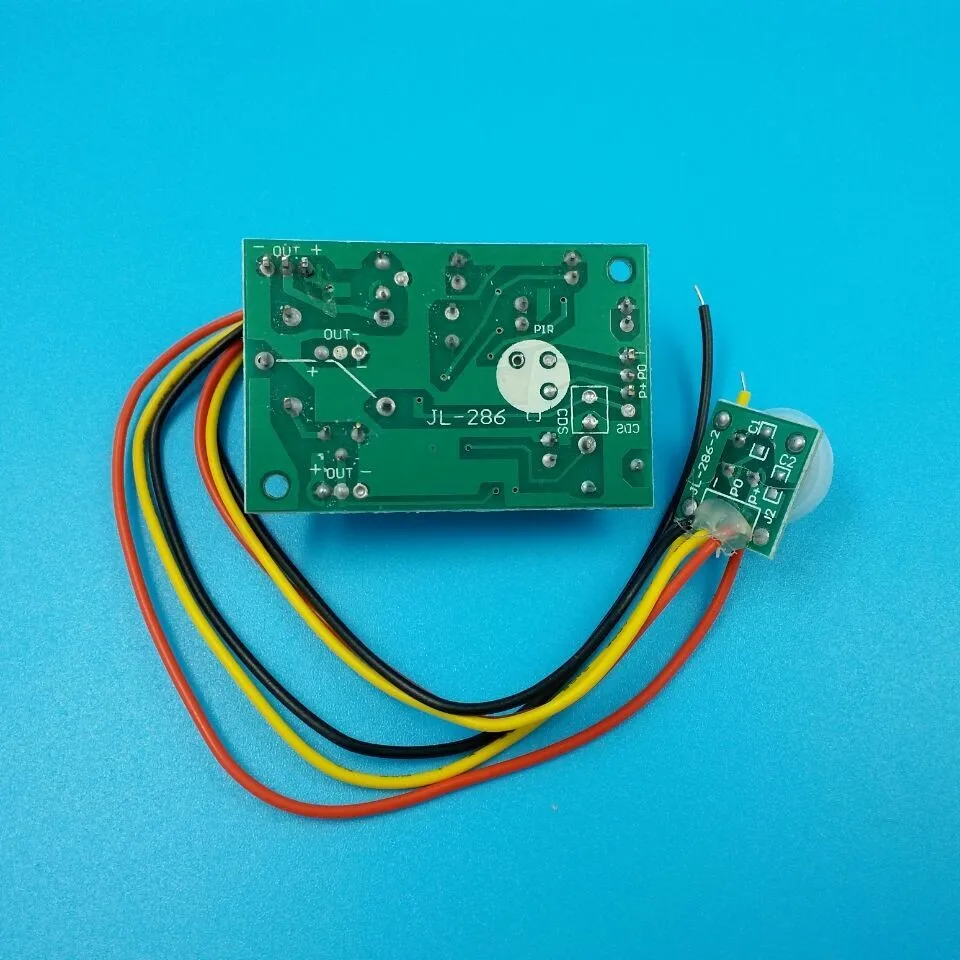

             Model:JL-286

Welcome to use our company products,our products adopt the most advanced imported internal sensor and circuitall products are through strict test and aging test, the circuit is stable and reliable in quality

A. Features:

1. When someone or larger animals into the scope of this module induction, automatic output high level, people don't leave the sensing range of activities, will continue to output high level (the default for continuous trigger mode, optional); After the people left, relay delay shut automatically this product is high sensitivity, strong reliability, suitable for application in all kinds of automatic induction electrical equipment

2. Delay time: 10 seconds (10-300 seconds adjustable)

3. Working voltage: 12 VDC

4. Blocking time the default value is 3-4 second(can be customized).

5. Trigger mode: can trigger continuously, not continuous trigger. (can choose jumper) can trigger continuously default

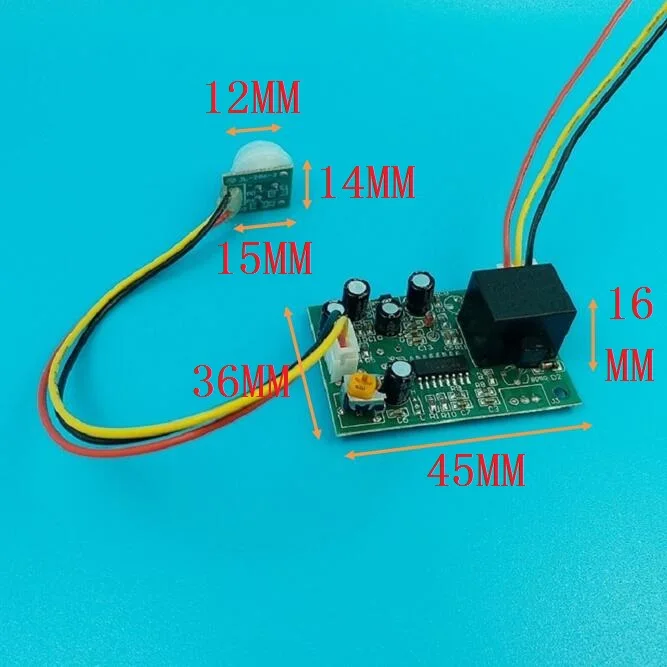

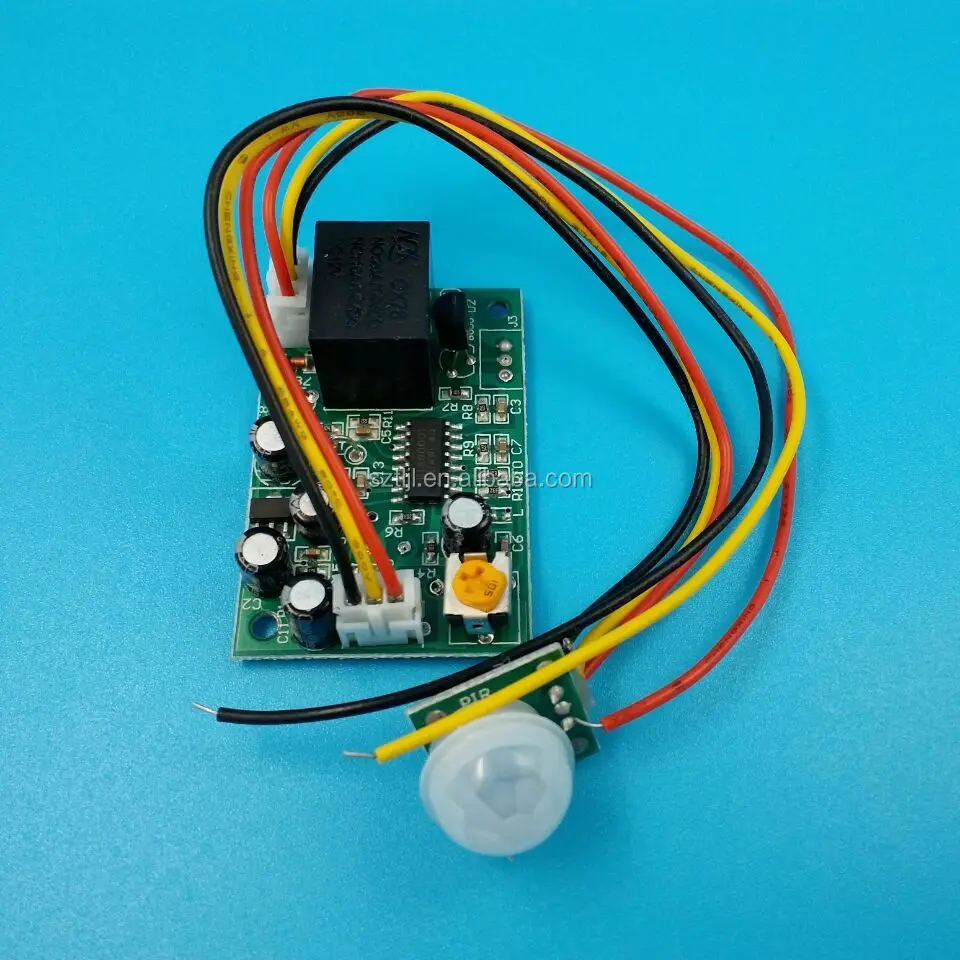

6. Size: 45 * 30 mm, pir lens diameter 12 mm

B.  Electric Parameter

1.  Induction way:Passive infrared pyroelectric

2. Working voltage: 12 VDC

3. Quiescent current: 50ua

4. Sensor distance:3~5m

5. Output  mode : relay control output 12 VDC high/low level

6. Sensor angle:110~140degree

7. Load range: lamps and lanterns, electrical appliances, etc

8. Ambient temperature: - 20 ℃ - + 50 ℃
