Parameter chart of hydraulic wire rope sleeve press machine
Mode No.
GT-100T
GT-200T
GT-350T
GT-500T
GT-650T
GT-1000T
Max press power (KN)
1000
2000
3000
5000
6500
10000
Max wire rope diameter in one pressing (mm)
Φ13
Φ20
Φ28
Φ32
Φ38
Φ44
Max wire rope diameter in multi-pressing (mm)
Φ15
Φ25
Φ34
Φ42
Φ48
Φ56
Power (KW)
1.5
2.2
3
4
5.5
11
Max working pressure (Mpa)
56Mpa
56Mpa
56Mpa
56Mpa
56Mpa
56Mpa
Max piston movement (mm)
78
80
80
100
160
200
The up speed of piston (mm/sec)
8
8
4.5
4.5
4.5
4.8
The down speed of piston (mm/sec)
8
8
4.5
8
8
8
Total length (mm)
1100
1100
1200
1500
1650
2550
Total width (mm)
550
550
650
650
650
1100
Total height (mm)
1300
1300
1400
1550
1600
2100
Net weight (kg)
600
900
1000
2000
3000
5500

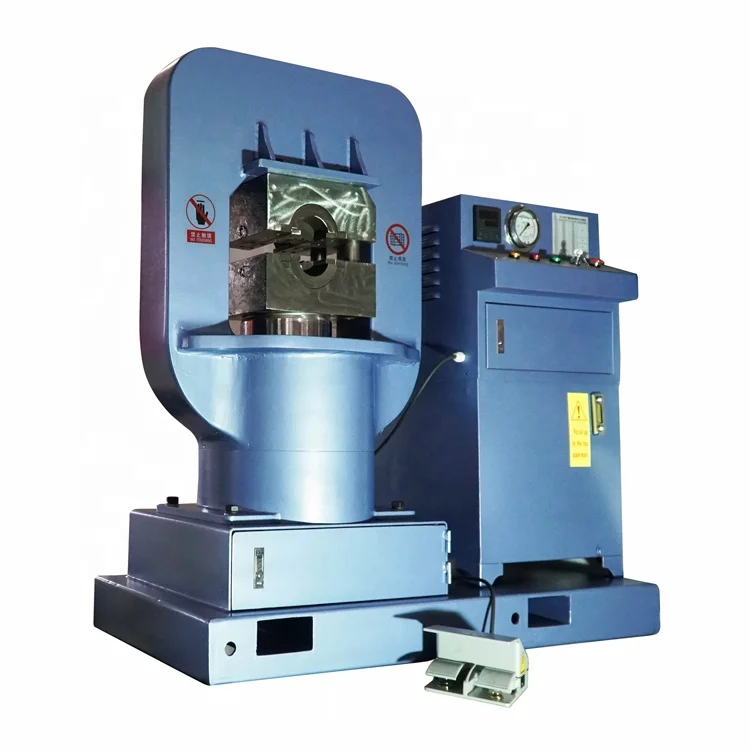

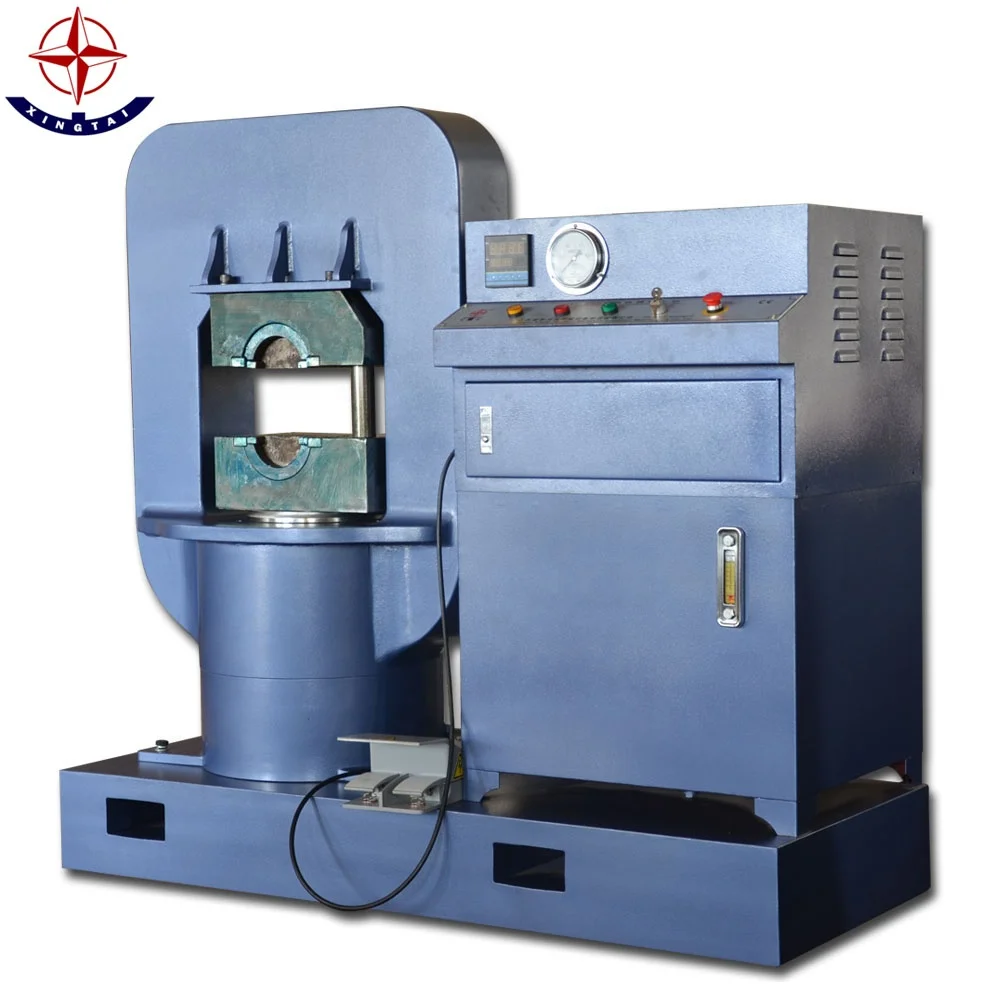

650Ton hydraulic wire rope sleeve press machine
Blue color hydraulic steel wire rope sleeve press machine/wire rope press machine
GT steel wire rope pressing machines are certificated by EU standards-CE.
Xingtai pressing machine have widely used in metallurgy, mining, ports,railways, electricity and
other industries. Xingtai machines have exported to UK, Australia, the Netherlands, Malaysia,
Poland, South Africa, Thailand, Russia, Latvia and so on.
Feature of wire rope sleeve press machine,
1. High strength, good concentricity, pressed slings with smooth surface
2. Stressuniform, high strength, long service life.
3. Higher sealing performance, safe, reliable and durable
4. Round mold design and automatic positioning is easy to change different molds.
5. Piston can be stopped any position
Packaging & Shipping
Packaging of wire rope sleeve press machine: Shrinkwrap and iron box
Our Services
1. Warranty period: one year
2. Fast delivery reliable quality
3. Competitive price and 24 hours technical support
4. We delivery goods to port as clients' request
5. OEM service
6. CE
Company Information
Jiangsu Xingtai Hydraulic Manufacture Co.,Ltd established more than 15 years, Xingtai hydraulic engages in hydraulic wire rope press machine, wire rope cutting machine,aluminium sleeve,and lifting clamp. Xingtai hydraulic regards the concept of high quality, competitive price, eternal promise as service policy, We shall meet customers' need and offer customer best service. We will try our best to provide service to our old and new clients as before and build our nice future together. Xingtai hydraulic machines have exported to UK, Australia, Holland, Latvia, Malaysia, Thailand, India, Russia, Botswana,Polland and so on.More
FAQ
Q: Are you trading company or factory?
A: We are professional wire rope pressing machine and wire rope annealing machines manufacturer with 20 years' experience.
Q: What is after-sales services? A:24 hours around the clock & 12 months warranty Life-long maintenance service for the product
Q: If I didn't use press machine before, how can I install and operate the machine?
A: We will delivery machine with use manual.
Q: Shall I see the machine work before I order?
a. Please send us inquiry and we will check whether there are customers in your country.
b. You may come our factory, we will teach you how to operate.
c. We may send you video.
Q: How long to finish one machine if I place order?
A: As usually, delivery time is 30 days. If we have machine and dies that you need in stock, we may delivery machine in 7-10 days after receipt of your payment.
