Processing material: GI or aluminum or steel sheet Material thickness: 0.4---0.8mm Material hardness: 550 MPA---350 MPA Forming speed: 20m/min Working speed :10m/min |

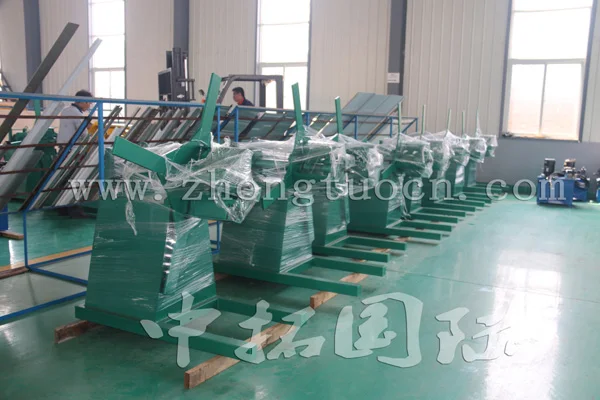

Un-coiler System |
Usage: It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system Loading capacity: 1.5T Uncoiling width: 300mm Inner diameter: 450-550mm |

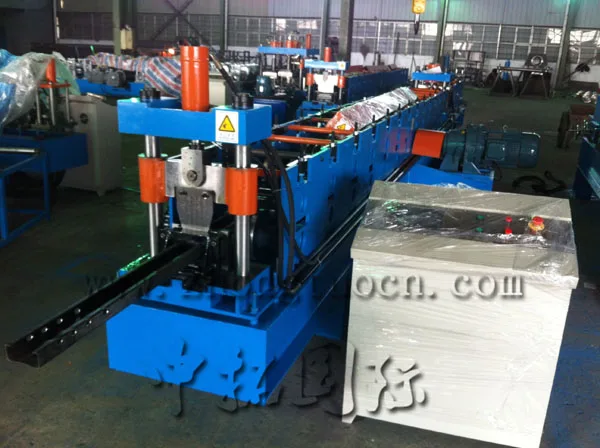

Main Roll Forming System
| Feature : Ensure stability , precision and lifetime. |
Length of the main part: about 3300*800*1400 Weight of main part: 3 tons Voltage : 380V/50HZ3Phase (as customer’s request) | |
Roller fixer : Guide column Frame : middle plate welded Memorial arch frame type Frame thickness:25mm Drive mode: gear or chain | |
Material of rollers: GCr12MoV Material of shafts: 45# steel with tempering Diameter of shafts: φ40mm Number of rollers : 10 rollers Main power: 3kw Cycloidal planetary gear speed reducer) |
the machine naked in the container or packing as your required.

Payment Terms:
Price: USD/LINE FOB TIANJIN XINGANG CHINA
Delivery: within 45 working days after receipt of deposit.
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Our Service:
1. Installation and training of machine manufacturer:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine for sale , and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service of roll forming machine for sale:
a. One year guarantee for whole roll forming machine for sale.
b. 24 hours technical support by email or calling:
c. If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.
Company Information:
Cangzhou Zhongtuo International Trade Co., Ltd is a professional manufacturer and exporterwhich has its own factory and also cooperate with several production factories and associated nterprises, concerning with the design,development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold roll formingmachine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.

FAQ:
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new pars replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich experience in transport.
6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.
8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
