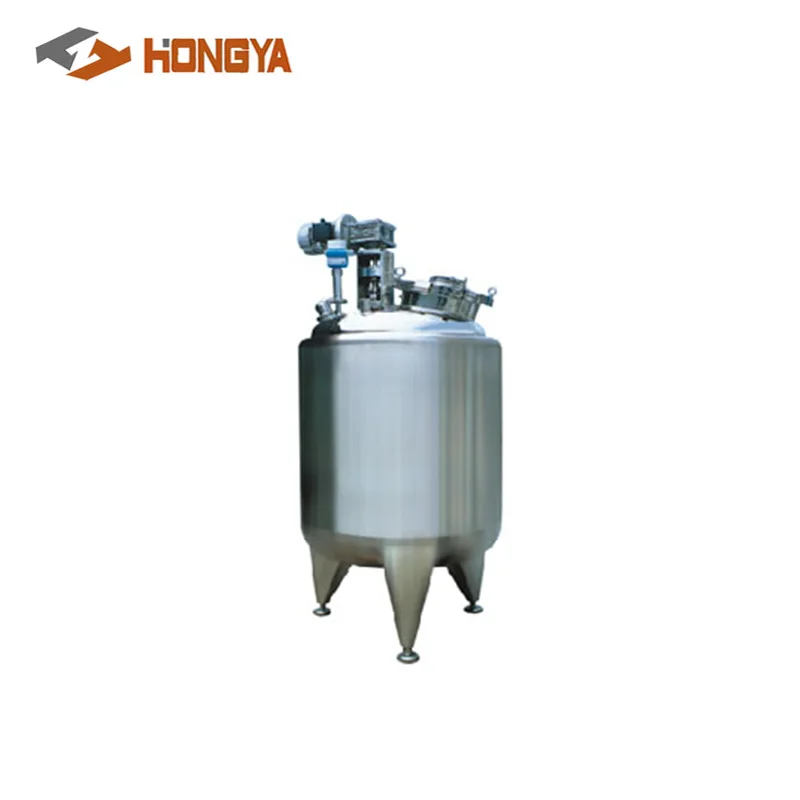

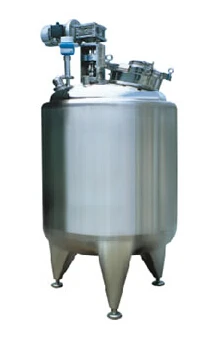

SS304 Sanitary Stainless Steel Open type Cold and Hot cylinder Ingredients Mixing Tank

1. According to the heating medium:natural gas cold and hot cylinder, steam heating cold and hot cylinder, electric heating cold and hot cylinder;

2. According to structure: ordinary cold and hot cylinder, top & bottom cone shape cold and hot cylinder, top & bottom end enclosure cold and hot cylinder

It is widely used in dairy industry, food, pharmaceutical, chemical, beverage and other industrial departments to heat, cool, insulate sterilization processing or store slurry. It's especially suitable for the pasteurized milk, and its the necessary equipment in ice cream production line. It is particularly suited to no steam heat source and small units and scientific research institutions, pilot use.





Cold and hot cylinder structure diagram
1. Volume: 50L, 100L, 200L, 300L, 500L, 600L, 1000L~5000L
2. Heating method: using electric heating rod inserted into the jacket, heat evenly without cold area. Into my jacket heat conduction oil or water for heating medium, generate heat for heating tank material.
3. Material heating temperature: 350 ℃ or less; Material heating time: 20 min ~ 90 min (According to the process requires)
4. Temperature control: adopt electric accidentally measure temperature and temperature controller connected to the measurement and control temperature (temperature difference + / - 1 ° C or less), and can regulate the temperature of a material of high and low. Temperature controller installed in electric cabinet, temperature transmission rod straight inserted to the bottom of the tank, the material liquid used minimum position can also indicate the temperature.
5. Tank: inner surface mirror polishing processing, roughness Ra 0.4 microns or less.
6. Cover: cover for double doors can open, easy to clean, inside and outside surface mirror polishing treatment (roughness Ra 0.4 microns or less).
7. Inside the tank bottom structure: by the spinning processing into R Angle, and the tank after welding, polishing, no dead Angle, and a 5 ° inclined towards discharging mouth, easy to put the net material not stranded.
8. Jacketed forms: the whole jacket for adding heat conduction oil or water, make the work to achieve the purpose of the best heating and cooling.
9. Thermal insulation material: the filling pearl cotton, rock wool, or casting polyurethane foam, keep temperature difference with the outside world, achieve heat preservation effect.
10. Outer shell surface treatment: mirror polish or 2 b primary inferior smooth inferior smooth handle face to face or 2 b frosted.
11. Stirring device: top center stirring, reducer output shaft and the impeller shaft adopts loop connection, easy disassembling and cleaning.
12. Stirring speed: 15~120 r/min (constant speed); Impeller forms: frame, anchor, paddle, turbine, etc. (according to the technological requirements).
13. Instrument equipment configuration: electrical control box, temperature, material liquid import and export and import and export of medium (inlet and discharge of oil), put the lip (oil spill), etc.
14. Material: inside tanks SUS304 or SUS316L; Jacket for Q235 - B or SUS304; The outer protective shell of SUS304.
15. The in and out of the tube in the mouth opening and tanks welds adopt flanging process arc transition, smooth and easy to clean no dead Angle, beautiful appearance.






1. The nominal capacity and size in the chart is standard configuration. Any specific requirements, please point out.

2. The jacket  layer working pressure≤ 0.09Mpa, it also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the cold and hot tank: the nature of material, working pressure, temperature, specific requirements, etc.
