SZ 3T Desktop cold pressure welder / wire butt welder brass wire welder

Product Overview

Description

 SZ-3T Desktop cold pressure welder / Bench brass wire cable welder without power / wire butt welder

Weld copper wire size from 0.80mm to 4.0mm; weld Al wire size from 0.80mm to 5.50mm.

1. Cable wire cold welding machine Introduction:

1.No need of heat or electricity and some form of flux to make the joins of wire

2. It is possible to weld two different diameter wire with different material together.There is no heat-affected zone with unsuitable properties

3.Desktop/Trolly below make it more convenient to be moved around and more stable

 4.All of our dies are with industry standard.Other brands can be perfectly fit for it.

5.The SZ-3T can be mounted to a bench or portable tool stand. Very stable. Precision single cavity or double cavity dies are compatible with our machine.



Model	SZ-3T,  SZ-3T desktop cold pressure welder, weld copper wire, Al wire cold welding machine
Application	Widely used in the cold welding for the wire of  copper, aluminum, gold, silver, nickel, Platinum, zinc, Tin, niobium tantalum and other non-ferrous metal wire/rod
Welding Range(wire)	Copper: 0.80mm-4.0mm   Aluminum: 0.80mm-5.5mm
Structure	Precise moulding
Advantages	No power, no change of the resistance, clean, light, thin deposit, easy of operation , portability,aloft working is available.
Overall Dimensions:	300mm*190mm *290mm(L*W*H)
Material of mould	Imported mould steel
Net weight	33kg
Production ability	1000sets/Month

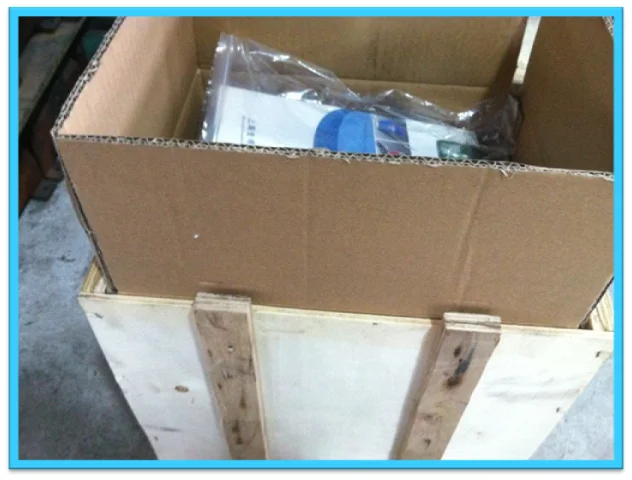

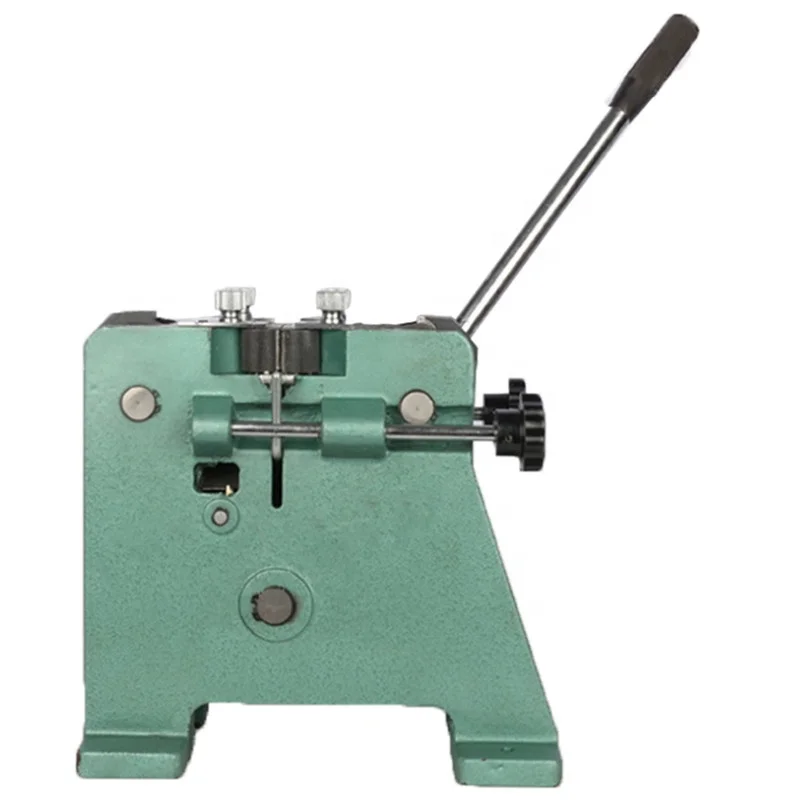

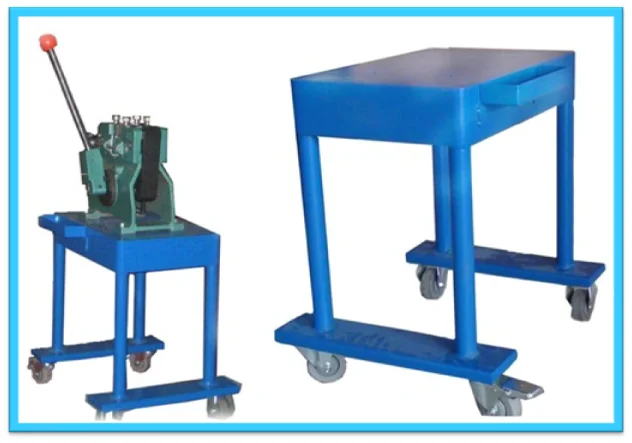

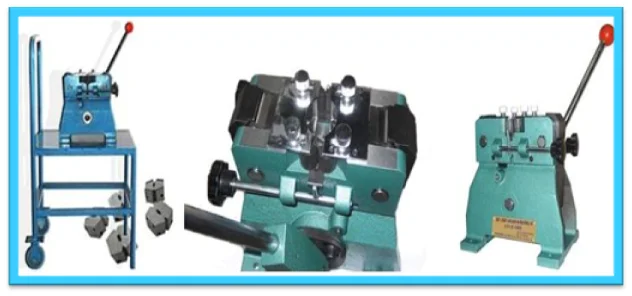

SZ-3T Machine pictures & with trolly pictures( packed in wooden case) :



1. The main benefits of using cold welding
The process is quick, reliable and cost-effective. The weld cycle takes only seconds to complete and creates a permanent bond stronger than the parent material, without using heat, fillers or fluxes.

2.  What kind of materials can be welded using cold pressure?
Cold welding can be used to join most non-ferrous wire and strip with diameters of between 0.06mm and 10mm copper and 15mm aluminum.

3. Can different metals be welded using cold pressure?
Cold welding can be used to join dissimilar materials, such as aluminum to copper.

4. The tolerance of dies to wire
-1% + 3% wire to dies tolerance.

For example: 0.9mm dies can weld the wire diameter from: 0.909mm to 0.927mm wires

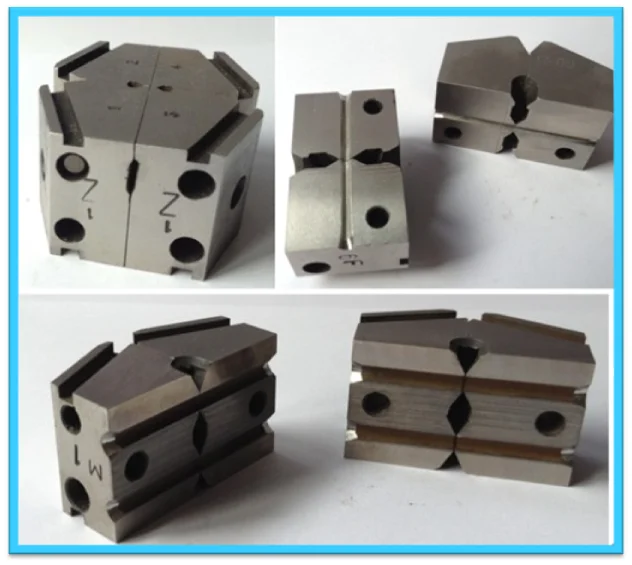

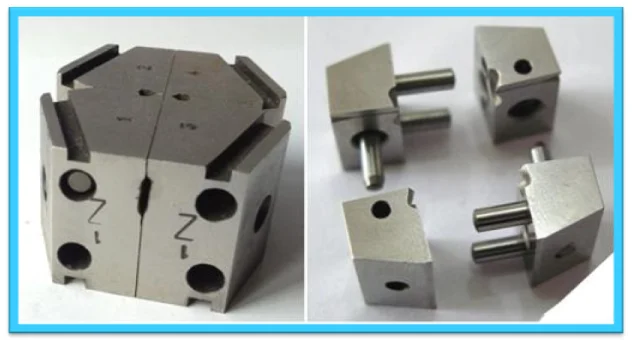

SZ-3T Welding machine dies( same dies as model SZ-3TR):

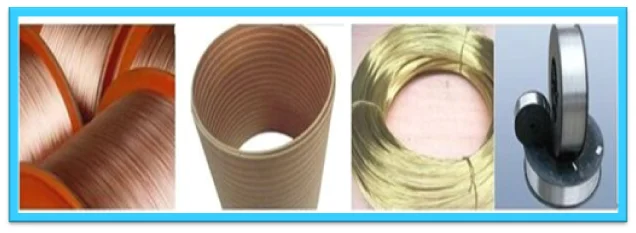

The wires can be welded:

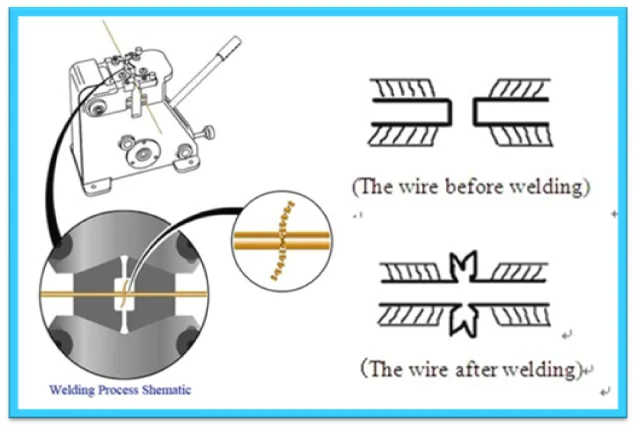

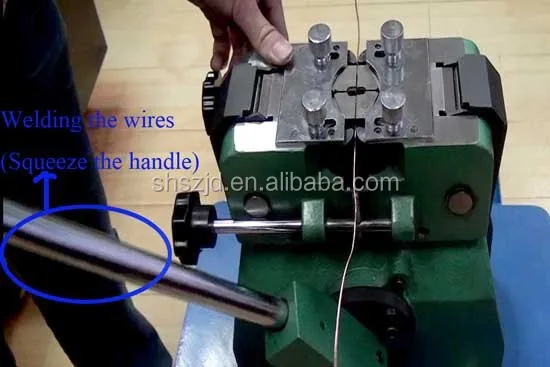

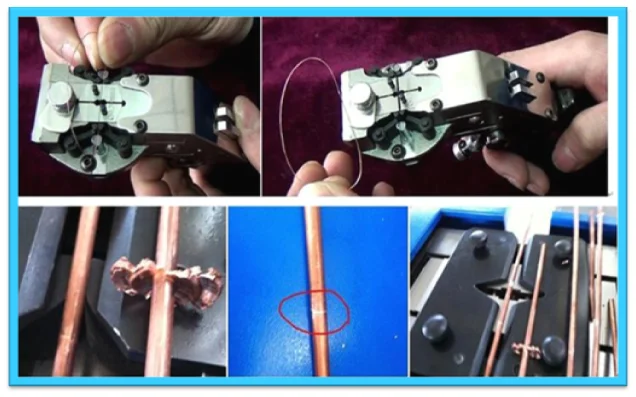

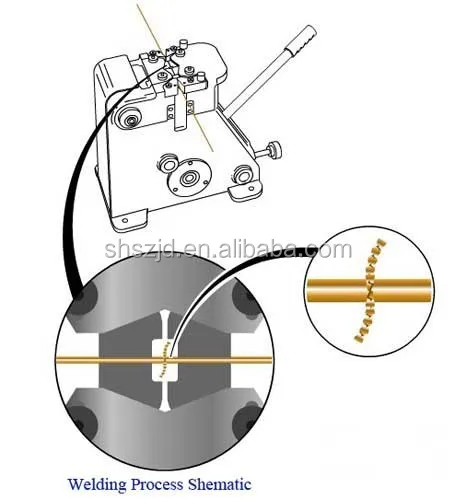

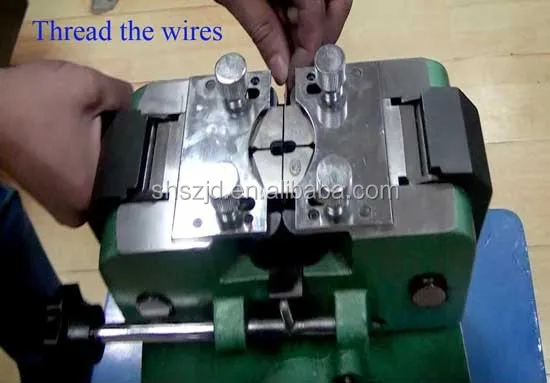

Welding process:



A brief operating video for your reference: //v.youku.com/v_show/id_XMzU0NTk4NTM2.html

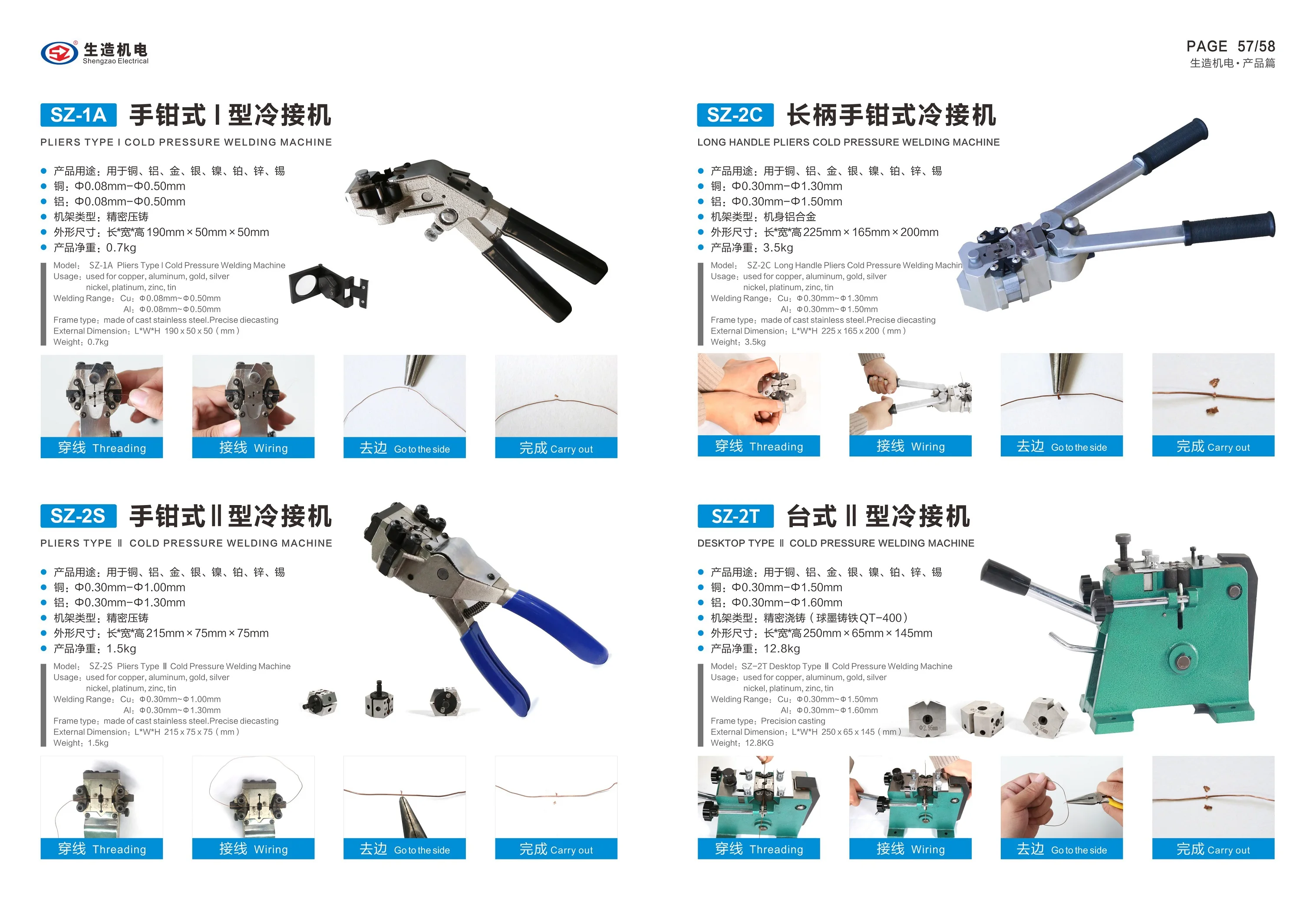

You can choose the suitable machine according to follow Welding Range



Brief description:

1. weld copper wire or aluminum wire; or weld copper wire with aluminum wire

2. no need any power, heat, only match corresponding dies.

3. our machine can weld copper wire from 0.06mm-10.0mm; weld aluminum wire: from 0.06mm-15.0mm.

4. You can choose suitable machine according the wire diameter you need to weld and our machine's welding range.



5. For example, if you want to weld 0.90mm, 1.0mm, 1.20mm, 1.40mm copper wire, you can choose model SZ-3T, SZ-3TR. It should make four single cavity dies or two double cavity dies.

6. Our machine is compatibility with other supplier’s welders. You can use others’ welding machine with our dies; or use our dies on other supplier’s machine.



7. The tolerance of dies to wire: -1%mm+ 3%mm wire to dies tolerance.

For example: 2.0mm dies can weld the wire diameter from: 1.98mm to 2.06mm wires. Dies on model SZ-1A, SZ-1B have no tolerance.



8. Can different metals be welded using cold pressure? Cold welding can be used to join dissimilar materials, such as aluminum to copper.

9. It can weld following wires: copper wire ( purple copper wire, brass wire, including round wire or flat wire, square wire); aluminum wire. Plastic wire and other wires should remove surface insulation part, then welding.



Steel wire can’t be welded.
