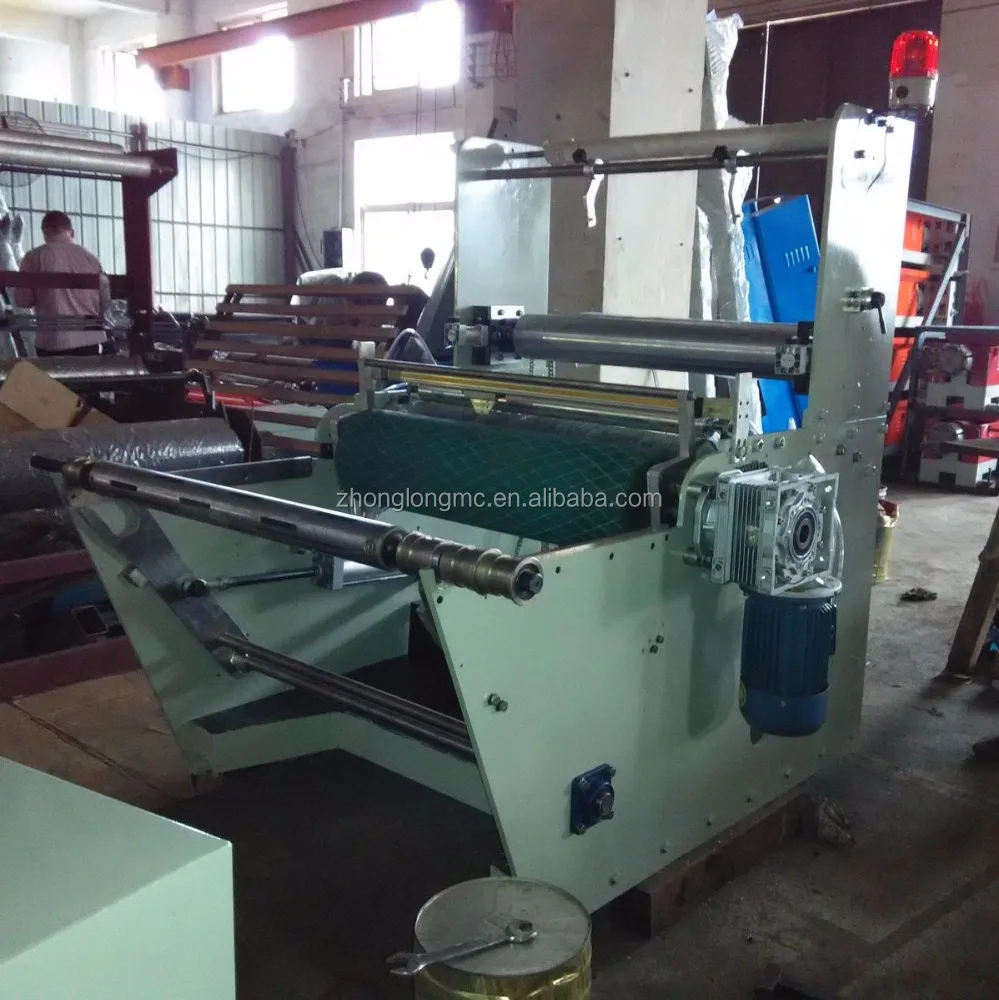

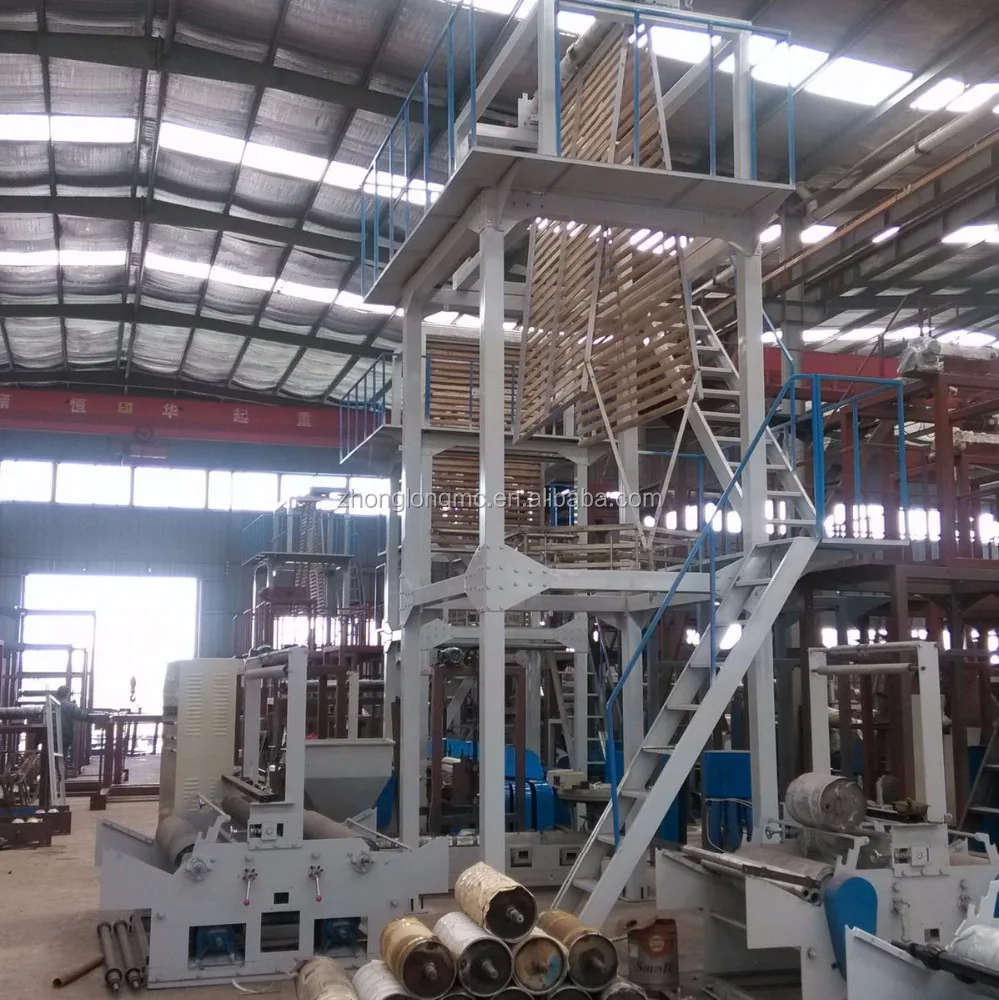

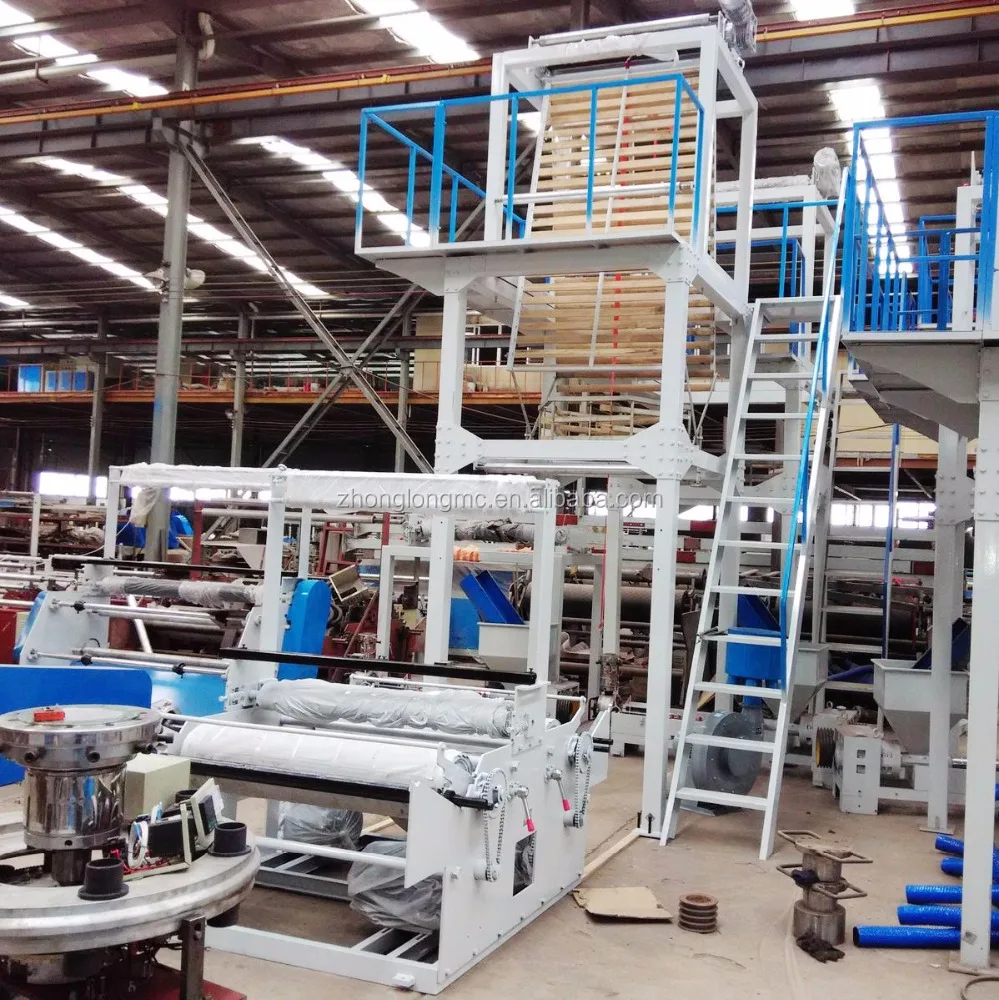

PLASTAR 1500mm Plastic Abc 3-Layer Film Blowing Machine
US $110000-$120000
2018 factory price high speed Plastic PE film blowing machine
- Category: Blown Film Production Line >>>
- Supplier: Ruian Zhonglong Plastic Machinery Co. Ltd. [Zhejiang China]Ruian
Share on (60081999170):
Product Overview
Description
USAGE
High speed PE plastic film blowing machine, for HDPE, LDPE, MDPE, LLDPE, etc.
Kinds of film are widely used for packing liquid, industrial products, garments and textile; for making plastic bags, like T-shirt bag, flat bags, garbage bags etc.
OPTIONAL DEVICE
1. PLC full automatic roll change winder
2. Automatic material feeding
3. Traction up and down lifting
4. Hydraulic filter changer system
5. Corona treatment
6. Double stations winder
Model | SJ-50H | SJ-55H | SJ-60H | SJ-65H |
Film Width | 50-600mm | 80-800mm | 300-1000mm | 400-1200mm |
Main Output | 60-70kg/h | 80-100kg/h | 100-120kg/h | 110-130kg/h |
Main motor power | 15kw | 18.5-22kw | 30kw | 30kw |
Screw Diameter | 50mm | 55mm | 60mm | 65mm |
L/D ratio of screw | 32:1 | 32:1 | 32:1 | 32:1 |
Speed of screw | 150r/min | 150r/min | 150r/min | 150r/min |
Film thickness | 0.005-0.10mm | 0.005-0.10mm | 0.005-0.10mm | 0.005-0.10mm |
Die head size | 60-120mm | 100-170mm | 120-200mm | 120-200mm |
Weight of machine | 2200kg | 2500kg | 3300kg | 3500kg |
Overall Dimension | 4.8*1.8*4.1m | 5.5*2.0*4.2m | 6.5*2.2*5.2m | 6.7*2.4*5.5m |
