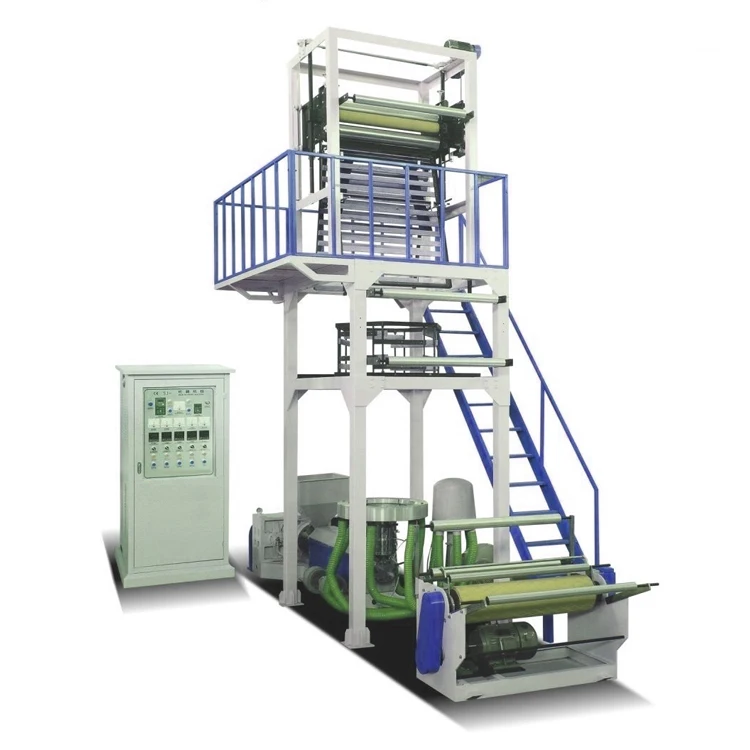

High speed High output Plastic PE film blowing machine

Product Overview

Description





USAGE

It is the plastic film blowing machine for blowing PE(HDPE, LDPE, LLDPE), film; etc.

Which kinds of film are widely used for packing liquid, industrial products, garments and textile; for making plastic bags, like T-shirt bag, flat bags, garbage bags etc.



CHARACTERISTIC

1. frequency inverters main motor and traction motor control.

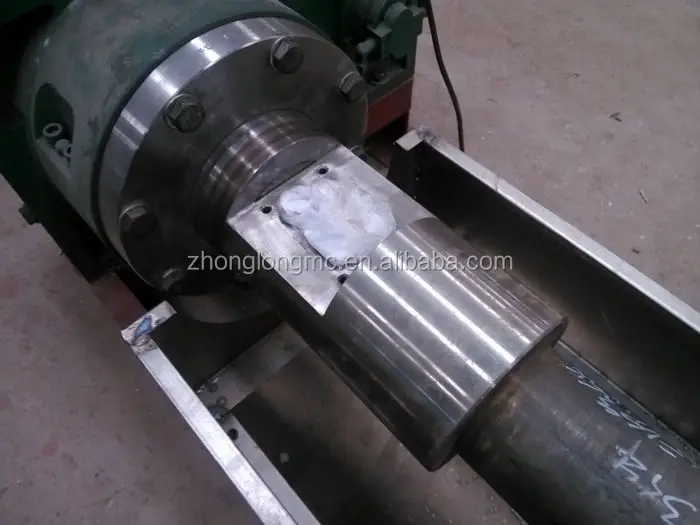

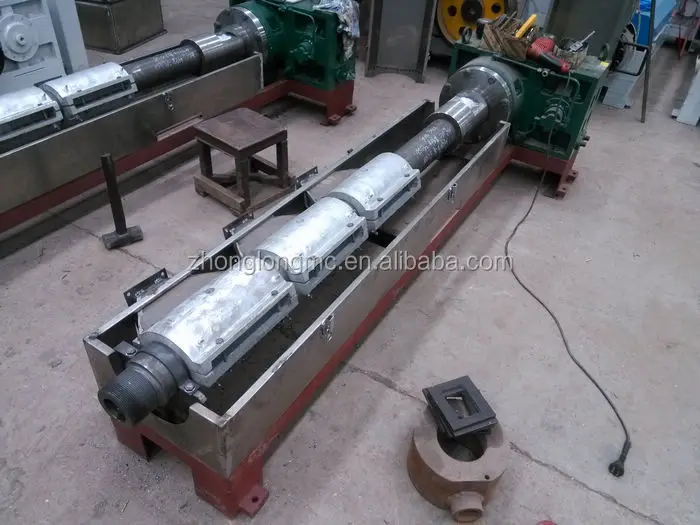

2. Material of screw and barrel: 38CrMoAlA after nitrogen treatment

3. Gear box: hard teeth gear surface, casting alloy piston, high precise grinding

4. Die material: steel No.45 material, hard chrome- plating

5. Double digital display temperature controller in the die head



Model	SJ-50	SJ-55	SJ-60	SJ-65	SJ-75	SJ-100
Max. Folding Width of film	600mm	800mm	1000mm	1200mm	1500mm	2000mm
Main Output	25-35kg	35-50kg	55-65kg	55-70kg	70-80kg	200-220kg
Main motor power	7.5-11kw	11-15kw	15-18.5kw	18.5-22kw	30-37kw	55kw
Screw Diameter	50mm	55mm	60mm	65mm	75mm	100mm
L/D ratio of screw	28:1	28:1	28:1	28:1	28:1	28:1
Speed of screw	10-100r/min	10-100r/min	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Film thickness	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Specification of die head	60-120mm	100-170mm	100-170mm	120-220mm	150-300mm	500mm
Weight of machine	2000kg	2300kg	2500kg	3800kg	4600kg	6000kg
Overall Dimensions [L*W*H]	4.5*1.8*3.5m	5.5*2.0*3.8m	6.0*2.2*4.2m	6.0*2.4*4.3m	7.0*2.7*5.8m	8.0*3.2*7.6m









Zhonglong plastic machinery company is professional, large and high standard manufactory of series plastic packing machines in China.

Our company was established in Year 1997, we have long history, reliable credit, and good technologies, within the years development, we also got several China national patents for plastic packing machines.



Our company professionally produce following equipment:

1.Plastic film blowing machine, like PE one and multi-layers film blowing machine, PP film blowing machine, PVC shrink film blowing machine, POF film blowing machine.

2.Bag making machines for T-shirt bags, Flat bags, Non-woven bags, Drawstring bags.

3.Printing machines: Rotogravure printng machine and flexo printing machine.

4.Plastic recycling machines like plastic granulator, plastic crusher, plastic agglomerator.

5.Plastic disposable cup making line, including sheet extruder, thermo forming machine and etc.



We welcome customers from local market and all over the world to visit our factory to inspect our ability and order machines from us.

We will always to supply our machines with best prices and high standard.



Thanks for visiting our website.



Q. Are we manufactory of trade company?
A. We are factory has big workshop space and long history.



Q. What kind machines we produce?
A. Our factory produce plastic machines, we have plastic film extruder, bag making machine, and plastic bag printing machine, plastic recycling machine, etc.



Q. What kind payment we accept?
A. Payment term like T/T, L/C, Western union, are all ok.



Q. Can we produce the machine as customer costom order?
A. Yes.



Q. Can customer send worker here to study the operation of the machine?
A. Yes.



Q. Can customer send technician here to inspect the machine and loading?
A. We welcome you to visit us for this purpose.



Q. Can we send technician abroad to install the machine and train the workers?
A. Yes. we can send technician by the order of customer.



Q. How long we need to produce the machines?
A. According to different machine model and configuation, we need different time, like 5 days to 2 months.
