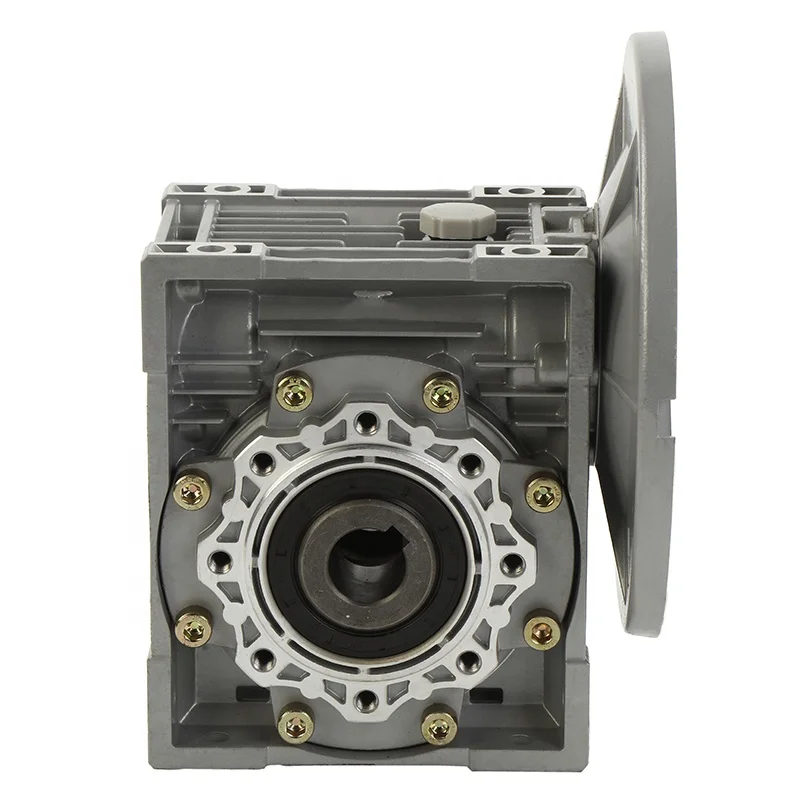

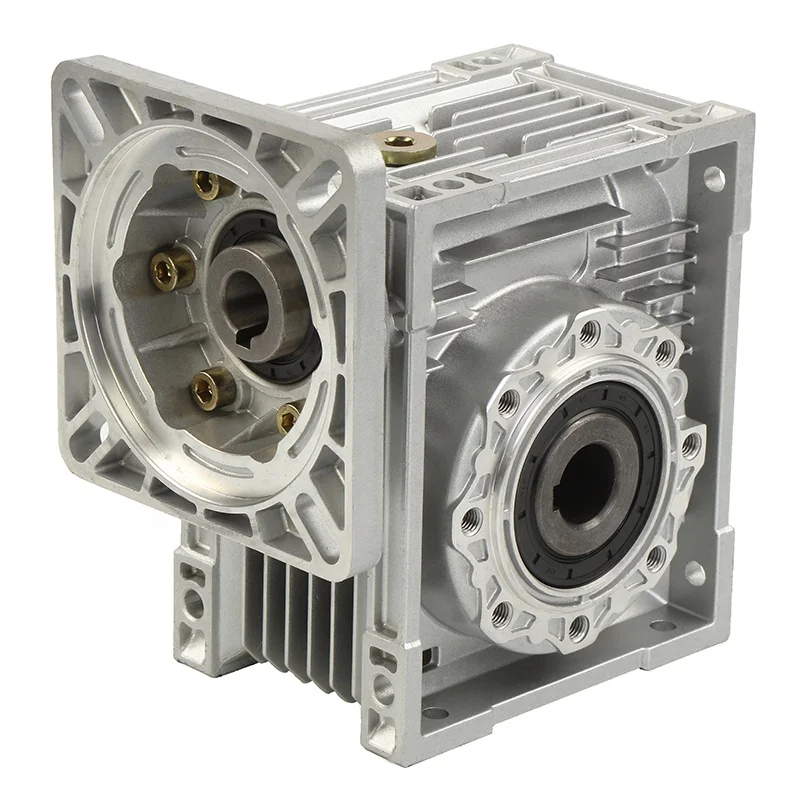

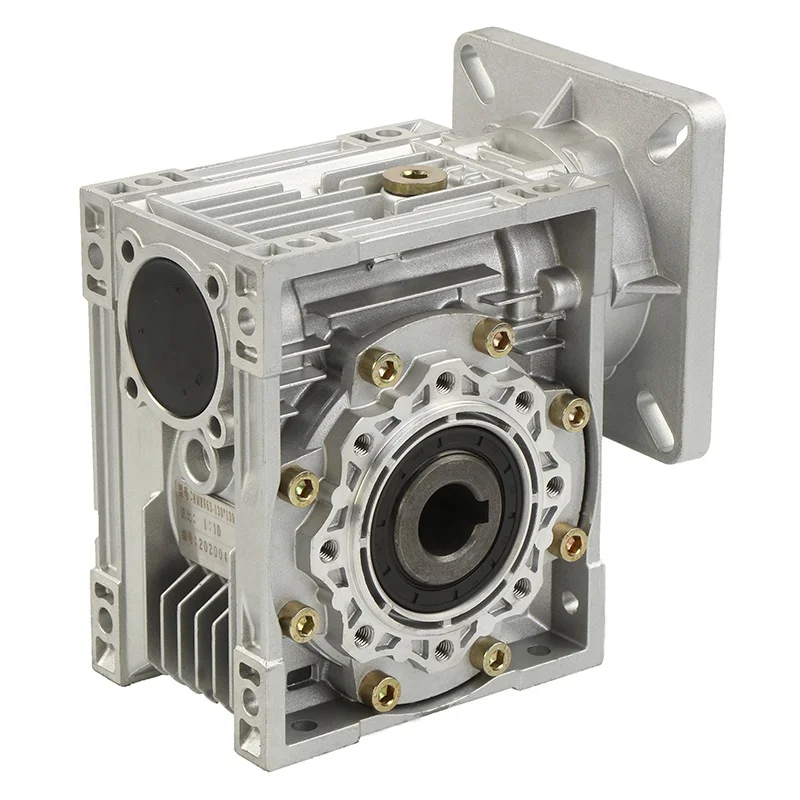

NMRV63 25 Ratio Helical Gear Motor 3 Phase Worm Gear Reducer
NMRV63 25 Ratio Helical Gear Motor 3 Phase Worm Gear Reducer
NMRV63 25 Ratio Helical Gear Motor 3 Phase Worm Gear Reducer
NMRV63 25 Ratio Helical Gear Motor 3 Phase Worm Gear Reducer
NMRV63 25 Ratio Helical Gear Motor 3 Phase Worm Gear Reducer
NMRV63 25 Ratio Helical Gear Motor 3 Phase Worm Gear Reducer
NMRV63 25 Ratio Helical Gear Motor 3 Phase Worm Gear Reducer

NMRV63 25 Ratio Helical Gear Motor 3 Phase Worm Gear Reducer

Share on (60086341603):


Price:

Quantity:


Product Overview

Description



Product Description


Product Name
NMRV worm gearbox
Gear Box's Usage Field
Metallurgy、Mine、Packing、Medical、Electronics、Chemical Industry、Crusher、Textile industry、Agitator、Rotary Weeder、Metallurgy、Compressor……
Material
Aluminum Alloy Housing
Color
Blue/Silver Or On Customer Request
Ratio
7.5,10,15,20,25,30,40,50,60,80,100
Bearing
SKF,C&U,NSK or on customer's request
Packing
Carton with Plywood Case or as clients' requirement
Warranty
1 year
Mounting
flange installation/foot installation
Methods
For various motor or double input/output shafts can be equipped




1.Made of Aluminum alloy die-casting box, good looking in appearance, compact in structure rust proofing on Surface and small volume to save mounting space.

2. Good radiating characteristic leads safe and high efficiency for using.

3. The strong capacity of loading and overload ensure stable transmission, make less vibration and noise.

4. Varies of connecting structure for power input and torque output meet different requirements; the design of box outline and the set of foot hole is apt to with high many kinds of mounting.

5.Besides big cases, no gap structure of box means a maintenance-free that is hermetically sealed. It prevents the lubricant from easily losing and going bad, and exchanging.



Model
Shaft Dia.
Center Height
Power
Ratio
Permitted torque
Weight
Hollow
(mm)
(kw)
(Nm)
(KGS)
NMRV30
14
30
0.09~0.3
7.5~80
22
1.3
NMRV40
18
40
0.12~0.5
7.5~100
55
2.3
NMRV50
25
50
0.18~0.7
7.5~100
120
3.5
NMRV63
25
63
0.37~1.5
7.5~100
175
6.2
NMRV75
28
75
0.55~3
7.5~100
280
9
NMRV90
35
90
0.75~4
7.5~100
425
13
NMRV110
42
110
1.1~5.5
7.5~100
585
35
NMRV130
45
130
1.5~7.5
7.5~100
850
48
Remark: the weight without motor

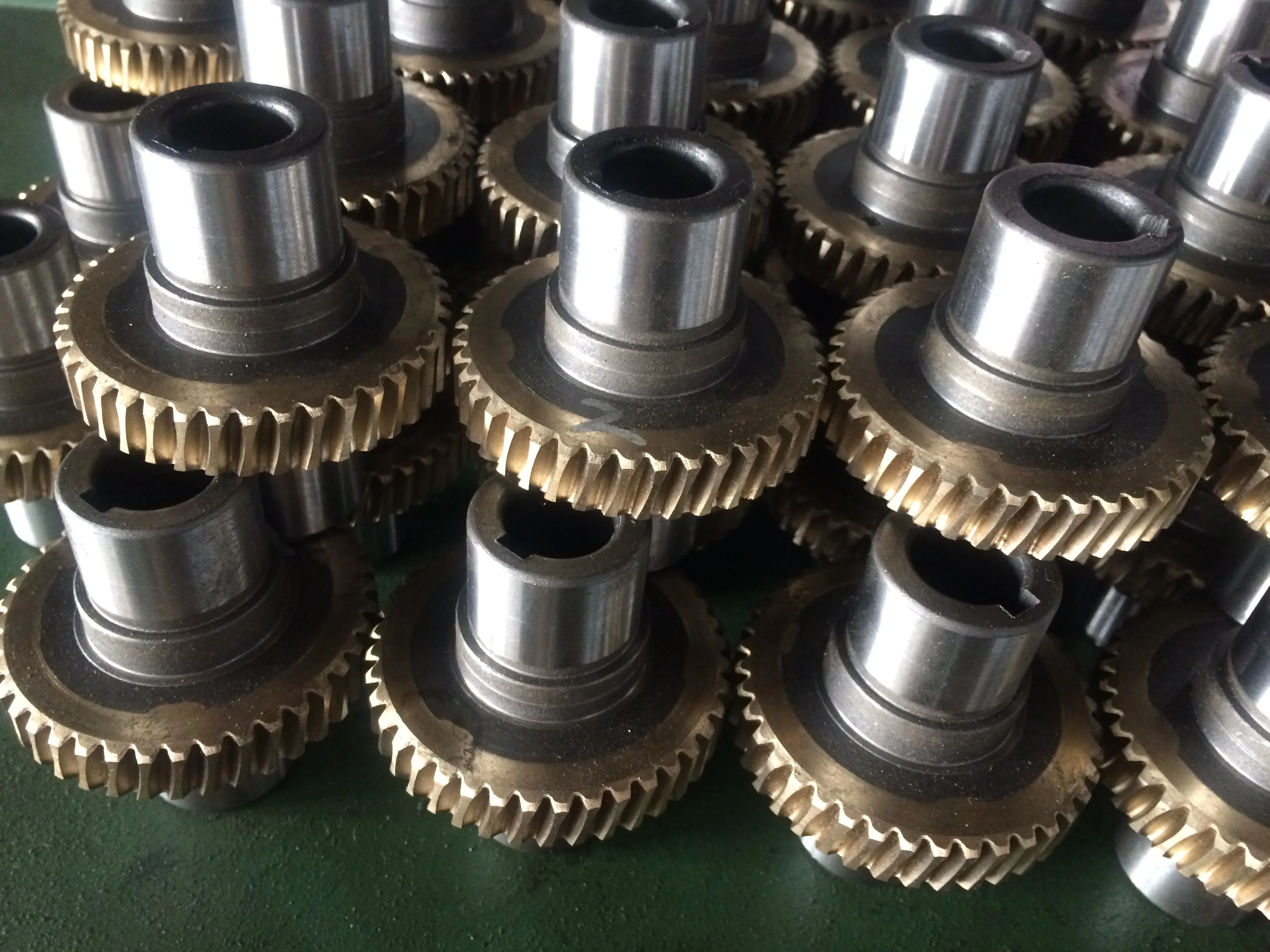

High quality copper is used in the outer ring of the worm wheel,Cast iron in inner ring,fine workmanship and durability




Heat sink design for cooling provides great surface area and higher thermal capacity than the cast iron housing.




The material is adopted in Aluminum alloy or cast iron,suitable for universal mounting

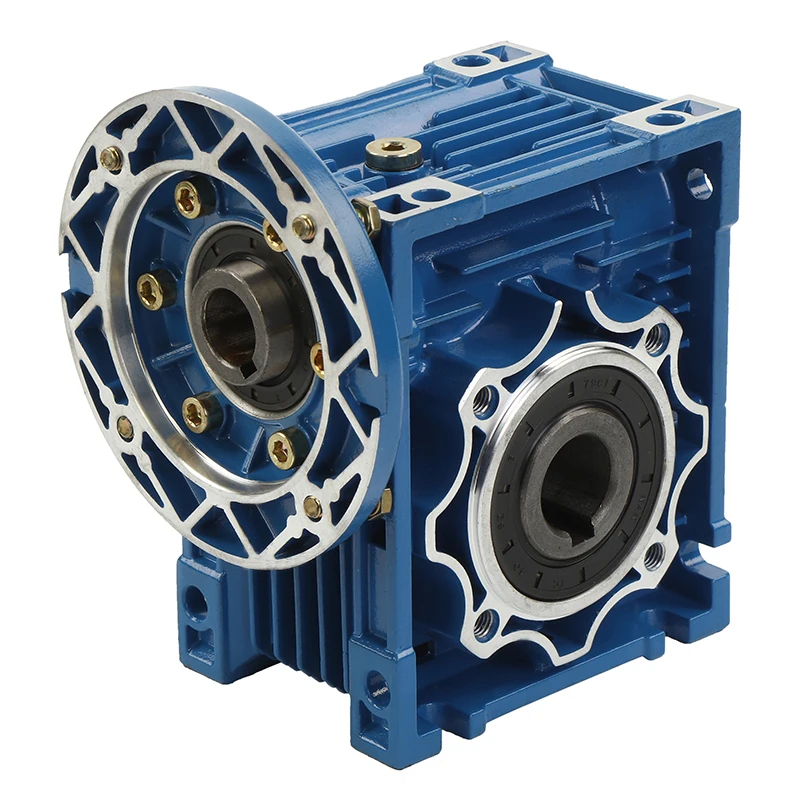

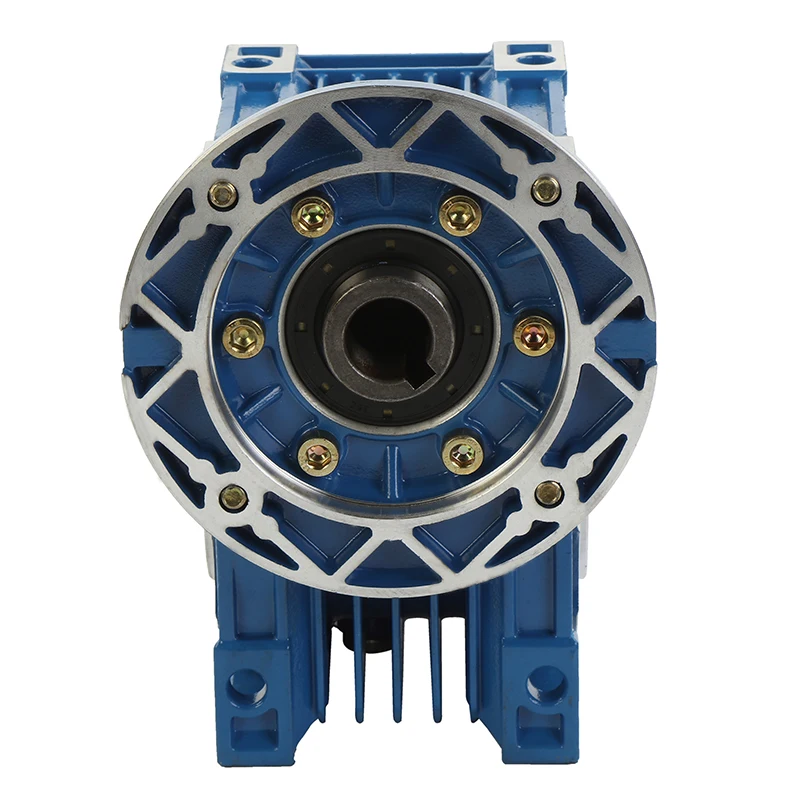

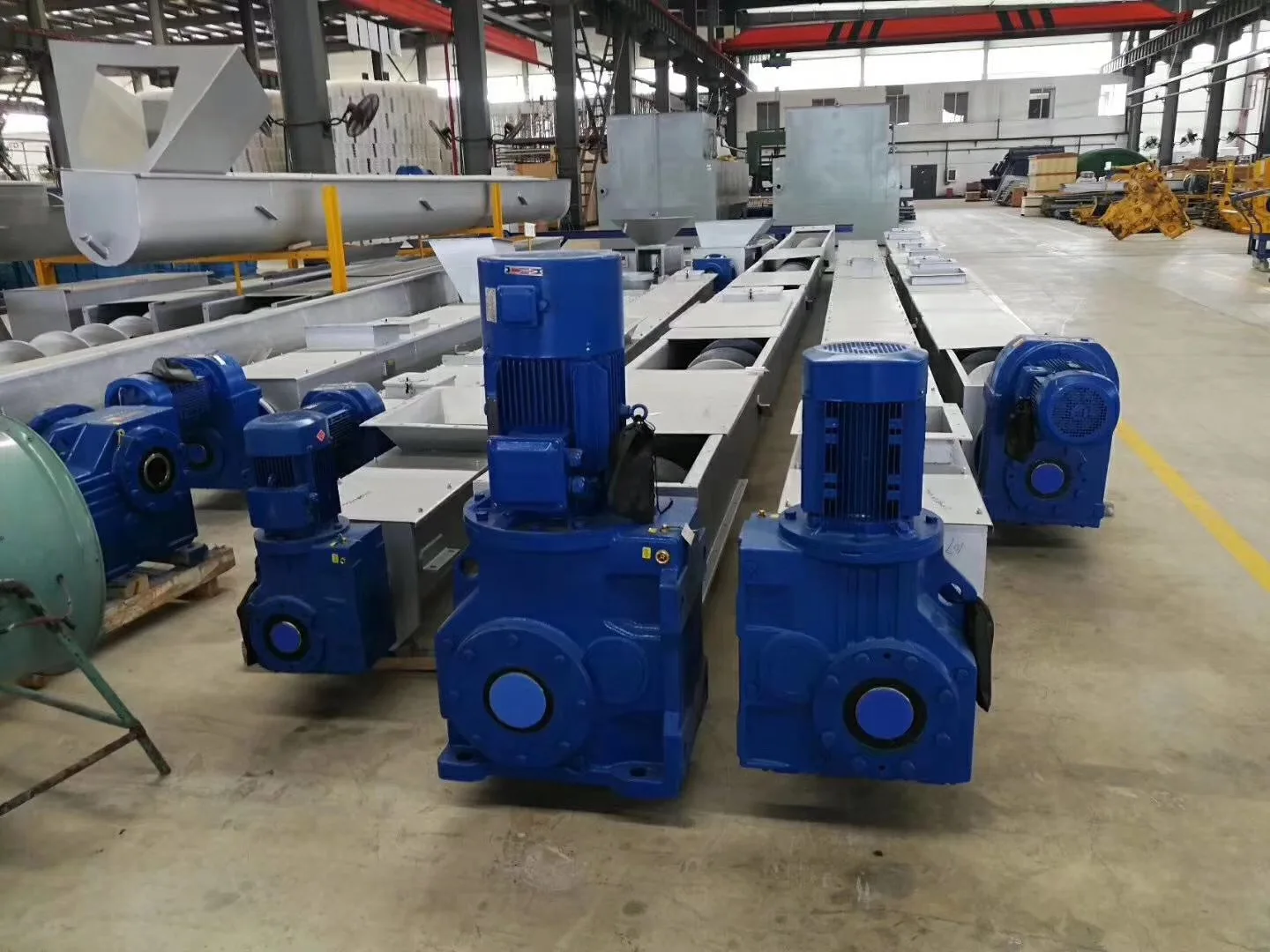

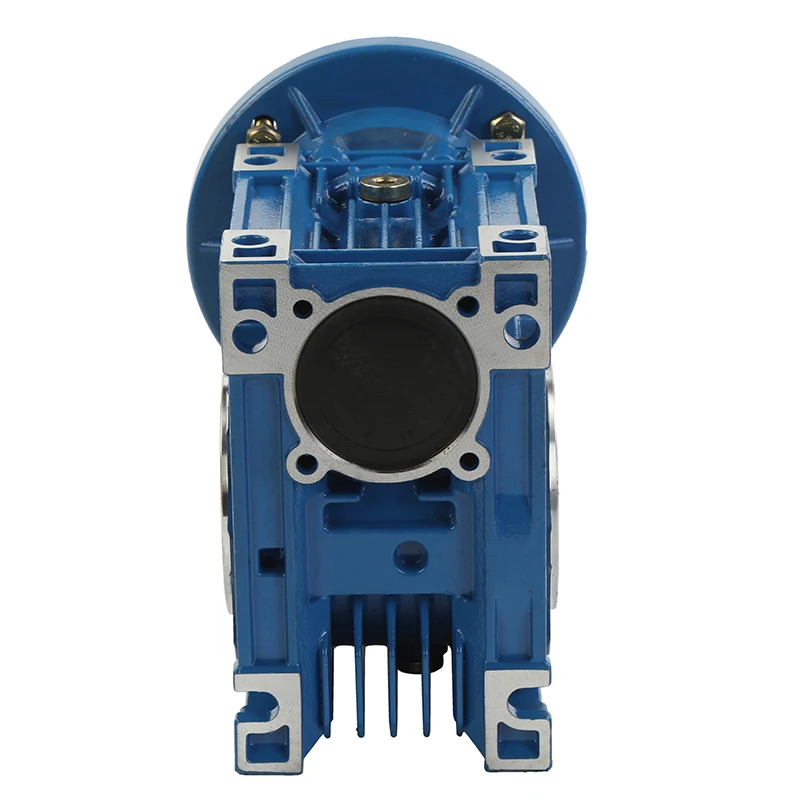

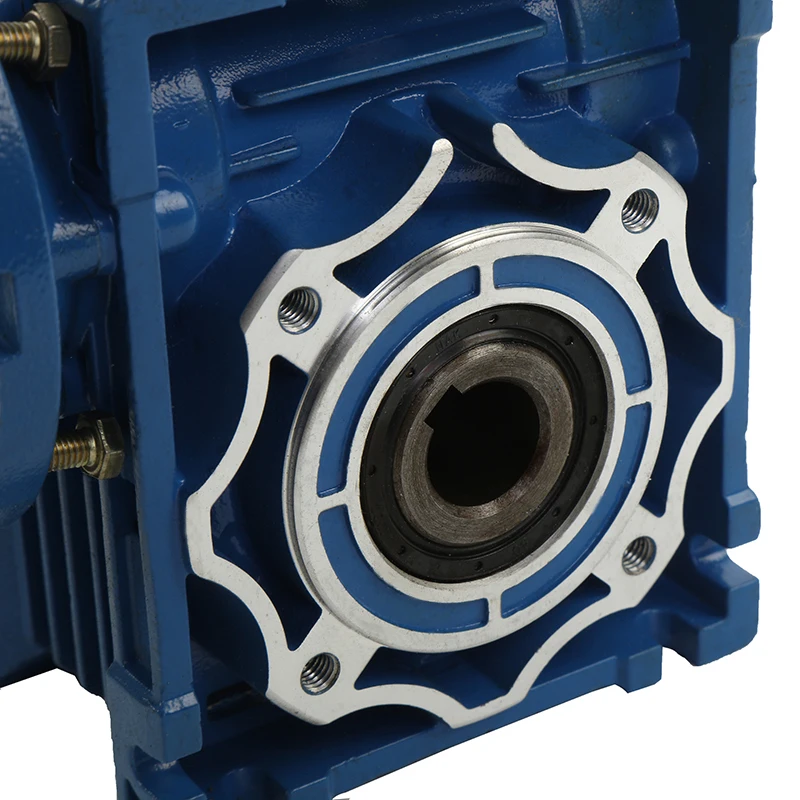

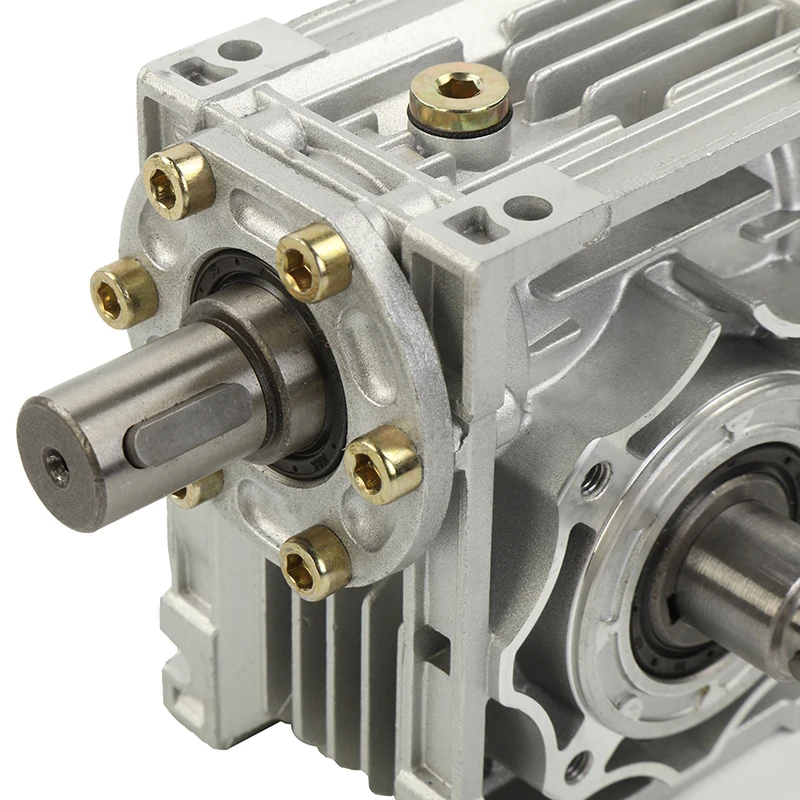

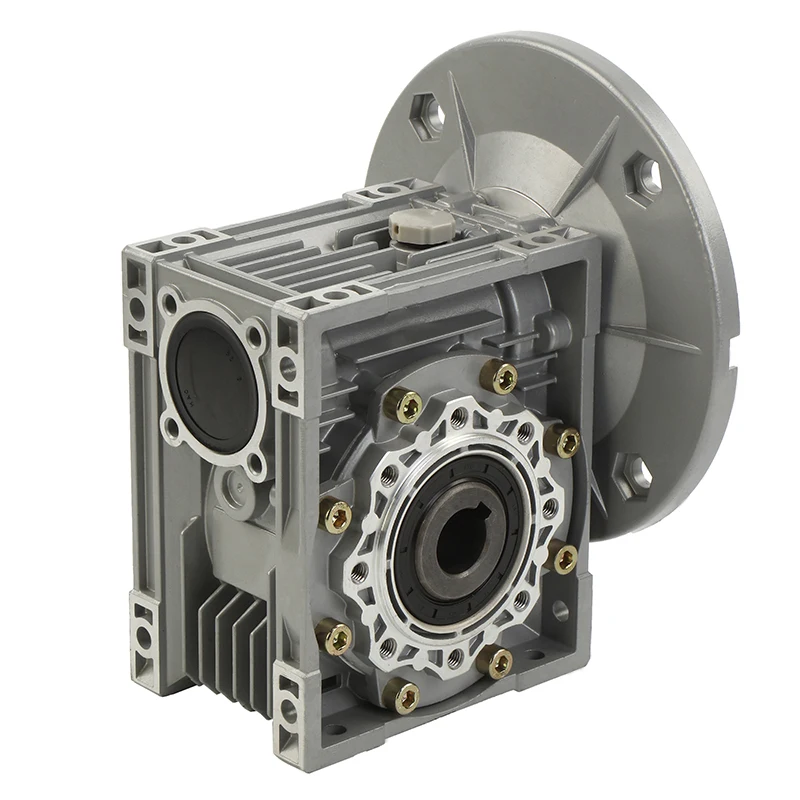

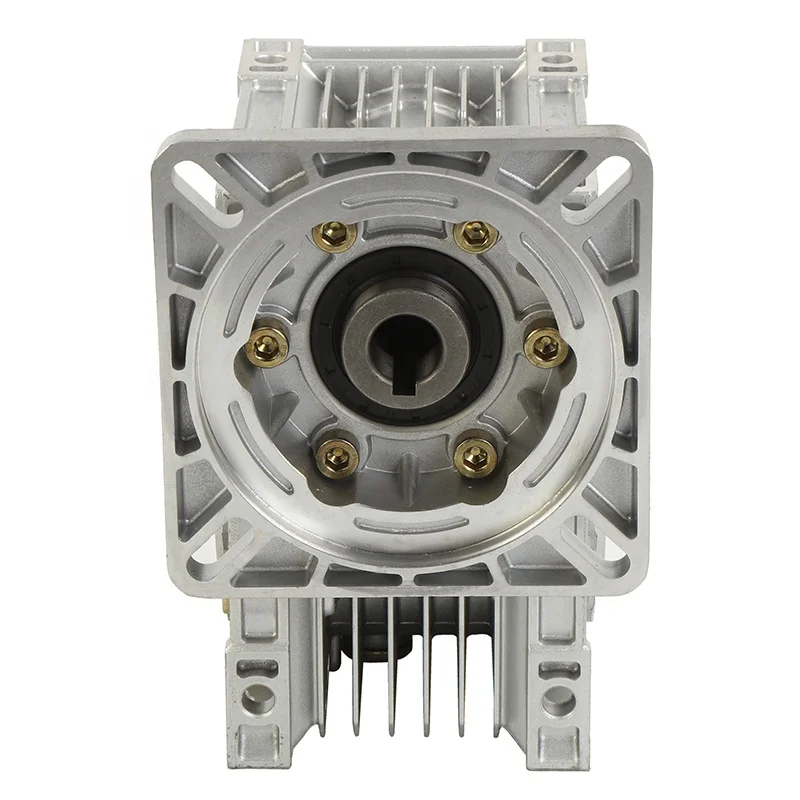

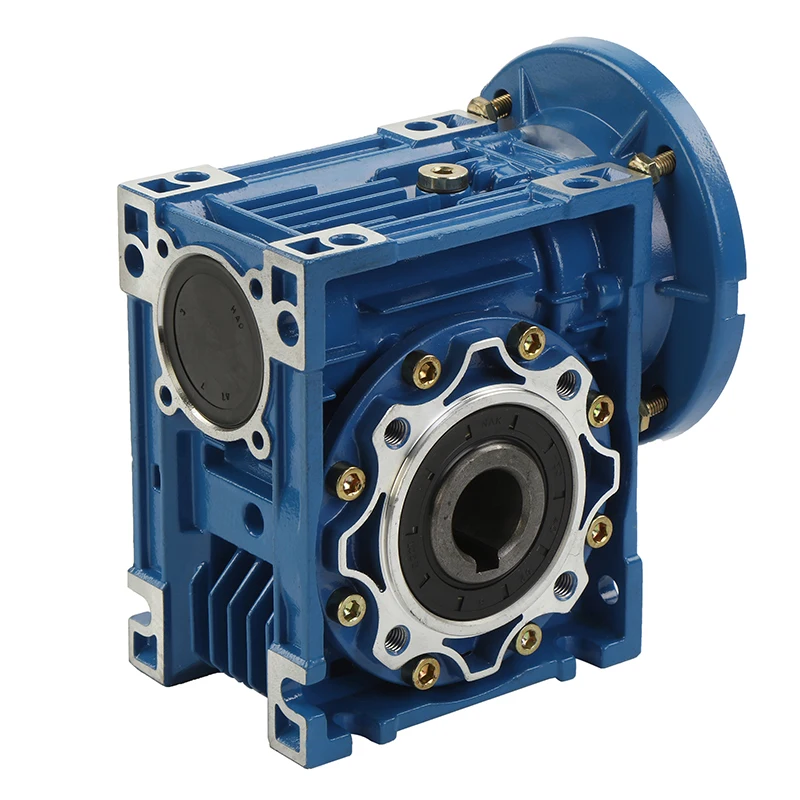

Products Show

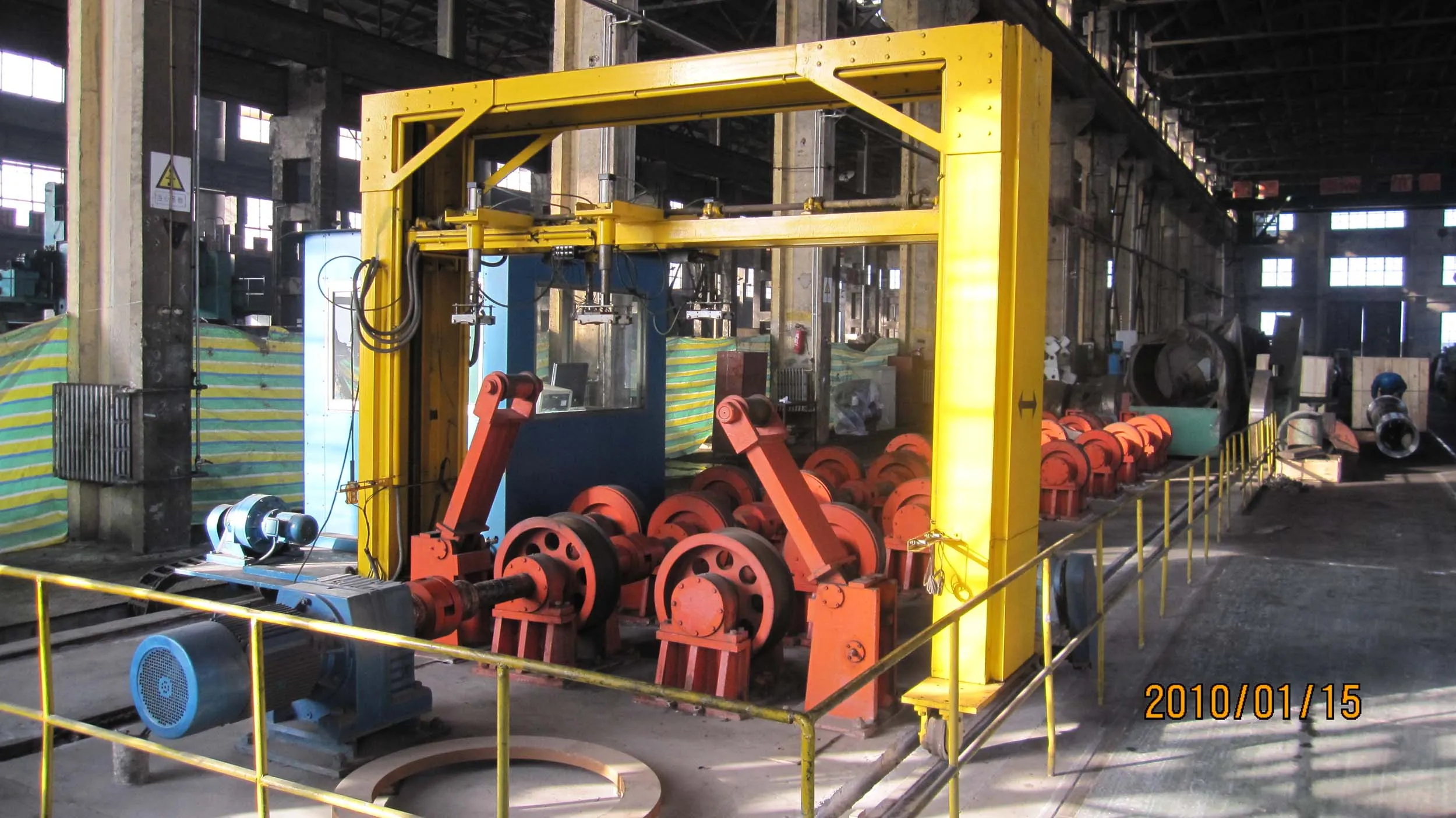

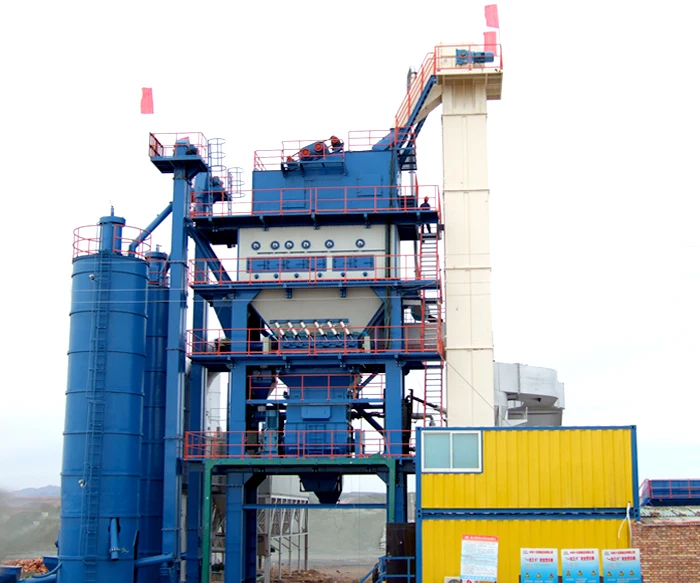

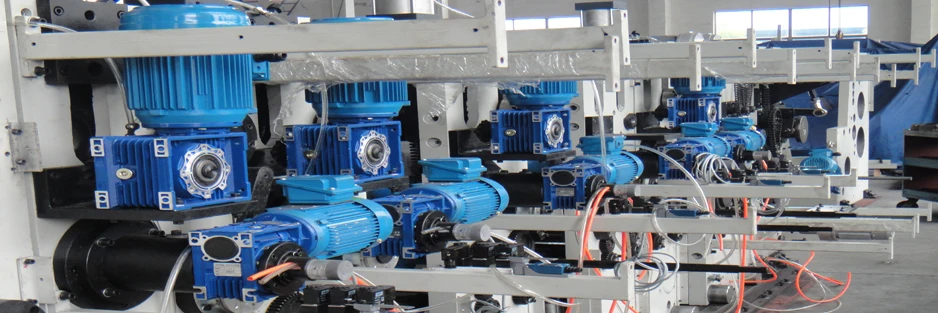

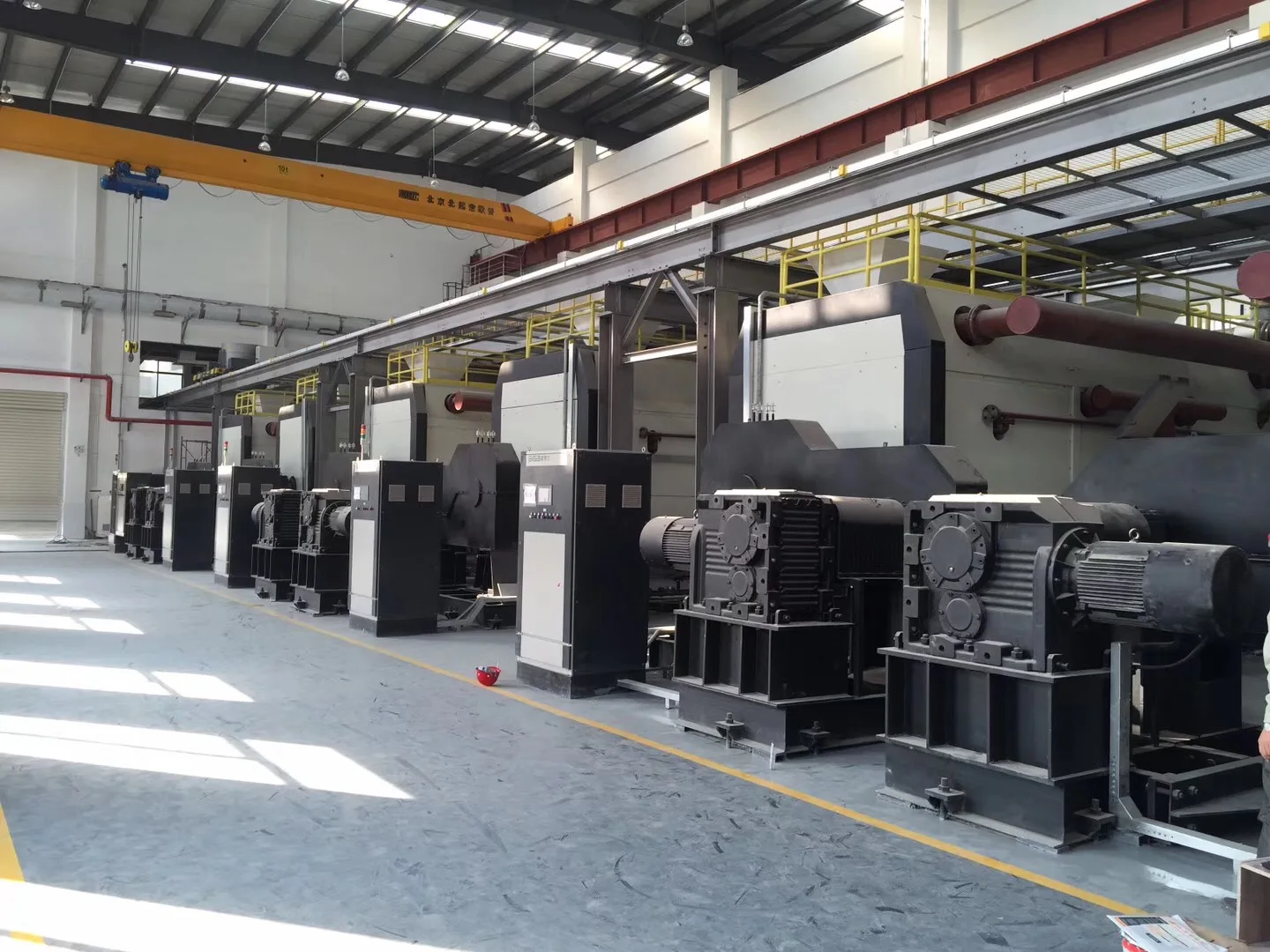

Products Usage

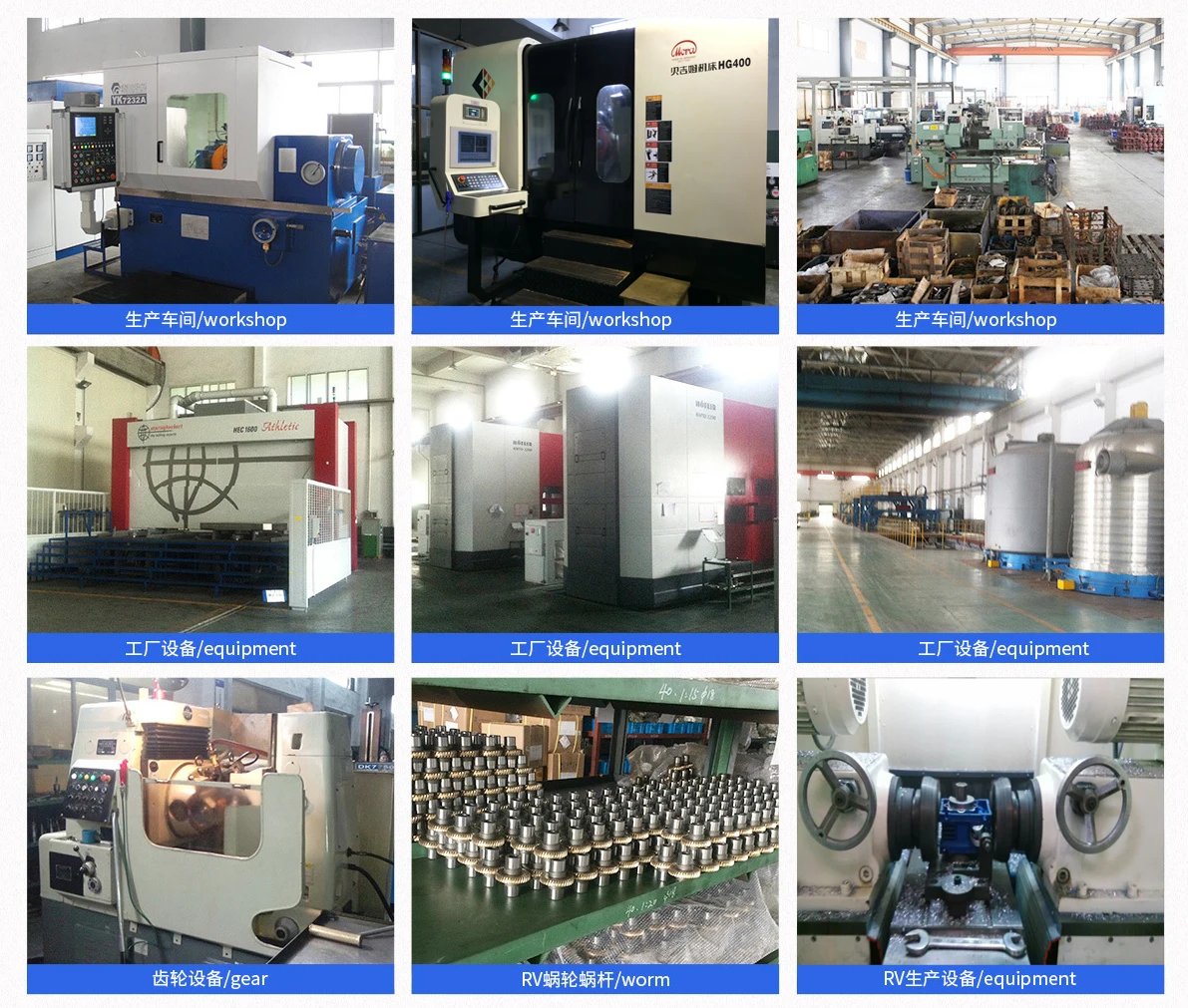

Factory View




Company Profile




Packing & Delivery




Our Service


(1) With excellent quality

(2) Reasonable price

(3) Promise to delivery on time

(4) Large output torque

(5) Safe, reliable, economical and durable

(6) Stable transmission, quiet operation

(7) High heat-radiating efficiency, high carrying ability

(8) Certificate of quality: ISO9001:2008

(9) Every product must be tested before sending

(10)Made of high-quality aluminum alloy, light weight and non-rusting

(11)Large output torque.

(12) Smooth running and low noise.

(13) High radiating efficiency.

(14) Good-looking appearance, durable service life and small volume.

(15) Suitable for Omni bearing installation.



If you have any questions,please feel free to contact me.
