Tollar HD H. 265 1080P 8ch CVI Kit Bullet Cameras 8Ch DVR Combo CCTV Camera Kit
- Category: Surveillance Products >>>
- Supplier: Shenzhen Tollar Security Equipment Co. Ltd.
Share on (60098652040):
Product Overview
Description
Tollar HD H. 265 1080P 8ch CVI Kit Bullet Cameras 8Ch DVR Combo CCTV Camera Kit
PRODUCT DESCRIPTION
Camera Features:
1080P HD resolution, the image is clearer, finer data transmission zero delay, full real-time, high fidelity transmission distance, coaxial transmission up to 500 meters standard coaxial control, back-end call OSD support coaxial upgrade, version upgrade convenient High-efficiency N system P system two-in-one, back-end deployment, easy to switch the price of ordinary simulation, high-definition quality products
DVR Features:
1. Support VGA, HDMI full HD output;
2. Support a variety of cloud technologies, network penetration, front-end docking, alarm information pushed to mobile phones, etc.;
3. Support Web, CMS, central platform management software MYEYE;
4. Remote access, own domain name service function (ARSP), remote monitoring one button enabled.
| AHD Camera | |
| Sensor | 1/3.6 inch SC2045 sensor |
| APP | XMEYE |
| Video Clarity | PAL/NTSC: AHD-H Definition (TVL) is equivalent to Network HD 1080P Camera |
| Minimum illumination | "Color: 0.1Lux@(F1.2, AGC ON), 0Lux with IR |
| Black and white | 0.01Lux@(F1.2, AGC ON), 0Lux with IR" |
| Photosensitive resistor port | 1 photoresistor interface, support photo resistance input signal and image, IR-CUT, infrared light linkage |
| Shutter | 1/50 (1/60) seconds to 1/10,000 seconds |
| Day and night function | Support IR-CUT mechanical switching |
| Infrared distance | 25m |
| Lens parameters | C / CS interface, M12 lens optional |
| Synchronization method | Internal synchronization |
| Signal to noise ratio | >58dB |
| Working temperature and humidity | -10 ° C ~ 60 ° C, humidity less than 90% (no condensation) |
| Power supply | DC12V±10% |
| Power consumption | <5W |
| Size | 17mm*7mm*7mm |
| Weight | 163g |
| DVR | |
| Main processor | Industrial grade embedded chip Hi3520D |
| Operating System | Embedded LINUX Operating System |
| System resources | Simultaneous multi-channel real-time recording, multi-channel real-time playback, multi-channel multi-person network operation, USB backup |
| Operation interface | 16-bit true color graphical menu operation interface, support for mouse operation |
| Screen display | 1/4 screen (in the pure local input mode as an example, other depending on the channel mode) |
| Image codec | H.264 |
| Monitoring quality | VGA, HDMI HD |
| Playback quality | 4*1080N@12fps |
| Coding ability | 4*1080N@12fps |
| Decoding ability | 4*1080N@12fps |
| Multi-mode input | pure analog: 4*1080N |
| Mixed | 2*720P+2*720P (network); |
| Pure network | 4*1080P; 8*720P; |
| Motion detection | 192 (16*12) detection areas can be set per screen; multi-level sensitivity can be set (local channel only) |
| Audio compression | G.711A |
| Intercom | Support |
| Recording mode | Manual > Alarm > Dynamic Detection > Timing |
| Local playback | 1 |
| Video query | time point search, calendar search, event search, channel search |
| Recording save | local hard disk, network |
| Backup method | network backup, USB mobile hard disk, USB burning, SATA burning |
| Video input | 4-way BNC |
| Video output | 1 channel VGA, 1 channel HDMI |
| Loop-through output | none |
| Audio input | 1 way RCA |
| Audio output | 1 way RCA |
| Alarm input | none |
| Alarm output | none |
| Network interface | RJ45 10M/100M adaptive Ethernet port |
| PTZ control | none |
| USB interface | 2 USB ports |
| Hard disk interface | 1 SATA interface (maximum 8T each) |
| Wireless interface | none |
| Power | 12V/2A |
| Power consumption | less than 15W (without hard disk) |
| Working temperature | 0°C—+55°C |
| Working humidity | 10% - 90% |
| Atmospheric pressure | 86kpa—106kpa |
| Size | 305mm*230mm*60mm |
| Weight | 881g (single video recorder does not contain hard disk weight) |

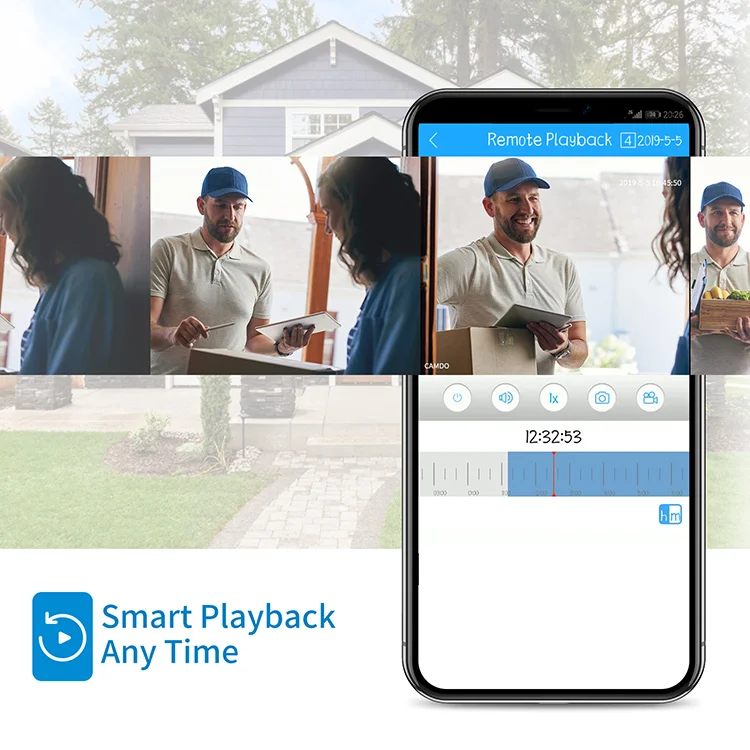

Smart Playback Anytime
You can search the recorded video on the timetable,Easy to playback any moment you'd like to check.

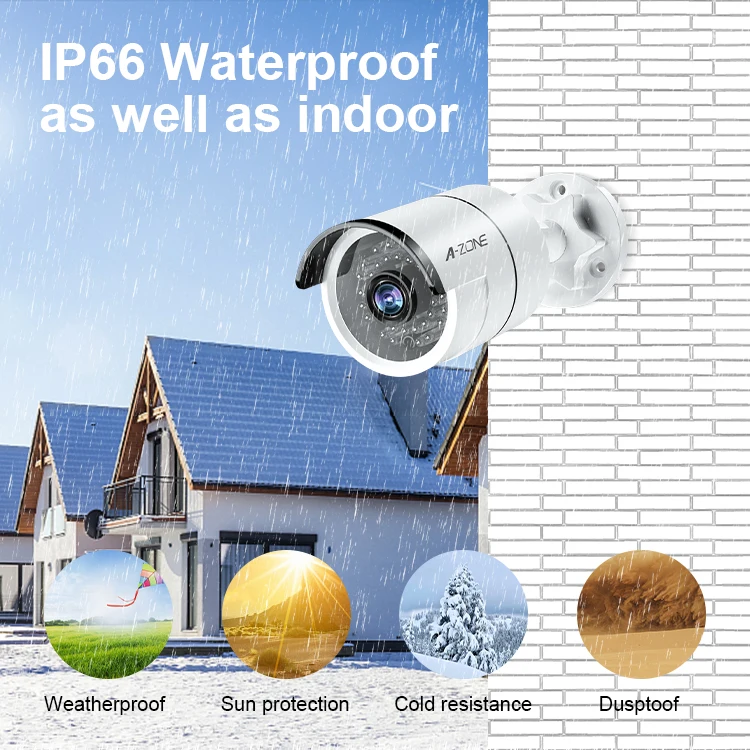

IP 66 Waterproof
Can work in rainy day,snow day and any weather.

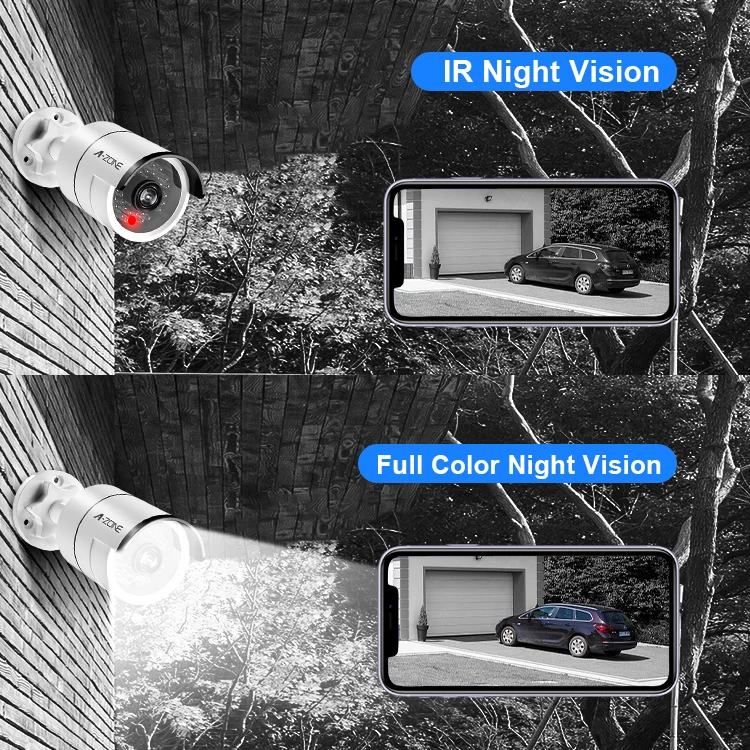

Night Vision
Built-in IR-CUT core module,better surveillance effect,no color cast and no image distortion.Enhance color purity of the day,and night vision effect
Remote View Anytime Anywhere

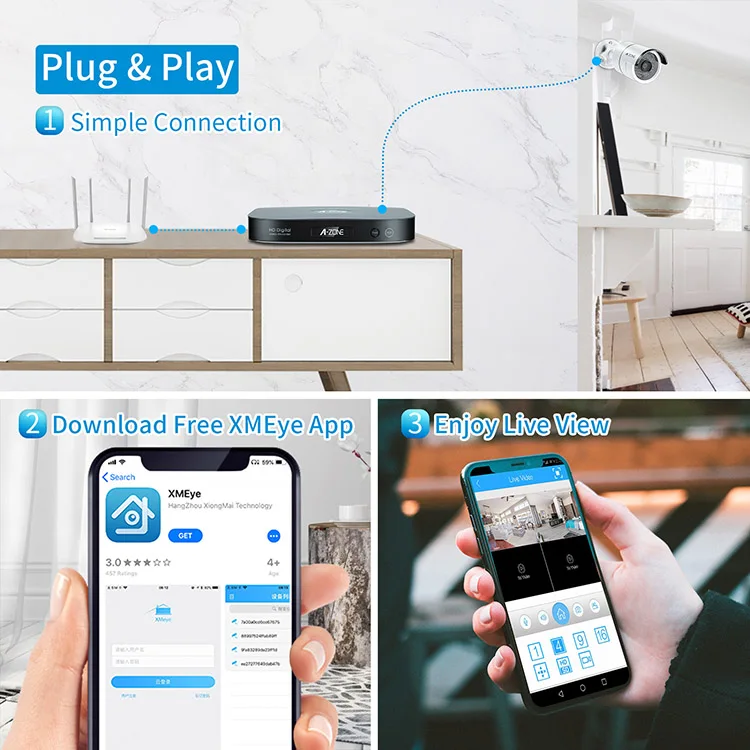

Install mobile APP through scanning QR-code or download from APP store.Then you can remote access the security system anytime anywhere
Motion Detection&Email Alert
Can set multi-zone for motion detection;We introduced intelligent motion detection technology,
and build the most reliable security system for your home/business,alarm message will be sent to you once it happen.

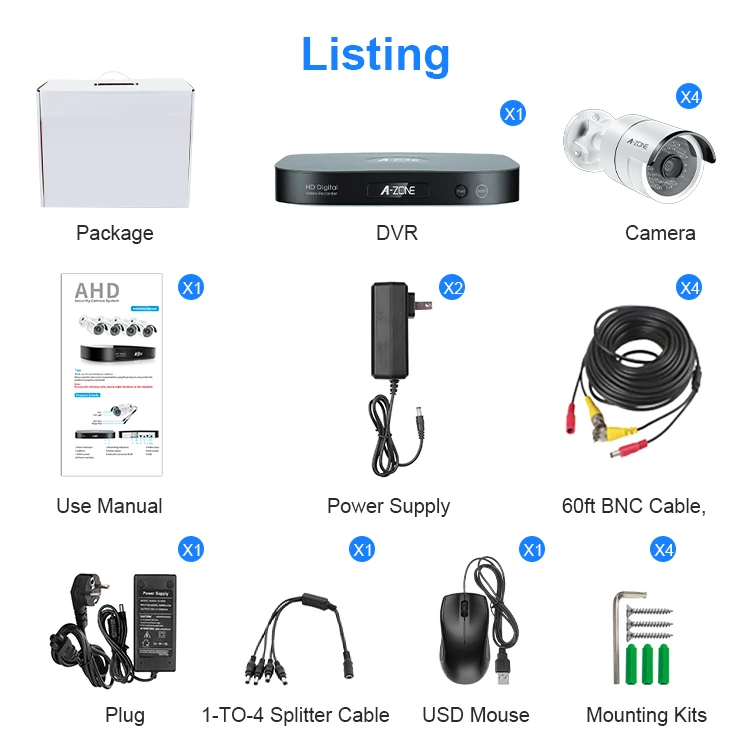

Package Include:
4*AHD 1080P Cameras
1*8CH/4CH DVR

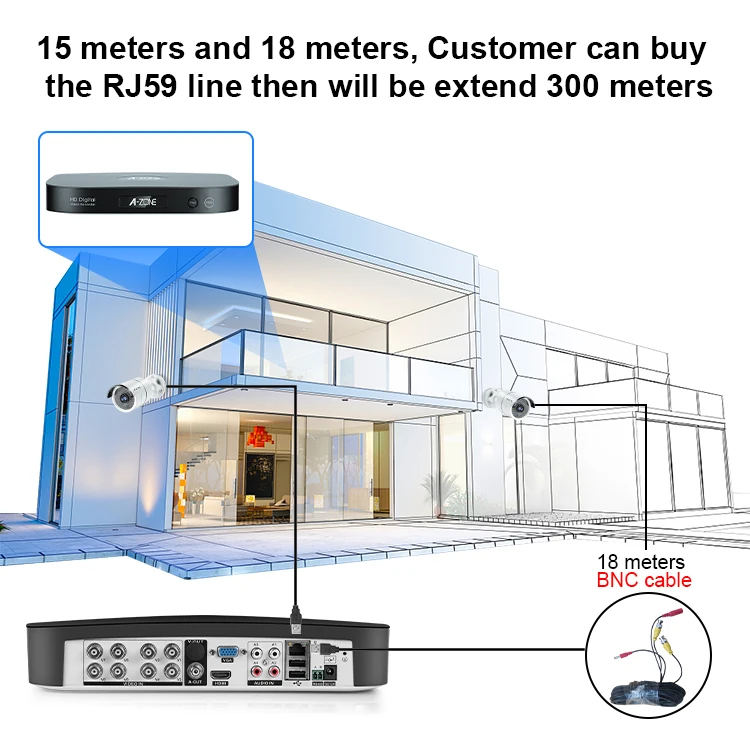

4*15M BNC Cable
4*12V/2A power adapter
1*1-to-4 power splitter
1*USB mouse
1*User Manual
1*Connection guide
This picture shows the function of recognition of Face

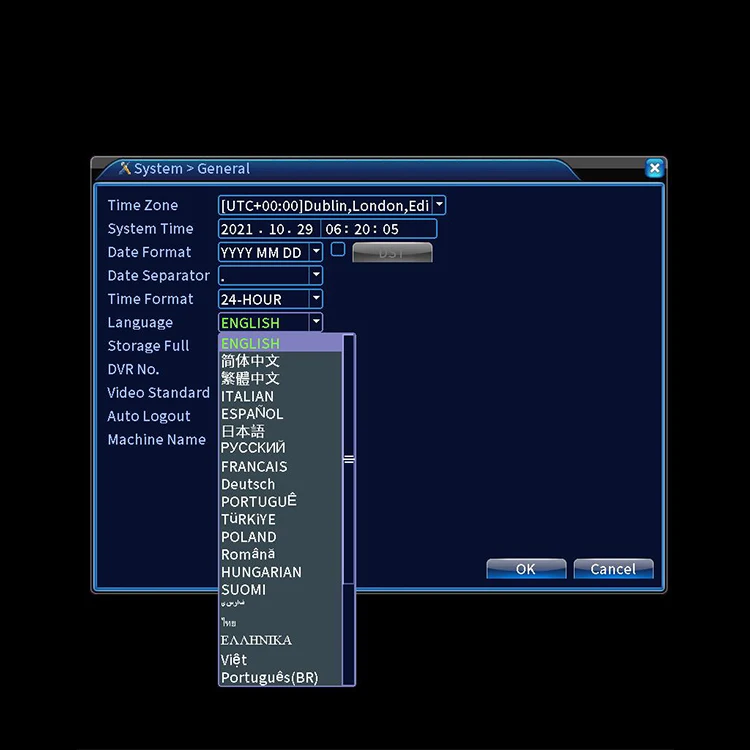

There are a knind of language of some country.
Hot Sale Product
Why Choose Us?
Warranty & Feedback
Warranty
One year warranty for all the products, any unit which proves defective during the validation period will be repaired without charge for parts or replaced.
The end user is responsible for all freight charges .The warranty does not cover any incidental, accidental or consequential damages arising during using.
Feedback&Rating
We sincerely appreciate your business .We will offer you a small gift. If you are satisfied with our products and service, please offer us a Positive feedback and 5 Stars rating. Your recognition will make us more confident to develop our business and serve you better.
If you are not satisfied by any reason, please feel free to contact us, communication is much more efficiently than opening a dispute.Our customer service and tech support will do our best to offer you a satisfied solution.
About TOLLAR VISION
Shipping
Warehouse
Shipping from Spain/US/Italy/France/Russian warehouse will be FREE of customs tax.
Spain/US/Italy/France/UK/Russian warehouse only ship to local address.
1.Normally the goods will be sent within 5-10 working days after your payment is verified by Alibaba.
2.Please check your address and contact number is right, especially check your post code and city is correct information, otherwise your parcel won't be ship out.
3. The buyer shall have the customs clearance capability, and we aren't responsible for all the local customs clearance fees of the buyer.
FAQ
Q1: What is your company’s competitive advantage?
A1: TOLLAR VISION is a professional manufacturer of R&D, Production, and Marketing (3 in 1) in security camera system and solar light camera more than 10 years.
A.Service:OEM/ODM orders are welcomed!
B.Certificates:RoHs,FCC,CE,EMC,PSE and ect.
Q2: How about your company's production capacity?
A2: Complete HD-Camera: 80,000pcs/Month.
Q3: What's the MOQ?
A3: Online order:2Pcs/Model
OEM/ODM:Our minimum order qty is 100pcs each model, but we accept small order as trial order.
Q4: What is your delivery time?
A4: Complete HD-Camera system:
A) Within 3-5 working days for samples order,
B) Within 7-15 working days for bulk order.
Q5: What shipping method can i choose? How about the shipping time?
A5: For EU / US order, by local express about 1-3 days.
For small order, by air express like DHL, UPS, TNT, FedEx ,Aramex and etc, about 3-7days.
For big order, by air about 7-12 days, by sea about 15-35 days.
Q6: How about your warranty?
A6: Warranty is 48 months, life-time maintain!
Q7: Why we select TOLLAR VISION ?
A7: 0 Risk Policy: return within 7 days for any dissatisfaction.
Q8: How can you guarantee your quality?
A8: Normally we will send you a sample to confirm everything first. We will make the big order exactly the same as you request. The order can be also placed through alibaba trade assurance, it can guarantee the quality and delivery, if it has quality disrepency, Alibaba will help you and return the money to you.
