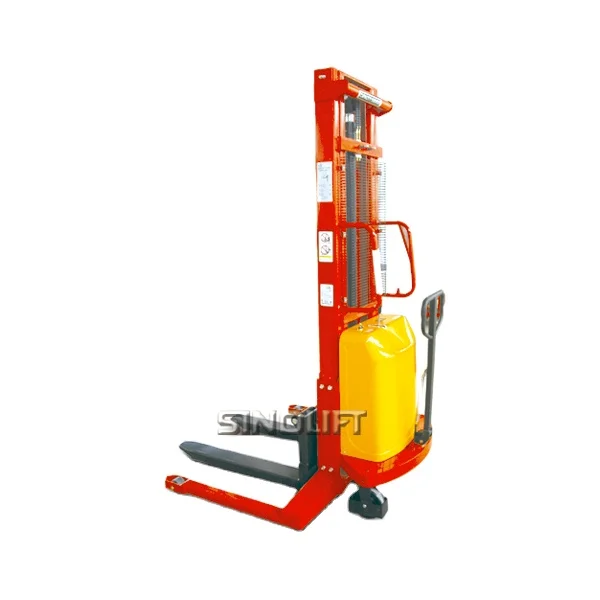

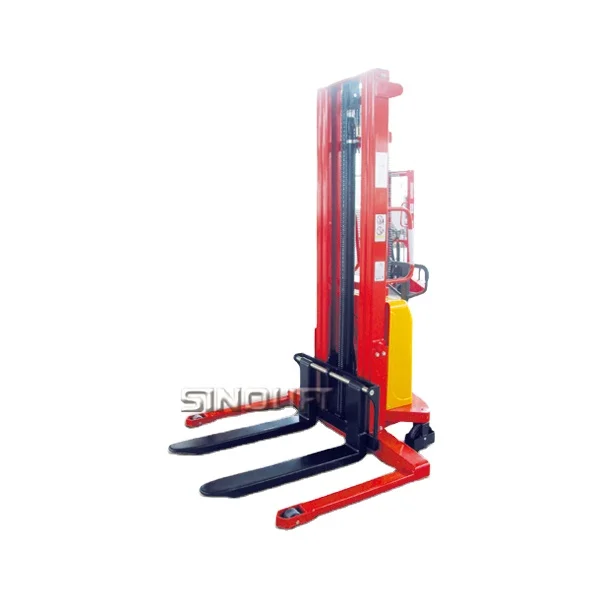

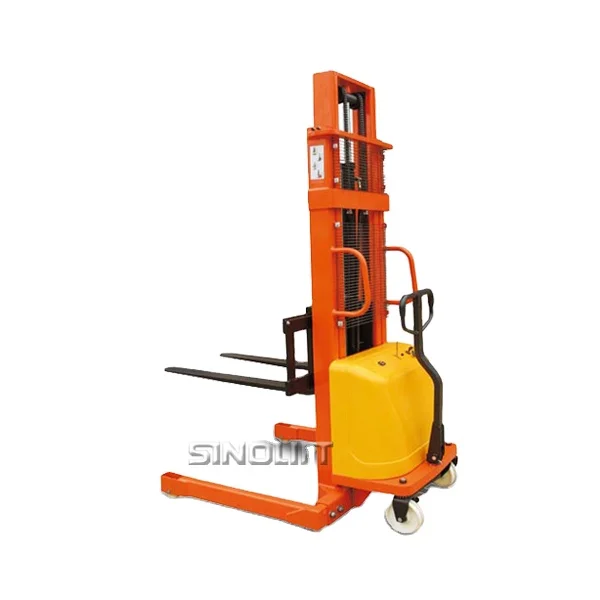

CTD W Series Sinolift Wide Straddle Leg Semi Electric Stacker

Product Overview

Description

CTD-W Wide Straddle Leg Semi Electric Stacker



1)Features

This Stacker is mobile, with easy pushing or pulling by hand. All wheels are provided with double ball bearings with dust covers.

Lifting & Lowering of forks is done by the hand lever placed on the front cover. The lifting Forks are easily adjustable to decrease or increase the width as above, required for Pallets as available with user.

High quality Power pack with minimum & easy maintenance is designed for these type of stackers. Battery meets international standards and to charge the battery, 220 V AC Power supply is required to battery charger. A digital display of Battery Charging is provided on the front cover which shows sharging position of Battery while using or charging the Battery.

Excellent after sale service and parts are available over the shelf.

2)Specification Date

Model		CTD1000-20W	CTD1000-25W	CTD1000-30W	CTD1000-35W
Rated Capacity(Q)	Kg	1000	1000	1000	1000
Mast	/	2-stage Mast
Lifting Height(H)	Mm	2000	2500	3000	3500
Fork Length(L)	Mm	1000	1000	1000	1000
Fork Width(E)	Mm	240-950	240-950	240-950	240-950
Load Center(C)	Mm	400	400	400	400
Minimum Turning Radius(R)	Mm	1700	1700	1700	1700
Lifting Motor	V/Kw	12/1.6	12/1.6	12/1.6	12/1.6
Battery	V/Kh	12/120	12/120	12/120	12/150
Charger	V/Kh	12/15	12/15	12/15	12/15
Overall Length(A)	Mm	1660	1660	1660	1660
Overall Width(B)	Mm	1000-1500
Overall Height(H1)	Mm	1580	1830	2080	2330
Net Weight	Kg	435	460	480	510



Model		CTD1500-20W	CTD1500-25W	CTD1500-30W	CTD1500-35W	CTD1500-40W	CTD2000-20W
Rated Capacity(Q)	Kg	1500	1500	1500	1500	1500	2000
Mast	/	2-stage Mast
Lifting Height(H)	Mm	2000	2500	3000	3500	4000	2000
Fork Length(L)	Mm	1000	1000	1000	1000	1000	1100
Fork Width(E)	Mm	240-950	240-950	240-950	240-950	240-950	240-950
Load Center(C)	Mm	400	400	400	400	400	400
Minimum Turning Radius(R)	Mm	1700	1700	1700	1700	1700	1700
Lifting Motor	V/Kw	12/1.6	12/1.6	12/1.6	12/1.6	12/1.6	12/1.6
Battery	V/Kh	12/120	12/120	12/120	12/150	12/150	12/120
Charger	V/Kh	12/15	12/15	12/15	12/15	12/15	12/15
Overall Length(A)	Mm	1660	1660	1660	1660	1660	1660
Overall Width(B)	Mm	1000-1500
Overall Height(H1)	Mm	1580	1830	2080	2330	2580	1580
Net Weight	Kg	460	485	505	530	570	480



***  Optional flat fork.

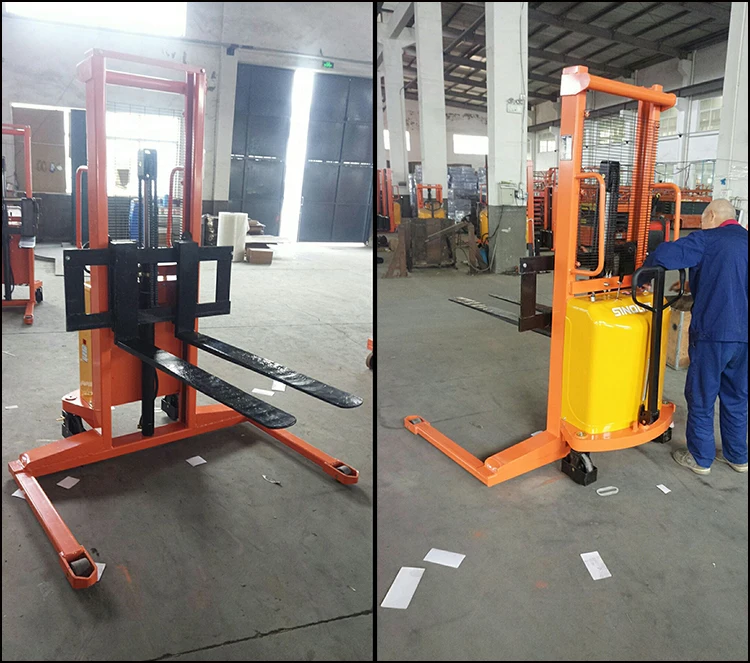

3)Photos







4)Workshop



5)Certificate

Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.



6)Terms and Service

Lead time	3-4 weeks
Packing	Standard export fumigated wooden pallet, foam rubbers
Payment term	T/T payment in advance; L/C at sight
Lead term	FOB Shanghai or CFR/CIF
Warranty period	12 months
Shipping method	by sea or air; by express



 7) Warranty Policy and Service Program

SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.



Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.



If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.



SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
