HDPE LDPE Biodegradable Carry Polythene Garbage T Shirt Shopping Plastic Bag Making Machine Price
- Category: Bag Making Machines >>>
- Supplier: Ruian Jinshi Machine Co. Ltd.
Share on (60112339963):
Product Overview
Description
Product Description

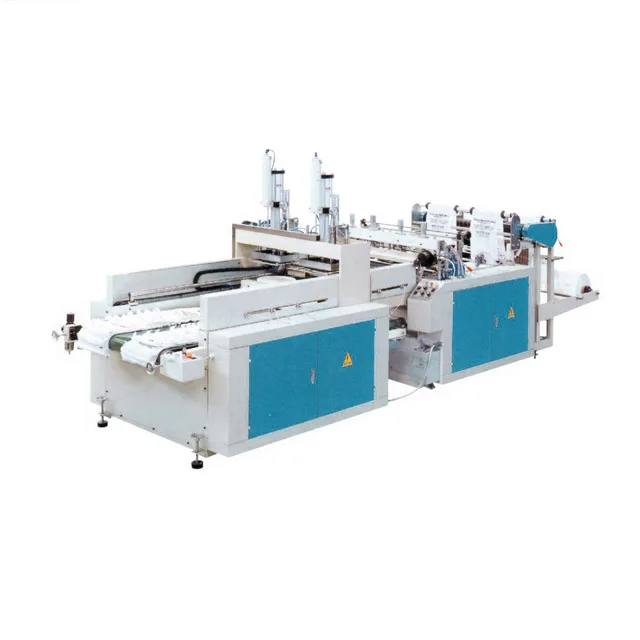

HDPE LDPE Biodegradable Carry Polythene Garbage
T-Shirt Shopping Plastic Bag Making Machine Price
1- It is applied to produce printed or non-printed vest bags, with HDPE, LDPE roll film.
2-It adopts PLC control, double step (servo) motor fixed length and touch screen actual display
to finish the feeding, sealing, cutting, punching holes and transporting only in one process.
3- It's traced by 2 photocells to make the printing very exact.
4- This machine can save man-power greatly and yield good economic result. It’s the ideal
machine for plastic shopping bag purpose.
Model | DFR-400×2 | DFR-450×2 |
Max. Bag-making Width | 350mm×2 | 380mm×2 |
Max. Bag-making Length | 500-600 mm×2 | 500-600 mm×2 |
Bag-making thickness | 0.01-0.05 mm | 0.01-0.05 mm |
Max.Bag-making Speed | 130(pcs/min)×2 | 130(pcs/min)×2 |
Air pressure | 5Kg/cm2 | 6Kg/cm2 |
Main Power | 5.5kw | 6kw |
Weight | 1400kg | 1500kg |
Overall Dimensions | 6000×1400×1600mm | 6000×1500×1600mm |
Accessories
Main Components: | ||
Parts | Original place |
|
Step motor orServo motor | Made-in-China Or Anchuan from Japan | 2 pcs |
Computer Controller | Made in Wuxi | 1 set |
Temperature controller | Yatai, Shanghai | 3 pcs |
Photoeye | Yatai,Shanghai | 2 pcs |
Main inverter | Huifeng brand,Yintai, | 1 pc |
DC motor unwinding part | Deli brand,Wuhu | 2 pcs |
Transferring belts for waste | Made-in-China | 1 set |
PLC | Mitsubishi | 1 set |
Pressure cylinder | Made-in-China | 2 sets |
Some of free spares: | |
Feed spring | 20 pieces |
Thermal board | 2 pcs |
Thermal pipe | 2pcs |
Cutting blade | 2 pcs |
Adhesive tape | 2 pcs |
Tool box | 1 box |
Hammer | 1 set |
Test pen | 1 pc |
Sharp mouth pincer | 1 pc |
Inner hexagonal spanner | 1 pc |
Moving spanner | 8 inch |
Opening spanner 8-10mm/ 12-14 mm/17-19mm ( diameter) | 1 pc |
Heater electric line | 2 pc |
Temperature controller | 1 pc |

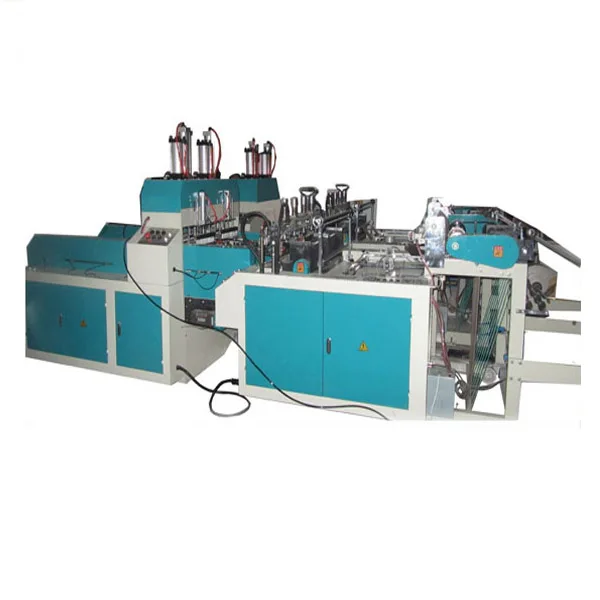

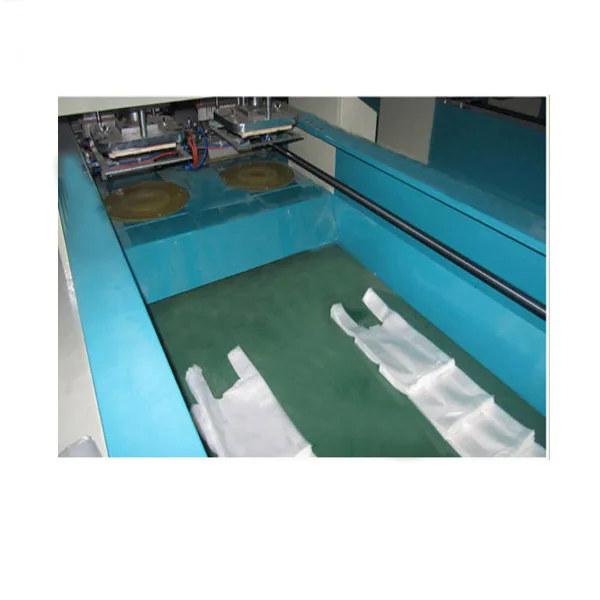

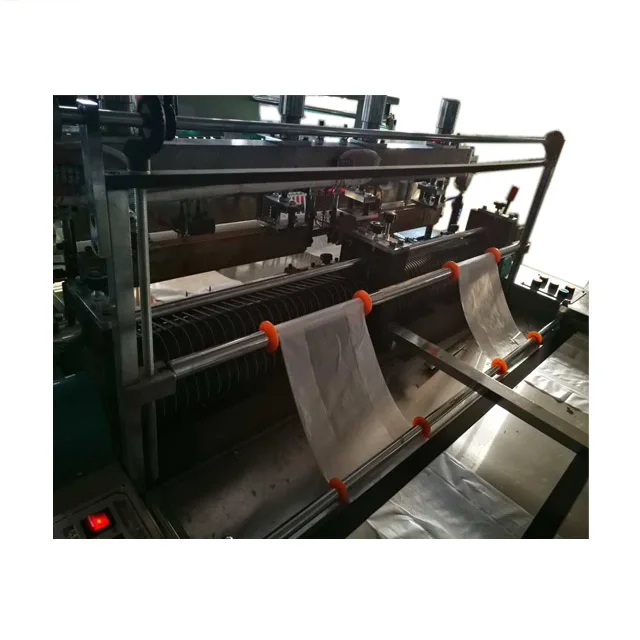

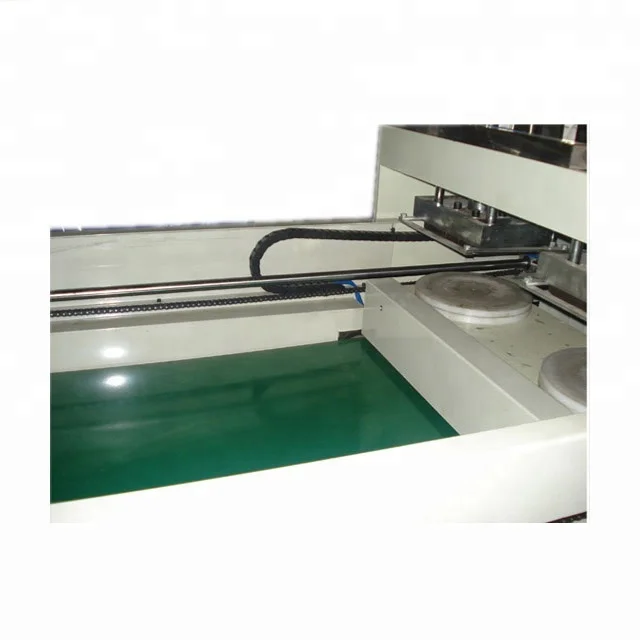

Detailed Images

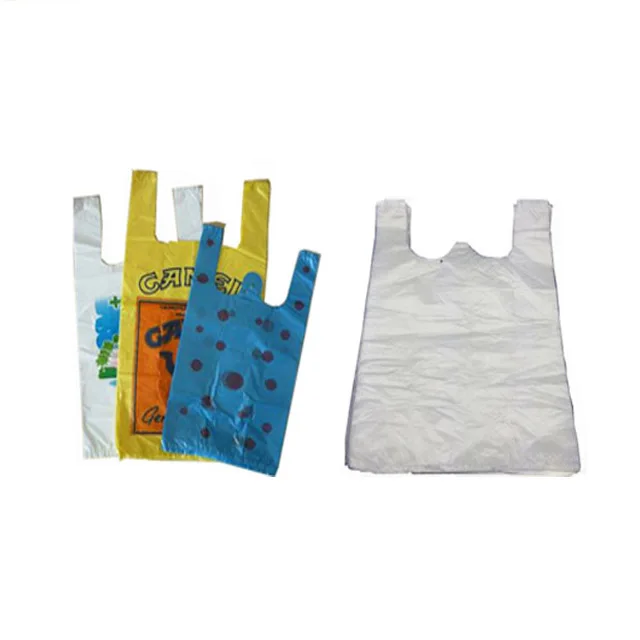

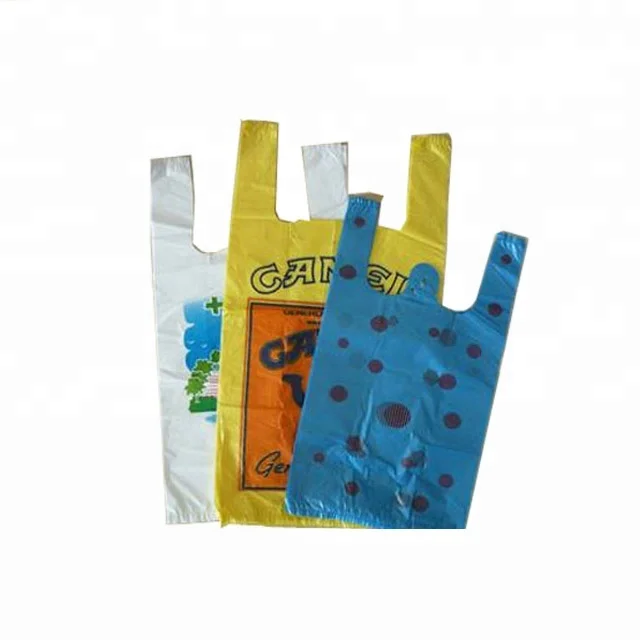

Finished Products
Packaging
Our Services
1- We provide 24 hours call service-- 0086-18815155383
2- We can provide you skillfull knowlege on the machines.
3- Our engineers are available to install and test your machines at any time if requested
by the customers.
4- All machines will be examined and tested before shipment.
5- All of our machines are with CE certification.
6- We have already exported to Vietnam, India,Indonesia,Kenya,Egypt,Russia,Turkey etc.
7- Guarantee: 1 year, long life service.
