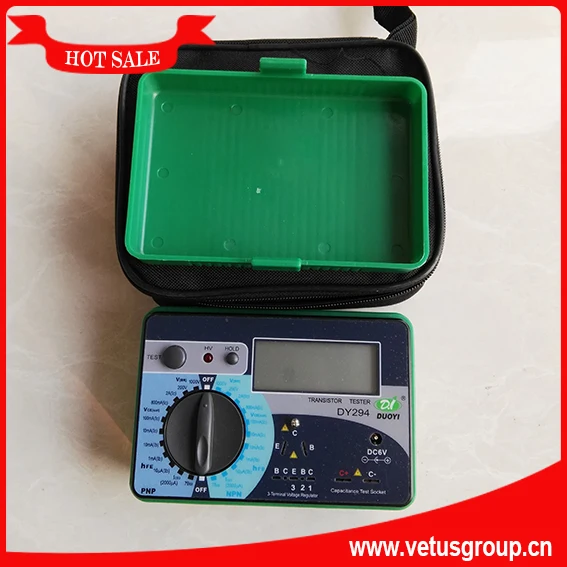

Digital Transistor Tester Meter Gauge with Measure Parameter Four Products Range 1000V

Product Overview

Description

Digital Transistor Tester Meter Gauge with Measure Parameter Four Products Range 1000V













• Measure rich DC parameters of maniford semiconductors, e.g. diode, transistor, controlled silicon, FET.


• Measure capacitor, varistor, DC voltage signal source


• Measure 78 and 79 three terminal voltage regulator


• Data hold, low battery warning

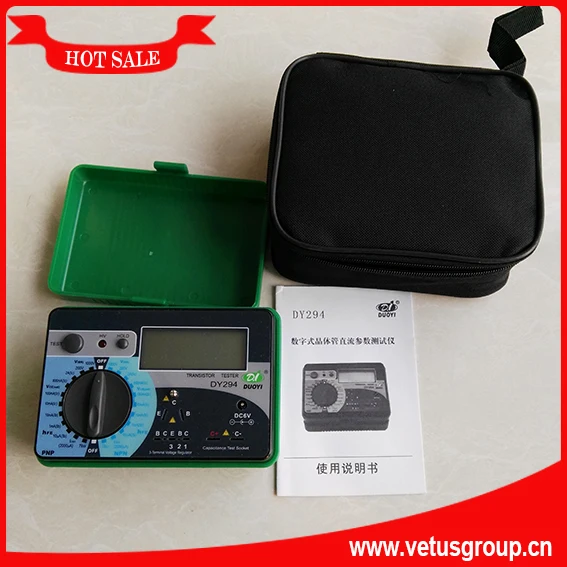

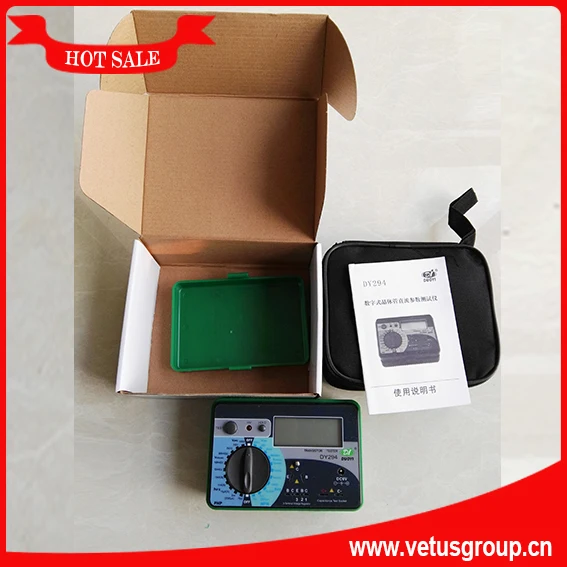

• Complete with carry case and six 1.5V AA batteries











Function	Range	Display Scope	Resolution	Operation Condition
V(BR)	1000V	0-1999V	1V	breakdown current < 1mA
	200V	0-199.9V	0.1V	breakdown current < 1mA
VCC(Set)	2A(Ic)	0-6.00V	0.01V	Ic≈2000mA Ib≈200mA
	800mA(Ic)	0-6.00V	0.01V	Ic≈800mA Ib≈80mA
	100mA(Ic)	0-6.00V	0.01V	Ic≈100mA Ib≈1mA
	10mA(Ic)	0-6.00V	0.01V	Ic≈10mA Ib≈1mA
hFE	10mA(Ib)	0-199.9	0.1	Ib≈10mA
	1mA(Ib)	0-1999	1	Ib≈1mA
	1µA(Ib)	0-1999	1	Ib≈0.01mA
ICEO	2000µA	0-1999µA	1µA	Vce ≈ 27V
78,79 three-pole constant voltage value	78xx/79xx	0-24.0V	0.1V	Ui ≈ 27V



General Characteristics:
