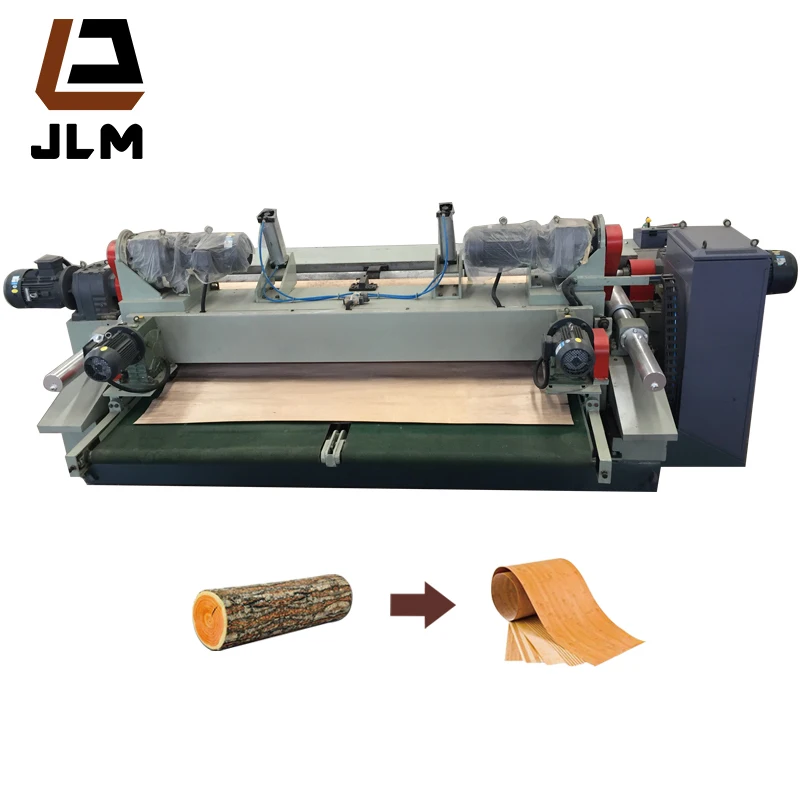

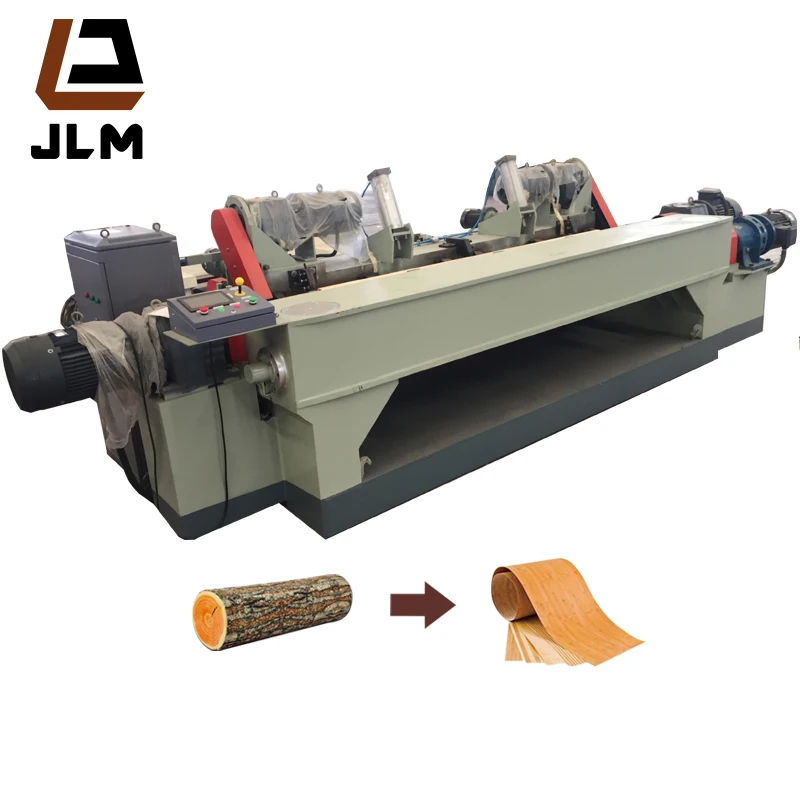

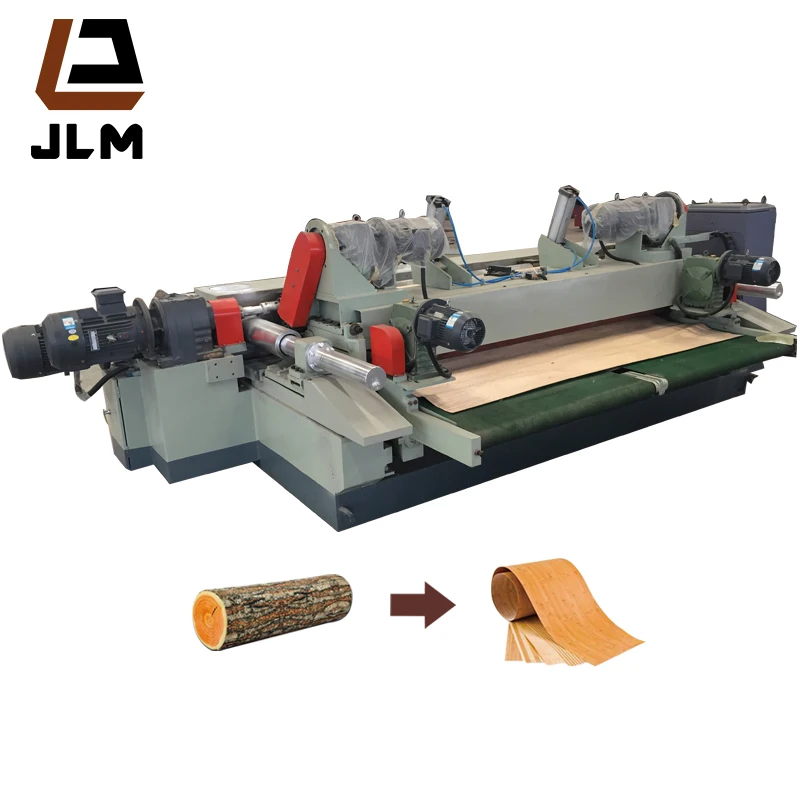

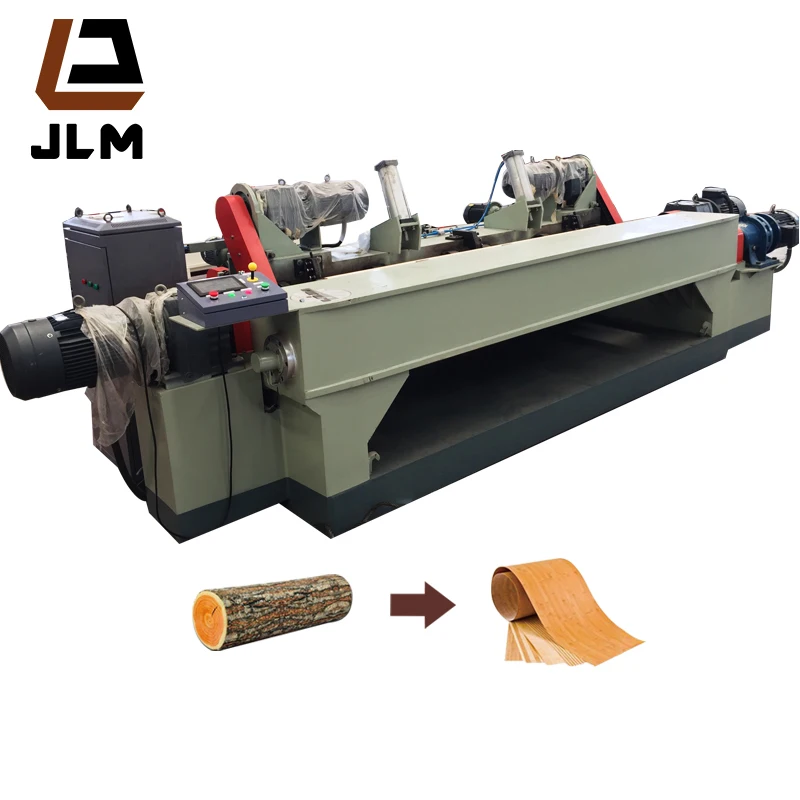

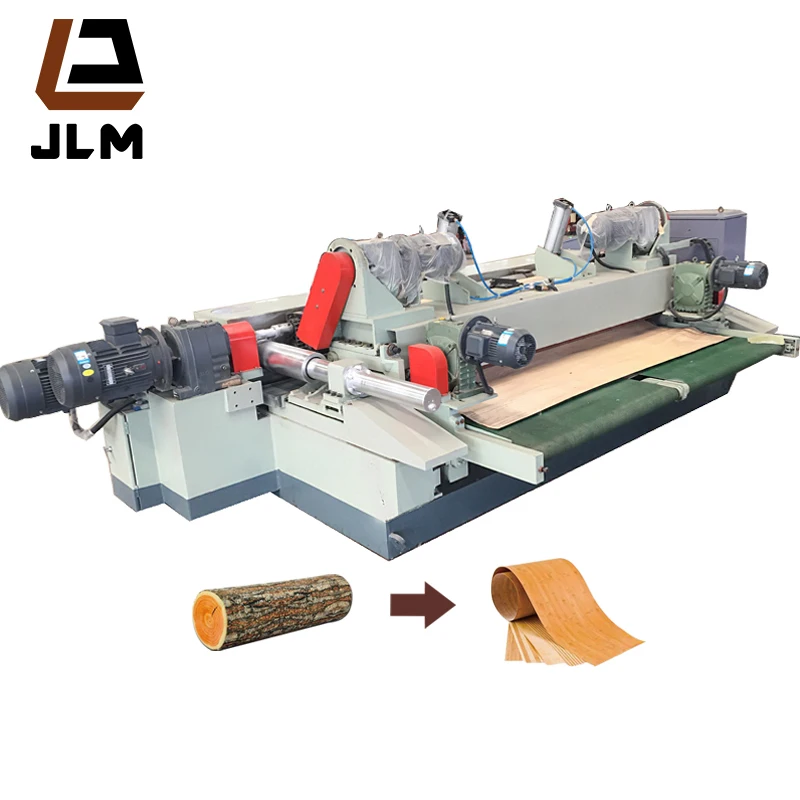

shandong jinlun CNC spindleless veneer lathe /wood veneer cutting machine
- Category: Wood Based Panels Machinery >>>
- Supplier: Shandong Jinlun Machinery Co. Ltd.
Share on (60131380645):
Product Overview
Description
| No. | Parameters | Numerical value |
| 1 | Model | JLXQ260-50CB |
| 2 | Max. log length | 2600mm |
| 3 | Max.log diameter | 500mm |
| 4 | Residue log | 32mm |
| 5 | Single roller power | 15kw*2 Hardened reducer |
| 6 | Double roller power | 7.5kw*2 Hardened reducer |
| 7 | Feeding power | 15kw servo |
| 8 | Clipper power | 3kw servo |
| 9 | Transportation power | 3kw |
| 10 | Hydraulic station | 3kw |
| 11 | Total power | 61.5kw |
| 12 | Speed | 40-80m/min |
| 13 | Product capacity | 80m³/8 hours |
| 14 | Blade size | 2700*180*16mm |
| 15 | Veneer thickness | 0.5-4.0mm |
| 16 | Veneer tolerance | ±0.05mm |
| 17 | Weight | 12000KG |
| 18 | Overall size | 6100x2250x1550mm |
