CE approved of biomass dryer / biomass drying equipment / biomass drying machine
- Category: Flash Drying Equipment >>>
- Supplier: Zhengzhou Known Imp.&Exp. Co. Ltd.
Share on (60134171833):
Product Overview
Description
CE approved of biomass dryer / biomass drying equipment / biomass drying machine
Product Description
Introduction of our biomass dryer:
1, Drying is important before briquetting / pelleting process.
2, To get the superior quality of biomass briquettes or pellets with high density, it is necessary to control the moisture content of material at 8-15% before loading them into briquette machine, pellet machine or others, so the material need to be dried first.
3, The selection of suitable drying equipment is depending on the original moisture content of raw materials and your requirement on the capacity, usage, price etc.
Schematic diagram of our biomass dryer:
Its main parts included: 1. Stove 2. Inlet / Hopper 3. Cleaning hole 4. Drying Tank / Buffer 5. Drying pipe 6. Fan 7. cyclone separator 8. exhaust pipe.
Other accessory equipments: Moisture tester, Conveyor, Temperature tester, Air lock, Electric control cabinet.
Specification of our biomass dryer :
Model | Main Power | Mini Diameter | Max Diameter | Total drying Travel | Output capacity | Floor Space (L*H) |
KN-QH-300 | 4KW | 300 mm | 900 mm | 20 m | 150~300 kg/h | 10*3 m |
KN-QH-300B | 7.5KW | 300 mm | 900 mm | 30 m | 400~600 kg/h | 20*3.2 m |
KN-QH-350 | 11KW | 350 mm | 1050 mm | 35 m | 500~800 kg/h | 24*3.5 m |
KN-QH-400 | 15KW | 400 mm | 1200 mm | 43 m | 600~1300 kg/h | 28*4.5 m |
KN-QH-450 | 15KW | 450 mm | 1273 mm | 45 m | 800~1500 kg/h | 30*4.5 m |
KN-QH-500 | 22KW | 500 mm | 1800 mm | 55 m | 1500~2000 kg/h | 35*5.5 m |
KN-QH-600 | 30KW | 600 mm | 2000 mm | 60 m | 1800~2500 kg/h | 38*6 m |
Noted:
- If the capacity you need is bigger than 1500/2000 kg/h, we suggest our drum dryer to you.
- This output capacity is based on the 30~45% original moisture / humidity. In order to recommend the most suitable design plan, please inform us:
--- What's the original moisture of your wet materials?
--- What's the capacity do you want?

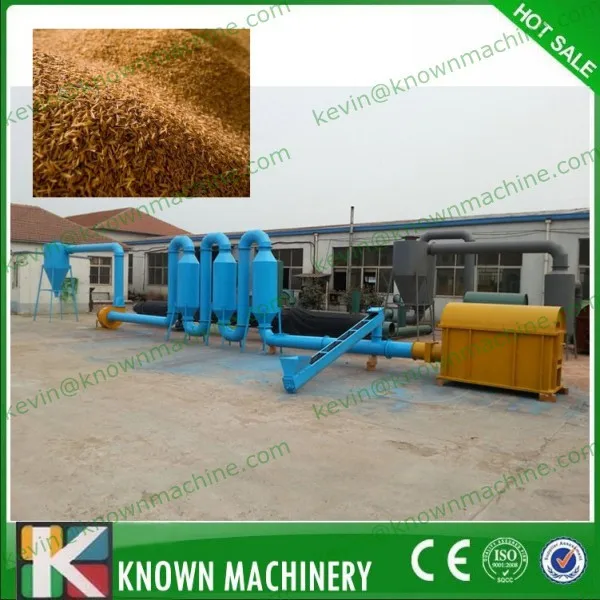

Here is the pictures of our biomass dryer :
We also supply the Rotary dryer / Drum dryer machine .
