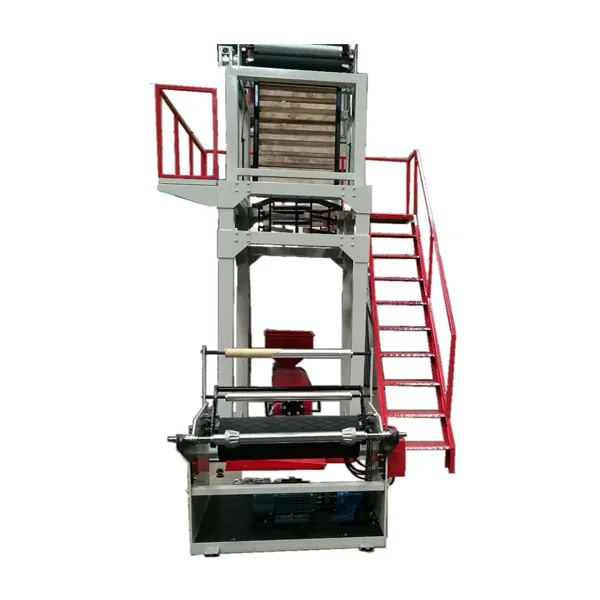

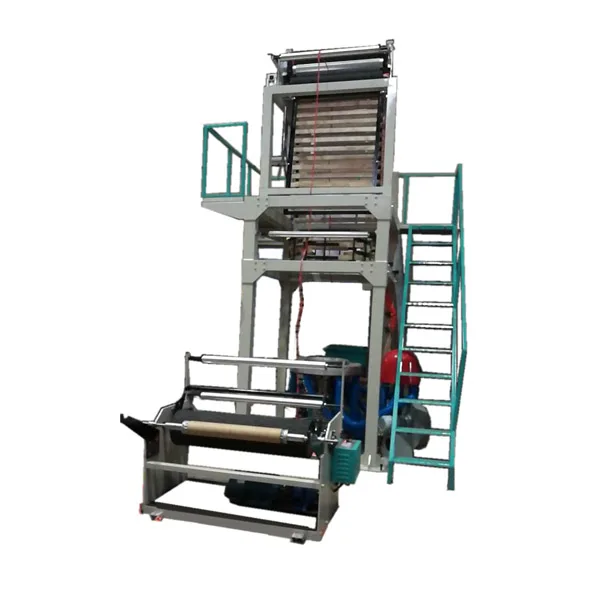

Film Blowing Machine for Agriculture purpose,Film Blowing Machine,China
Product Description
It is used for blowing the various plastic film of low density polyethylene(LDPE),high density polyethylene(HDPE)and linear low density polyethylene(LLDPE)etc, which are widely used for packing industrial products, garments and food and for covering farmland.
The cylinders and the screw stems of the above extruders are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment. The auxiliary machine has a platform working table for making operation easy. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
Model
SJ-45/FM600
SJ-55/FM800
SJ-60/FM1000
Screw Diameter
45mm
55mm
60mm
Screw Ratio
L/D30:1
L/D30:1
L/D30:1
Screw Speed
10-100r/min
10-100r/min
10-100r/min
Power of Main Motor
7.5kw
11kw
15kw
Max. Extrusion output
35kg/h
50kg/h
65kg/h
Max. Folding Width of Film
600mm
800mm
1000mm
Single-sided
Thickness of Film
0.006-0.10mm
0.006-0.10mm
0.006-0.10mm
Total Power
18kw
22kw
28kw
Weight of machine
2000kg
2200kg
2800kg
Overall Dimensions
(LxWxH) mm
4200mmX1800mmX3600
4400mmX2000mmX4000
4600mmX2300mmX4200
Accessories
Main Components of HDPE-LDPE Dual-Purpose Film Blowing Machine
Model
SJ-45/FM600
Suitable products
LLDPE,LDPE,HDPE
Max.film width
600mm
Screw Diameter
45mm
Mould Head
2 pcs (60 &100)
Gap between Die exit
1mm
Electric Heating Power
6kw
Main Motor
11kw (Huifeng brand, best in China)
Rewinding motor
Torque motor (10Neton)
Traction motor
Inverter 1.5kw (Huifeng brand)
Cooling fan for main machine
1.1 kw
Cooling fan for material tank
0.25kw
The diameter of Air Ring
620mm
Rewinding roller's width
650mm
Max.Output
35kg/h
Heating circle
Cast Aluminium
Air compressor
1.1kw
Contactor
Zhengtai brand
Screw
38CrMoALA
Gearbox
Made-in-china
Controller for Toque motor
Made-in-china
Machine Size
4200*1800*3600mm
Machine Weight
2000kg

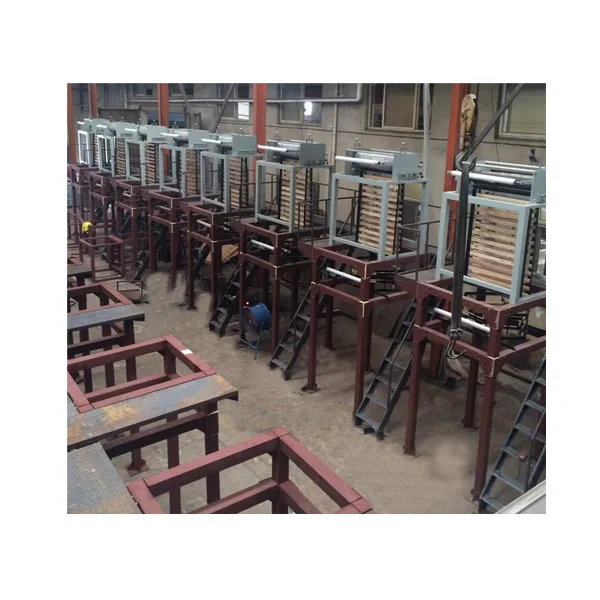

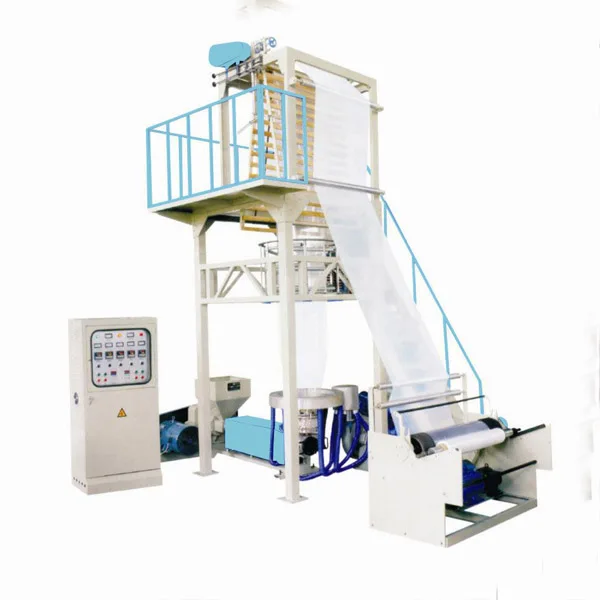

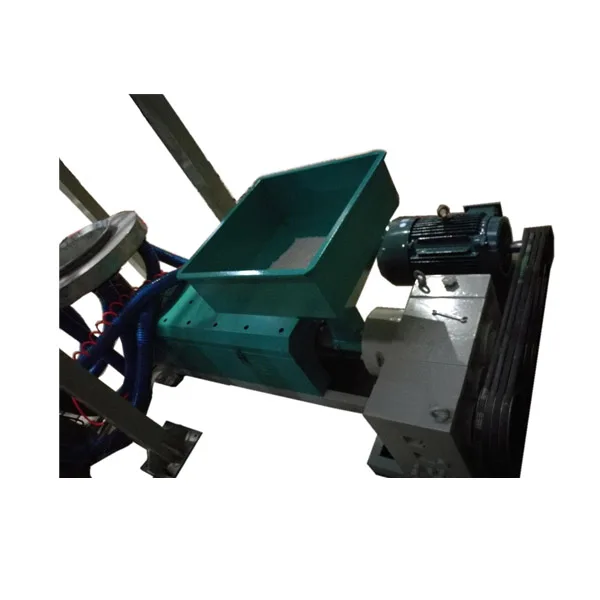

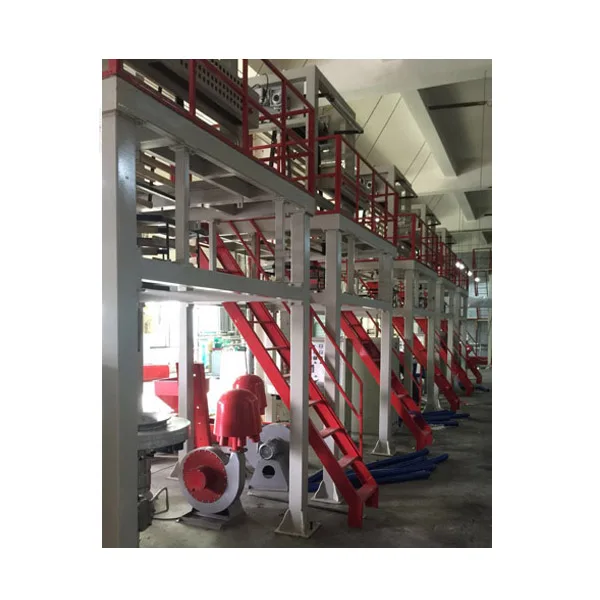

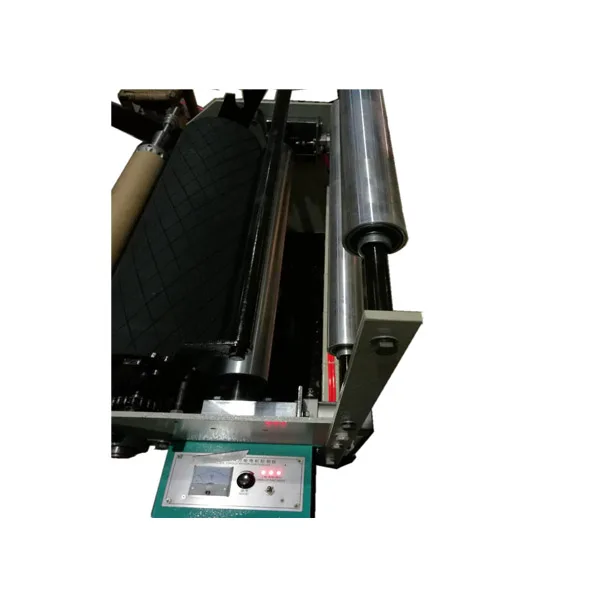

Detailed Images

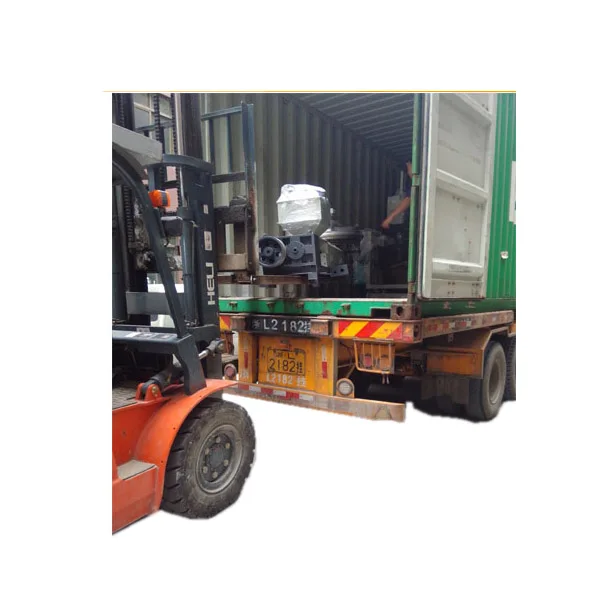

Packaging
Our Services
Pre-sales service
1- We can explain in details when you have any questions on our machines.
2- We provide making samples for you.
After sales-service
3- We provide testing machines for you before shipment.
4- We provide producing machines according to the customers' special requirements.
5- We provide one-year service, not including man-made reason.
6- Our engineer is available at any time if you need.
7- We provide long life service.
8- We are online the whole day, whole year and whole life. Please call 0086-18815155383.
