round pipe tube bender bending machine cnc

Product Overview

Description

ound pipe tube bender bending machine cnc



 Adapted material:steel pipe, stainless steel, copper pipe, aluminum pipe;

 Recommended application industry:

automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares and so on.

 Main specification

1. Automatic recognition of power in machine and work piece, the processing is both quick and good
2. Slow returning core, boosted by barrow, imporving the apprearance of the angle.
3. The whole operation is in the computer, simple, quick and correct

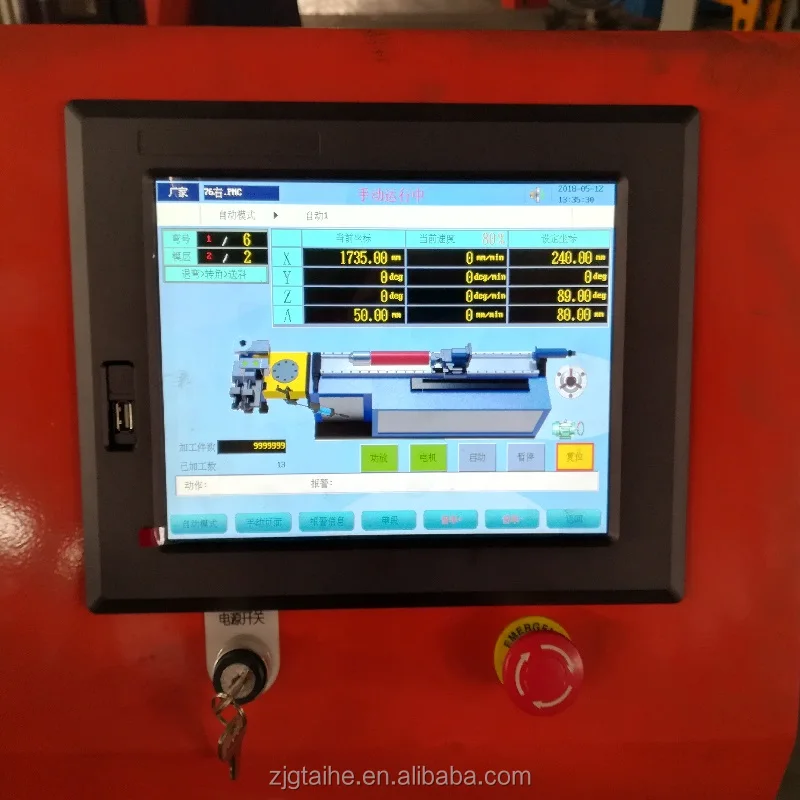

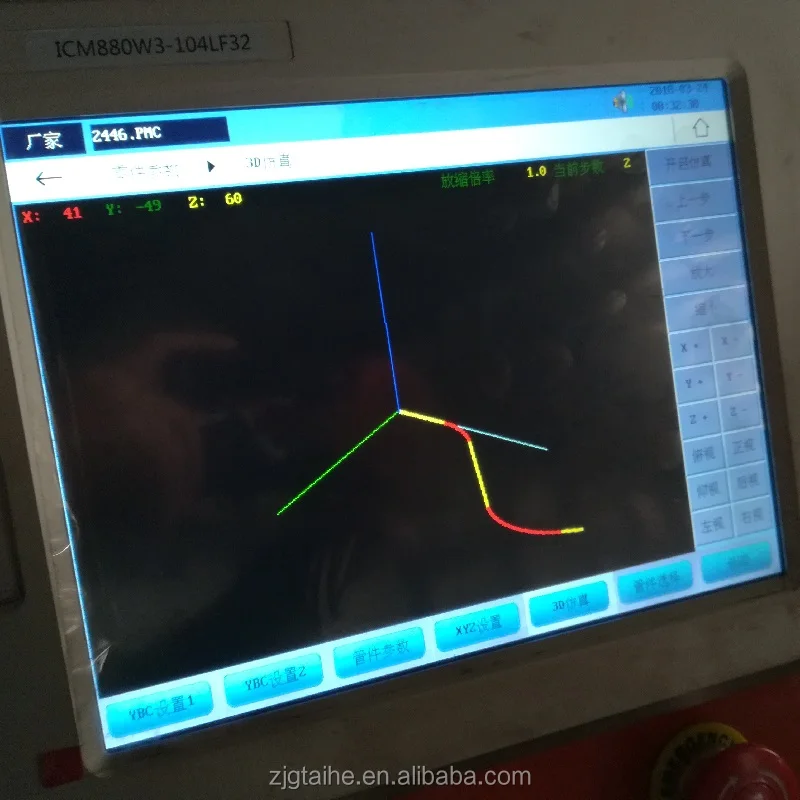

4. Picturized programming system: draw and modify on the stereo pipe image on the screen, makes the operation simple, quick and correct
5. Rebound test: comparison test on the features of lots of pipe materials
6. Single-step debugging function- a careful observe on the deformation of the pipe material during the trail manufacture of dies.
7. Automatic drawing of the graphics of dies-clear help to develop new products

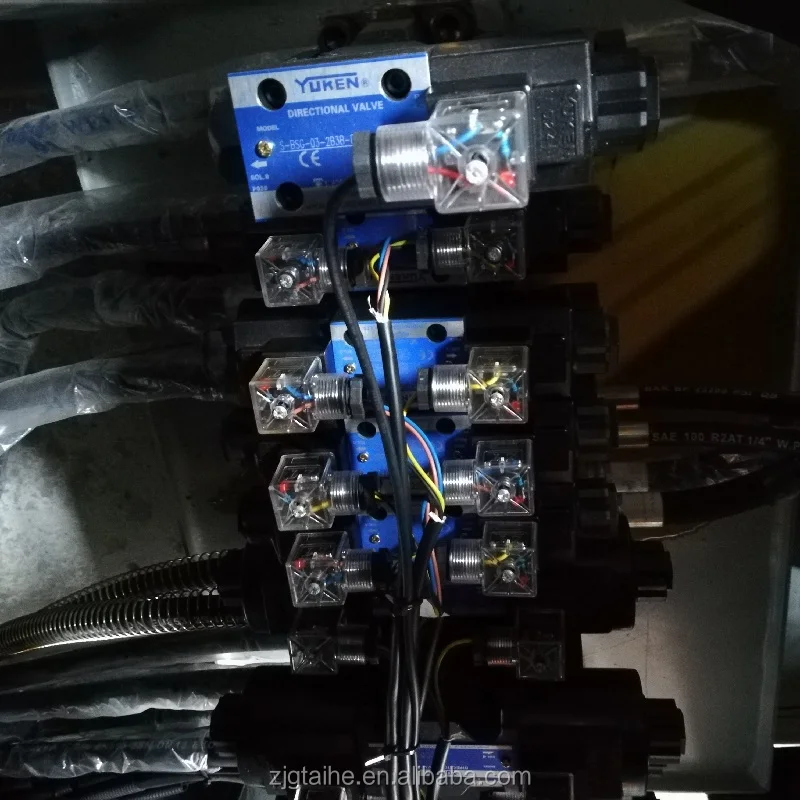

8. Over-all inspection: hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles
9. Passwords, keys, working hours/ recordings of quantities, are applied to management of production

Technical parameter

Program		DW50CNC
Max bending R for carbon pipe is 1.5D		Ø50.8X 2.5t
Max bending R for s.s pipe is 1.5D		Ø44.4X 2.2t
Availability Length of bending pipe		2850mm
Max R for bending		220mm
Max angle for bending		185°
Bending process for every pipe		16
Working rate	Bend rate	Ma×25°/sec
	Rotary rate	Ma×180°/sec
	Feeding rate	Ma×700mm/sec
Working accuracy	Bend angle	±0.1°
	Rotary angle	±0.1°
	Feeding length	±0.1mm
Watt of oil press electrical machine		14mpa
Information inputting method		Axis (Y,B,C)
Bending method		Hydraulic
Max bending group		500
Power of rotary Servo motor		400 W
Power of feeding Servo motor		1300 W
Electrical motor power		5.5kw
Weight of machine		2500kg
Size  L W H(CM)		430X80X115

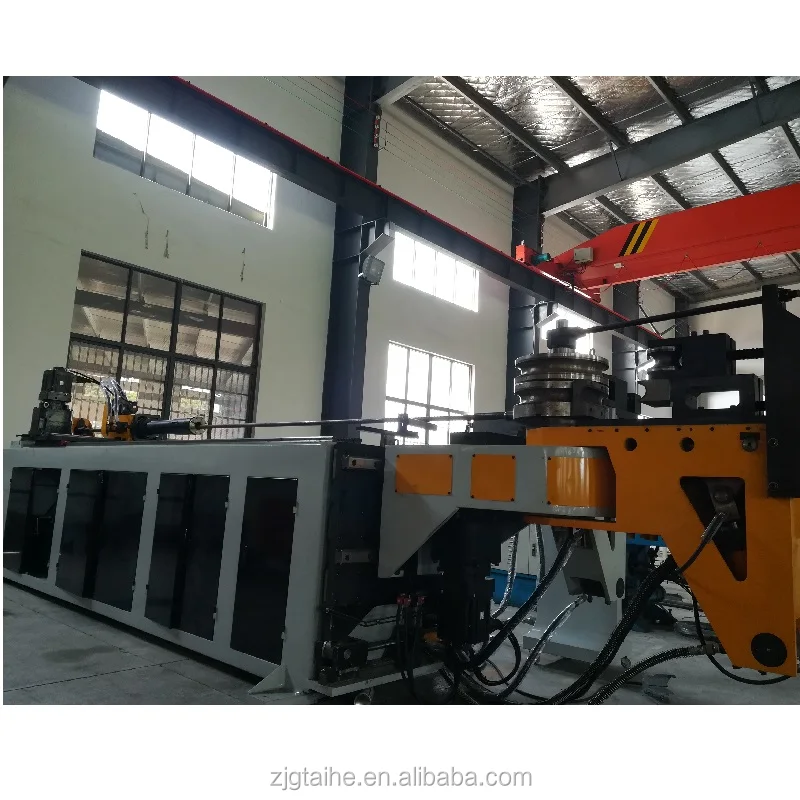

 Machine picture

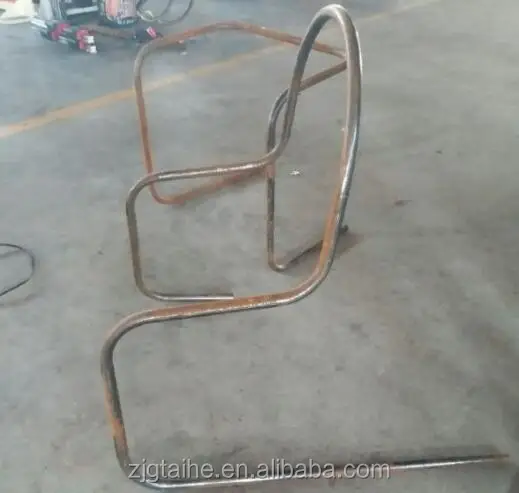

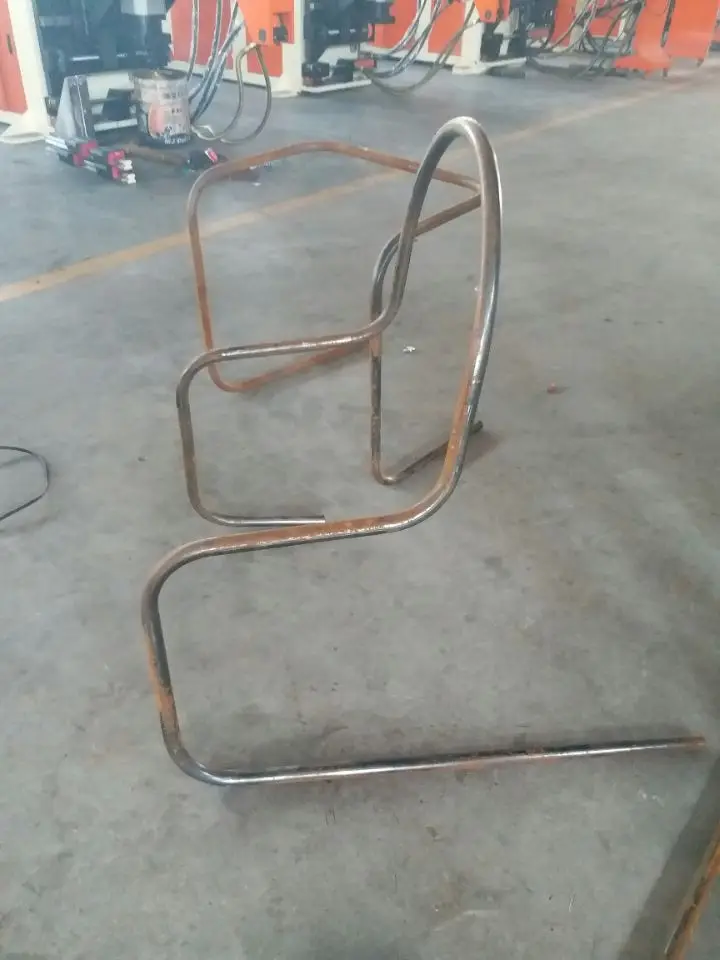

 Tube sample



 Professional export wooden package

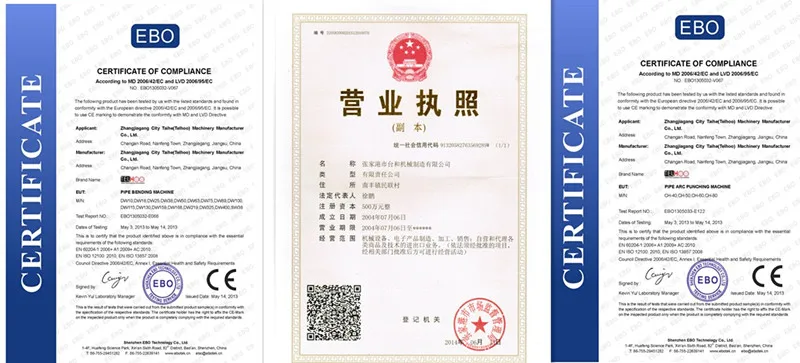

CE Certificate







Other machines:

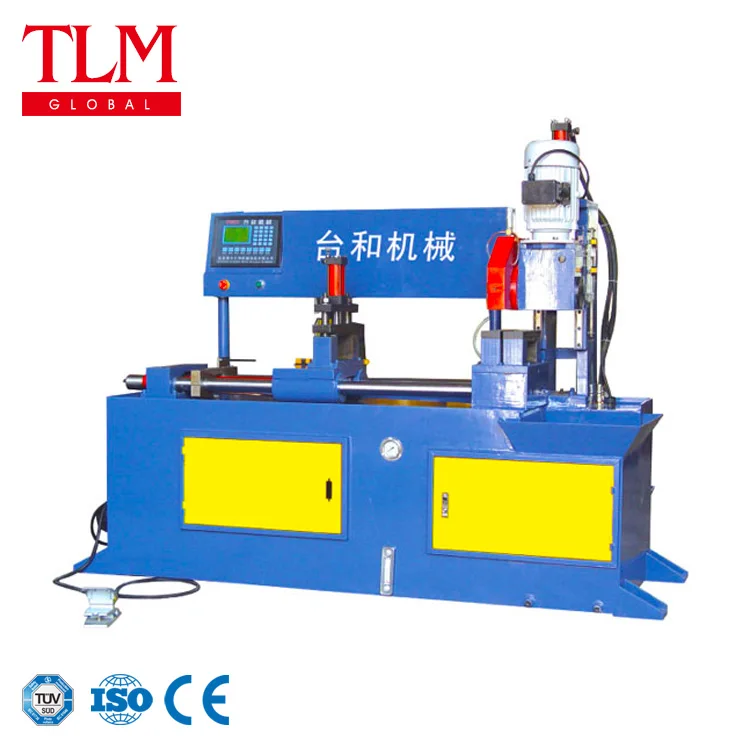

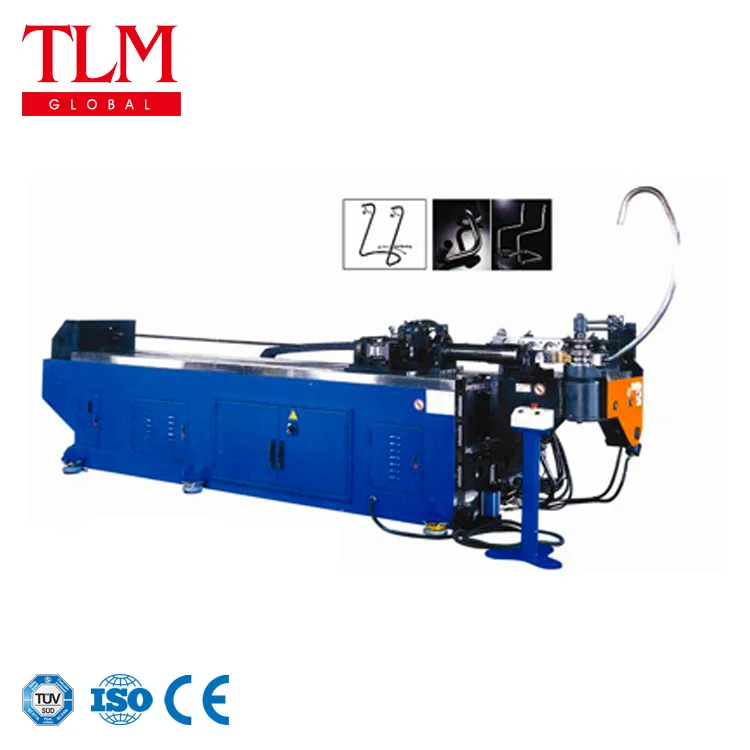

MC-350CNC Automatic pipe cutting machine     SW50 Double head pipe bending machine     pipe bending machine







To know more information, please contact with us at any time
