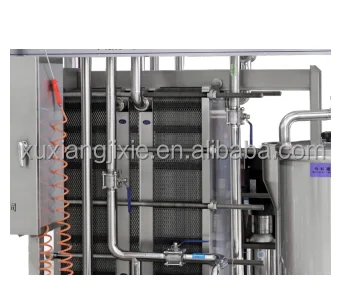

pasteurized milk production machinery milk pasteurizer
- Category: Dairy Processing Machines >>>
- Supplier: Zhejiang Xuxiang Machinery Technology Co. Ltd.
Share on (60150846320):
Product Overview
Description

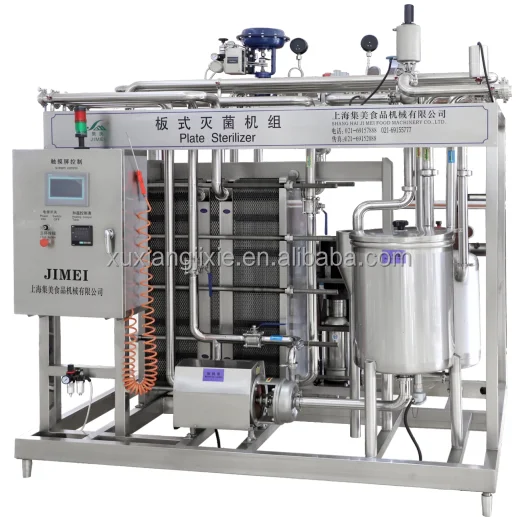

Milk Processing Plant
We are looking for the sole agent in each country,please contact me if you're interested.
Products Description
Details about the part

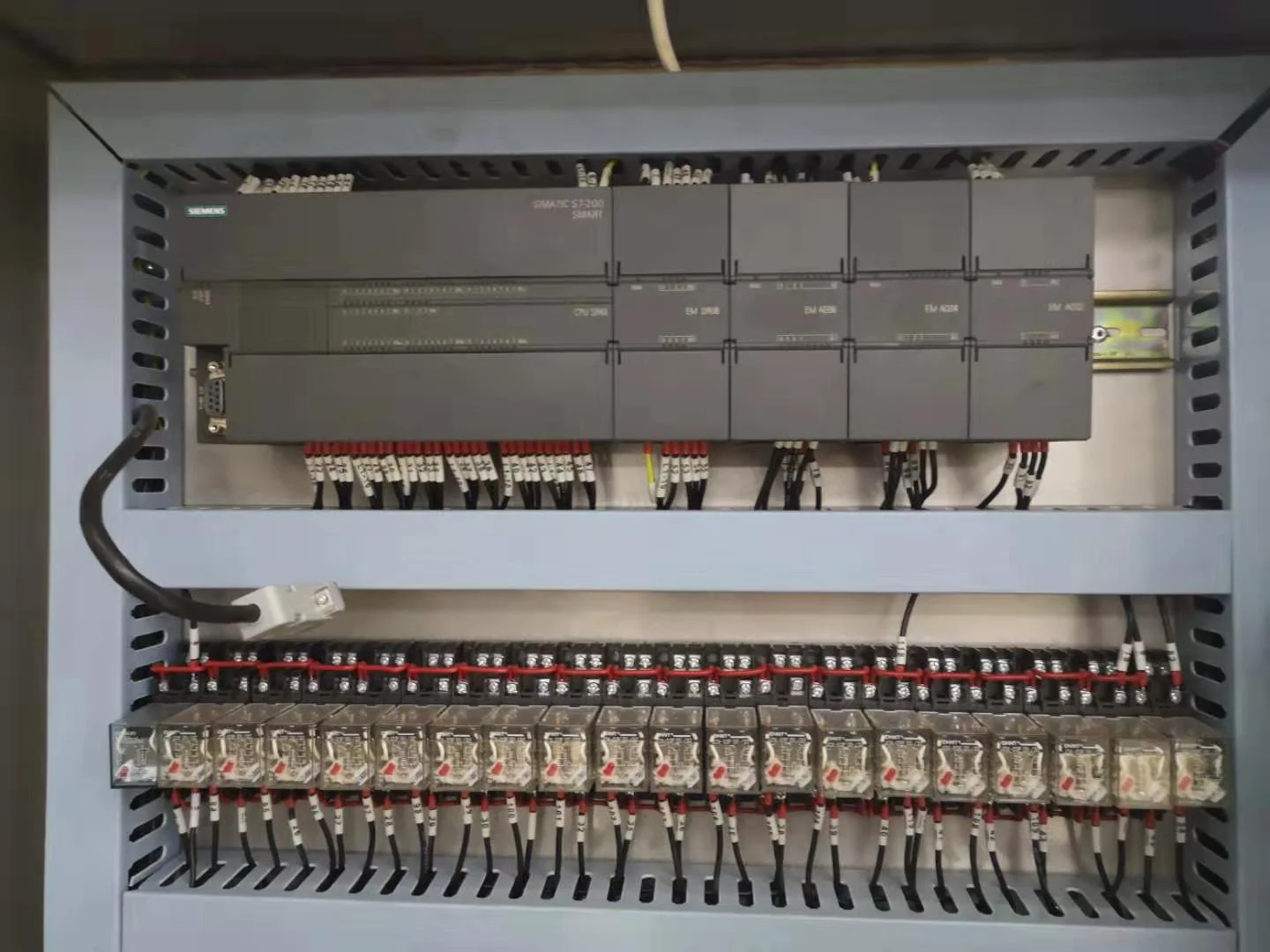

stainless steel 304. control system with Siemens
Description

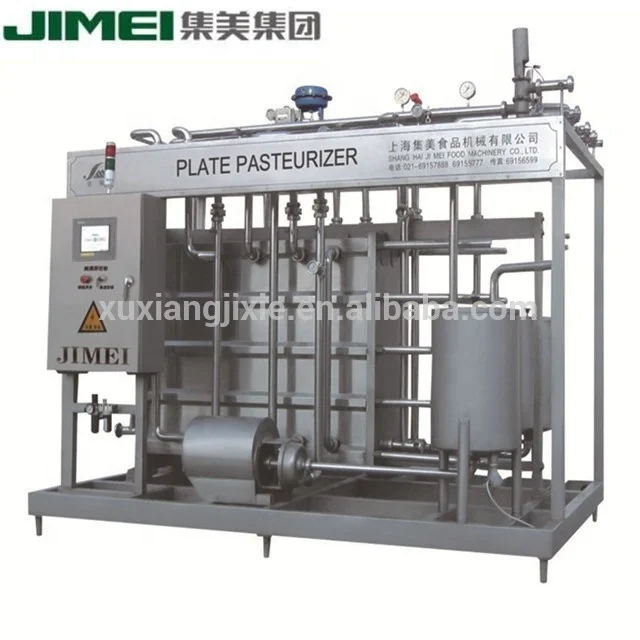

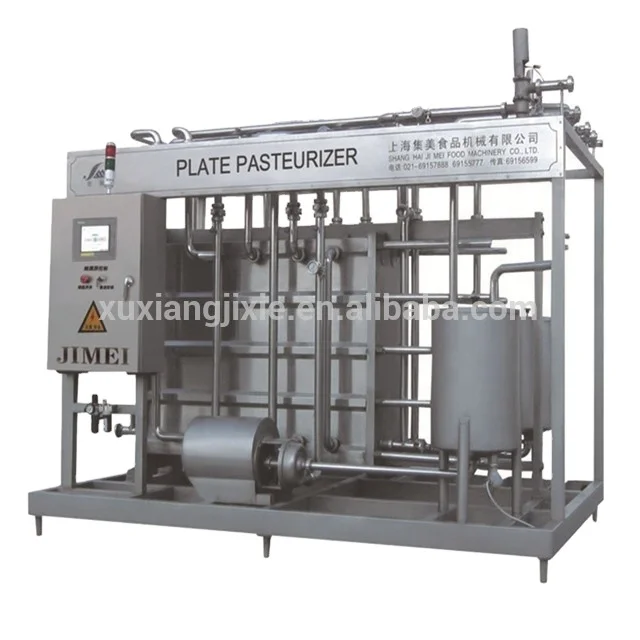

It fits to heat, sterilize, keep warm, and cool the heat sensitive liquid such as the fresh milk, beverage and juice, wine. Thismachine is of high recycle, energy saving, and reducing cost, compact constructure, simple operation, and convenient maintain.

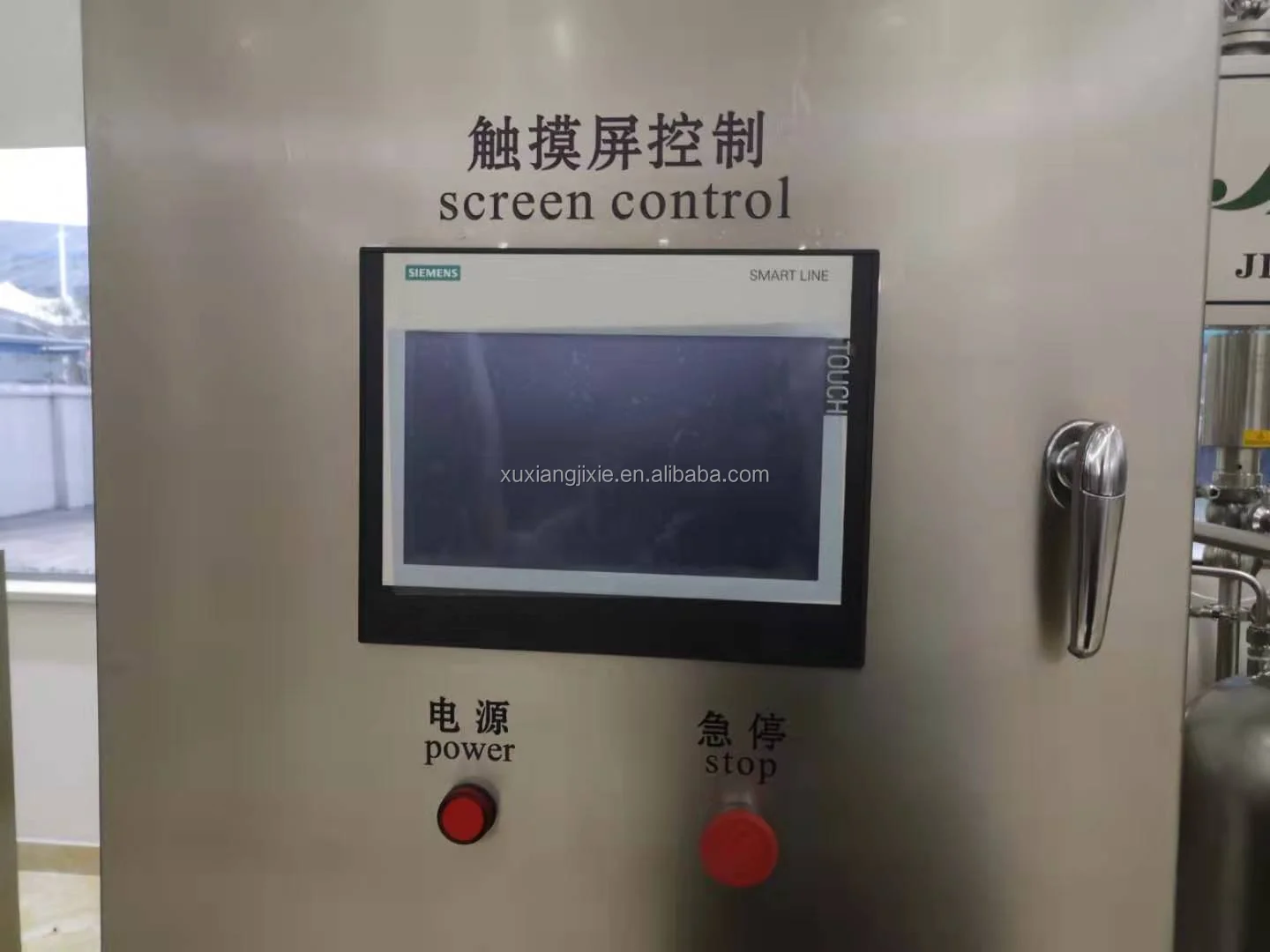

Controlling methods: semi-automatically, fully automatically(PLC control, touching view)
Main fittings: material pump, balance tank hot water system, Temperature control and tape recorder, and electric, controlling
system

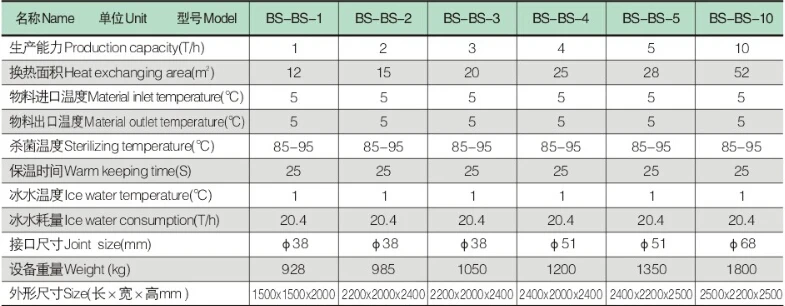

Product capacity: 0.5-20t/h
Sterilizing temperature: -95℃ Warm
keeping time:15-30s.
Milk Processing Plant
We are looking for the sole agent in each country ,please contact me if you're interested.
Products Description

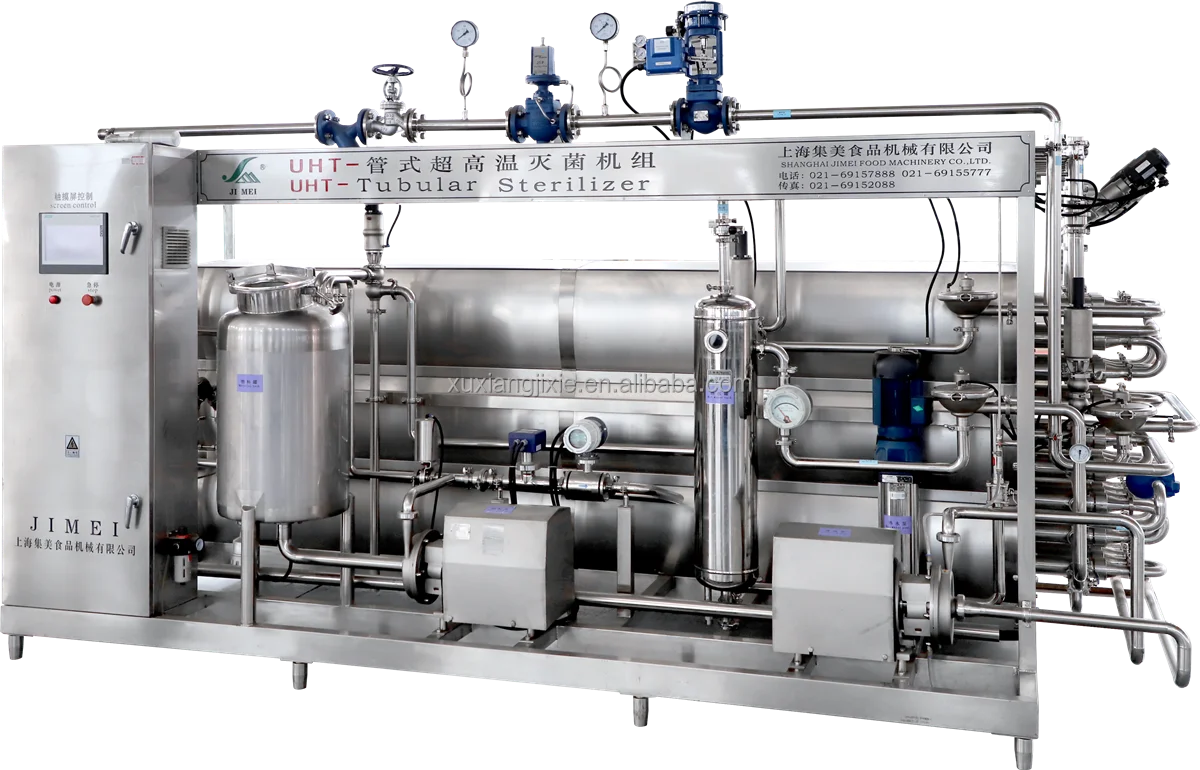

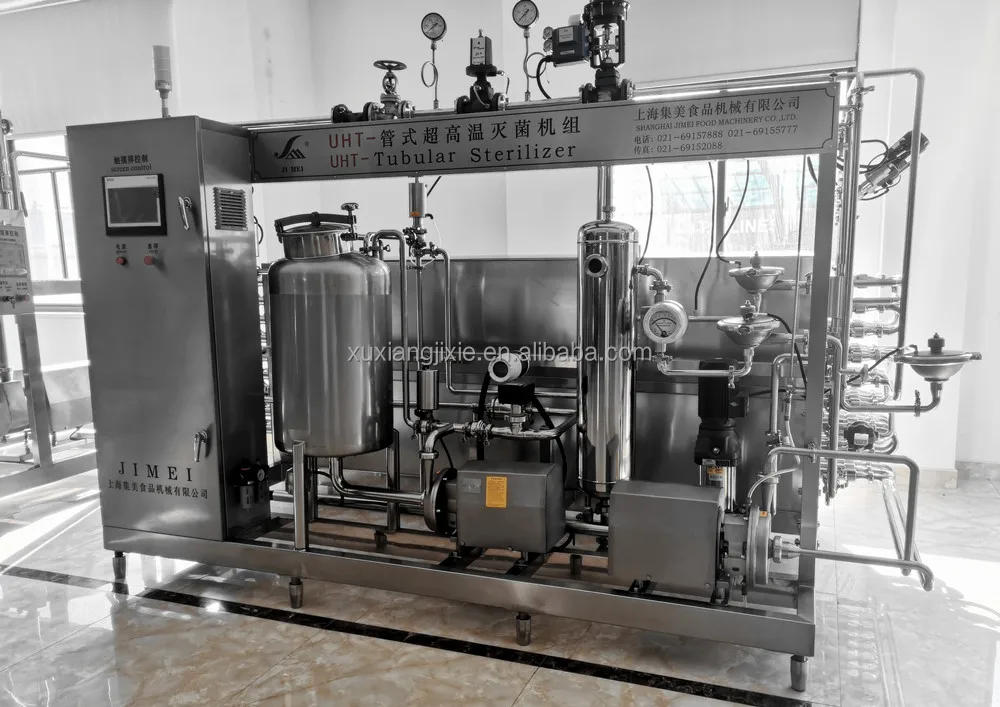

UHT tubular sterilization pasteurizer for your choice.

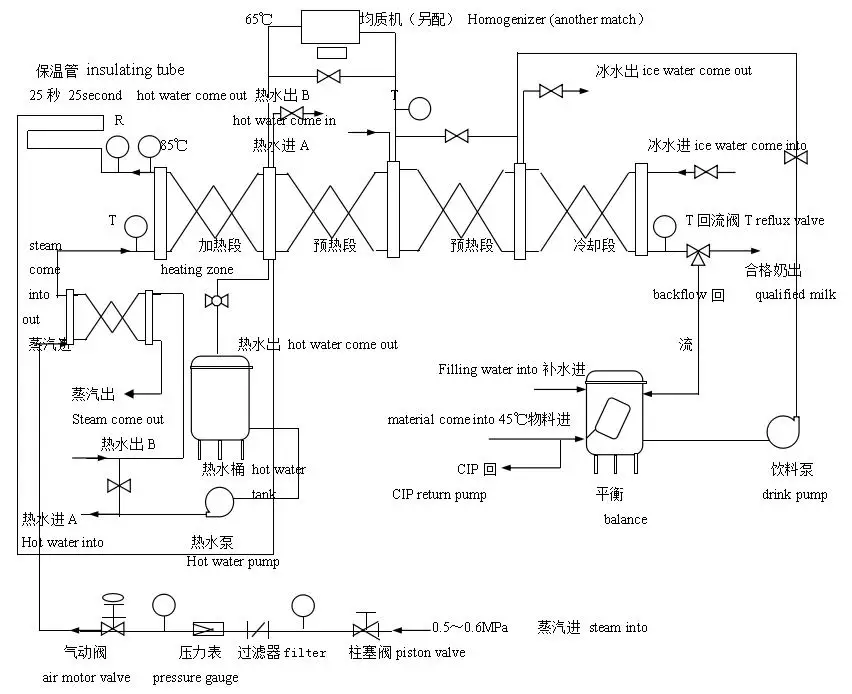

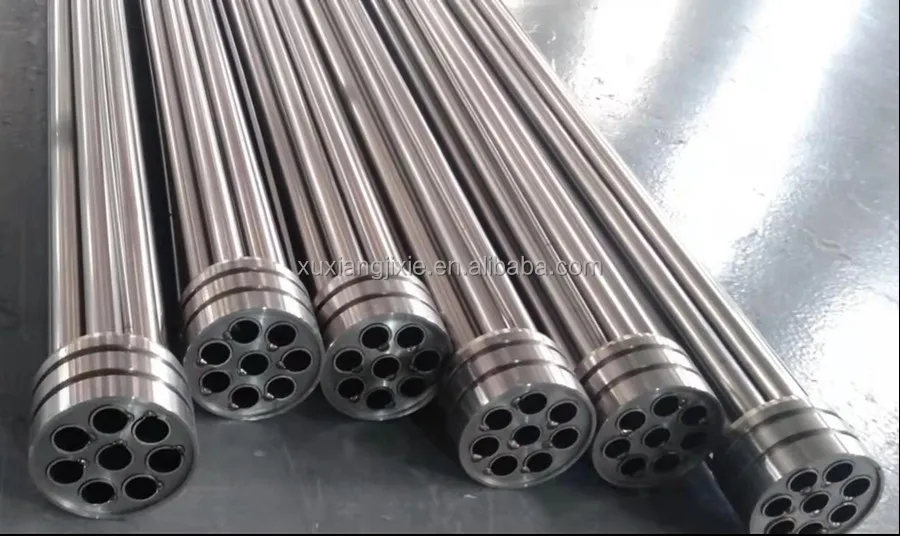

Tubular sterilizer is a kind of heat exchanger, which is composed of heating tubes, front and rear covers, centrifugal milk pumps, etc. A stainless steel heating tube is installed in the shell to form a heating tube bundle, and the shell and the heating tube are connected through a tube plate. The fresh milk flows through the tube, and the steam passes between the tube bundles in the shell to heat the fresh milk to achieve the purpose of sterilization. If the sterilization temperature is not reached, the fresh milk can be refluxed and then sterilized again. This equipment is mainly used for heating, disinfecting or cooling milk, fruit juice and other foods. The sterilization temperature can reach 85 degrees -138 degrees. Residence time is 3-15 seconds
Description

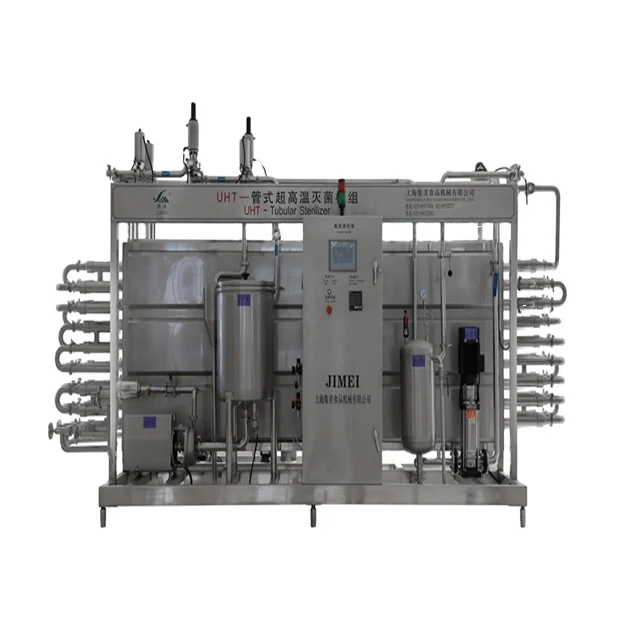

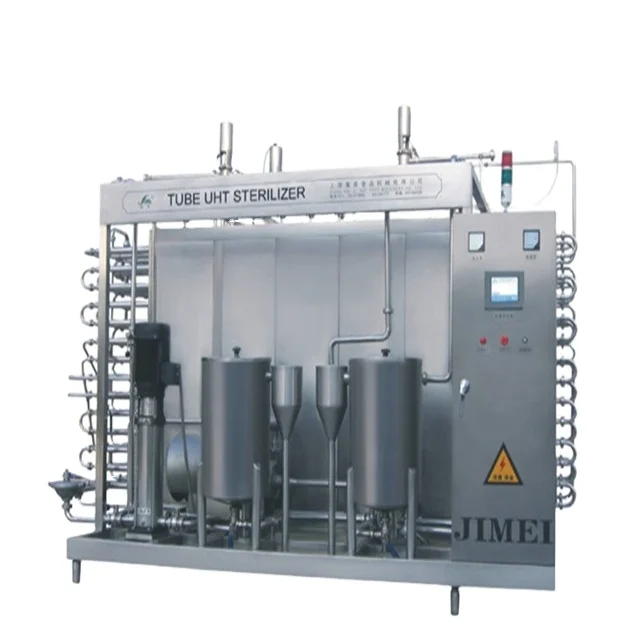

Automatic tubular UHT unit is suitable for heating and cooling of the stainless steel non-corrosive liquids. The unit is suitable
for the sterilization of heat-sensitive liquid materials such as milk, fruit juice, beverages, soy sauce, soy milk, wine,
popsicles and ice cream syrup can also be used for the sterilization of liquid drug material, both to ensure thorough
sterilization, but also protect the nutritional The ingredient is not losses, the results are quite remarkable. Continuous
production equipment for use with any aseptic filling, able to produce products more shelf life of up to 3-6 months.
for the sterilization of heat-sensitive liquid materials such as milk, fruit juice, beverages, soy sauce, soy milk, wine,
popsicles and ice cream syrup can also be used for the sterilization of liquid drug material, both to ensure thorough
sterilization, but also protect the nutritional The ingredient is not losses, the results are quite remarkable. Continuous
production equipment for use with any aseptic filling, able to produce products more shelf life of up to 3-6 months.

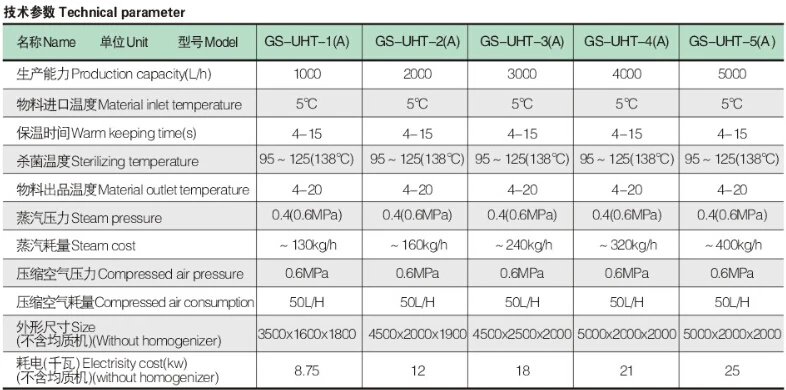

Technical parameters | ||||
1 | Raw material | liquid | ||
2 | Material | SUS304 | ||
3 | Capacity | 1000-25000 | ||
4 | If you have any problems,please feel free to contact me. | |||
Advantages
1. High heat effect, 90%of the heat can be recycled after heating the material.

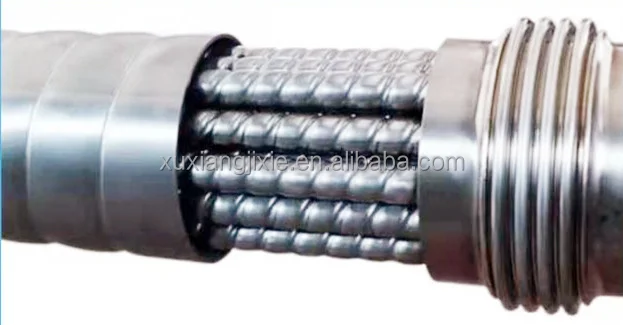

2. Temperature gap between the medium and the material is small, so to realize generally heating; the heating pipe adopts wave pipe , the material and the medium are both in flow
3. It is of high automatic degree, can automatically control and record from CIP cleaning to pipe sterilizing to sterilizing the
material.
4. It is of precise and reliable sterilizing temperature control: automatically control the affecting sterilizing temperature
system such as steam pressure, flow , and material flow.
5. The inside of the material pipe adopts advanced polish technology, pipe joints automatically, pipe design realize complete automatically clean, and the whole process sterilizes, so to ensure the system asepsis.
6. It is of strong system safety, the fillings all adopts reliable product with good capacity, the design values the human, safe equipment, and the steam, hot water and the material all adopts pressure protection methods and alarm system.
7. It is of high reliability system, The main fillings such as material pump, hor water pump, valves, electric elements of
controlling system, and the executive elements are all world famous. Pipe pasteurizer and yoghourt special sterilizer can be designed to order. The pipe UHT sterilizer of our company is to filling the asepsis package only. It fits to various asepsis
package, such as: asepsis paper package, asepsis plastic thin film package, asepsis PET bottle package, especially fit to the production of liquid milk.
2. Temperature gap between the medium and the material is small, so to realize generally heating; the heating pipe adopts wave pipe , the material and the medium are both in flow
3. It is of high automatic degree, can automatically control and record from CIP cleaning to pipe sterilizing to sterilizing the
material.
4. It is of precise and reliable sterilizing temperature control: automatically control the affecting sterilizing temperature
system such as steam pressure, flow , and material flow.
5. The inside of the material pipe adopts advanced polish technology, pipe joints automatically, pipe design realize complete automatically clean, and the whole process sterilizes, so to ensure the system asepsis.
6. It is of strong system safety, the fillings all adopts reliable product with good capacity, the design values the human, safe equipment, and the steam, hot water and the material all adopts pressure protection methods and alarm system.
7. It is of high reliability system, The main fillings such as material pump, hor water pump, valves, electric elements of
controlling system, and the executive elements are all world famous. Pipe pasteurizer and yoghourt special sterilizer can be designed to order. The pipe UHT sterilizer of our company is to filling the asepsis package only. It fits to various asepsis
package, such as: asepsis paper package, asepsis plastic thin film package, asepsis PET bottle package, especially fit to the production of liquid milk.
Company Profile
China Jimei Holdings Group
Shanghai Jimei Food Machinery Co., Ltd. is a collection of scientific research, production and service as one of professional manufacturer of liquid beverage food machinery, high-tech enterprises;the company was founded in
1989 and currently has become a leader in the domestic food machinery industry.
1989 and currently has become a leader in the domestic food machinery industry.
The company's main products include: automatic roof-type carton packaging machine, automatic paper brick packaging machine,automatic paper pillow type packing machine, automatic spray sterilizing unit, PET triple filling unit, UHT tubular , plate sterilization machine, aseptic liquid flexible packaging machines, etc., and the formation of fruit and vegetable drinks production line, liquid dairy production line containing carbonated beverage production line, pure water production line, milk powder production line, cold production lines, concentrated fruit juice and jam production line, canned fruit production line eight series as the main supporting parts of the production line equipment Vice scale Group production mode.
Why Choose Us
High Quality
Our machines are using world famous brand component.MITSUBISH PLC variable-frequency governor and OMRON optical switch form Japan.SCHNEIDER electrical appliance components from France and Germany.LG air switch,contactor and circuit breaker from South Korea.
SEMIKRON control thyristors from Germany.
BOURNS potentiometer from America.
SEMIKRON control thyristors from Germany.
BOURNS potentiometer from America.
Long history of the Company
JIMEI is famous for its finest quality and enjoys a long-standing reputation at home and abroad. Having a long history of more
than two decades,great experience accumulated in such a long time making us on the top list of Chinese manufacturer professionals
in food machine industry.
than two decades,great experience accumulated in such a long time making us on the top list of Chinese manufacturer professionals
in food machine industry.
Our team
Exhibition
FAQ
1.How long can I receive your reply after I send my inquiry?
We will reply you within 12 hours on workday.
2.Are you a manufacturer or a commercial company?
We are a manufacturer, and we have a foreign trade department, we market our own products.
3.What products can you provide?
We mainly produce beverage production machinery and equipment.
4.What are the application fields of your products?
Our products are mainly used by beverage factories or individuals who want to run a milk production plant.
5.Can you provide custom products?
Yes, custom products are our main products. We can develop and manufacture products according to customer's drawing or sample.
Saving customer's time on finding corollary equipment.
6.How's your production capacity?
Our annual output is about 800,000 sets.
7.How many employees do you have?
We have over 100 employees, including several technicians and engineers.
8.How do you ensure your product quality?
We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on
international standards according to customer's requirements.
9.Payment?
We will confirm the payment with you when quoting, like FOB, CIF, CNF or others.
In batch production, we accept 30% deposit, balance against the copy of B/L.
T/T is the main payment, and L/C is acceptable as well.
10.What's your delivery method?
We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
11.Where do you mainly export your products?
Our products are mainly exported to Mexico, Saudi Arabia, India, Algeria, Dubai, Congo, African countries, etc.
Competitive AdvantagesWell and High Quality Control.
We will reply you within 12 hours on workday.
2.Are you a manufacturer or a commercial company?
We are a manufacturer, and we have a foreign trade department, we market our own products.
3.What products can you provide?
We mainly produce beverage production machinery and equipment.
4.What are the application fields of your products?
Our products are mainly used by beverage factories or individuals who want to run a milk production plant.
5.Can you provide custom products?
Yes, custom products are our main products. We can develop and manufacture products according to customer's drawing or sample.
Saving customer's time on finding corollary equipment.
6.How's your production capacity?
Our annual output is about 800,000 sets.
7.How many employees do you have?
We have over 100 employees, including several technicians and engineers.
8.How do you ensure your product quality?
We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on
international standards according to customer's requirements.
9.Payment?
We will confirm the payment with you when quoting, like FOB, CIF, CNF or others.
In batch production, we accept 30% deposit, balance against the copy of B/L.
T/T is the main payment, and L/C is acceptable as well.
10.What's your delivery method?
We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
11.Where do you mainly export your products?
Our products are mainly exported to Mexico, Saudi Arabia, India, Algeria, Dubai, Congo, African countries, etc.
Competitive AdvantagesWell and High Quality Control.
