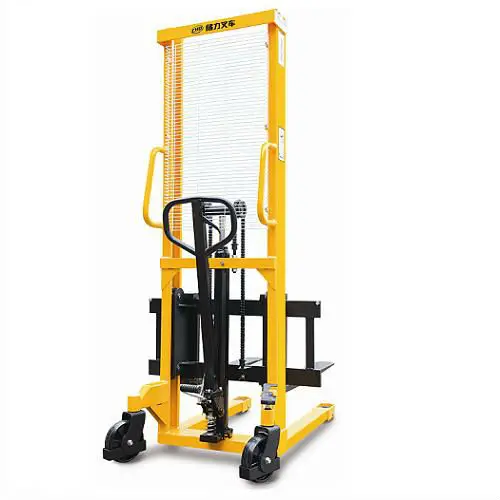

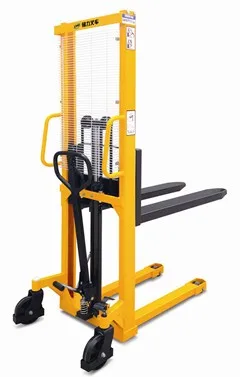

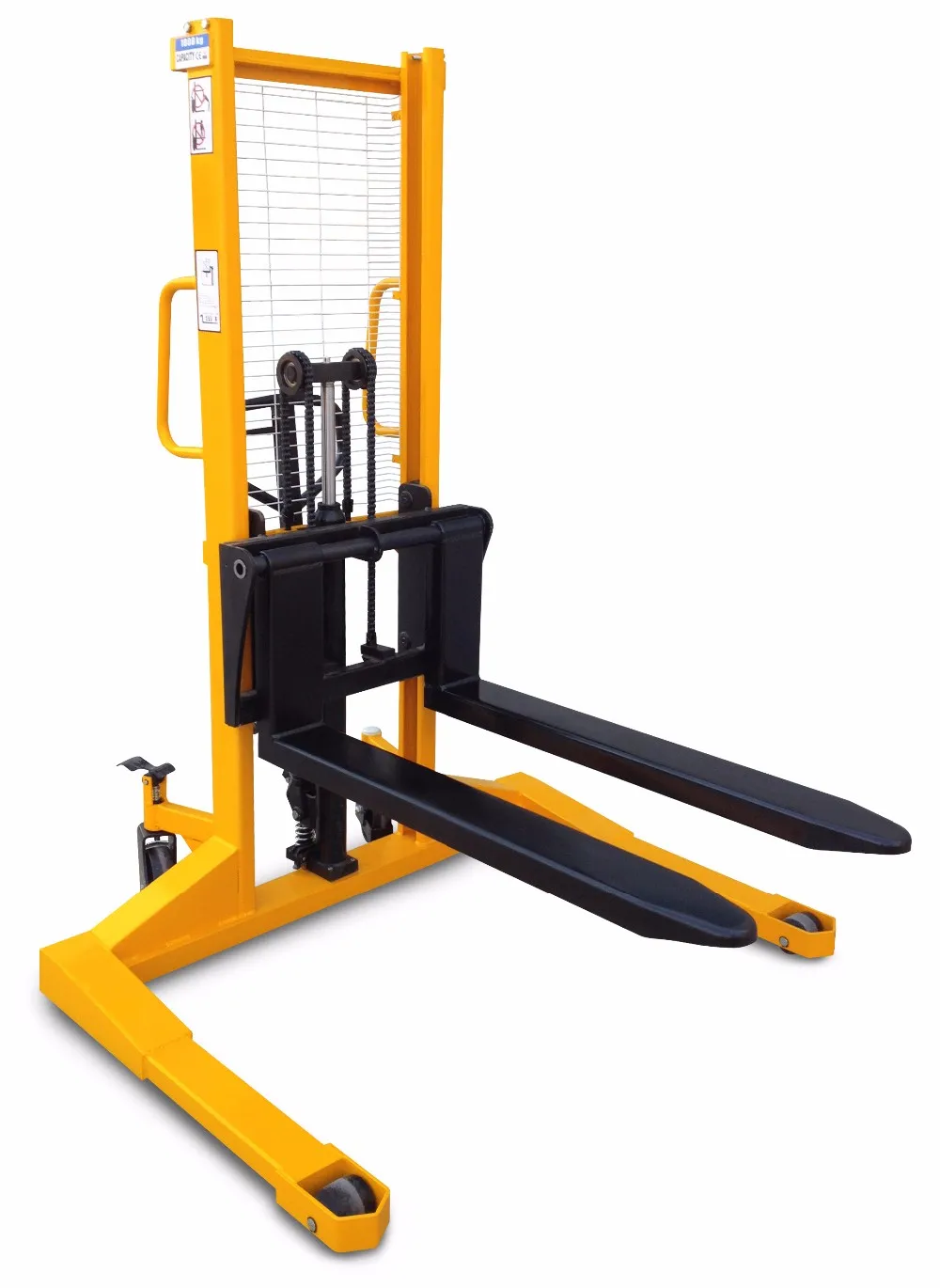

Ручной штабелер Cholift CE/TUV/ISO SDA1020 с двойной мачтой 1T 2M

Product Overview

Description

  Cholift Hot sale SDA1016   1T 2M Manual Stacker

                DOUBLE mast



1. Specifications



Capacity: 1000kgs/1500kgs/2000kgs

Fork size: 300~680/850/930x900/1070/1150mm





• High quality mast steel ensures rigidity, durability.





• Integral pump, which prevents loosening, leak-proof


• High efficicency pump, operating lighter, more comfortable


• Can be lifted both by handle or foot pedal



• Lifting speed keeps smooth regardless of loading weight, which is safe to use


• Maintenance-free design, ensures security, reduces service cost


• Three different types of forks are optional

2. Product Parameter

Model		SDA10	SDA15	SDA20
Load capacity/rated load	Q(kg)	1000	1500	2000
Load centre distance	c (mm)	500	400	400
Tyre size,front	mm	Φ80*70	Φ80*70	Φ80*70
Tyre size rear	mm	Φ180*50	Φ180*50	Φ180*50
Lifting height	H (mm)	1600/2500/3000	1600/2500/3000	1600
Fork lowered height	h (mm)	90	90	90
Most lowered height	F (mm)	2080/1830/2080	2080/1830/2080	2080
Groung clearance	X (mm)	30	30	30
Turning radius	R (mm)	1200	1200	1200



3. Certificates



CE AND ISO CERTIFICATES

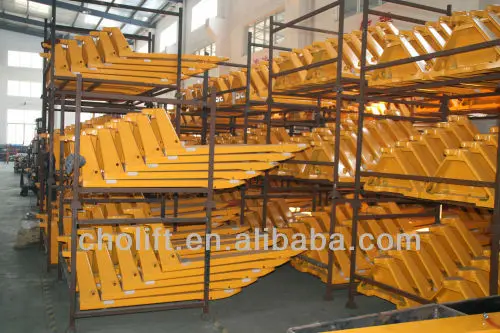

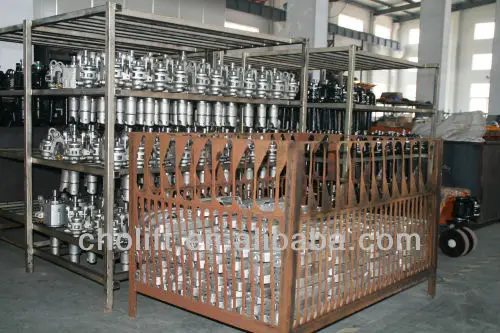

  4.Factory show
