WPC Door Frame Making Machine / PVC WPC Window Profile Extruder Production Line

Product Overview

Description

    WPC Door Frame Making Machine / PVC WPC  Window Profile Extruder Production Line



Specification

a) Installed power: 220v/3P/60Hz

b) Raw material: PVC/PE+wood owder

c) Output:30kg/h

Note:the output is different depends on operation and material.

d) centre height of extruder: 1000 mm±50mm(adjustable)

e) operation direction: from right to left

f) cooling water:≤5-20°C ≥0.3Mpa ~2.5T/h

g) compression air: 1.5m3/min >0.5MPa

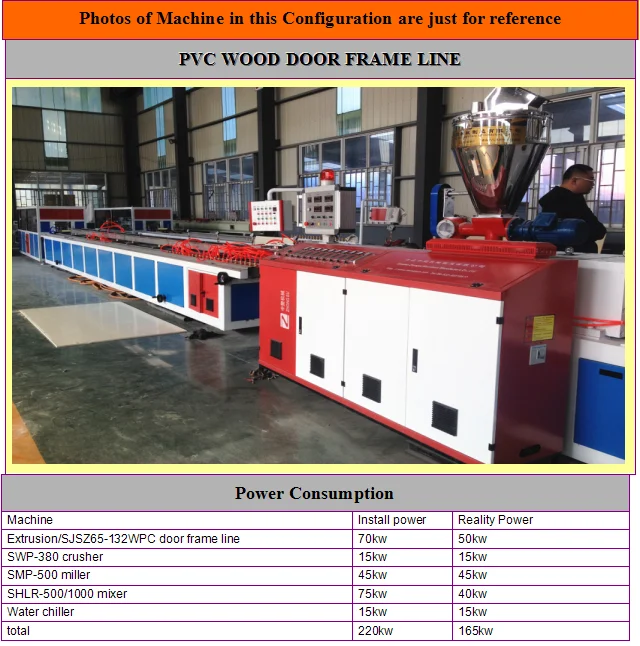

Configuration

ITEM	AMOUNT

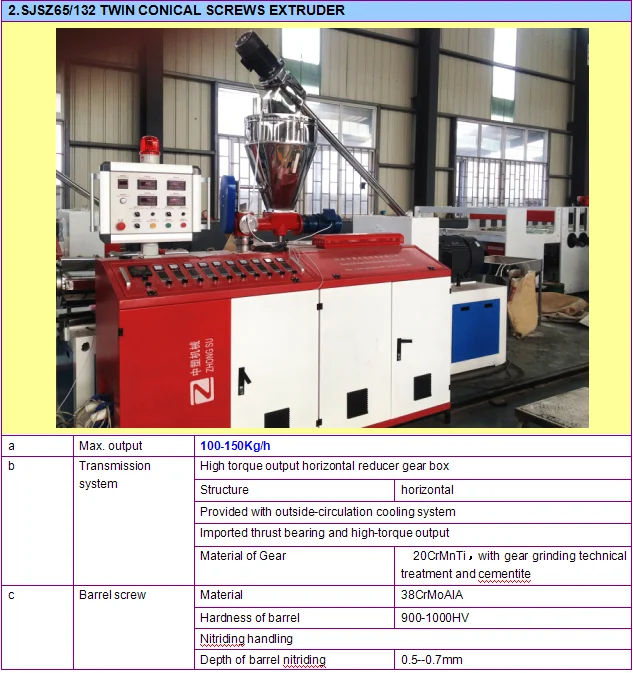

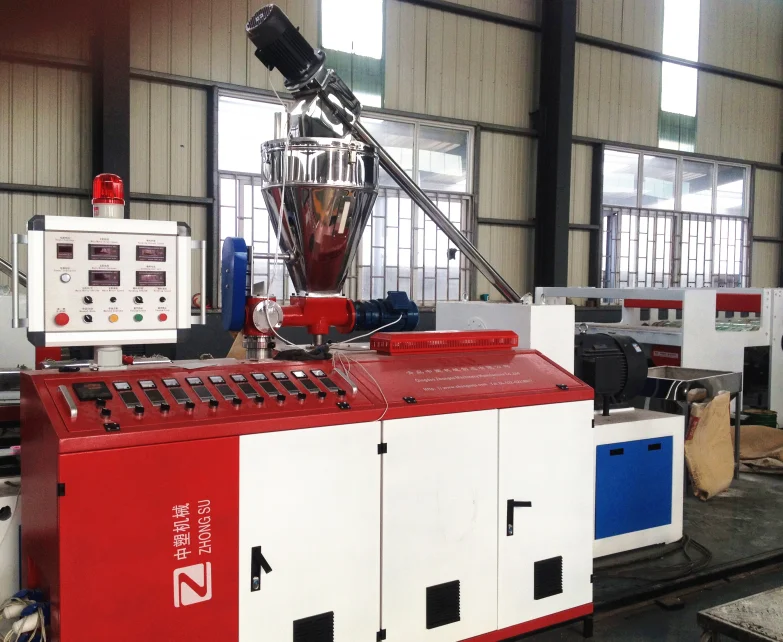

Double conical screw extruder	1

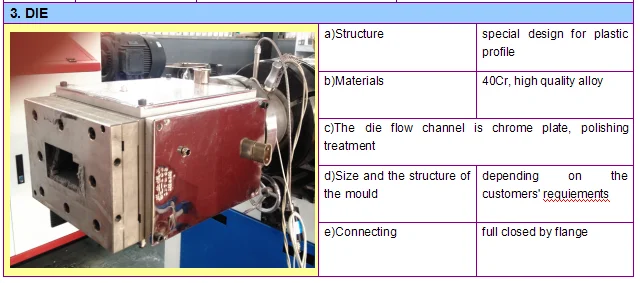

Mould	1

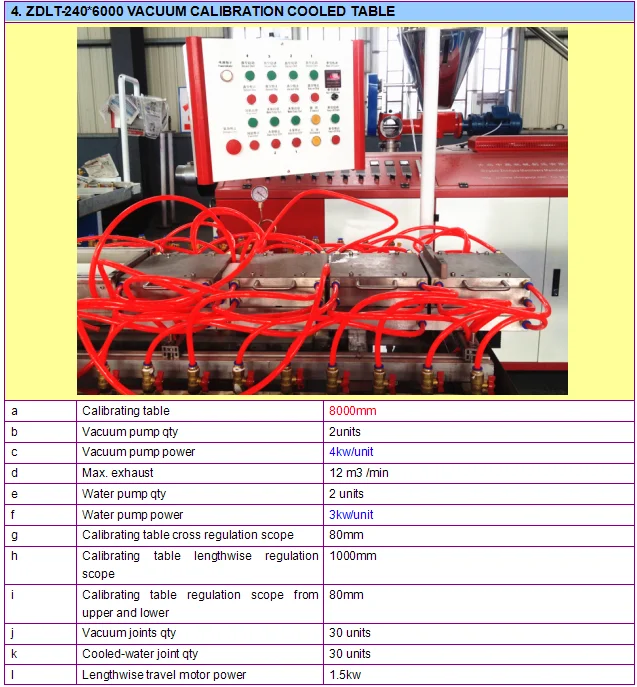

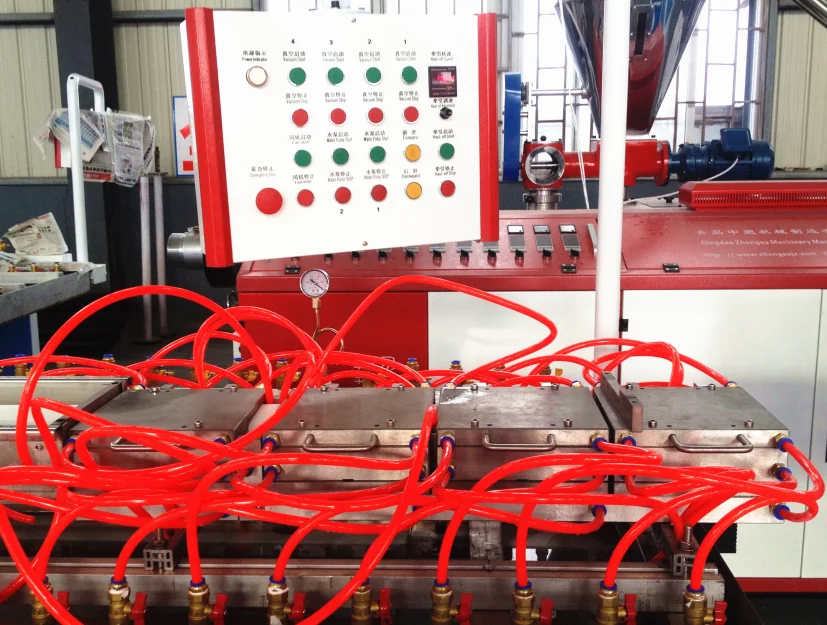

Vaccume calibrating cooling table	1

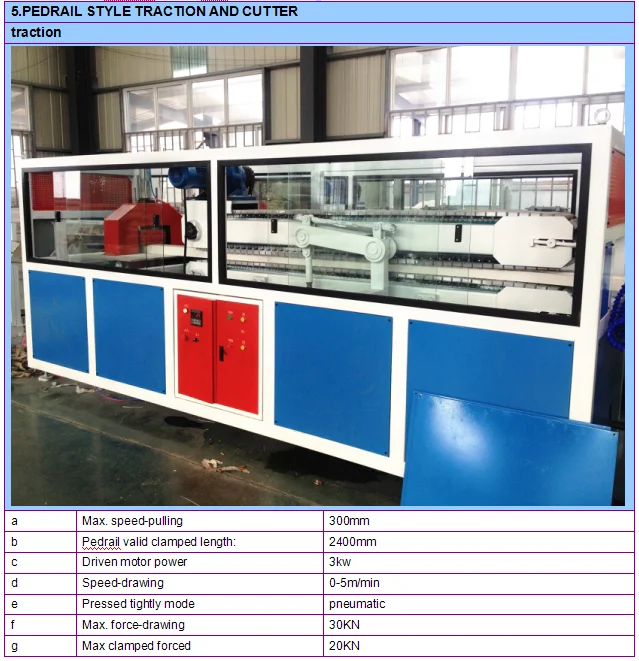

Hall-off machine	1

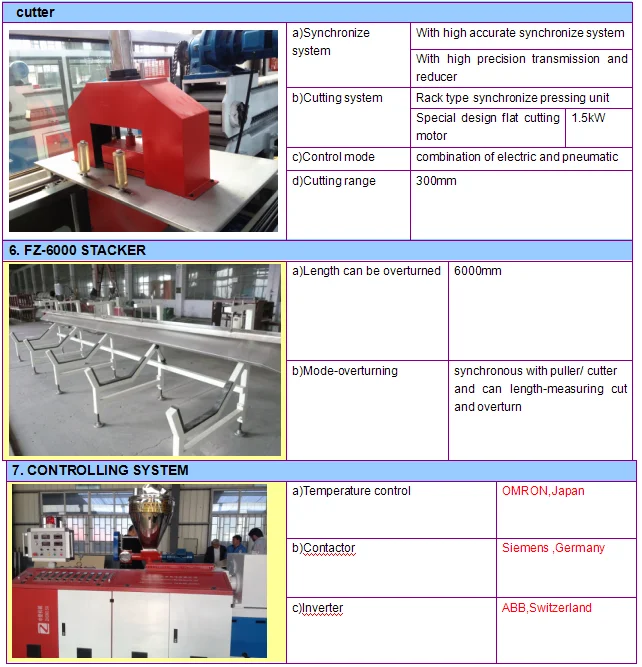

Non-dust cutter	1
Stacker	1
Conrolling system	1



1.Our Partner

2.Why choose us?
1. we are market-leader in this line in china.
2.In the plastic machinery field, we have more than 10 years of relevant experience.
3.Our products extend all over the national and over 60 countries and areas of the world.
4.Our spare parts are brand components.
5.Engineering team provide you with the most suitable model towards your products.
6.Technical training and service is the advantage of us.
7.Zhongsu Machinery hopes to create nice future with clients from home to overseas.

3.FAQ
1.Payment term: 30% deposit by T/T, 70% balance should be paid by T/T before delivery,L/C;
2.Min order quantity:1 set or by negotiate with each other;
3.Service:Provide overseas service;
4. Warranty:12 months after installation in local place.
5.Packaging: wooden pallet and PE film covered.
6.Shipping: 45 working days after receipt of the down-payment.
7.Port: Qingdao Port

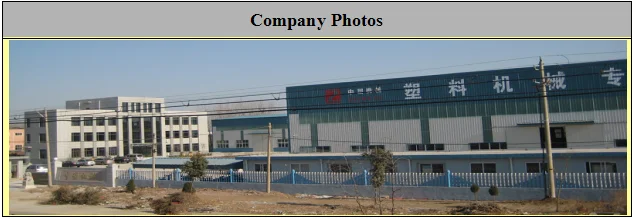

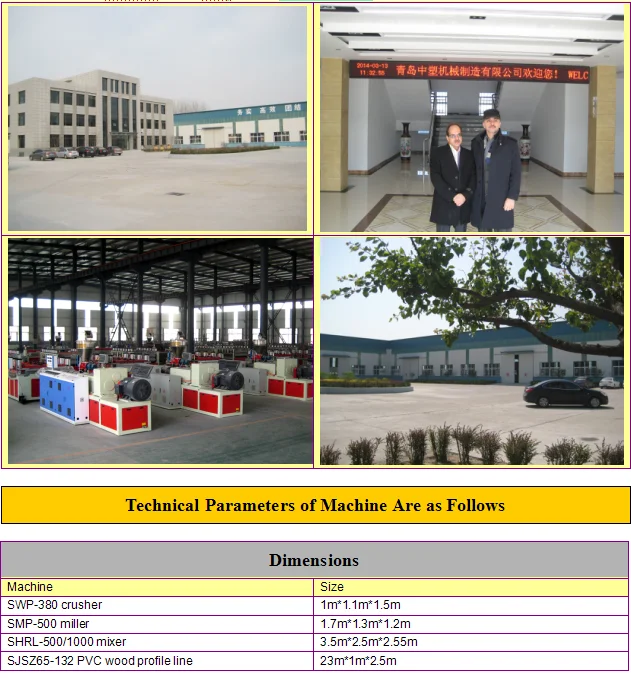

4.Our Factory
