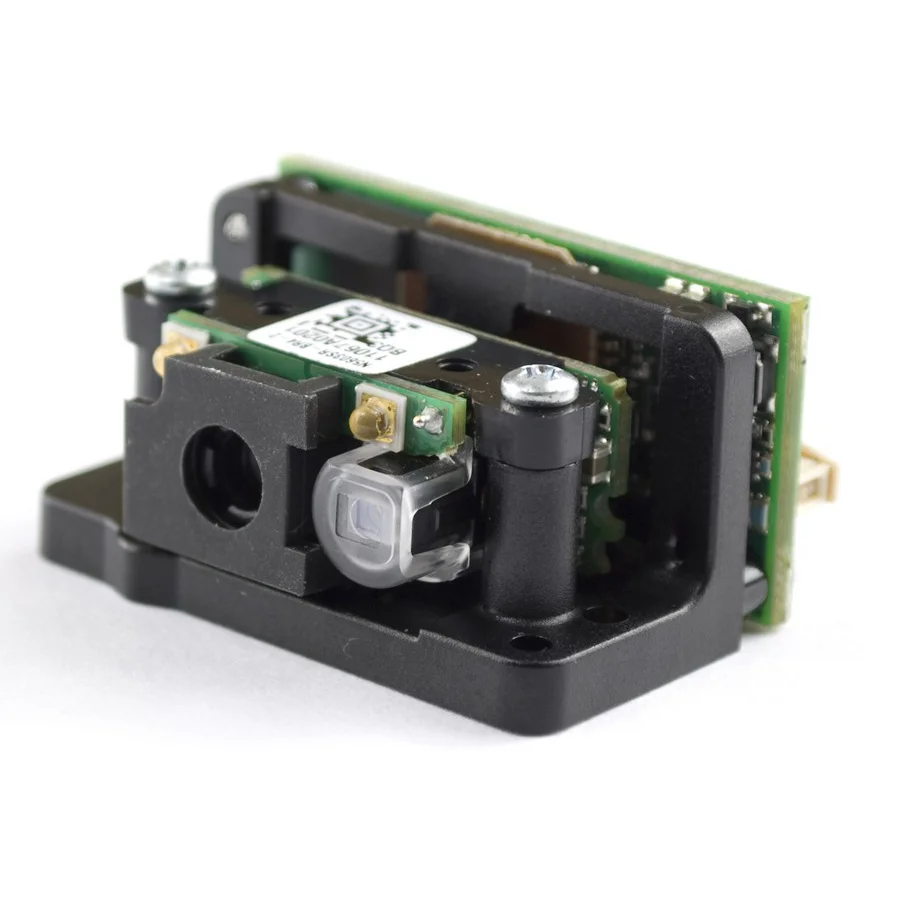

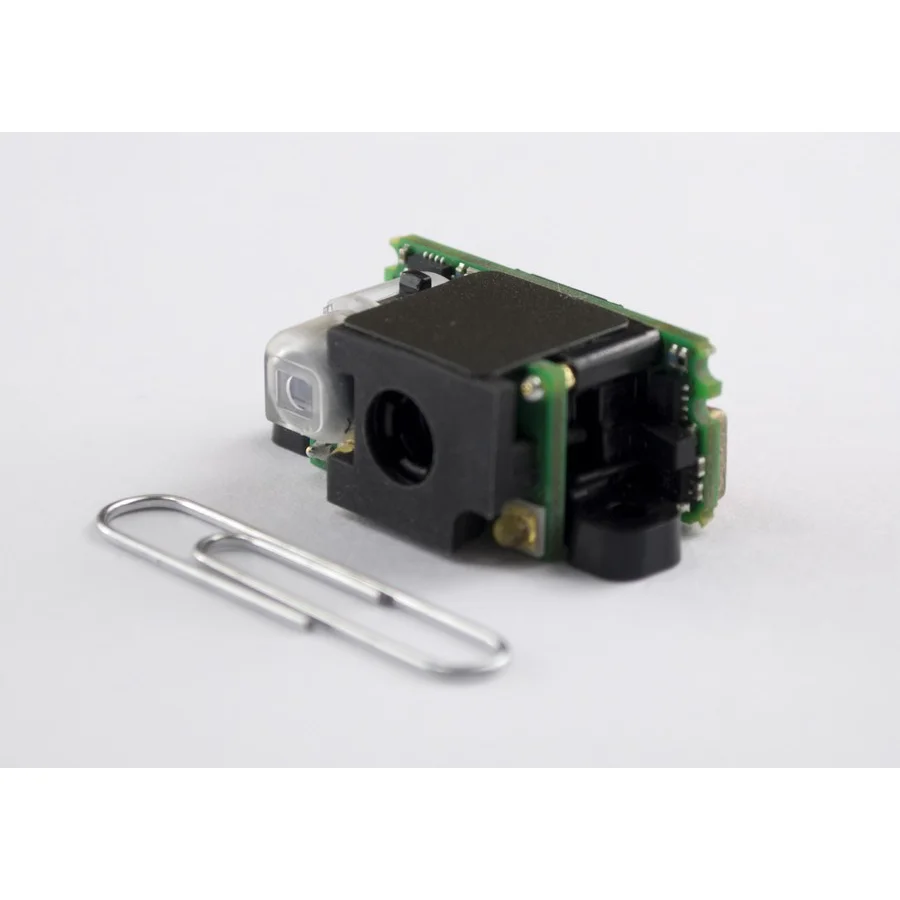

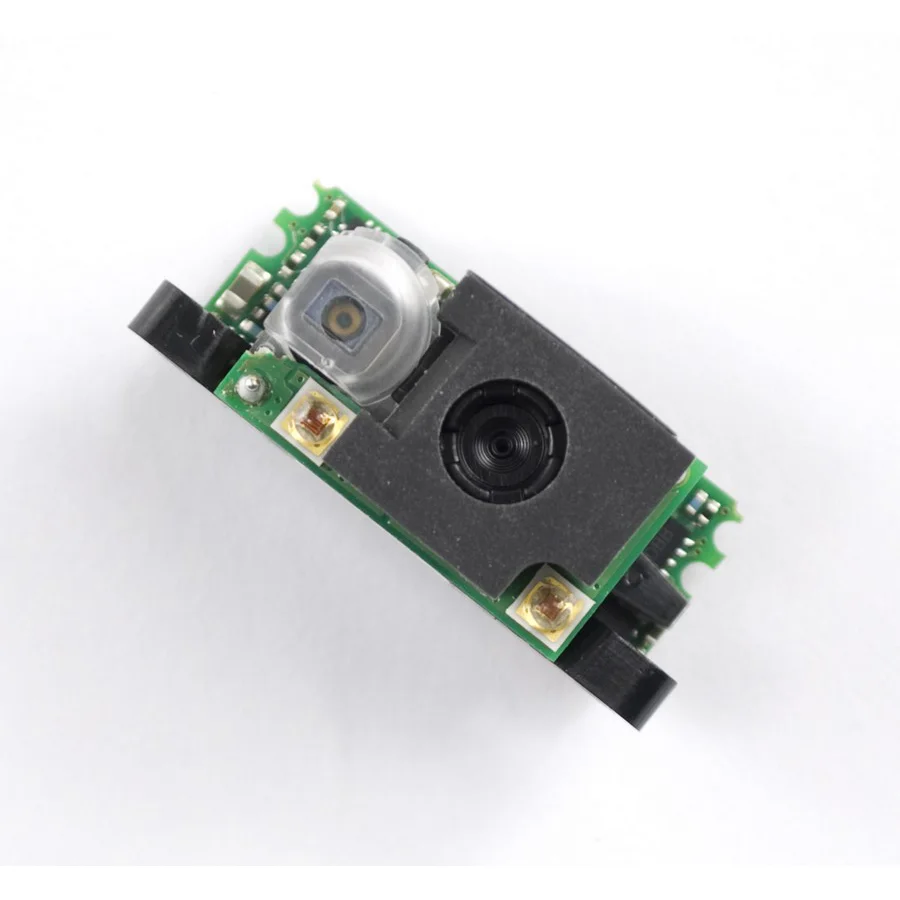

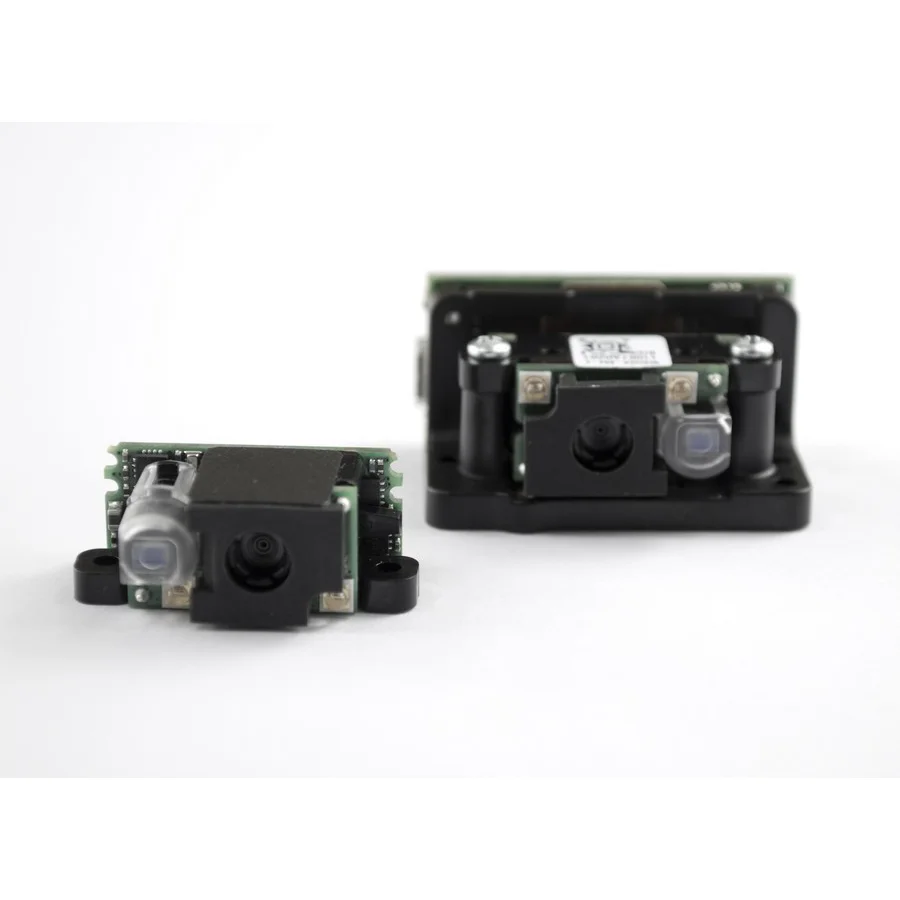

Honeywell N5680 2d barcode scanner engine module
- Category: Scanners >>>
- Supplier: Shenzhen Barcode System Co. Ltd.
Share on (60160224117):
Product Overview
Description
Product Description

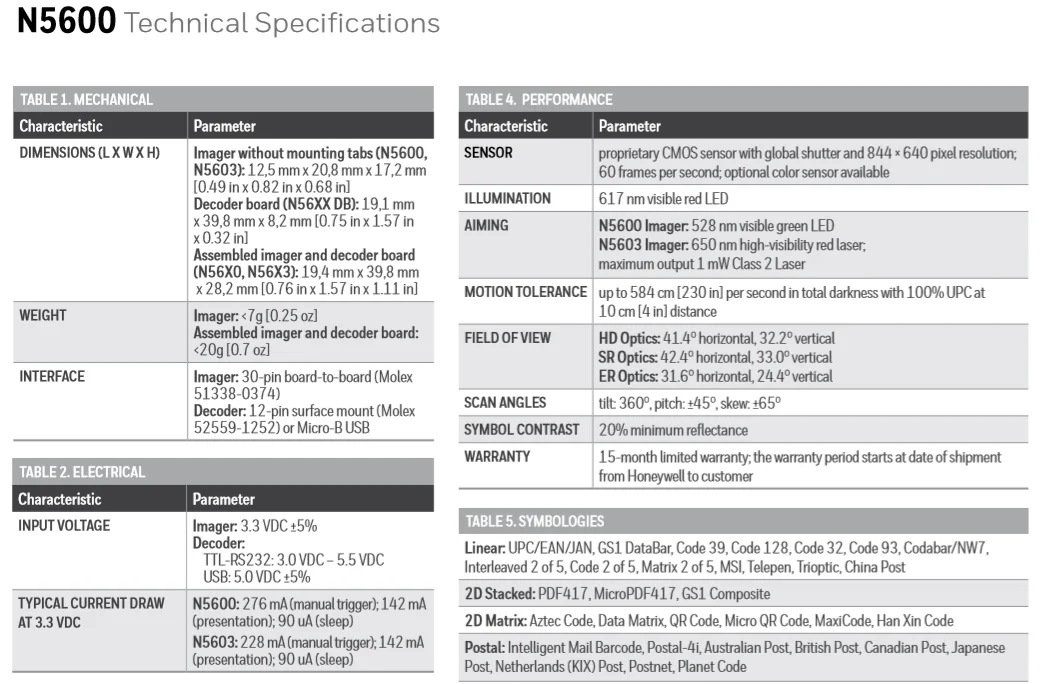

Product Name | Honeywell N5680 2d barcode scanner engine module |
Dimensions | 19,4 mm x 39,8 mmx 28,2 mm (0.76 in x 1.57 in x 1.11 in) |
Weight | 20g (0.7 oz) |
INTERFACE | 12-pin surface mount (Molex 52559-1252) or Micro-B USB |
INPUT VOLTAGE | TTL-RS232: 3.0 VDC – 5.5 VDC USB: 5.0 VDC ±5% |
TYPICAL CURRENT DRAW AT 3.3 VDC | 276 mA (manual trigger); 142 mA (presentation); 90 uA (sleep) |

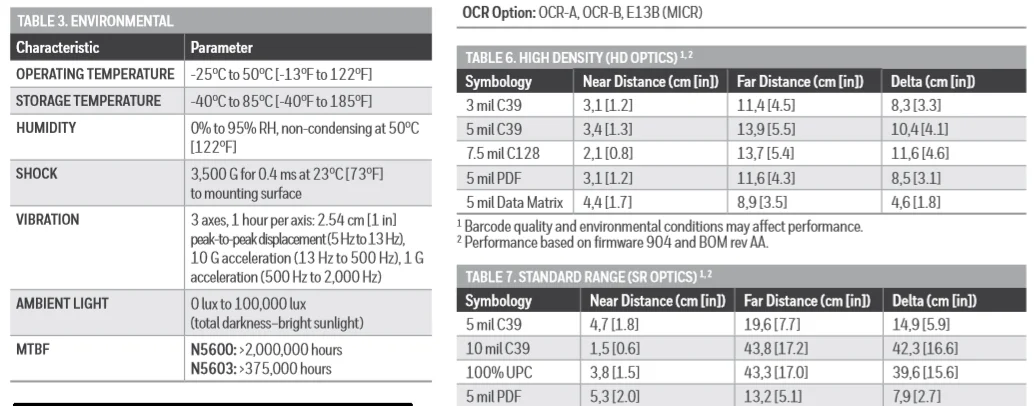

OPERATING TEMPERATURE | -25°C to 50°C [-13°F to 122°F] |
STORAGE TEMPERATURE | -40°C to 85°C [-40°F to 185°F] |
Product performance description
Barcode reading has never been so simple. N5600 series miniature 2D imager engines set new standards of performance and ease of integration and use for OEM customers and end users with Honeywell’s advanced Adaptus® 6.0 imaging technology. Built on a
proven imaging platform, Adaptus 6.0 provides an entirely new level of barcode and Optical Character Recognition (OCR) font reading performance, with enhanced speed and accuracy. At the heart of the system is a new proprietary imaging sensor designed specifically for optimum barcode reading. With an advanced illuminating design, this sensor captures images for barcode decoding with exceptional tolerance for motion. The patented color option captures color images, without sacrificing barcode reading performance.
proven imaging platform, Adaptus 6.0 provides an entirely new level of barcode and Optical Character Recognition (OCR) font reading performance, with enhanced speed and accuracy. At the heart of the system is a new proprietary imaging sensor designed specifically for optimum barcode reading. With an advanced illuminating design, this sensor captures images for barcode decoding with exceptional tolerance for motion. The patented color option captures color images, without sacrificing barcode reading performance.
Product Usage
Product usage introduction
High Visibility Laser or LED Aiming Option:
Ensures crisp and accurate targeting, even
in bright sunlight.
Ensures crisp and accurate targeting, even
in bright sunlight.
Supports TotalFreedom®:
An open-system architecture for developing software plug-ins to implement value added custom features such as Honeywell’s EasyDL™.
An open-system architecture for developing software plug-ins to implement value added custom features such as Honeywell’s EasyDL™.
Related Products

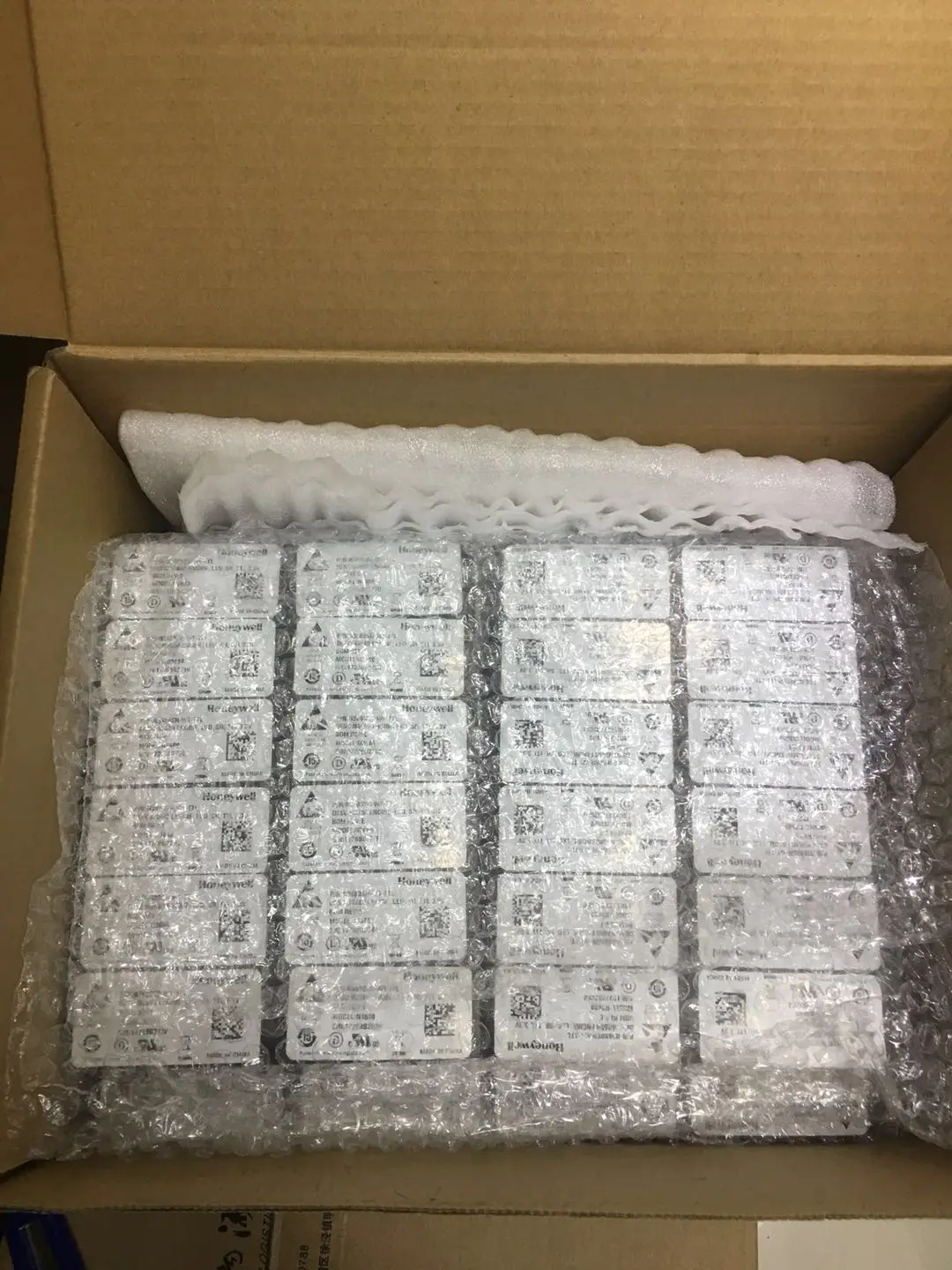

Packing&Shipping
