QP(L) Manual Mini Fork Stacker with Traceless Slient Wheel

Product Overview

Description







QP(L) Manual Mini Fork Stacker with Quick Lifting and Traceless Slient Wheel



1) Features

- Robust construction.

- Hard chromium plated frame.

- Effortless Movement.

- Polyurethane rollers with bearing

- No-marking castor as standard. Silent castor is optional.

- Widely used with low platform and various accessories as option.

- Design of double chain and big wheels can be stable and reliable.

- Conforms to EN 1757-1.



2) Specification Data

Model	Platform	QP2085	QP2120	QP4085	QP4120	QP4150	QP4180
	Low Platform	QP2085L	QP2120L	QP4085L	QP4120L	QP4150L	QP4180L
Capacity	(kg)	200	200	400	400	400	200~400
Max. Platform Height	H (mm)	965	1315	965	1315	1615	1915
		850	1200	850	1200	1500	1800
Min. Platform Height	H1 (mm)	200	200	200	200	200	200
		85(L)	85(L)	85(L)	85(L)	85(L)	85(L)
Platform Length	L1 (mm)	600	600	650	650	650	650
Paltform Width	W (mm)	500	500	550	550	550	550
Front Load Wheel	D (mm)	Ø125	Ø125	Ø150	Ø150	Ø150	Ø150
		Ø75(L)	Ø75(L)	Ø75(L)	Ø75(L)	Ø75(L)	Ø75(L)
Rear Steering Wheel	d (mm)	Ø125	Ø125	Ø150	Ø150	Ø150	Ø150
		Ø125(L)	Ø125(L)	Ø125(L)	Ø125(L)	Ø125(L)	Ø125(L)
Pump Strokes to Max. Height	(mm)	14	21	30	45	58	71
Net Weight(PS/EP)	(kg)	46	51	64	70	75	85
Noise-free Castor		O	O	O	O	O	O
Ovrall Size	LxWxH (mm)	940x520x960	940x520x1310	1040x570x1090	1040x570x1440	1040x570x1740	1040x570x1940
Note: Specification and materials are subject to change without notice.

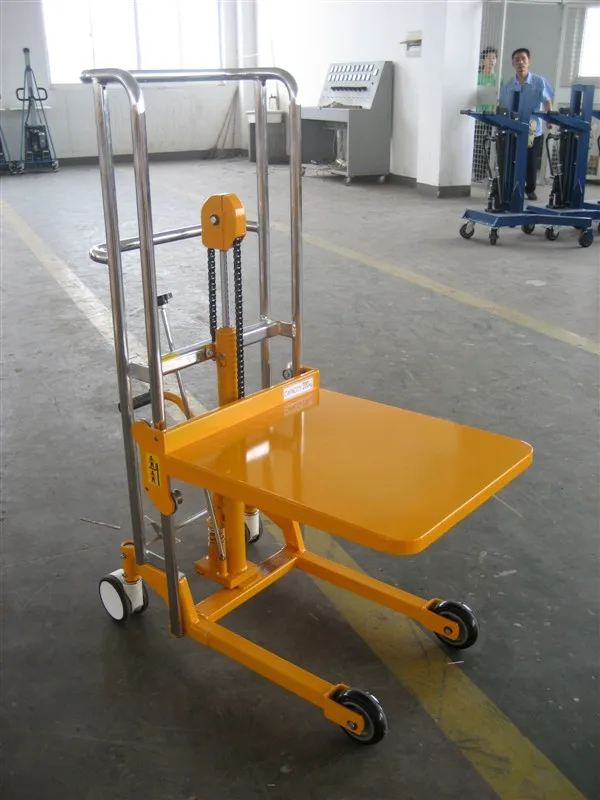

3) Photos

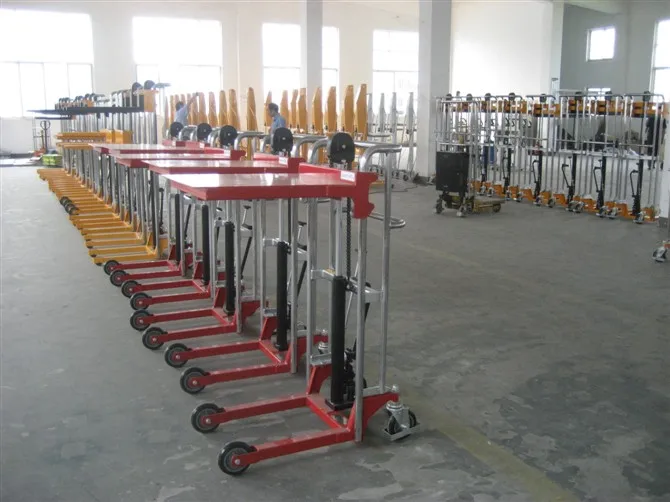

4) workshop



5) terms and service:

1.Lead time	3-4 weeks
2.Packing	Standard export fumigated wooden pallet, foam rubbers
3.Payment term	T/T payment in advance; L/C at sight.
4.Lead term	FOB Shanghai or CFR/CIF
5.Warranty period	12 months
6.Shipping method	by sea or air; by express.



6) Warranty Policy and service program

SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.



Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.



If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.

SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
