Plastic injection machine

Share on (60167047747):


Price:$21,300.00

Quantity:


Product Overview

Description




Company Information

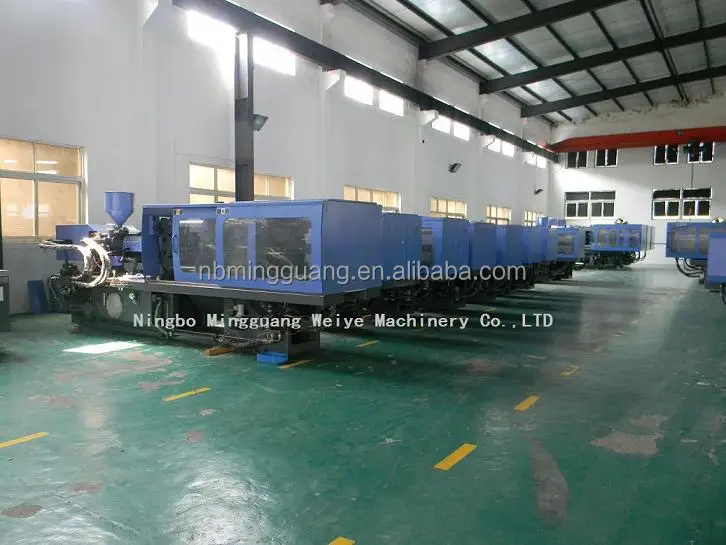

Ningbo Mingguang Weiye Machinery Co., Ltd. was established in 1998, located in Ningbo , Zhejiang province , China ;It connects to Hangzhou Bay bridge in the north and closes to Ningbo Port in the east with very convenient transportation.Its workshop covers 30,000 square meters,has the kinds of processing lathe over 100 sets and has employees over 150. It has acquired authentication of ISO 9001-2008 and CE certification.



 The company professional manufactures XINGYUAN brand Injection Moulding Machine from 50 -1500 Tons .The machine sales throughout the domestic market and has exported to all over the world .



 We always take users requirements,good quality,high efficiency and lasting innovation as our working target.Good after-sales service is our promise to users.We sincerely hope that have a good cooperation and to developing together with our customers .





 Company Motto: High quality and Good service





We are a professional manufacturer of injection moulding machine and mould, clamping unit and injection unit. Supply 50ton-3000ton injection machine.
We have exported a lot countrys.Pls contact with me if you have any need.



Wechat/Whatsapp:008615825563705



catherine@ nbmingguang. com



SPECIFICATION

XY1800

INJECTION UNIT

A

B

C

SCREW DIAMETER

mm

42

45

50

SCREW L/D RATIO

L/D

    23.6

22

19.8

SHOT VOLUME(THEORETICAL)

cm3

    305

350

432

INJECTION WEIGHT(PS)

g

    277

319

393

INJECTION RATE

g/s

138

160

196

INJECTION PRESSURE

MPa

  203

177

143

SCREW SPEED

rpm

225

CLAMPING UNIT



CLAMP FORCE

KN

1800

OPEN STROKE

mm

435

SPACE BETWEEN TIE BARS(W*H)

mm

480x480

MAX.MOULD HEIGHT

mm

520

MIN.MOULD HEIGHT

mm

180

EJECTOR STROKE

mm

135

EJECTOR FORCE

KN

50

OTHER



MAX.PUMP PRESSURE

MPa

16

PUMP MOTOR POWER

kW

18.5

HEATING POWER

kW

12.5

MACHINE DIMENSION(L*W*H)

m

4.86x1.30x2.10

OILTANK CUBAGE

L

300

MACHINE WEIGHT

t

5.4
