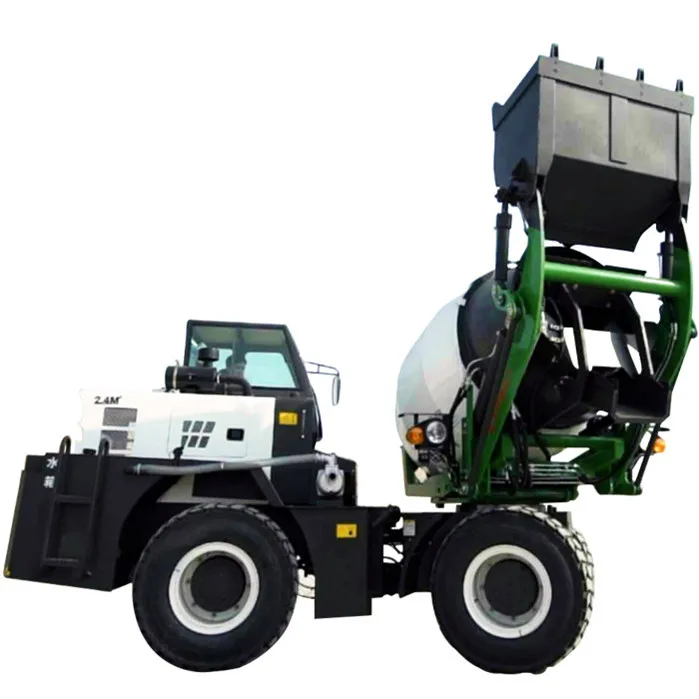

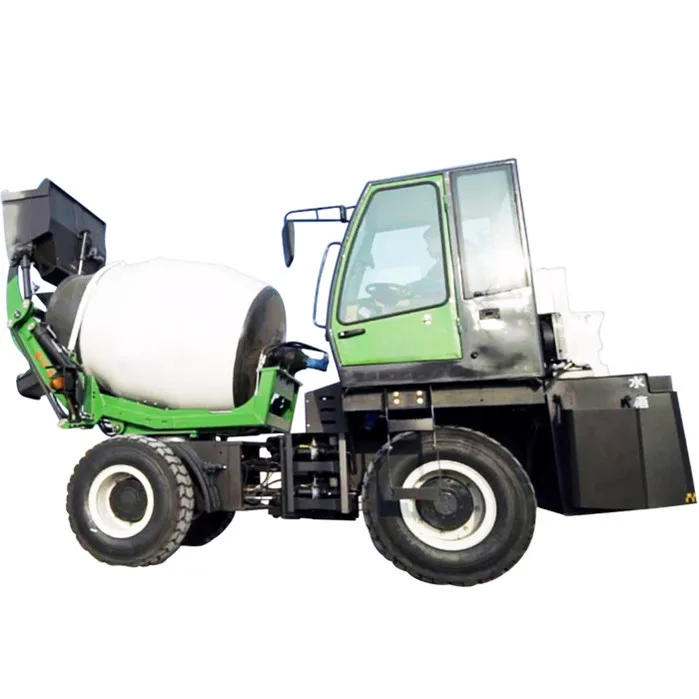

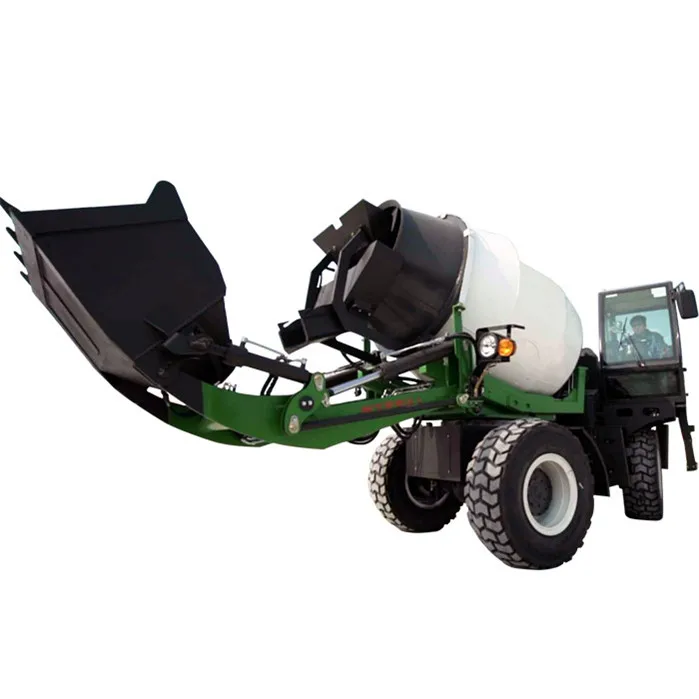

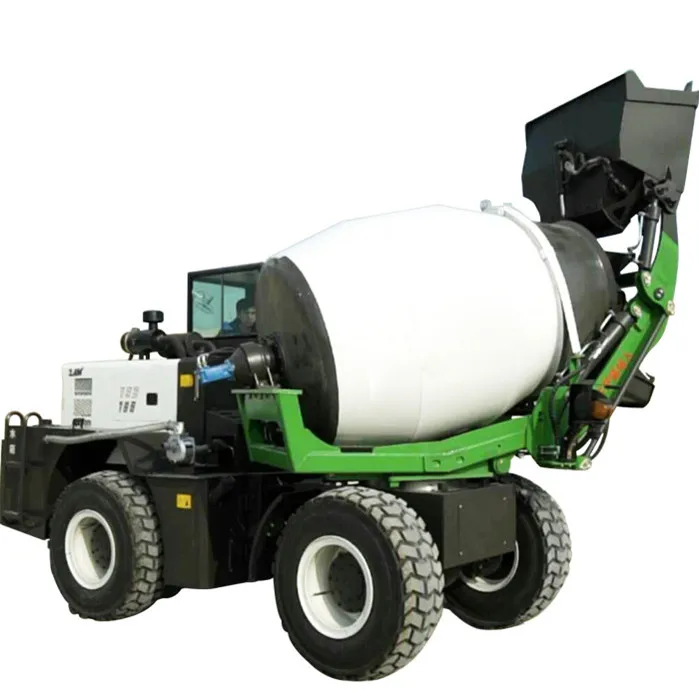

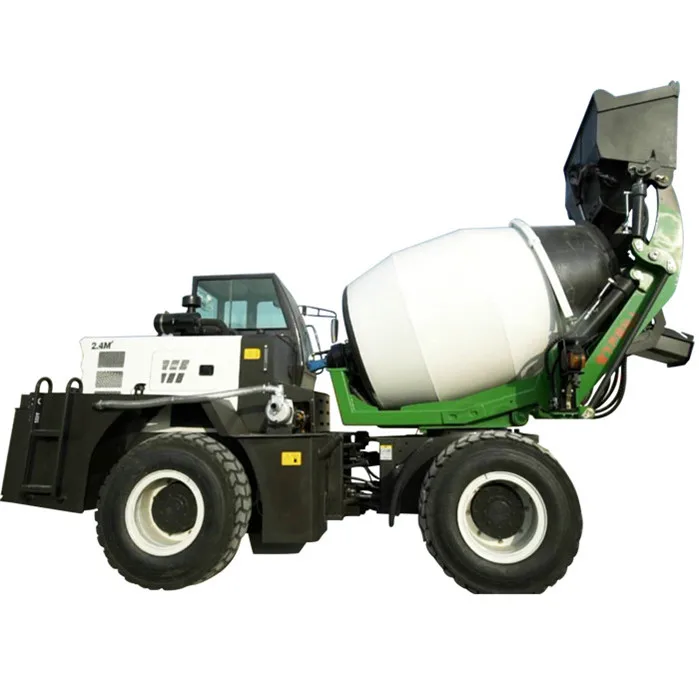

12cbm Self Loading Mobile Concrete Mixer /Concrete mixer truck with loader

Product Overview

Description

Self-loading concrete truck mixer

This model is designed for construction site far away from concrete batching plant, small construction work, bad road condition area.
Hydraulic-controlled shovel can load cement, grovel and sand at your desired ratio into the drum. Combined with water which are pneumatic controlled, these materials, through enough mixing, will become high-quality fresh concrete for your pouring work.
With this machine, anywhere, anytime you can get your high-quality fresh concrete.



Model			CMT-1.5	CMT-3
Whole  vehicle	Chassis type		Self-made	self-made
	Curb weight	kg	5000	7800
	Driving type		4*4	4*4
	Wheelbase	mm	2380	2480
	Tyre	mm	750 - 16	16/70-20
	Max. speed	km/h	40	32
	Max gradient	°	15	15
	Dimension	(L*W*H) mm	5220*2290*3320	6720*2500*3620
Engine	Type		Weichai 4RMAZG(QZ2)	CUMMINS
			water-cooled four-stroke direct injection
	Power/revolution	kw/r/min	83/2400	83/2200
	Max. torque	N.m/r/min	370/1680	370/1680
	Emission	L	4.5	4.5
Mixing drum	Total volume	m3	2.8	4.8
	Mixing volume	m3	1.5	3
	Inclined angle	°	16	16
	Feeding speed	m3/min	≥2.8	≥2.8
	Discharging speed	m3/min	1.1	1.1
	Discharging surplus rate	%	≤1	≤1
	Slump range	mm	160-230 ±30%	160-230 ±30%
Hydraulic system	Pump		CBG2063	China top brand
	Motor		BMS-160	China top brand
	Speed reducer		OKJ-200	China top brand
Water supply	Tank volume	L	120	500
	Water supply		Pneumatic
