Product Overview
Description
Product introduction

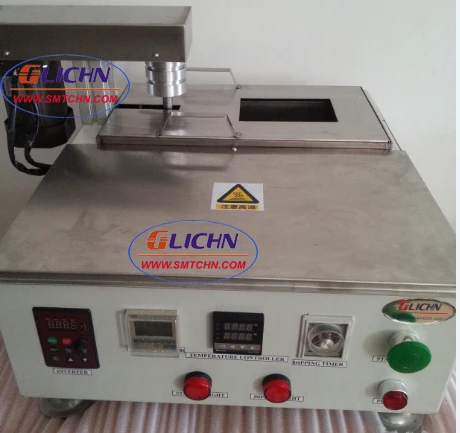

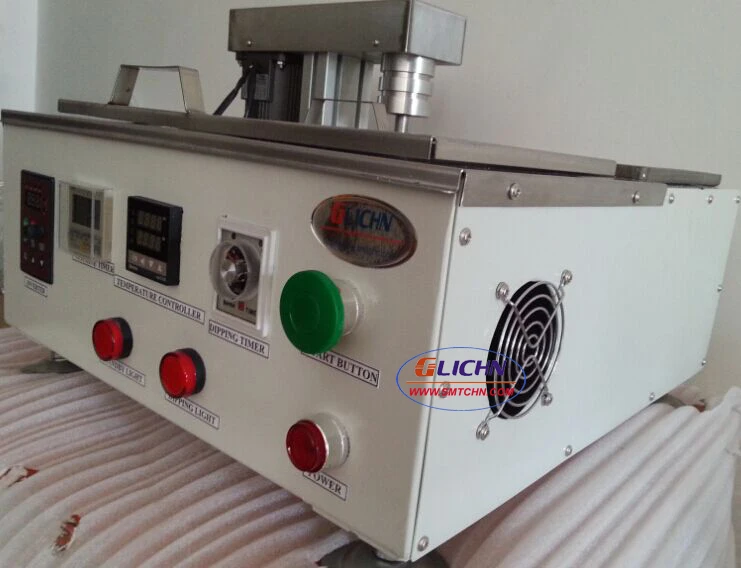

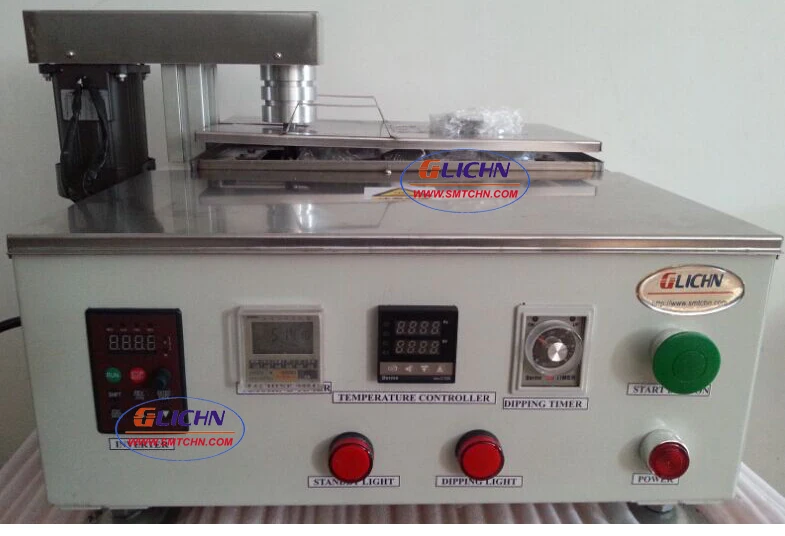

Selective Wave Soldering machine MF302 , it is a multi-purpose machine. It can be used for single-point soldering, removal of ICs and parts; changeable nozzles with special tools are suitable for all kinds of PCBs.
MF302 Features
1 MF302 Auto dipping solder tin design, this can do part soldering and PCB after welding process;
2 Position accurately, dip solder tin uniform, automatic operating is more easy and high efficiency.
3 MF302 With changeable nozzle of any sizes; all kinds of PCBs will be soldered by replacing nozzles;
4 Step-less adjustment, stable wave crest will reduce empty solder, edge solder and other phenomenon;
5 Point-point solder, little power consumption;
6 This machine is compact and versatile. MF302 It is easy to be transported and space saving.

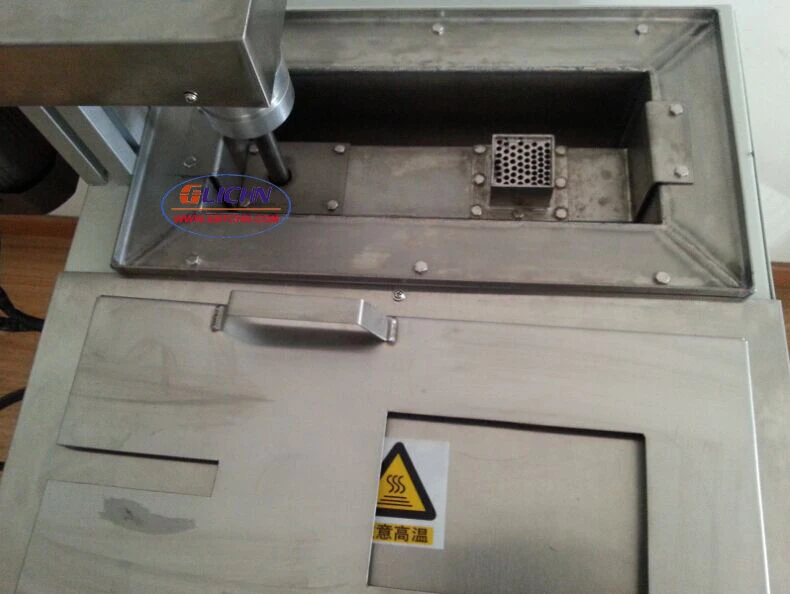

7 Titanium Solder tank nozzles, solder pumping mechanism are made from special steel alloy material (SUS316), No corrosion and no bursting apart problem in lead free soldering. Minimum solder dross.

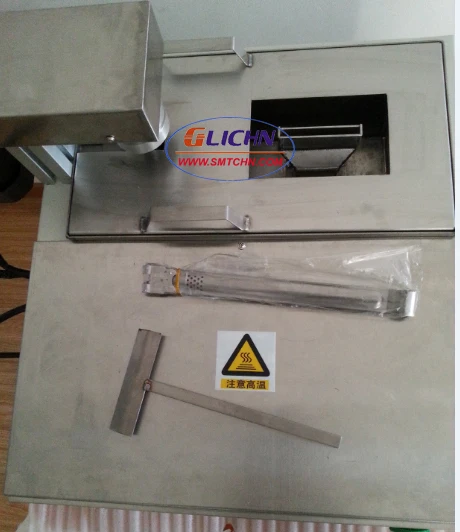

8 MF302 Machine will be shipped with 3 different sizes nozzle as per customer specs.
9 Preset timer every day (option);
10 N2 protection system to prevent solder pad and lead oxidation (option);
11 MF302 Infrared center position support system, it can ensure solder or take components more precision (option);
Technical parameters
Power Source | AC 220V 50/60HZ 1PH |
Heater power | Outside heater, 1.2kw MF302 |
Temperature range | Room temperature--300°C |
The height of wave crest | Adjustable |
MF302 Soldering time | 1 ~12S adjustable |
Preheat time | About 30 min |
PCB size | MF302 600*380mm |
Solder pot | Titanium Solder tank |
Timer | Auto timer on/off in one week |
MF302 Controller | PID mode, SSR driven |
Safe protection | Short circuit protection, alarm with over-temperature |
MF302 Nozzle material | Titanium alloy |
MF302 Solder capacity | 30kg |
Machine weight | 50kg |
Machine dimension | 70*45*40cm |
MF302 Nozzle size | 80*8mm, 80*10mm, 100*15mm,150*10mm, 180*10mm,200*23mm, 330×23mm or made by customers |
Packaging & Shipping
Packing method:
1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;
Shipping way:
1)By air ,for sample and small package ,wordwide express like DHL,UPS,FedFX,EMS....
2)By sea, for large package and quantity;
3)By car or other ways as customer requested;
Company introduction
GLICHN found in 2010,Specializing in SMT equipment manufacturing services and sales of peripheral products. Factory is located in shunyi district of Beijing and shenzhen baoan district
SMT class:pick and place machine,small and middle size reflow oven, manual and semi-automatic solder paste printer,PCB loader and unloader,PCB magazine rack,SMD component counter,solder paste and chip production line etc.
THT Class:wave soldering machine, Spray tin stove,cut foot and forming machine,Plug-in production line etc
Others :Spin coater,Dispensing machine,nozzles,feeder,belt ,driver, motor,cylinder,High temperature tape,valve,etc
Our Service
1. We’ll have a good check and a test before shipping out.
2. We provide you the friendly English User manual or the operating videos for free;
3. 24 hours technical support by email or Skype or Trade Manager or Calling.
4. 1 year machine parts free warranty;
5.Engineers available to service machinery overseas.
