pressure gauge calibration instrument

Product Overview

Description

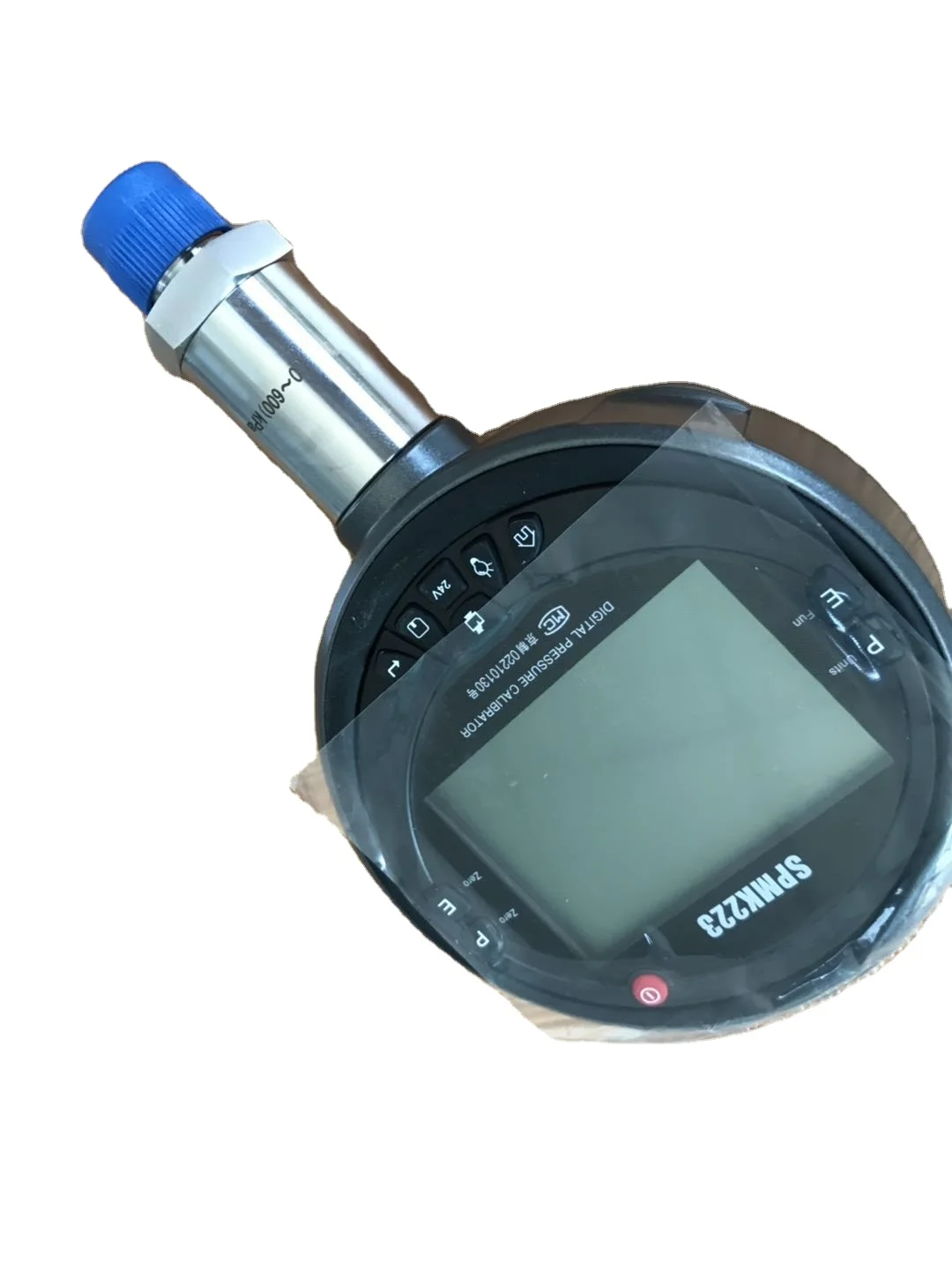

SPMK223 digital pressure gauge calibration instrument



With advanced microprocessor technology and high-tech silicon pressure sensors, the SPMK 223 digital pressure calibrator provides a pressure calibration solution for gauges, transmitters and pressure switches in a wide pressure range. In a highly protable package, it can measure pressure precisely with a built-in pressure sensor and read the current or mV produced by the transducer, and can even supply a drive voltage to power sensors or transmitters during calibration.

Features :

Built-in HART Communication,RS232 connector, can upload stored documents

Pressure ranges to 36,250 psi (2500 bar)

Accuracy: ±0.025%FS,±0.05%FS

Large LCD screen with backlit, 6 digits

Bar graph shows the ratio of pressure

Datas of 10 gauges can be stored

Optional 10 pressure units:Pa,Kpa,Mpa,mmHg,KFG/cm² ,cmH2O,mmH2O,PSI,mbar,bar.

CE approved .(Certificate#.:AE 50188214 0001)



Technical Specifications:

Environmental:

Temperature : 0~122°F  (0~ 50°C)

Relative humidity: ≤85%R.H

Atmospheric pressure :0.86~1.06 bar ( 86~106kpa)

Power supply: Large-capacity li-ion or adapter

About the Li-ion: no-load 24V, can be used continuously for 60 hours after 4 hours charge.

Dimension: φ120×45(mm)

Net Weight: 0.7kg



 Applications:







Parameters



Applications	Ranges	Accuracy
Current measure	±30.0000mA	±(0.01%RD+0.003%F.S)
Voltage measure	±30.0000V	Accuracy:±(0.01%RD+0.003%F.S)
Temperature measure	(0-50)℃	±1 ℃
Power output	DC24V (Max current output:50Ma)	±0.5V



Payment Terms

1.Loading Port: Shanghai China

2. Samples Leading Time: 3-7 working days

3. Delivery Time: Within 7-15 days after payment

4.Payment: T/T, Western Union, Paypal

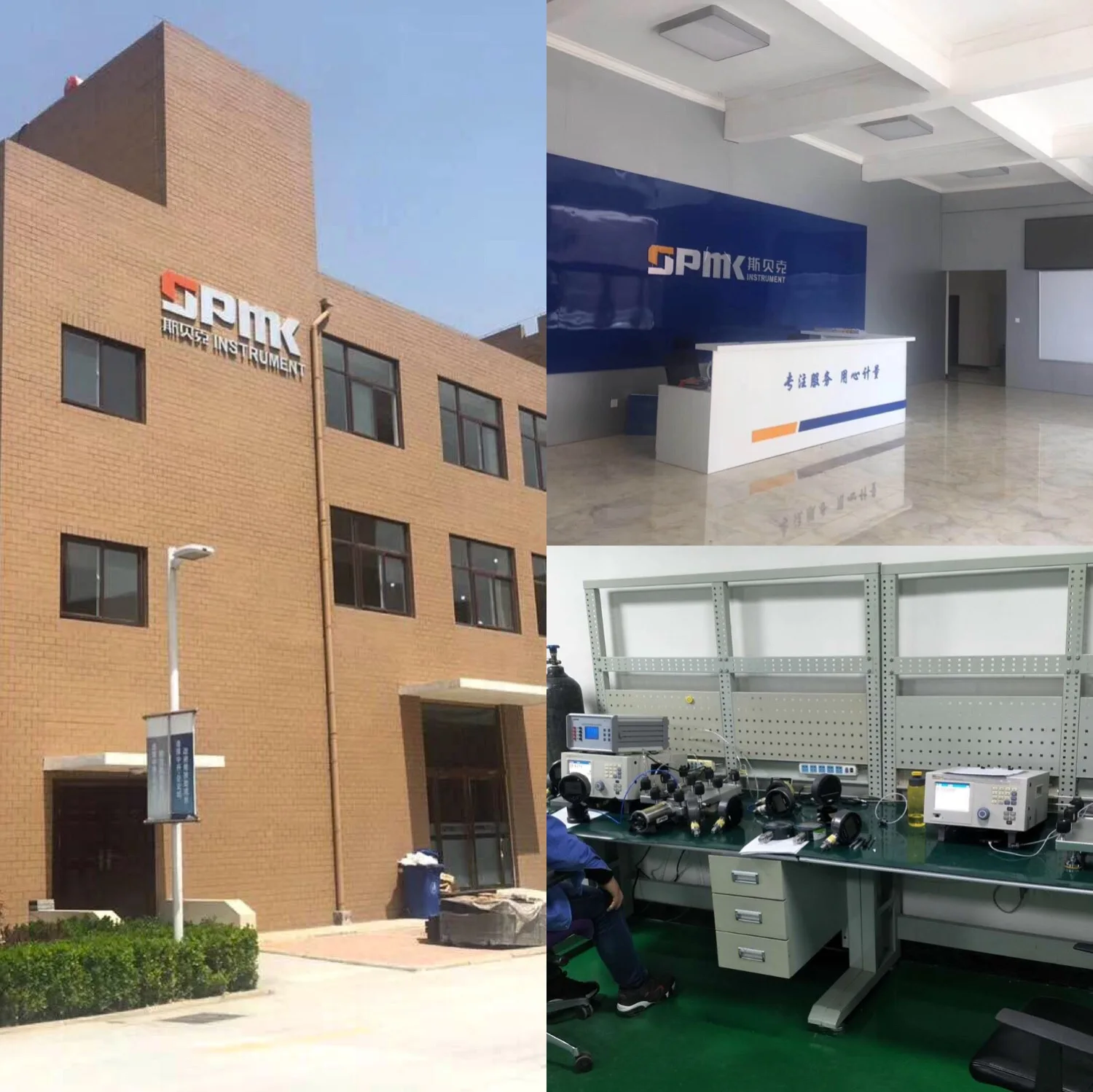

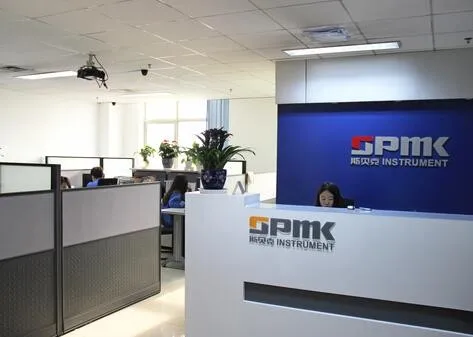

About our company: Beijing SPAKE Technology Co.,Ltd.

We are a perfessional manufacturer of pressure/temperature calibration instrument with 18 years experience in China and registered capital of 33.8 million yuan.Our main products are pressure calibrator,precision pressure gauge,pressure testing pump,multifunction process calibrator.temperature calibrator dry block. We got more than 10 utility model patents in 2009, and all products supporting test system software have got the software copyright certificate. In 2006, Our company passed the ISO9001: 2000 quality inspection.in 2010, most products have obtained CE certificate and Explosion-Proof Certificate.
