OPCOM OP COM V2014 Auto Diagnostic Tool for Opel OP COM V1.70 Diagnostic Scanner Tool OPCOM V1.70 Super Scanner

OPCOM OP COM V2014 Auto Diagnostic Tool for Opel OP-COM V1.70 Diagnostic Scanner Tool OPCOM V1.70 Super Scanner

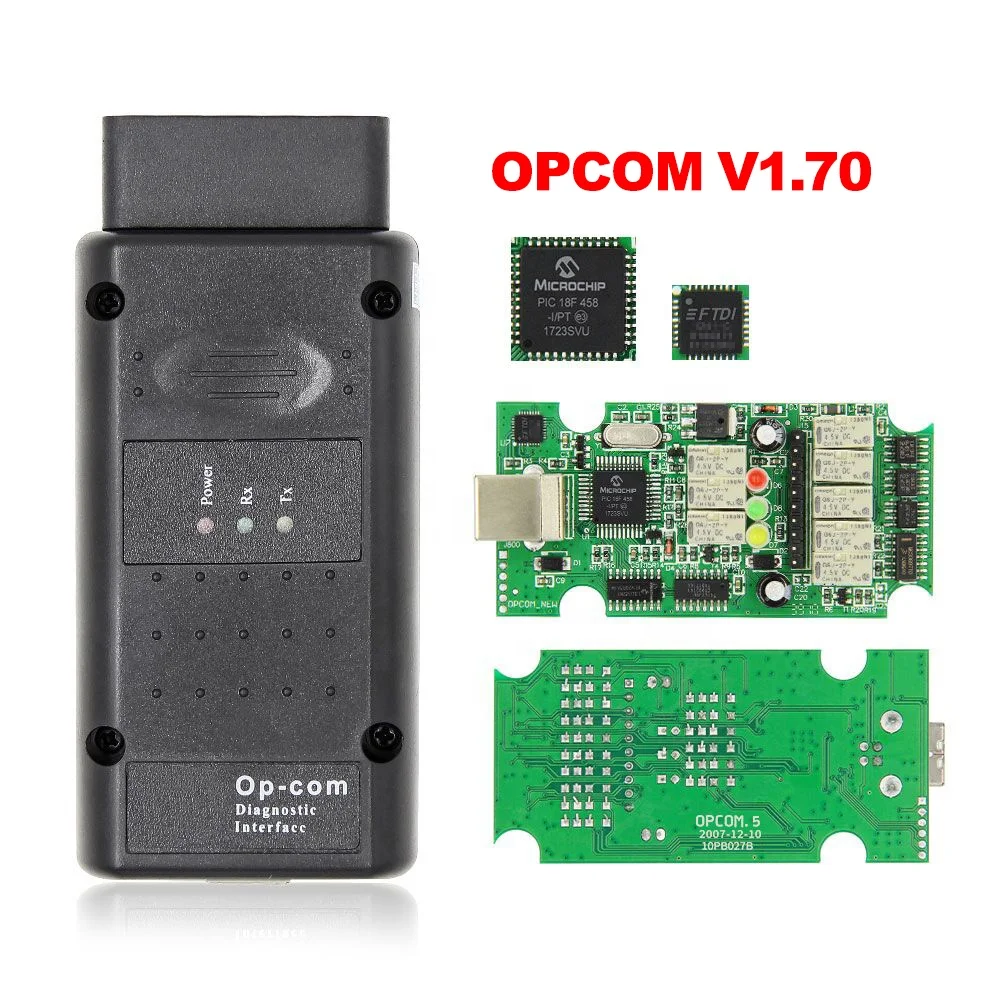

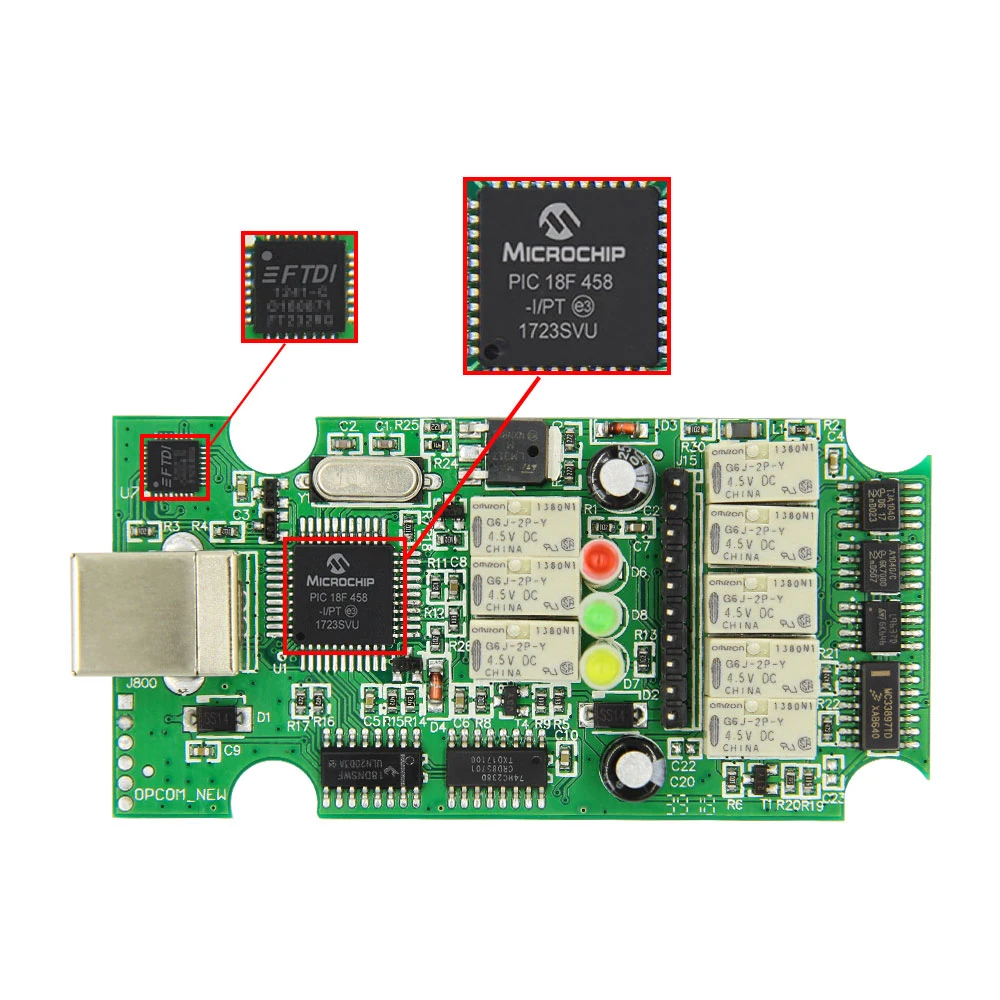

OPCOM 2014V diagnostic tool for Opel cars covers almost all Models for Opel cars, even new cars with CAN-BUS based diagnostic. Such as diagnostic function for Vectra-C, for Astra-H, for Zafira-B etc. It lets you read and clear fault codes, support many control units. Opcom OP-Com 2014 V Can OBD2 for Opel Firmware V1.70 with PIC18F458 Chip.

Attention for Latest Opcom Software VAUX-COM_120309a.exe:

1. If you run it on XP or Win7, please make sure you install dotnetfx35_SP1 system patch, or Opcom software can't perform well

2. When you install on Win7 and open software, please choose Run as administrator, and read the installation video on CD carefully

Feature:

1. OPCOM is a special PC Based diagnostic interface especially for OPEL.

2. Software Version: 120309a / V2014

Firmware Version: 1.70

3. Never Update Online. Online Updation Will Damage The OP-COM

Function:

1. It covers almost all Models for Opel cars, even new cars with CAN-BUS based diagnostic, such as for Vectra-C, for Astra-H, for Zafira-B etc.

2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.

3. The program supports many control units, like Engine, Automatic Transmission, ABS, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.

4. Since many pins used in the OBD connector for Opel, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.

PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)

5. Fault codes will be shown with all available information:

Full Fault Code Text Description:

1) Full status information (Present, Not present, Intermittent)

2) You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.

3) The program shows you measuring block information on many control module, you can choose anything from the list on your own.

4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or Bo-sch units are faster (using KWP-2000), and the newest CAN based control units are very fast!

You can also run output tests on many controllers:

PIN6-PIN14

PIN3-PIN11

PIN1

HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps

MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps

SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

FAQ:

Q: Does this product has any other language other than English?

A: This product have only English version.

Q:What we can do with this device?

A:1. You will get a feedback on the state of the activated output. This will helps you to find the failed. Components more easily. With OP-COM, you can learn keys to immobiliser, and remote keys to the central door locking.

2. You can also reset, and program the following immobiliser related items: ECM, BCM, IPC.

3. You will need the vehicle security code, which can be found on the CAR-PASS.

4. You can also reset, and program the Service interval reminder for Astra-G, for Zafira, for Corsa-C, for Meriva

5. You can code SAB6, and SAB8  with the software.

6. The diagnostic inteface is USB port based, so there will be NO COMPATIBILITY ISSUES, with serial to USB converters.

7. The speed of the communication over the USB-BUS is enough to handle the awesome speed of the High-Speed CAN-BUS systems, which is currently 500kbps. This is the main reason, why only the USB port based interface is available for CAN-BUS.

8. Compared to the TECH2, which is the dealers tool (with a 32 MB Card+CANdi interface), the price of OP-COM is quite affordable.

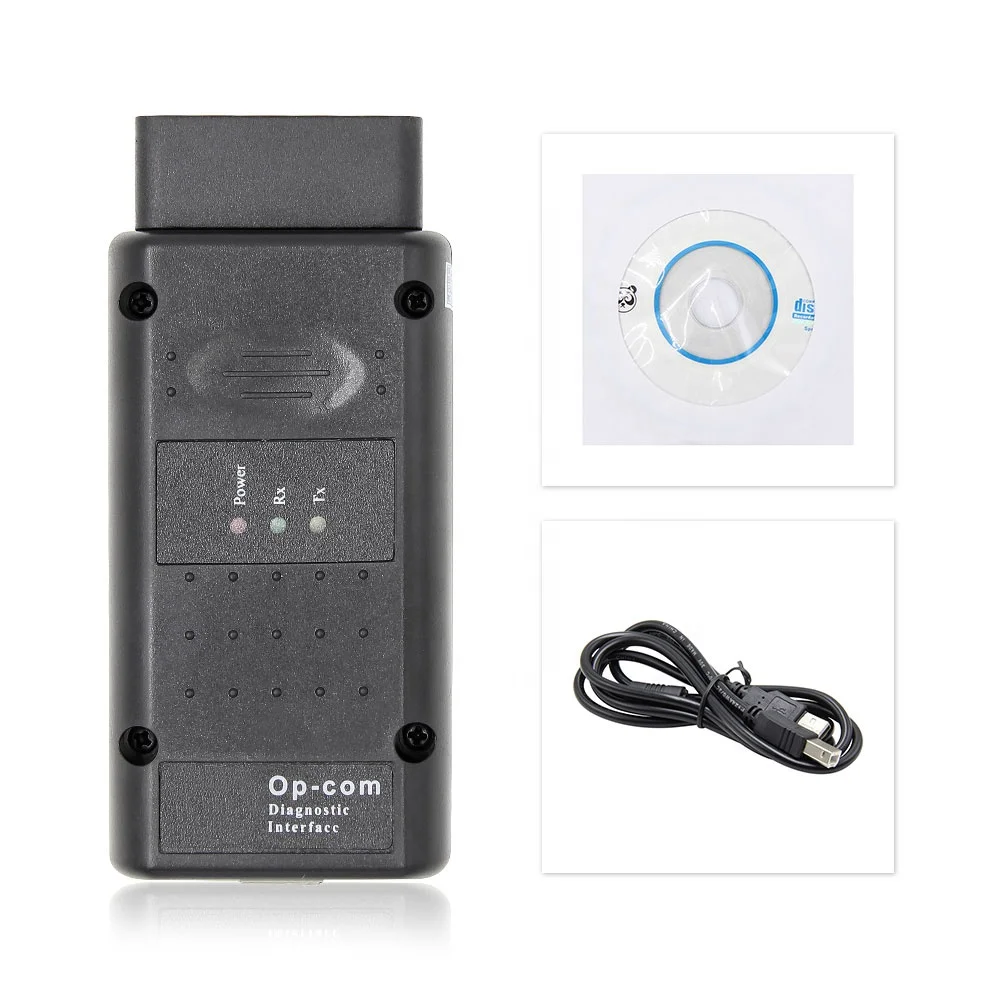

Packing list:

1pc x OP-COM Interface

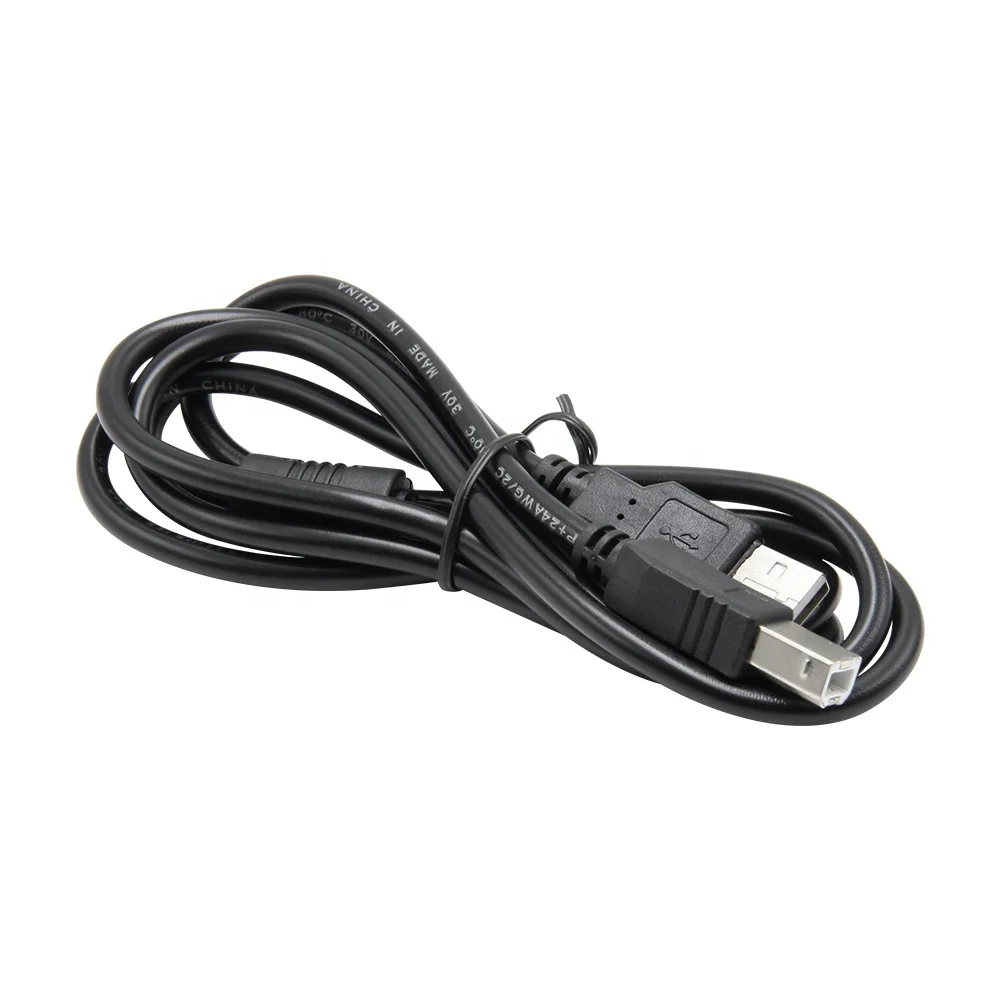

1pc x USB Cable
1pc x CD with Software and Drivers

Package:

Polybag pacakge + Carton box packing, or OEM as your request:

Delivery Time:

3-7 working days for samples; 7-30 working days for bulk goods.
