Product Overview

Description

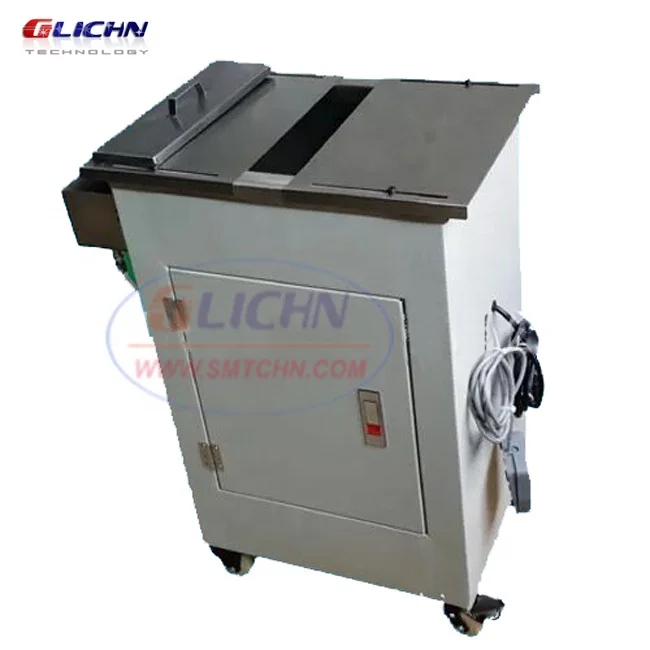

Selective Wave Soldering machine MF302 , it is a multi-purpose machine. It can be used for single-point soldering, removal of ICs and parts; changeable nozzles with special tools are suitable for all kinds of PCBs.



MF302 Features

1 MF302 Auto dipping solder tin design, this can do part soldering and PCB after welding process;

2 Position accurately, dip solder tin uniform, automatic operating is more easy and high efficiency.

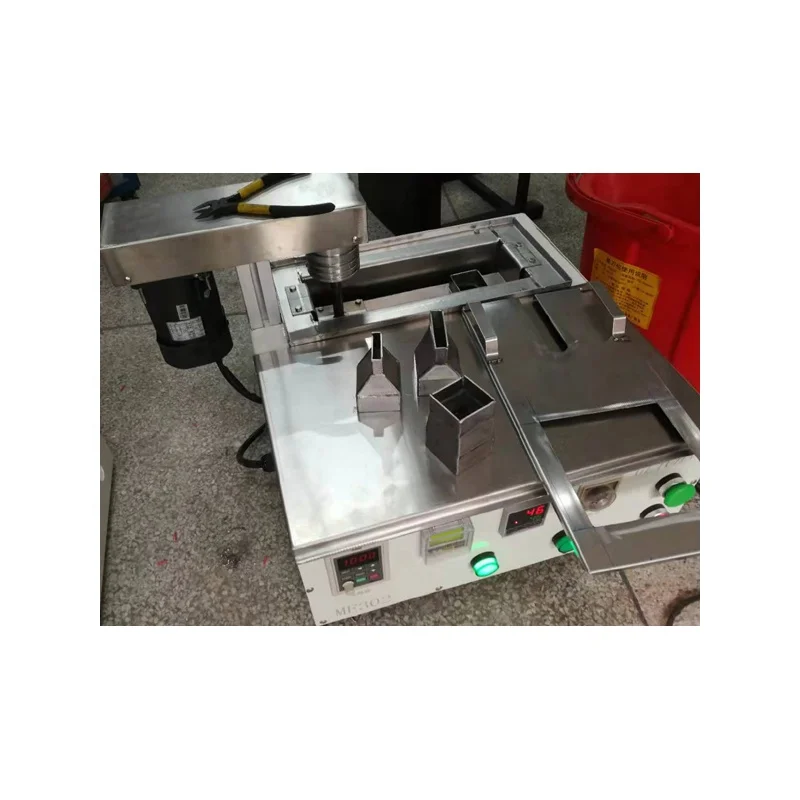

3 MF302 With changeable nozzle of any sizes; all kinds of PCBs will be soldered by replacing nozzles;

4 Step-less adjustment, stable wave crest will reduce empty solder, edge solder and other phenomenon;

5 Point-point solder, little power consumption;

6 This machine is compact and versatile. MF302 It is easy to be transported and space saving.

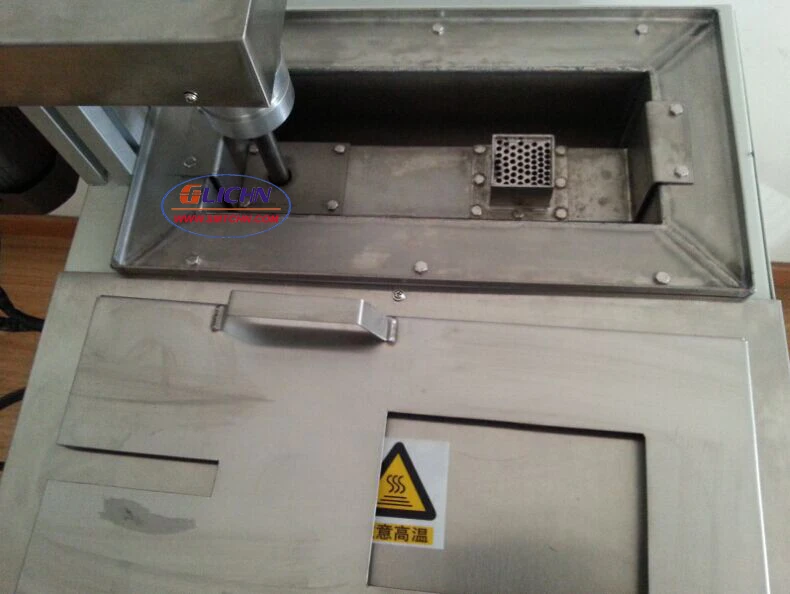

7 Titanium Solder tank nozzles, solder pumping mechanism are made from special steel alloy material (SUS316), No corrosion and no bursting apart problem in lead free soldering. Minimum solder dross.

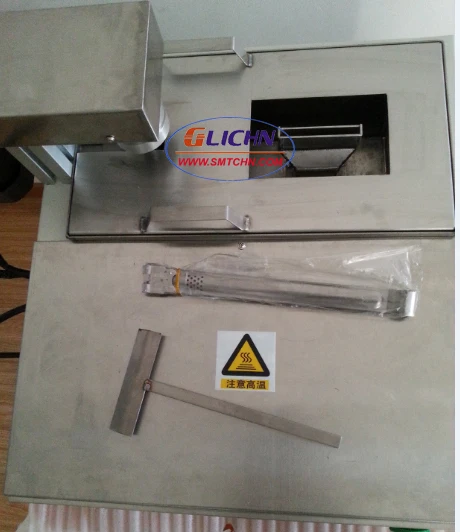

8 MF302 Machine will be shipped with 3 different sizes nozzle as per customer specs.

9 Preset timer every day (option);

10 N2 protection system to prevent solder pad and lead oxidation (option);

11 MF302 Infrared center position support system, it can ensure solder or take components more precision (option);

Specification

Power Source	AC 220V 50/60HZ 1PH
Heater power	Outside heater, 1.2kw     MF302
Temperature range	Room temperature--300°C
The height of wave crest	Adjustable
MF302 Soldering time	1 ~12S adjustable
Preheat time	About 30 min
PCB size	MF302  600*380mm
Solder pot	Titanium Solder tank
Timer	Auto timer on/off in one week

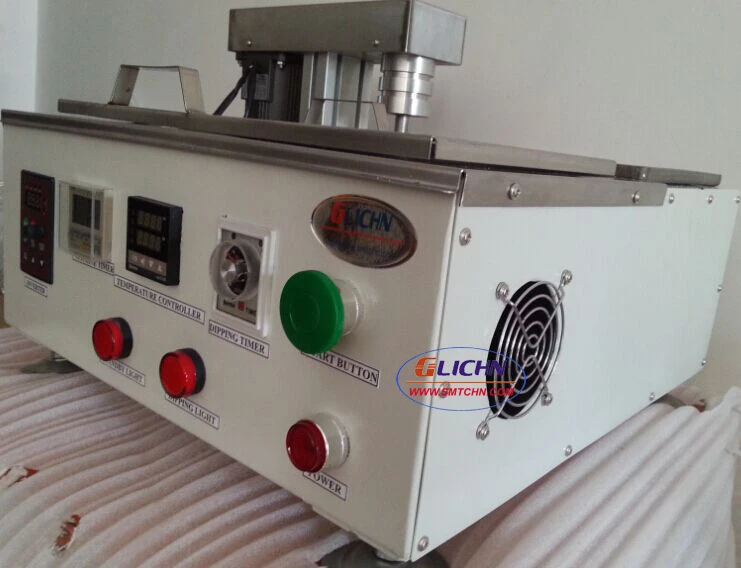

MF302 Controller	PID mode, SSR driven
Safe protection	Short circuit protection, alarm with over-temperature
MF302 Nozzle material	Titanium alloy
MF302 Solder capacity	30kg
Machine weight	50kg
Machine dimension	70*45*40cm
MF302 Nozzle size	80*8mm, 80*10mm, 100*15mm,150*10mm, 180*10mm,200*23mm, 330×23mm or made by customers
