Very good quality 40 ton Horizontal directional drilling machine for sale in India

Product Overview

Description

 Product despriction

JL-40 ton  Horizontal Directional Driller is a new underground piping construction machinery which is based on the advanced theory of “Trenchless Technology”. With fully hydraulic and power-drive technology, it achieves drilling, rotating, back-broaching, back-towing, and travelling. It is widely used for pipeline construction and maintenance for water supply, coal gas, electric power, telecommunication, natural gas, and petroleum in railways, roads, buildings, rivers, and other construction-limited areas, such as cultural protection areas, downtown areas, crops and vegetation conservation areas.



 Paramete r

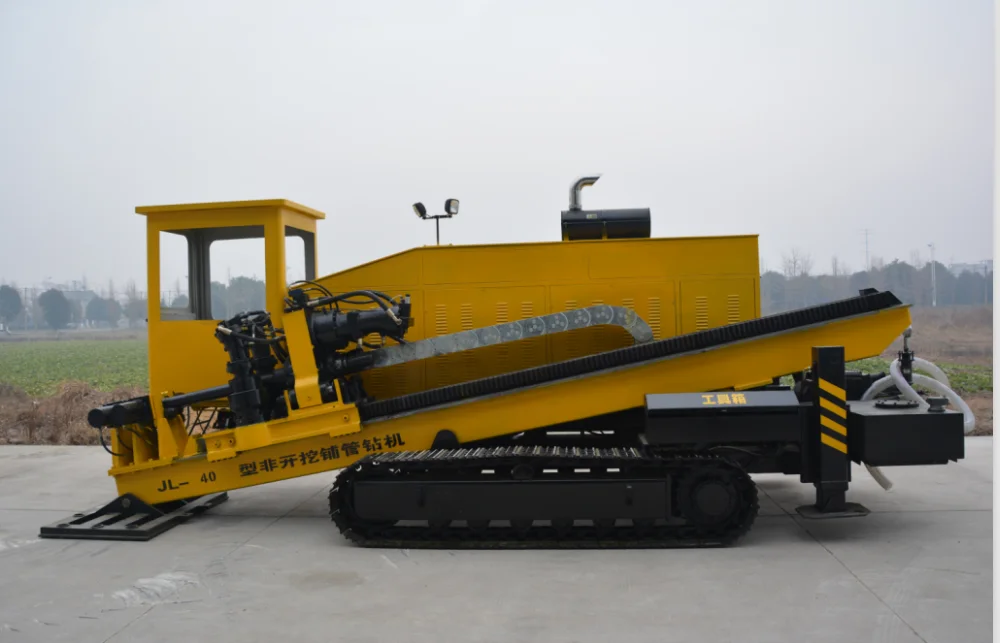

JL-40 ton horizontal directional drilling machine
Specifications
Engine Brand	Cummins6CTA8.3-C240 (179kW)
Weight of machine	13000kg
Overall Dimension (L×W×H)	6900x2250x2500
System voltage	24V
Maximum Push-pull speed	10m/min
Maximum construction distance	450m
Operational
Pullback(max)	400kN
Thrust(max)	400kN
Spindle torque(max)	16000Nm
Spindle speed	0-65-100r.p.m
Incidence angle	10-23°
Ground drive speed	0-2.5km/h
Grade ability	30°
Drilling parts
Diameter of bit	76mm
Length of drill pipe	4500mm
Specification of backreamer	Ø300, Ø400, Ø500, Ø600
On-board fluid system
Max pressure	8Mpa
Max flow rate	450L/min

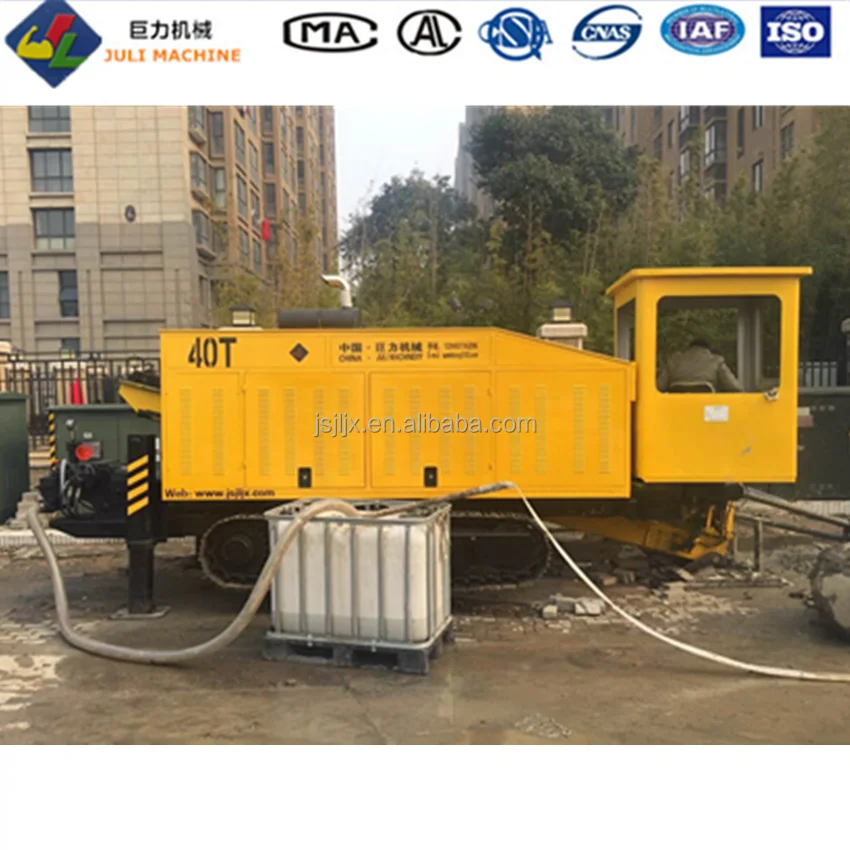

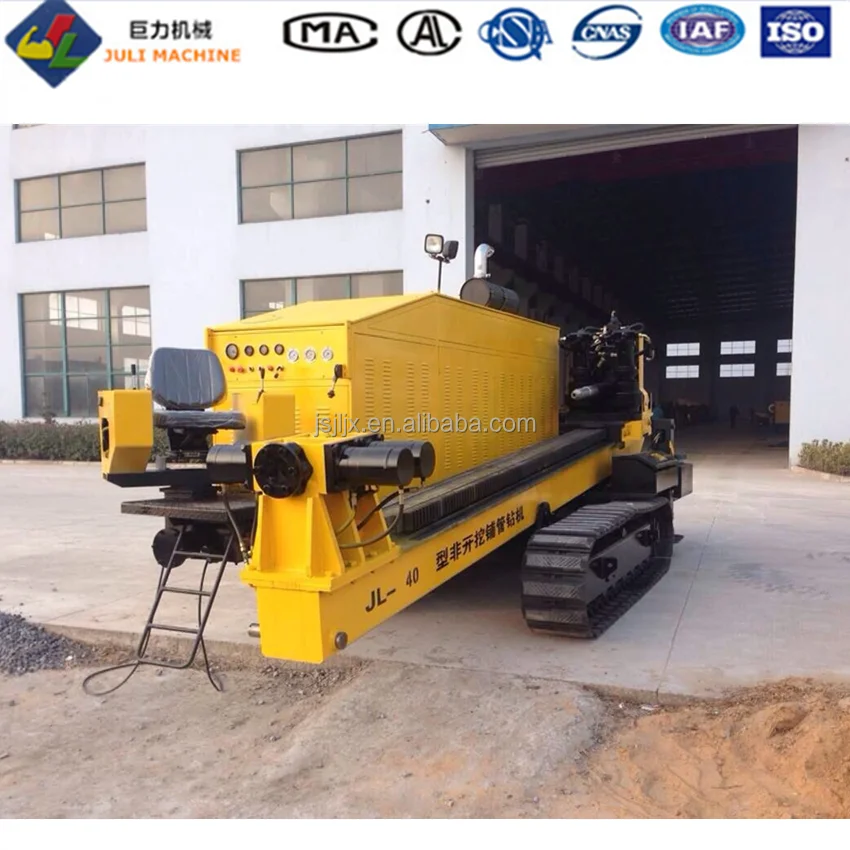

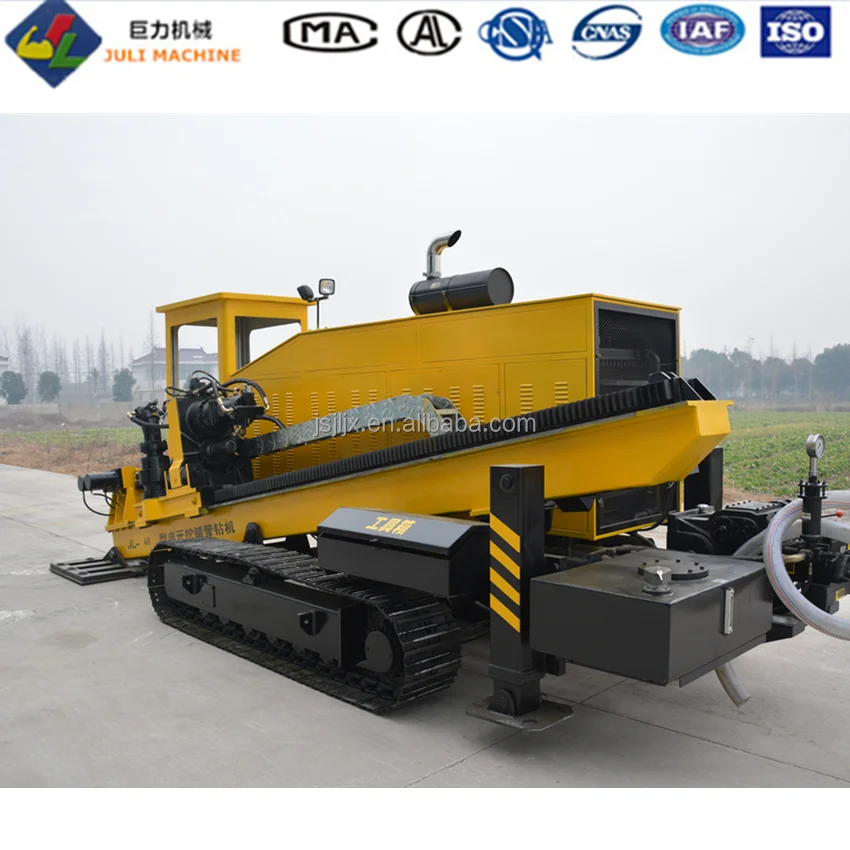

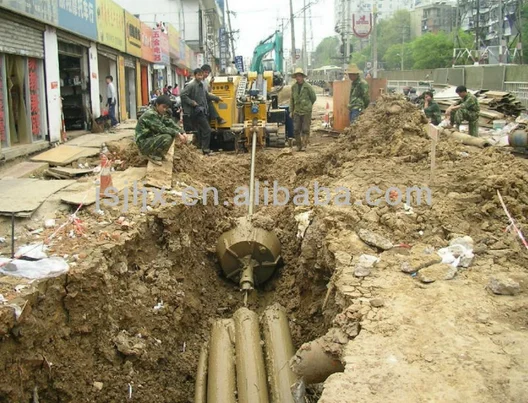

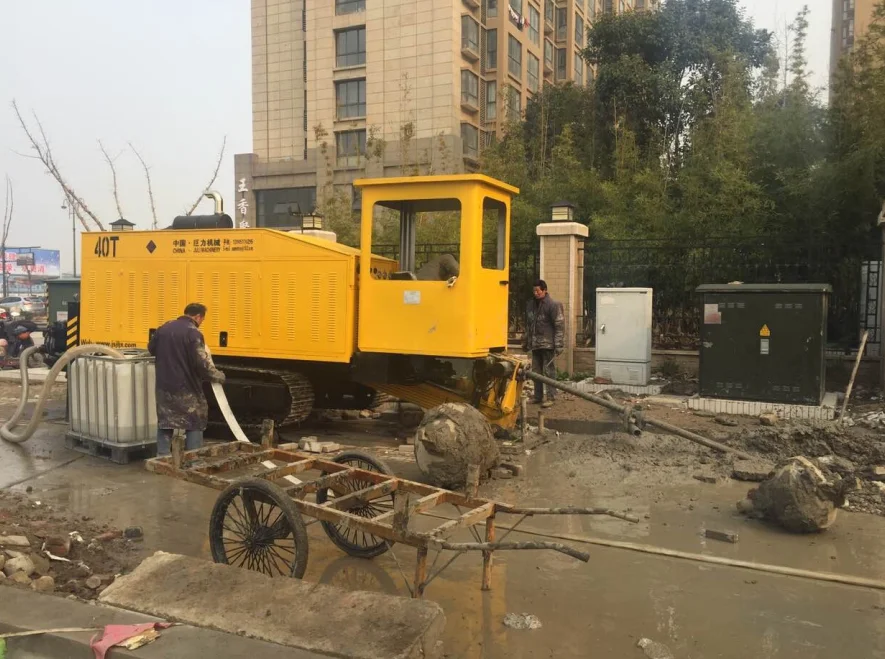

 Reference photos

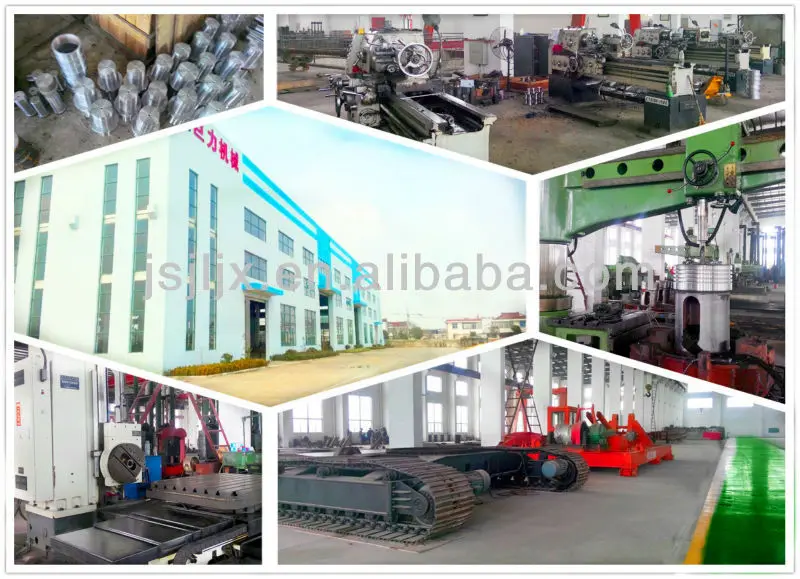

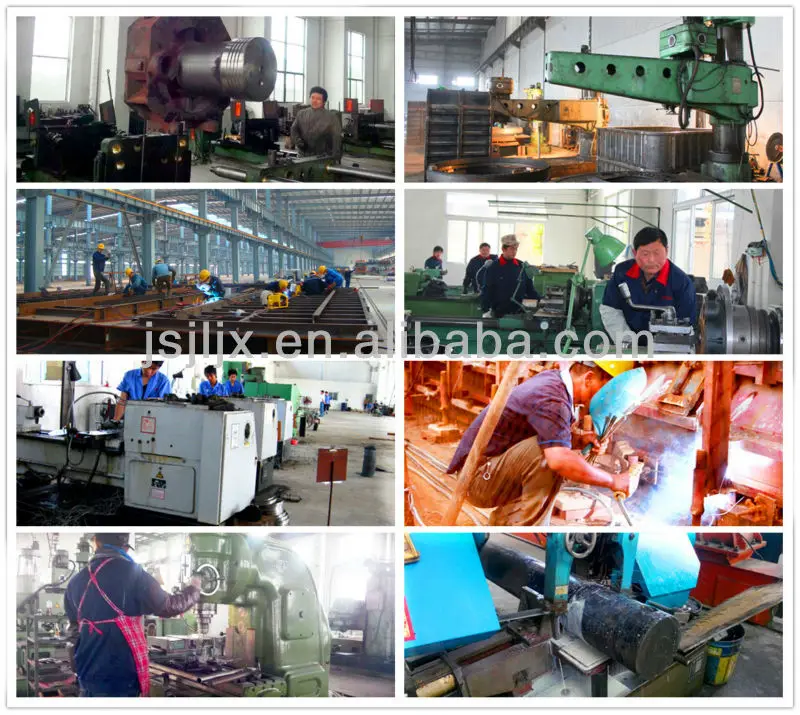

 Company introduction

 Dongtai Juli Machine Manufacture Co., Ltd. maintains a serious of construction equipment carefully including JL Series (Honrizontal Directional drilling rig) KLB (Setep type Hydraulic Pile Driver ), DD (Guide Rod Type Pile Hammer),ZYS(Static Hydraulic Pile Driver ), etc.. Our annual production capacity is now over 10000 sets, most of which are widely used in the construction of Civic engineering,high buildings, railways, highways, ports, airports and other project.

Our products are certified by ISO9001 authentication quality system and we are the national technology enterprise in Jiangsu province.We promises "great service, speedy delivery, high quality, best price ".













 Service

• Engineers available to service machinery overseas
• Offices in India, Indonesia
• Spare part will be sent immediately
• 24 hours online technical support
• Total logistics information tracking report
