5.5hp honda powered concrete milling machine, asphalt concrete scarifying machine,road Scarifier(JHE 200)
- Category: Other Construction Machinery >>>
- Supplier: Changzhou Jiehe Machinery Co. Ltd.
Share on (60197130433):
Product Overview
Description

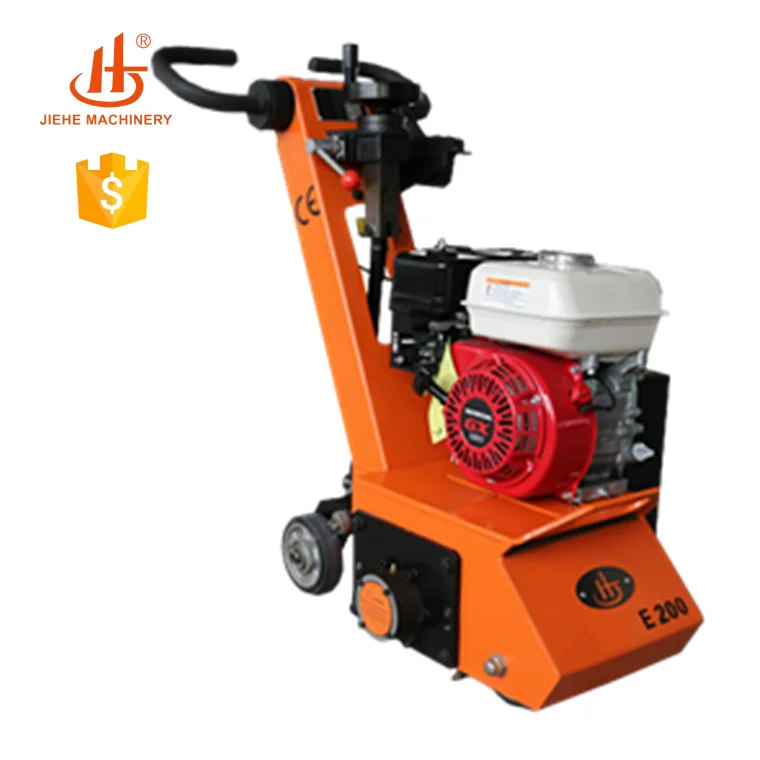

5.5hp honda powered concrete milling machine, asphalt concrete scarifying machine,road Scarifier(JHE-200)
Jiehe concrete and milling machine are used for small and meduim sized areas.The low centre of gravity affords a big silent running and ensure quick and even milling results.A tripled drum bearing and hardened cutter shafts make it particularly reliable.

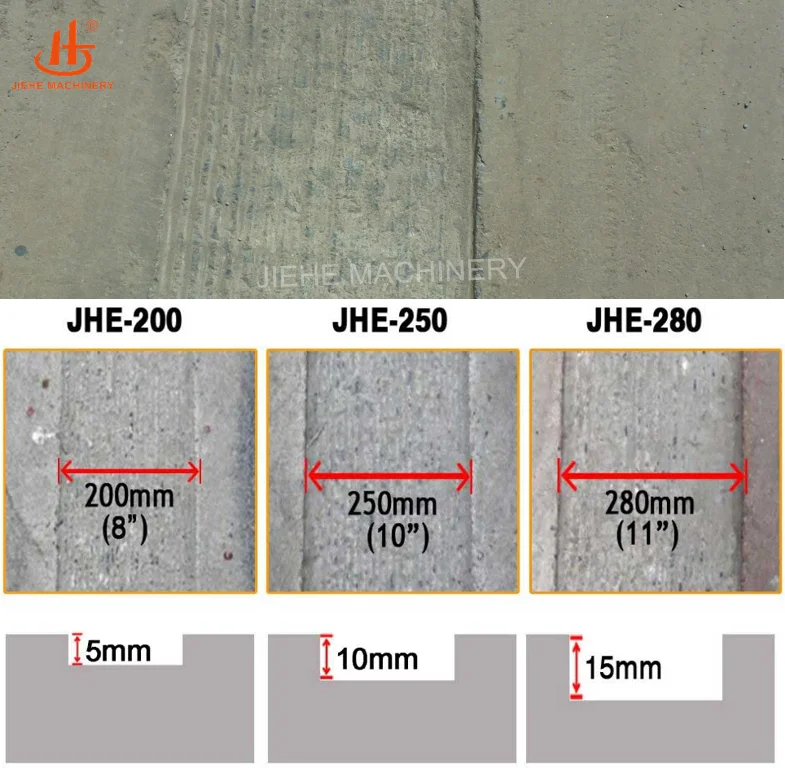

Three types for you to choose
Product detail
What's the Specifications?
4KW Siemens Motor engine and super four or six bearings;
Drum is heat treated specially;
Exclusive supply good quality cutter;
Drum can be replaced easily;
With a dust-proof device?
Parameter
Model | JHE-200 | JHE-200E | JHE-200K | JHE-200D |
Power Source | GX160 Honda/ GX270 | Siemens Electrical motor | Kohler CH270/ CH395 | 178F Diesel engine |
Horse Power | 5.5HP | 4KW | 7HP | 5.5 HP |
Working width | 200mm | 200mm | 200mm | 200mm |
Working depth | 0-5mm | 0-5mm | 0-5mm | 0-5mm |
No. of shaft | 6pieces | 6pieces | 6pieces | 6pieces |
No. of cutter | 90pieces | 90pieces | 90pieces | 90pieces |
Power Drive | Manual | Manual | Manual | Manual |
Working area | 20-40 m2 / H | 20-40 m2 / H | 20-50 m2 / H | 20-40 m2 / H |
Net Weight | 105KG | 116KG | 132KG | 119KG |
L× W× H | 820×490×810mm | 820×490×810mm | 820×490×810mm | 820×490×810mm |
Drum Rotation | Down cut (clock wise) | |||
Milling mode | downward cut | |||
Depth Control | Adjustable | |||

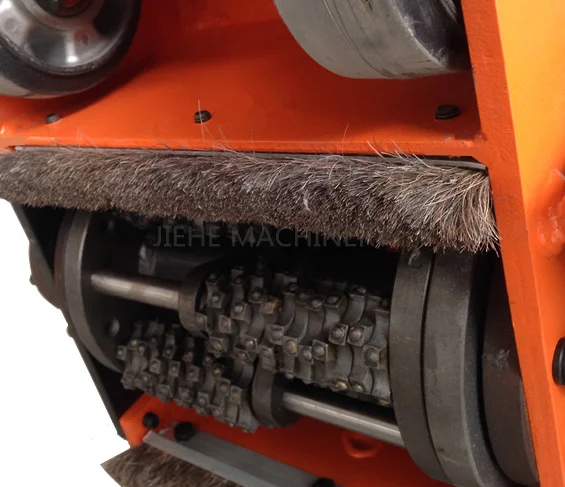

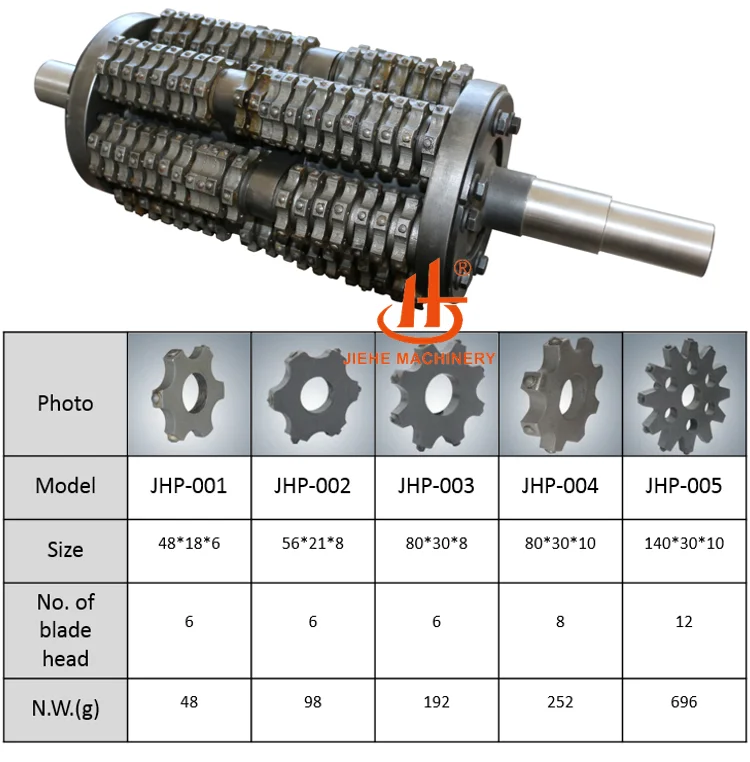

About our Drum and cuttrers

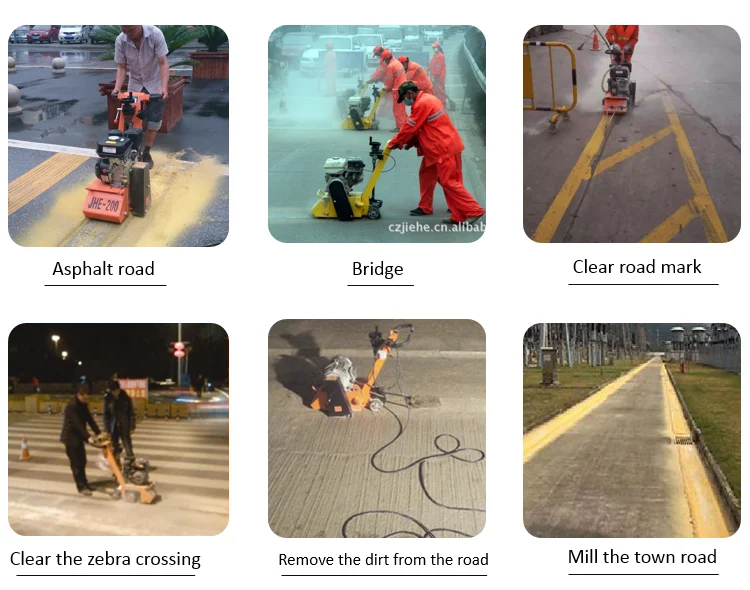

What's our road scarifier machine used for?
Our products are widely used in
- municipal conservation,
- road construction,
- building construction,
- flooring treatment(epoxy floor, wear-resistant floor)
- other fields.(remove traffic line, rutty of road and airport)
What's your Packaging & Shipping?
Our packaging is iron frame and carton generally.If customer have other requests, we will try to accommodate.
JHE-200 packaging dimensions(mm) is: 900*570*910.
30 sets 1 container normally.
