Professional manufacturer of Casing Oscillator of bore rotary piling rig machine
- Category: >>>
- Supplier: TYSIM PILIING EQUIPMENT CO. LTD
Share on (60197909908):
Product Overview
Description

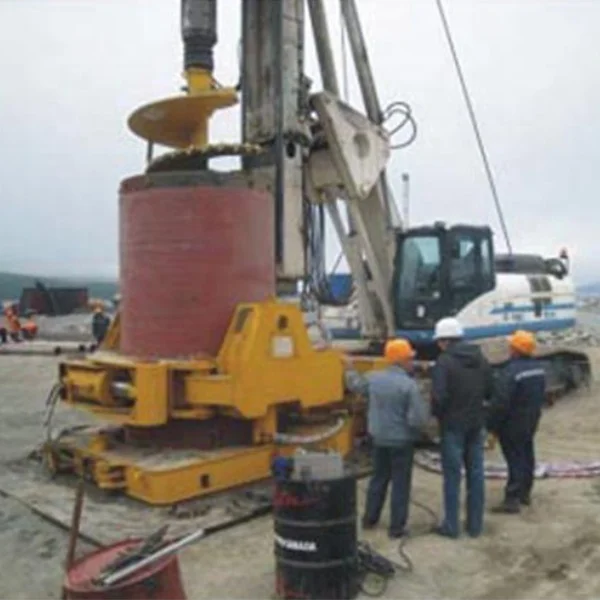

Casing Oscillator
Products Description
Greater embedding pressure can be achieved by Casing oscillator instead of Casing Drive
Adapter, Casing can be embedded even in hard layer.Casing oscillator owns such merits as strong adaptability to geology, high quality of completed pile, low noise, no mud contamination, slight influence to former foundation, easy control, low cost, etc. It owns advantages in following geological conditions: instable layer, underground slip layer, underground river, rock formation, old pile, erratic boulder, quicksand, foundation of emergency and temporary building.
It is especially suitable for coast, beach, old city wasteland, desert, mountain area and the place surrounded by buildings.
Adapter, Casing can be embedded even in hard layer.Casing oscillator owns such merits as strong adaptability to geology, high quality of completed pile, low noise, no mud contamination, slight influence to former foundation, easy control, low cost, etc. It owns advantages in following geological conditions: instable layer, underground slip layer, underground river, rock formation, old pile, erratic boulder, quicksand, foundation of emergency and temporary building.
It is especially suitable for coast, beach, old city wasteland, desert, mountain area and the place surrounded by buildings.
Technical specification | ||
Casing diameter | 600/800/1000/1200/1500 mm | |
Operating pressure | 32 pa | |
Max. torque | 1980 kg/m (casing dia. 1500mm) | |
Stroke | 500 mm | |
Max. lifting force | 2130 kg | |
Counterweight(self-made) | 4-10 t | |
Clamping force | 2200 kg | |
Rotation angle | 20° | |
Travel of casing | 260 mm | |
Height of clamping collar | 650 mm | |
Weight | 18 t | |
Overall length | 4280 mm | |
Overall width | 2730 mm | |
Overall height | 1810 mm | |
Product Advantage
1 Low purchase and transport costs for the shared utilization of rig pump instead of special pump truck.
2 Low operation cost for the sharing of output power of rotary drilling rig, energy saving and environment friendly.
3 Ultra-large pull/push force up to 210t is supplied by lifting cylinder and the large can be achieved with added counter-weight to speed up construction.
4 Dismountable counter weight from 4 to 10t as required.
5 Reduction in transport cost for the counterweight is made of cast-in-place concrete.
6 Work stably-combined action of counterweight frame and ground anchor fix the bottom of oscillator to the ground firmly and reduce the reaction torque generated by oscillator to rig.
7 High working efficiency for the automatic casing oscillation after 3-5m casing-in.
8 The distance between oscillator and rig can be adjusted conveniently due to bolt connections.
9 Added anti-torsion pin of clamping collar to ensure 100% torque transfer to casing.
10 0.6-1.5m casing diameter with different clamping collar to meet customers’ needs.
2 Low operation cost for the sharing of output power of rotary drilling rig, energy saving and environment friendly.
3 Ultra-large pull/push force up to 210t is supplied by lifting cylinder and the large can be achieved with added counter-weight to speed up construction.
4 Dismountable counter weight from 4 to 10t as required.
5 Reduction in transport cost for the counterweight is made of cast-in-place concrete.
6 Work stably-combined action of counterweight frame and ground anchor fix the bottom of oscillator to the ground firmly and reduce the reaction torque generated by oscillator to rig.
7 High working efficiency for the automatic casing oscillation after 3-5m casing-in.
8 The distance between oscillator and rig can be adjusted conveniently due to bolt connections.
9 Added anti-torsion pin of clamping collar to ensure 100% torque transfer to casing.
10 0.6-1.5m casing diameter with different clamping collar to meet customers’ needs.

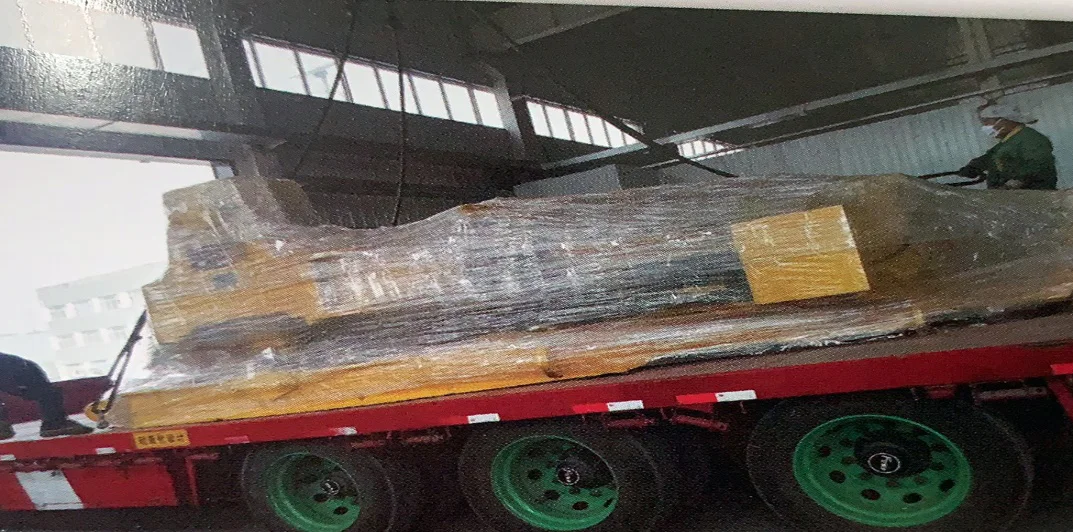

Packing & Shipping
Welcome to contact us！https://tysim.en.alibaba.com/contactinfo.html
Contact us for the latest price and product information!https://tysim.en.alibaba.com/contactinfo.html
Welcome to join us!https://tysim.en.alibaba.com/contactinfo.html
Contact us for the latest price and product information!https://tysim.en.alibaba.com/contactinfo.html
Welcome to contact us!
Contact us for the latest price and product information!https://tysim.en.alibaba.com/contactinfo.html
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer, and our factory mainly produces hydraulic pilling rig, hydraulic pile breaker, telescopic arm and related piling equipment etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?
A: All our products have passed ISO9001 and CE certifications and also passed the inspection by the Chinese National Construction Machinery Quality Inspection Center. We have strict quality inspection process including a load test for every machine before leaving our factory in order to offer the best quality machines to our customers.
Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance. If need be, we can dispatch our engineer to your worksite to provide training for your staff. For the chassis, eg CAT chassis, we take advantage of their global presence to ensure prompt after service support. During the epidemic, we provided video for machine installation and operations.
Q: How about the warranty policy ?
A: Most of our products support 1 year warranty, please consult customer service for specific products
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.
A: We are a professional manufacturer, and our factory mainly produces hydraulic pilling rig, hydraulic pile breaker, telescopic arm and related piling equipment etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?
A: All our products have passed ISO9001 and CE certifications and also passed the inspection by the Chinese National Construction Machinery Quality Inspection Center. We have strict quality inspection process including a load test for every machine before leaving our factory in order to offer the best quality machines to our customers.
Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance. If need be, we can dispatch our engineer to your worksite to provide training for your staff. For the chassis, eg CAT chassis, we take advantage of their global presence to ensure prompt after service support. During the epidemic, we provided video for machine installation and operations.
Q: How about the warranty policy ?
A: Most of our products support 1 year warranty, please consult customer service for specific products
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.
