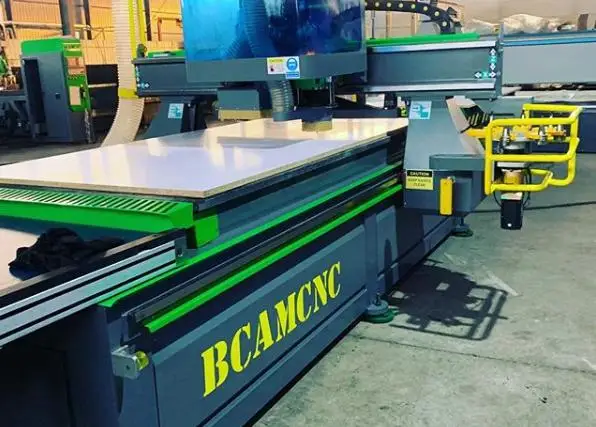

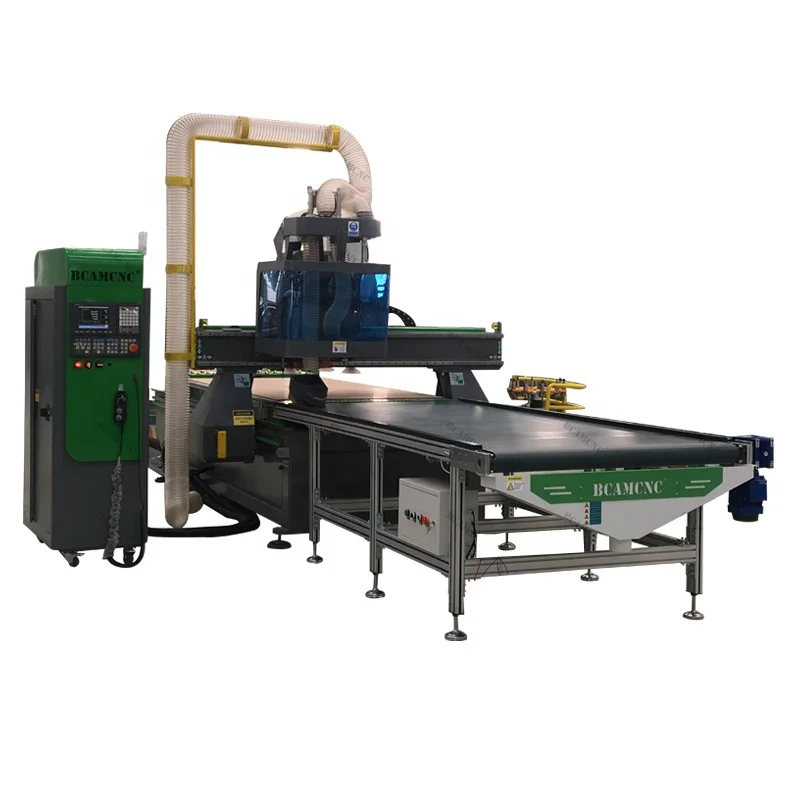

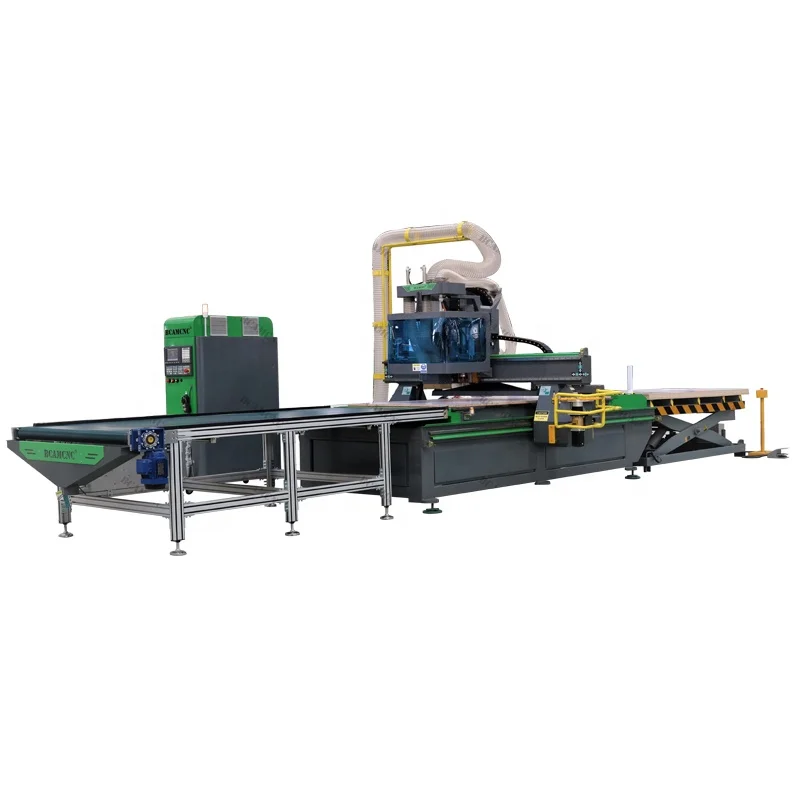

Top quality and hot sale wooden door design furniture making machine for drilling, cutting, milling function BCM1325E

Product Overview

Description

Top quality and hot sale wooden door design furniture making machine for drilling, cutting, milling function BCM1325E

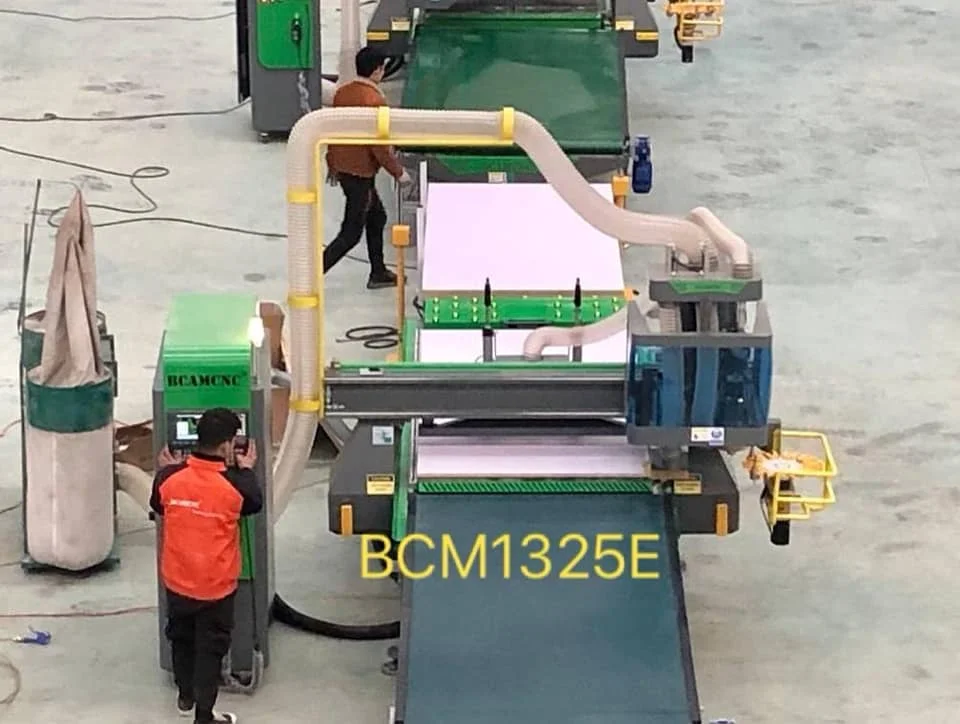

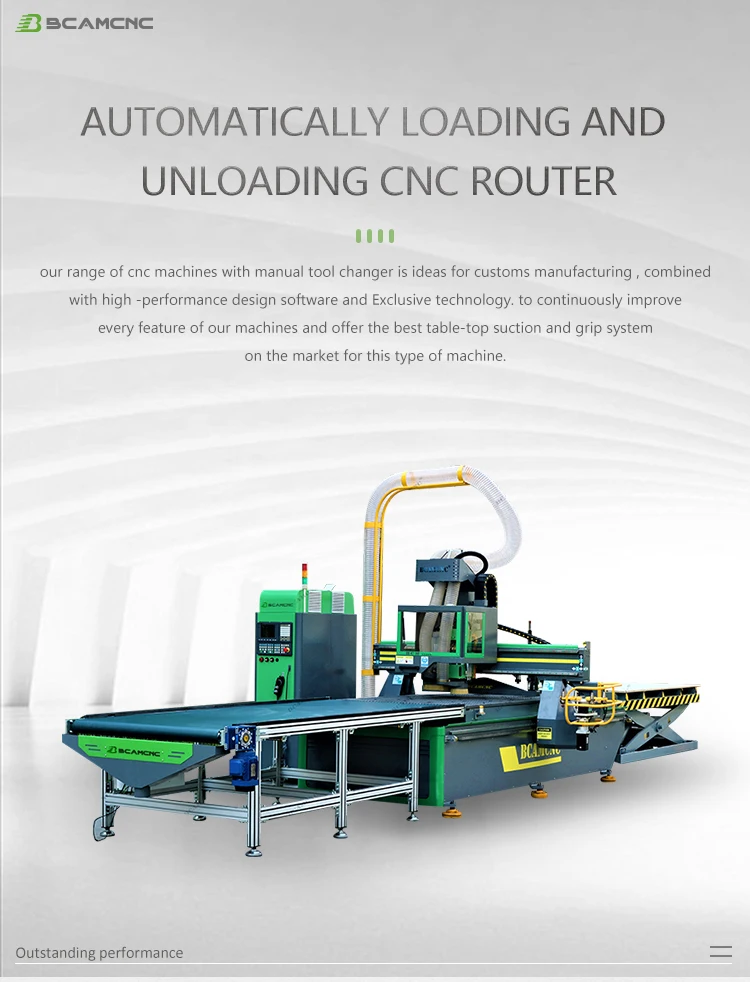

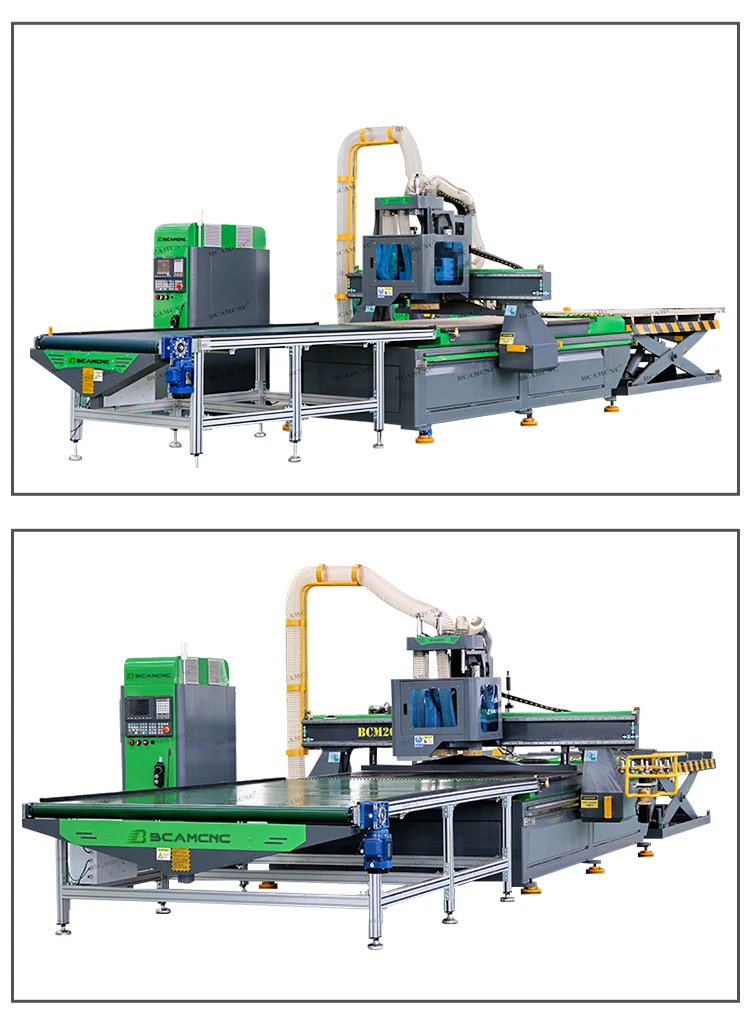

BCM1325E Loading and Unloading system

1  Working area: 1500*3000*200mm|5*10ft
2  CE standard

3  Panel Loading and Unloading system (Automatic )
4  Italian HSD 9.5KW(12HP) Electrospindle with 8-position Automatic Tool Changer(ISO30)
5  15mm Heavy duty body

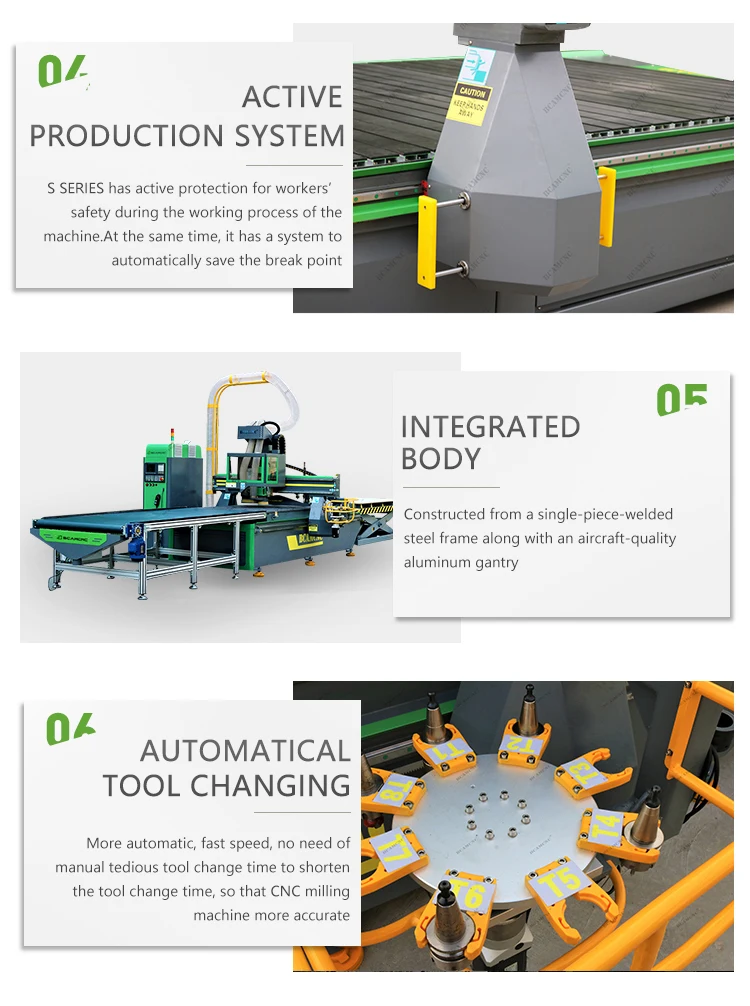

6  Active safety system
7  Helical rack and pinion drivers on X and Y axis, Z axis Taiwan TBI ball screw transmission
8  25mm Heavy-duty Hiwin HG Series linear bearing
9  Vacuum table with Pump
10  Taiwan Syntec 6MB
11  Japan Yaskawa servo motor and drivers system
12  Delta brand VFD-B variable frenquency drive

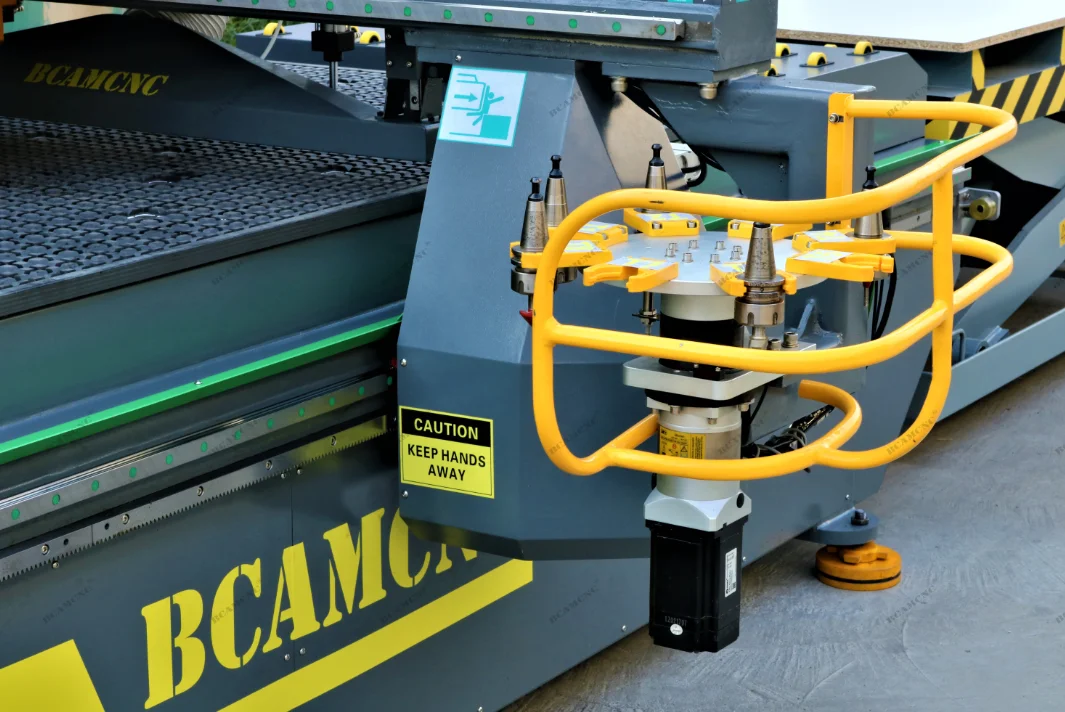

13  10 Position Automatic Tool Changer (options: 12,14,16 position)
14  Tool Cone Holder-for east bit changing
15  Solid State limit switches
16  3 Years Warranty



Parameters	Standard Specifications BCM1530E
X,Y,Z Working Area	1300*2500*200mm|4*8ft
Optional Working Area	1300*1300*200mm|4*4ft
Optional Working Area	1500*3000*200mm|5*10ft
Optional Working Area	2000*3000*200mm|7*10ft
Spindle Power	9kw Italy HSD air cooling  spindle
X,Y,Z Traveling Positioning Accuracy	±0.02/2000mm
Table Surface	Vacuum table
X,Y,Z Rail and Trasmission	X Y axis gear transmission, Z axis TaiwanTBI Ball Screw
Max. Rapid Travel Rate	80m/min
Max. Working Speed	70m/min
Loading and Unloading Speed	15m/min
Spindle Speed	24000r/min
Drive Motors	4 sets 850W Yaskawa servo motor and drivers
Working Voltage	AC380v/50HZ/3 phase
Command Language	G Code
Operating System	Taiwan Syntec 6MB control system
Interface	USB,NETWORK
Software Compatibility	Option:Alpacam,Carbinets Version ,BCAMNESTTING, solidworks,etc.
Running Environment	Temperature: -20℃~45℃ Relative Humidity: 5%~75%



1. What is the warranty period for the equipment?

Three years warranty and 24 hours online professional technical support.



2.Why does your company have such a bad rating on alibaba? Your customers are not very good.

All customers is good.



3.Do you have any service facility in our country ,if the machine have problem ,what can you do ?

If there is a problem on the day, you can contact us immediately. Our after-sales service is online 24 hours a day, we can provide online support immediately, and our engineers can speak English. If the problem can’t be solved by online,we can send our engineers to your country.



4.How can I get my machine ,what is the way to transport the machine?

We have a professional freight forwarding company here, we will choose the most suitable transportation route according to the location you provide. If you provide the industrial location, we can provide door-to-door service. You only need to provide the address to us.
