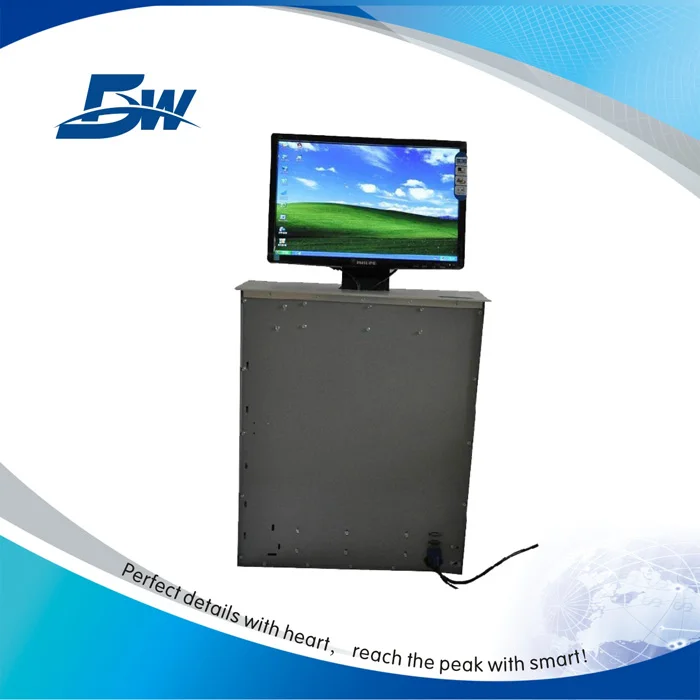

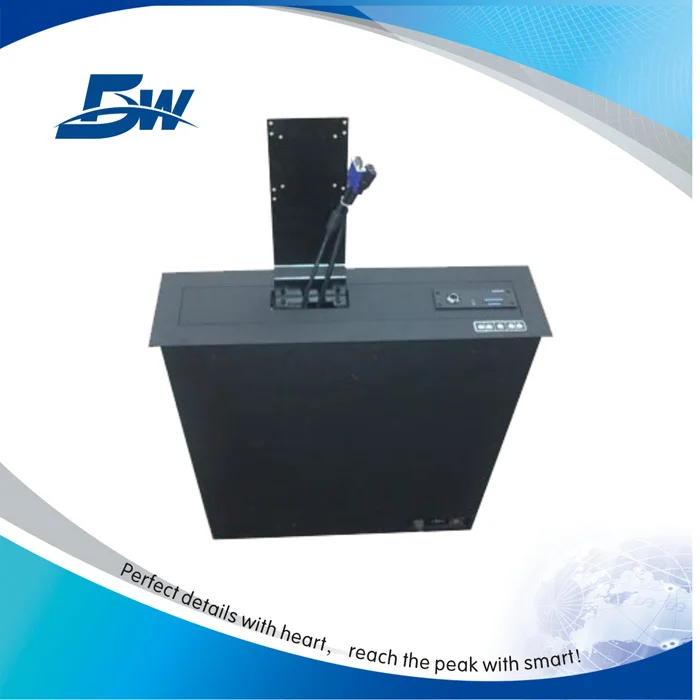

Advanced Remote Controlled Pop Up Motorized Lift Mechanism For Computer LCD Monitor



Product Description


 Introduction


    BW-LU series motorized lift mechanism specially designs for high-class conference solutions. With its stable and reliable performance, simple and smart operation, It’s pretty popular in AV conferencing, intelligent office furniture, multimedia education, military command and financial analysis system etc.





   With its unique overall functions, it provides an efficient solution and enjoyable experience in conference communication especially for enormous information share like data, image and sound etc. The lift is usually used together with our tabletop sockets to produce unexpected results.




  Characteristics



  1. 17”, 19”,22”, 24” available, others can be customized

  2. Aluminum oxidation with drawing polishing surface process to make sure             smooth and bright panel

  3.  Adopting superior gear machine to produce precise gear to ensure stable and   reliable lift;

  4. Selecting qualified mute motor with CE CCC marked

  5. Drive sytem: constructed by belt gearing and dual-rack system that highly improve the operation stability and also make very low noise.

  6. Provided with English buttons to control the lift, UP, DOWN, STOP, FORWARD, BACKWARD

  7.  Remote control ,manual control and central control;

  8. Circuit Board protection system: Supply power automatically when the monitor lifts up. Power off automatically when lift down to help reduce energy consumption

  9. Adjustable angel of the screen after lifts up.

  10. Equipped with different data interfaces for convenient data access.


 Parameters












































































































































Item NO.BW-LU17BW-LU19BW-LU22
StyleLCD Lift with monitorLCD Lift with monitorLcd lift with monitor
ProductsMonitor+lift+remote controlMonitor+lift+remote controlMonitor+lift+remote control
Panel size490*160*4mm550*160*4mm620*190*4mm
Box size470*150*655mm530*150*655mm600*175*665mm
Panel thickness4mm4mm4mm
Lift mount size420*80mm480*80mm540*105mm
Packing size578*250*770mm650*270*780mm720*300*850mm
N.W22kg24kg28kg
Voltage110-220v110-220v110-220v
Power20W20W20W
Pitch angle0-15°0-15°0-15°
Single trip time≤20s≤20s≤20s
Working Temp.0-45°0-45°0-45°
R.H.≤80%≤80%≤80%
Colorsilver/blacksilver/blacksilver/black
Remote distance35m35m35m
Operation noise≤30db≤30db≤30db
MaterialWiredrawing aluminum alloy Wiredrawing aluminum alloy Wiredrawing aluminum alloy
Control wayTouch key-press/Remote control/RS485 central controlTouch key-press/Remote control/RS485 central controlTouch key-press/Remote control/RS485 central control
Running way double motor with gear drive double motor with gear drive double motor with gear drive
Protecting wayprotecting finger from nippingprotecting finger from nippingprotecting finger from nipping
Accessorystator 2pcs  screw(5*10mm)4pcs  power line 1 pc


Packaging & Shipping


 1pc/ ctn   58*25*77cm


 3pcs/wooden case 64*63*73cm


 by courier like DHL, FedEx, UPS, TNT, TOLL etc.


 by air to any airport around the world


 by sea to any port around the world


 by trail to inland countries







 Package


Delivery






Our Services





1. Sample service is available


2. OEM is warmly welcomed


3. Shipment and sample quality tracking.


4. Quick response , enquiry will be repond within 24 hours


5. high qualified after sale service








FAQ


 FAQ

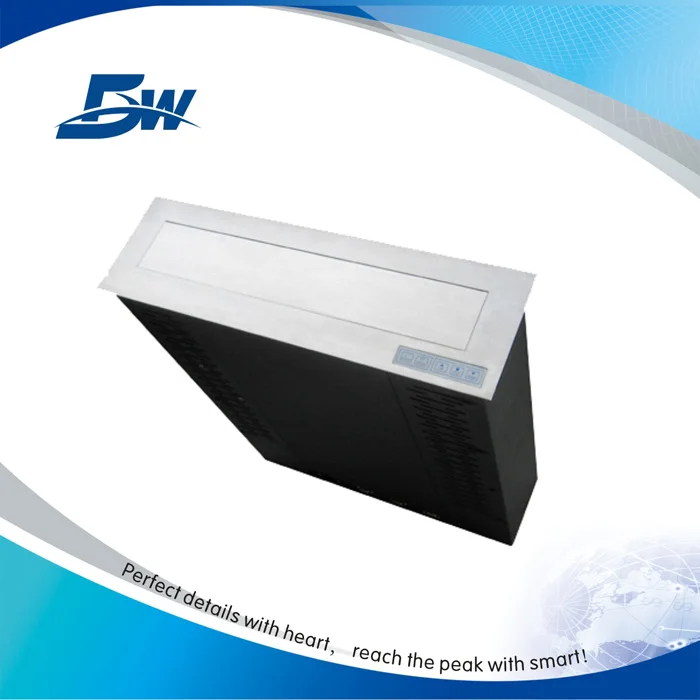

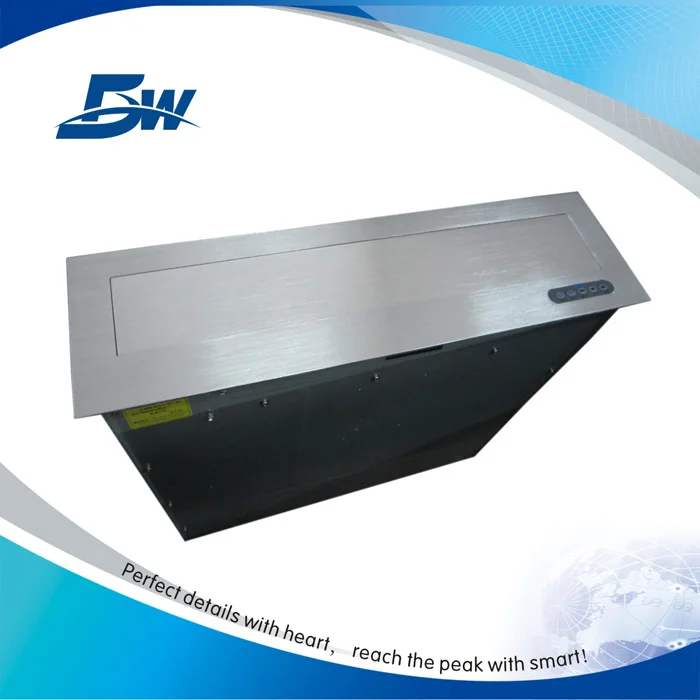

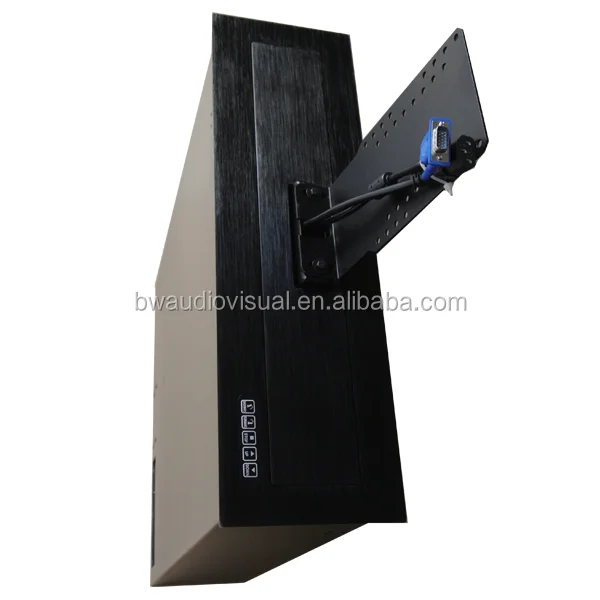

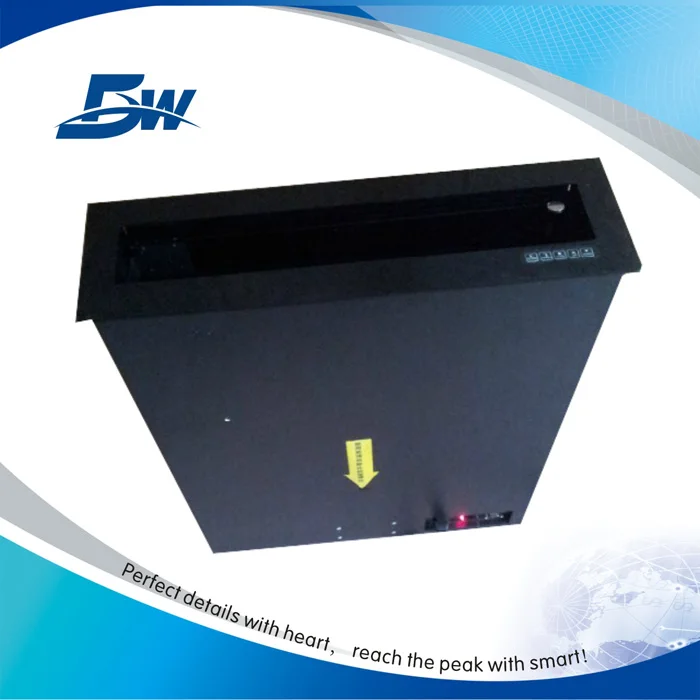

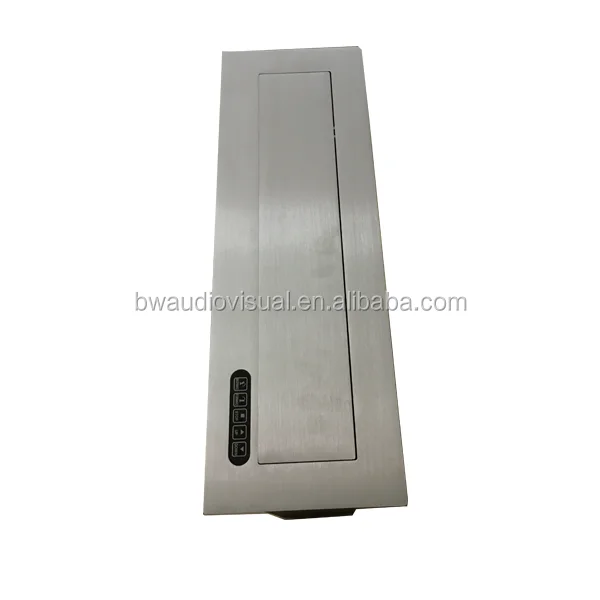

Detailed Images

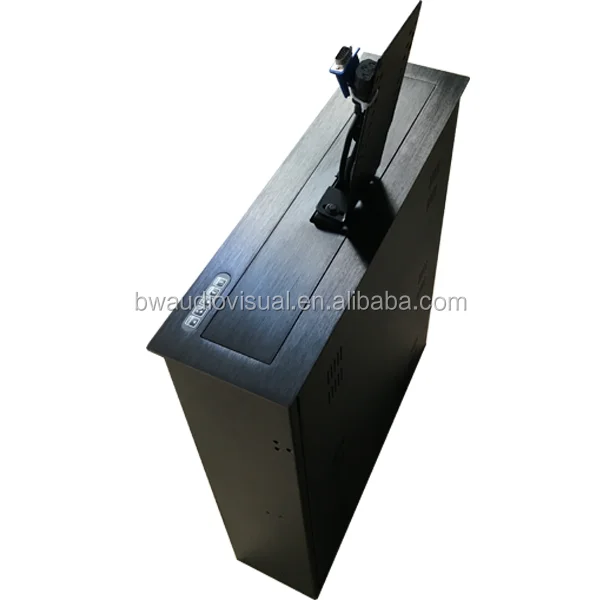

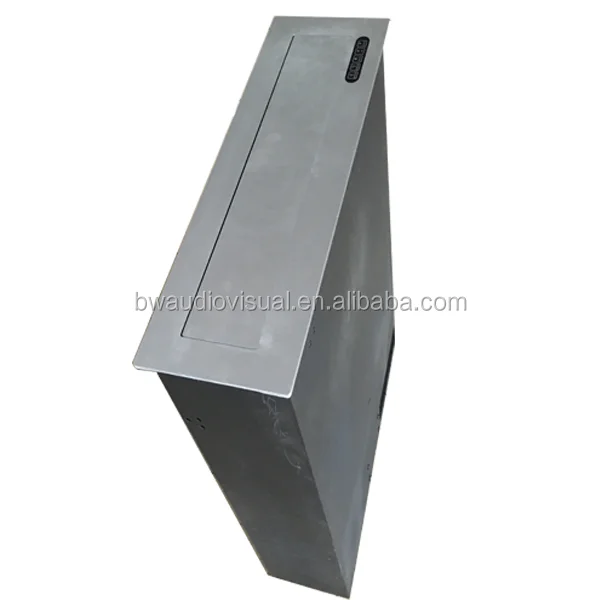

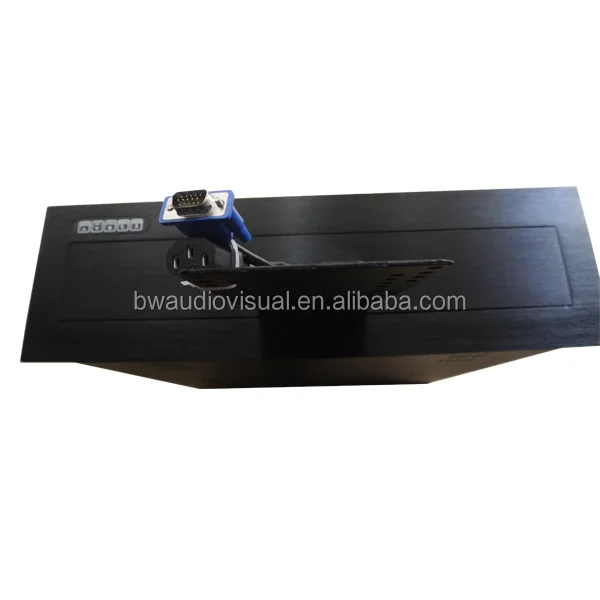

 4353483934




LCD project in Kazakhstan2.jpg


LCD LIFT PROJECT IN KAZAKHSTAN 1.jpg


Other Related Motorized Lift Mechanism




Company Information


      BW Audiovisual Solution CO.,LTD is a company strongly commited to innovation, high-tech products development and strict quality standard, located in Guangzhou.


     At BW Audiovisual, we consistently strive to offer the professional and entire all-in-one office automatic solution at affordable prices. We rely on high qualified human sources and technology; we listen to what our customers need; we persist on creating as much as value for all our customers.


We supply various sizes lcd lift with or without monitors, with microphone and desktop sockets, TV lift.





Wide Product Range to Choose From and OEM Services


    With 14 years' manufacturing experiences and total four product lines, BW Audiovisual Solution Co. Limited’s product range expands every year in all-in-one automatic office solution, like flip up sockets, rotation sockets, desktop sockets, floor sockets, wall sockets, LCD lifts, TV lifts, projector lifts and more. With both factories in Guangzhou and Dongguan, we are able to offer cost-effective qualified products and OEM services.





New Products Released Annually


    We have been in business for 14 years and thanks to our R&D department, we always catch the latest trend in the market. We make seven to eight new products, which are both functional and decorative every year to satisfy our customers’ needs.





Experienced Team and Service


    Our staff, four QC, four R&D team, 102 workers and the office team, are all well-trained and educated in this industry. We will save your money in the end because of our efficiency and know-how. With required certificate and experienced after-sales service, there was no any clearance issue in the shipments we have arranged.





Life Long After-sale Service


    We offer one year warranty of our products and life-long after-sale service. Will provide free accessories during warranty period and only charge cost price of accessories after the warranty period.

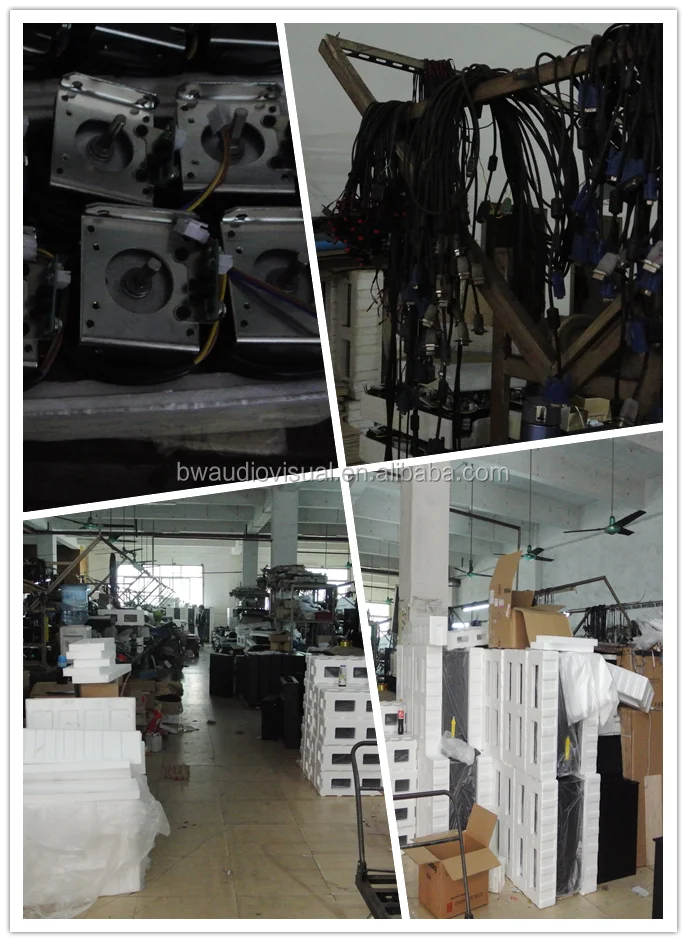

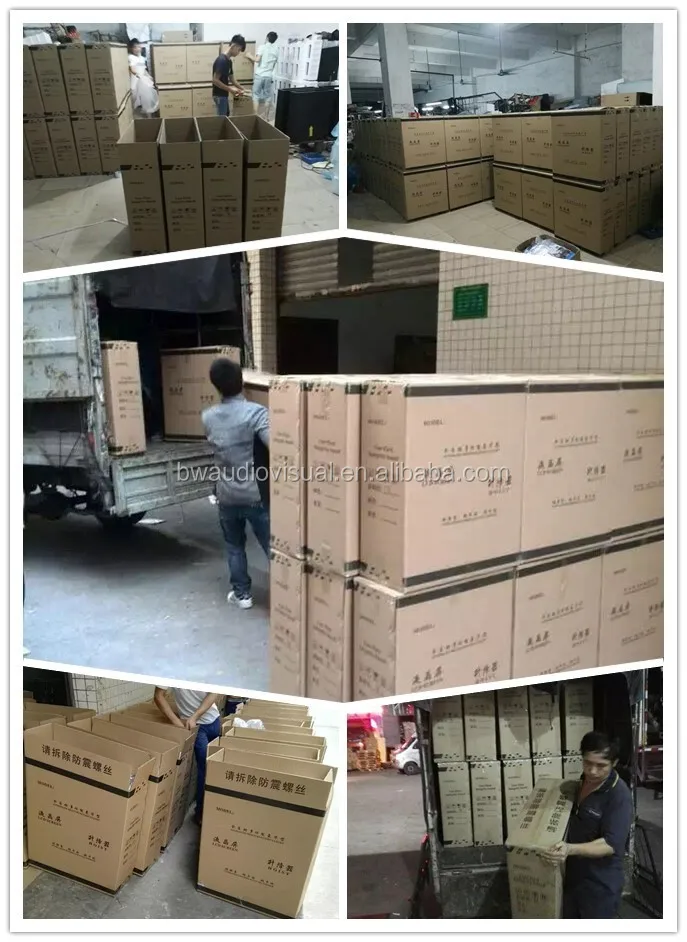

Factory Show
