Флексографская печатная машина YT 21200 HDPE shopping bag 2 вида цветов

Product Overview

Description

YT-21200  HDPE shopping bag 2 colors flexo printing machine

1.Feature:

1.1 Easy operation, flexible starting, accurate color register .

1.2 The meter counter can set printing quantity according to the requirements,stop the machine automatically at the quantity or when the material is cut off.

1.3 Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.

1.4 The printing ink is spread by the anilox cylinder with even ink color.

1.5 Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.360continuous and adjustable longitudinal register device.

1.6 The frequency control of motor speed adapts to different printing speeds.

1.7 Suitable for printing the packing material as PE and PP plastic bags,glass papers rolling papers,etc.

2.Main Technical Specification

Model	YT-2600	YT-21200	YT-21000
Feed width	600mm	1200mm	1000mm
Max printing width	560mm	1160mm	960mm
Printing length	191-1000mm	191-1000mm	191-1000mm
Unwind diameter	Φ1000mm	Φ1000mm	Φ1000mm
Printing Speed	5-50m/min	5-50m/min	5-50m/min
Thickness	2.38mm	2.38mm	2.38mm
Total power	8.5kw	15kw	13.35kw
Overall Dimension	3×1.6×2.2m	3.5×2.2×2.2m	3.5×2×2.2m
Weight	2000kg	2800kg	2400kg



3.picture showroom

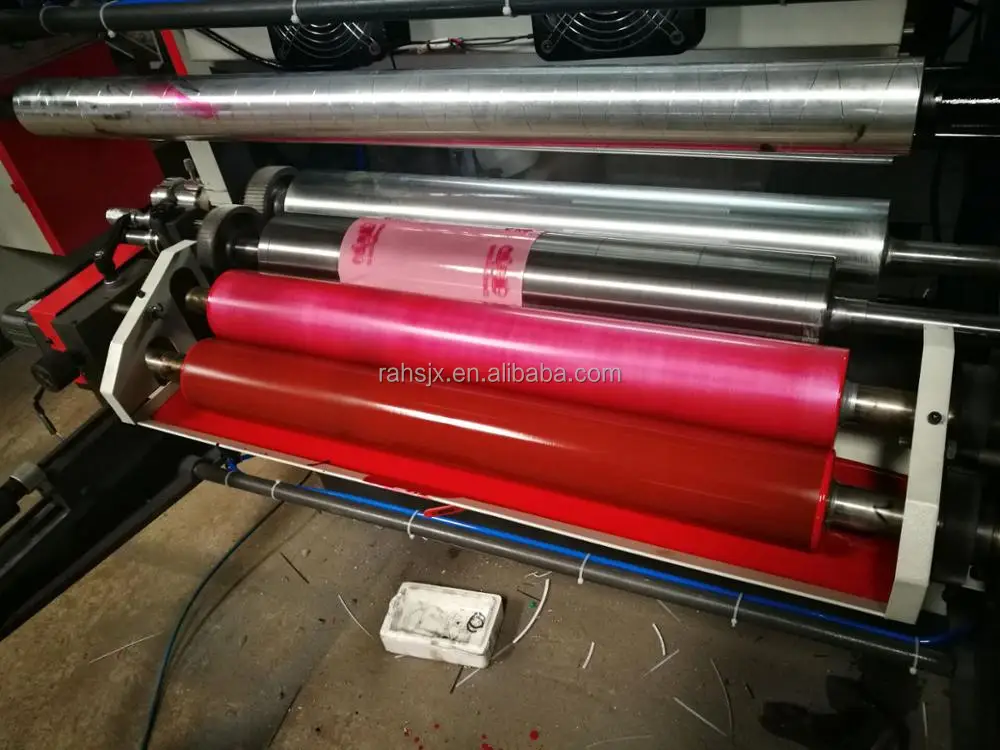

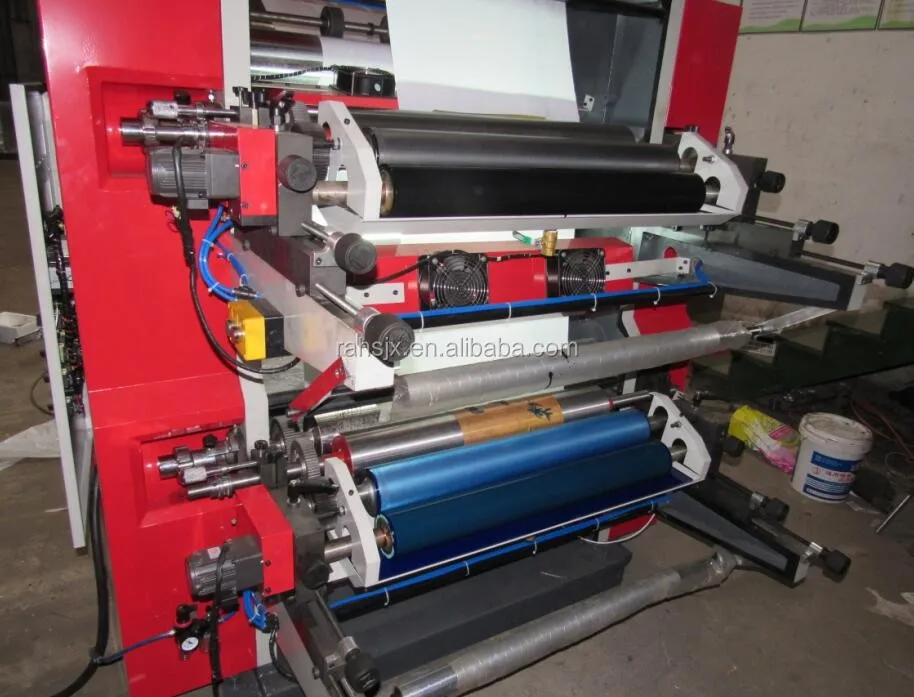

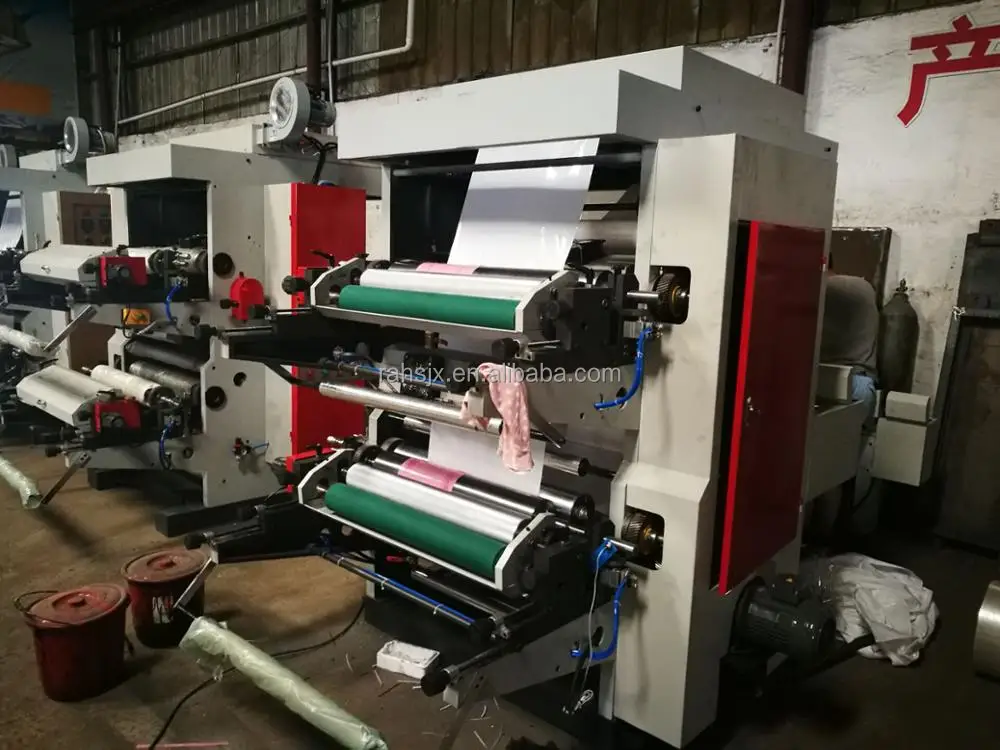

1 ) printing unit

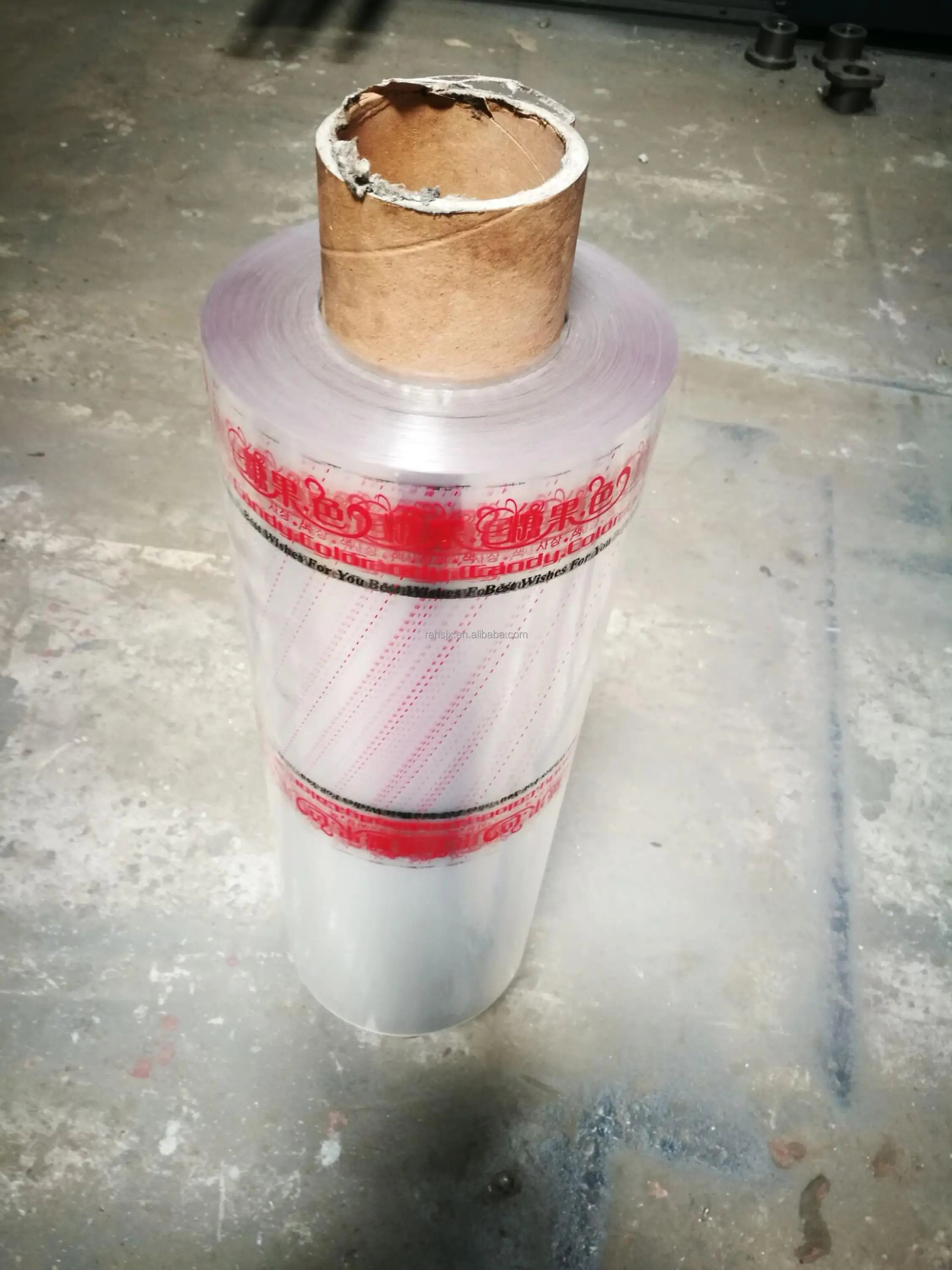

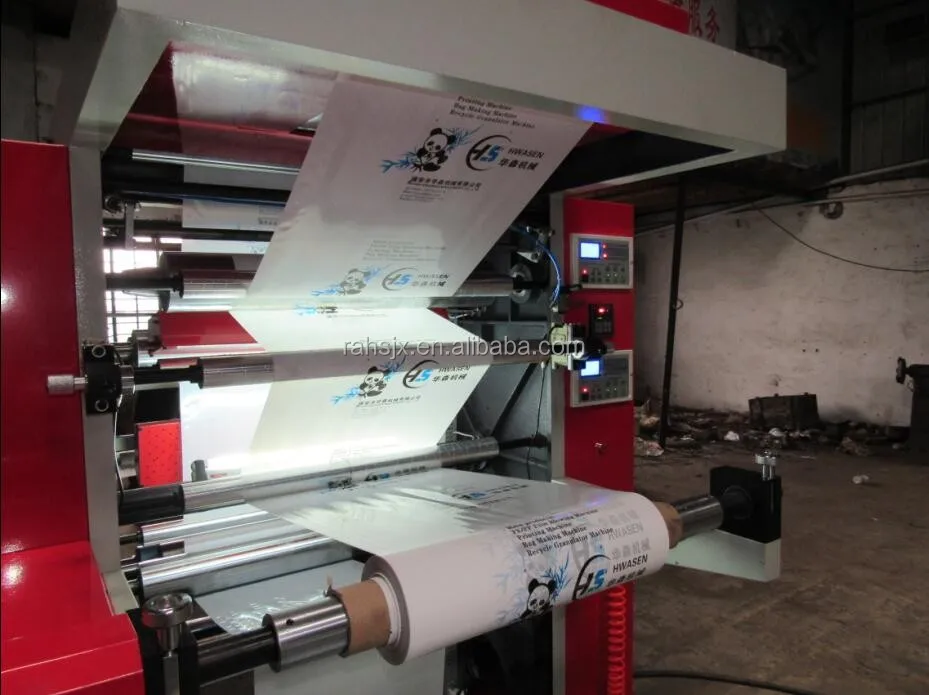

2) rewind part

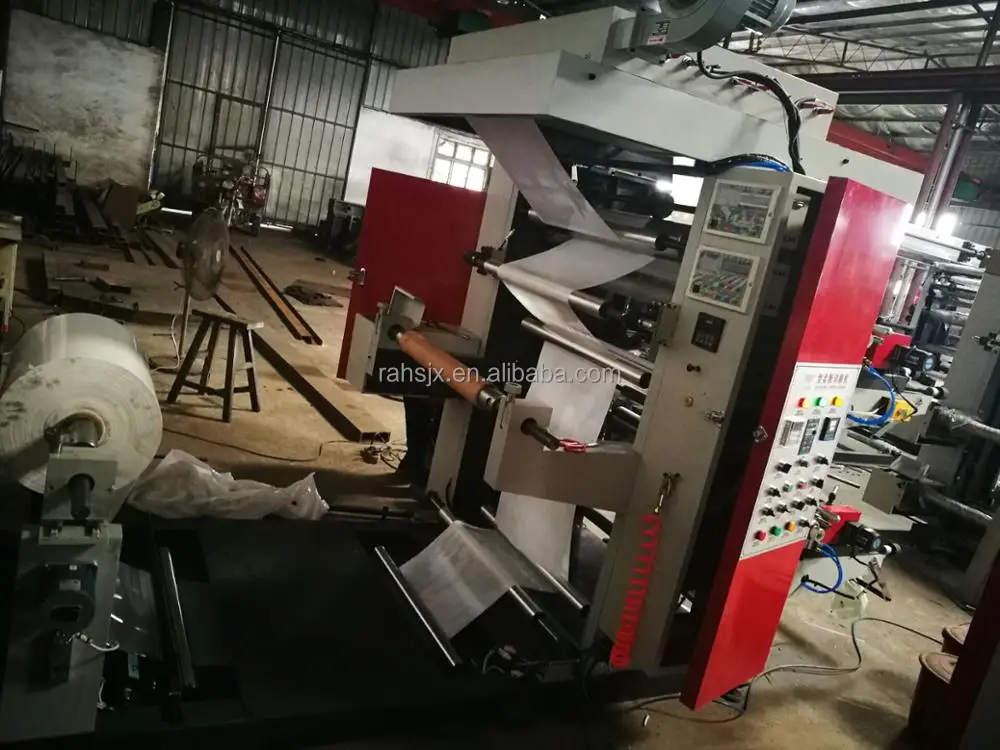

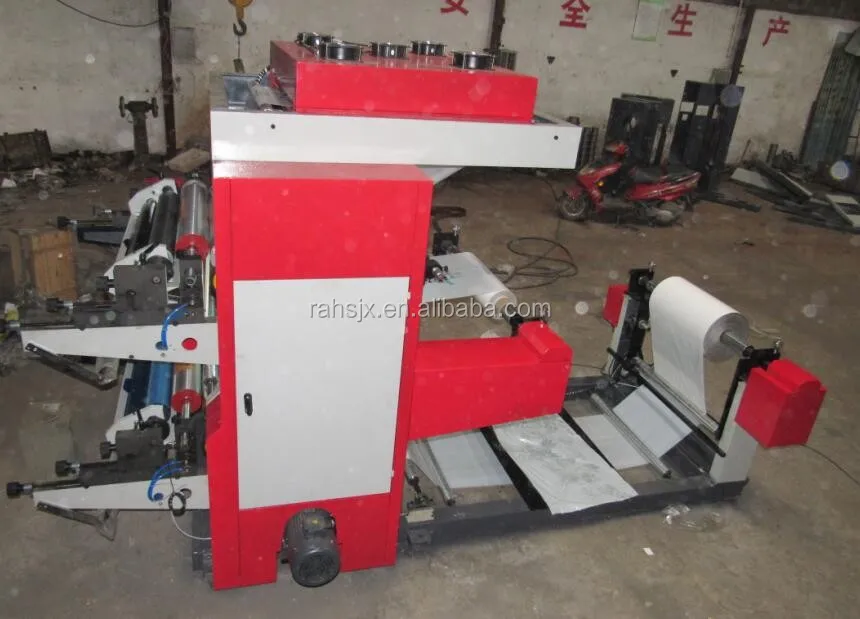

3) machine side show

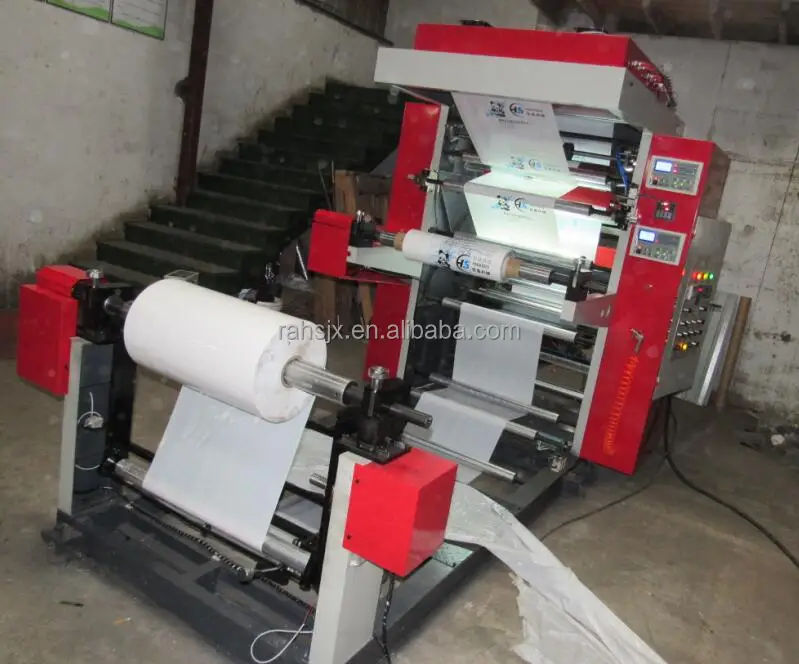

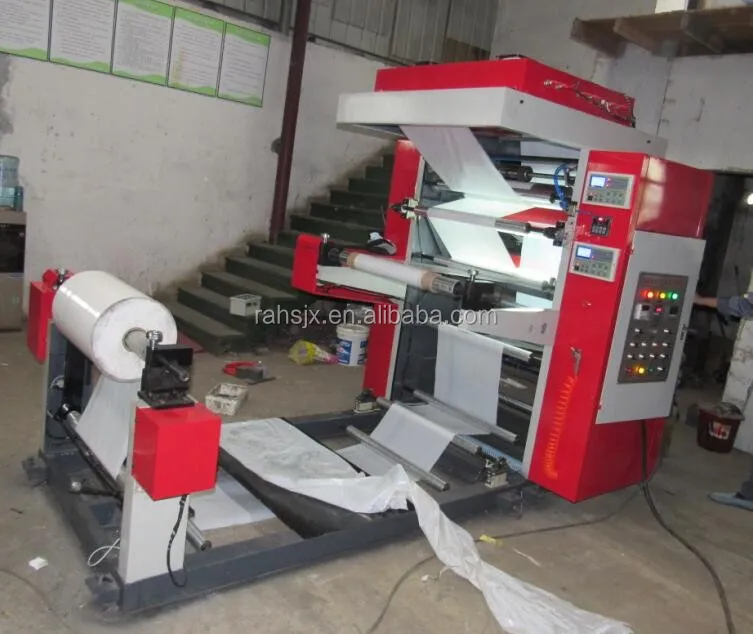

4) machine front show



5) separate unwind part

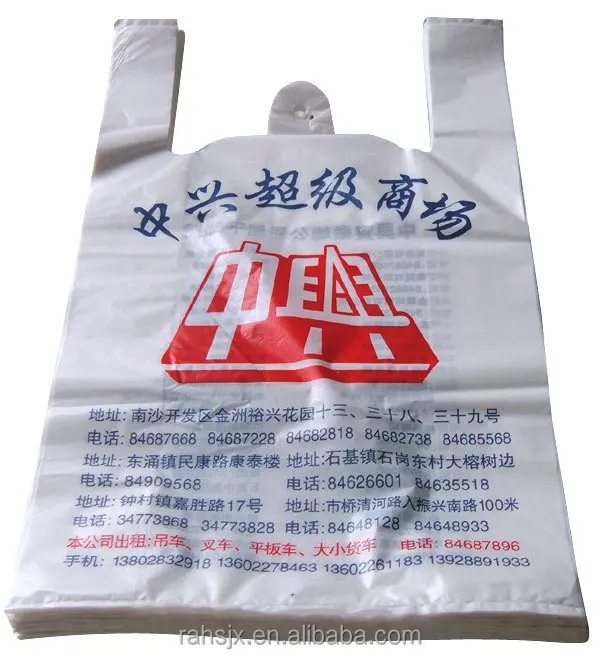

6)print quality show
