Автоматическая настольная винтовая фиксирующая машина

Product Overview

Description

 Automatic Desktop screw fixed Machine



Features

1.      Wide universality, small in size, can cooperate with production line, convenient for product                     replacement.

2.      High efficiency, the number of electric screwdriver of the Z axis is customizable according to                 customer’s requirements. Several electric screwdrivers can work at the same time.

3.      The Y axis can be made into double-station(that is, double Y axis),so the operator can load                    alternately.

4.      Reduce the labor intensity of workers.

5.      High degree of automation, easy operation which the staff can master and debug quickly. .

6.      Accurate torsion, convenient adjustment, and the quality of lock is guaranteed.

7.      The air-blowing screw is transmitted to the month of the electric screwdriver directly .

8.      With the function of leak detection, once a screw did not fill in place it can fill continually or start             alarm processing.





Model	YS-L301/YS-L302
Voltage	220V
Power	360W
Efficiency	3-5 second/workpiece
Import method of screw	Air-blowing type
Capacity of screw pocket	8000 pcs
Customize	Yes

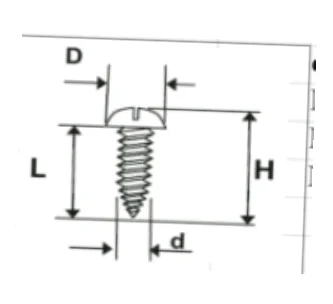

Scope of application	M1 - M6
Suitable screw head	any universal type
Size(L*W*H)	670*550*610 mm
Weight	60kg
