Сварочный кабель из ПВХ 70 мм2

Product Overview

Description

70mm2 HOFR INSULATION PVC WELDING CABLE



•Quality cable from ISO approved manufacturer

• Full range of sizes

• Large stocks of cables

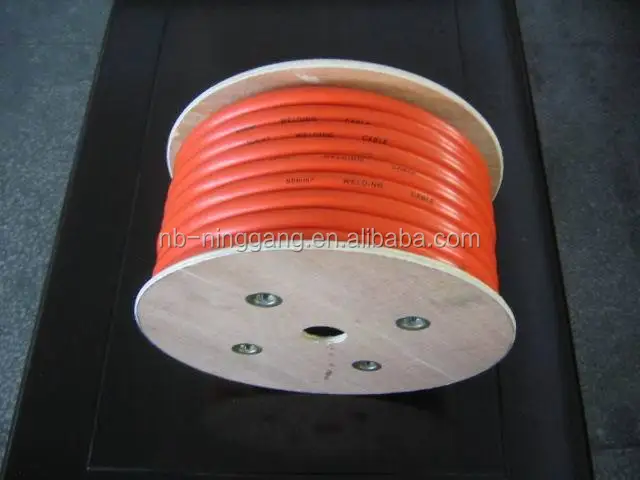

• Bulk drums and cable cut to length

• Other Harmonised cable types from Ninggang stock include H07RN-F, H05RN-F and H05RR-F

• Ninggang is the Largest Chinese Supplier of Welding Cables 0361TQ to BS 638

• Ninggang also keeps a comprehensive range of 6381TQ Trailing Cables



Welding Cable Application Cables primary use is for the secondary (high current) connection to automatic or hand-held metal arc welding electrodes. May also be used for non-welding applications such as earth/return lead, flexible tails on power supplies, busbar connections, etc.

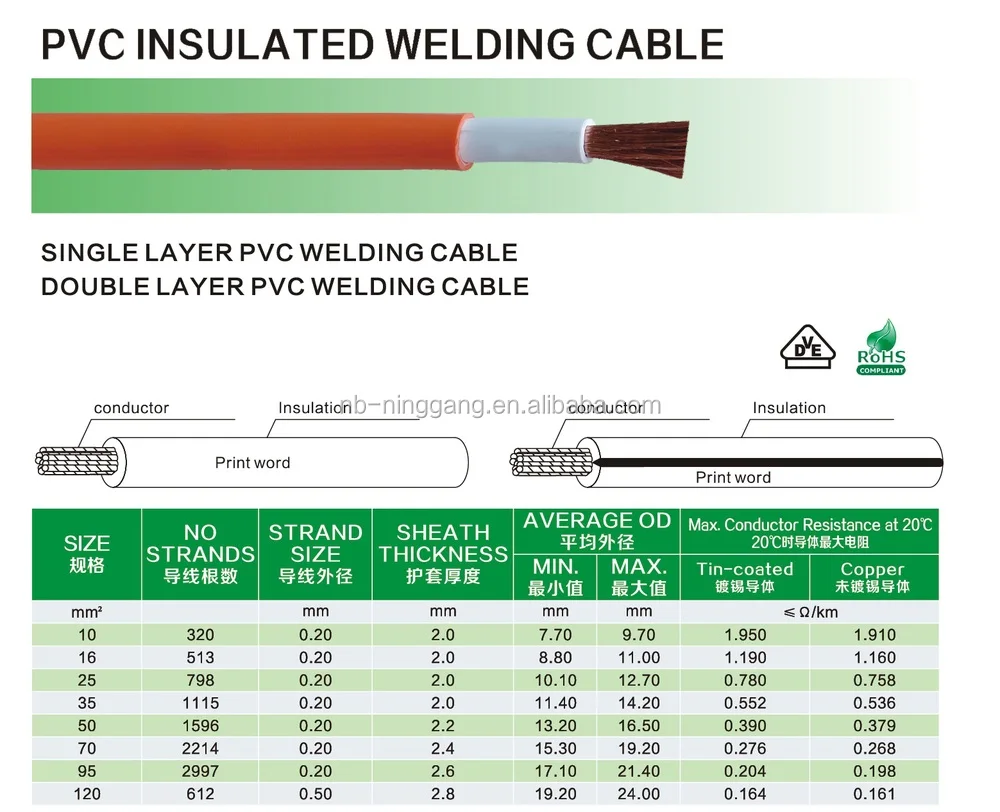

 Welding Cable Specification



In accordance with CEI/IEC 245-6: 1994 and Cenelec Code H01N2-D



Conductors: Flexible class 6 plain or tinned copper conductors



Insulation: Single insulated HOFR/double PVC insulation



Temp Rating: 85°C Max conductor operating temperature



Voltage Rating: 100V rating when used for welding purposes. For non-welding applications, cables may be used at voltages up to and including 450V - provided that the cables are adequately protected from damage to the insulation e.g. In panels etc.
