Лазерный сканер штрих кода Zebra symbol LS2208 для супермаркета/розничного магазина 1d

Product Overview

Description

symbol ls2208 1d laser barcode scanner used in supermarket, retail store



Features:

Durable, single-board construction
Meets stringent 5-ft drop tests.

Scratch-resistant tempered glass exit window
Is designed for continuous use.

Accurate first-time capture of 1-D barcodes
Increased productivity, resulting in shorter check-out lines and better customer service.

Wide working range
Delivers optimal performance from contact to 17 in (43 cm).

Multiple on-board interfaces
Simplify installation and integration and ensures future compatibility.

Plug-and-play, with universal cable
Means rapid deployment, with a single cable connecting to any computing environment.

Intuitive design
Minimizes setup and training time.

Ergonomic, lightweight design
Reduces user fatigue with sleek, balanced form for maximum comfort and productivity.

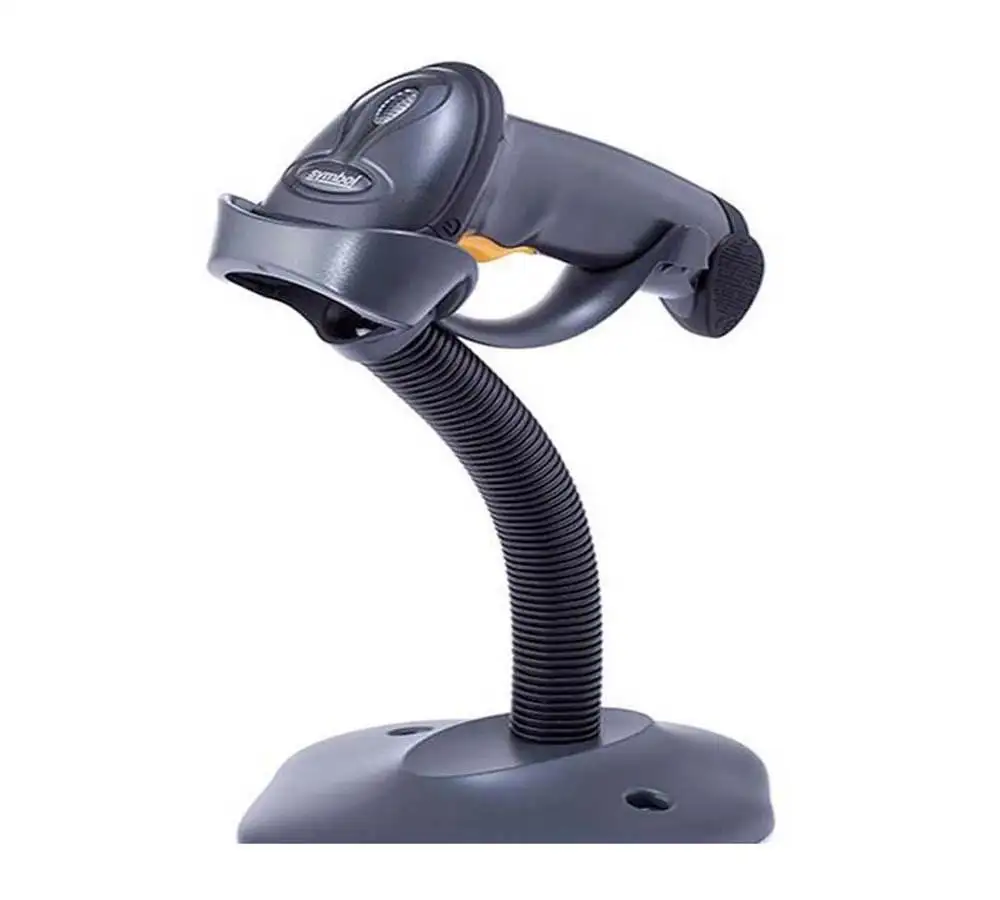

Hands-free Intellistand
Enables presentation scanning and easy switching between hands-free and handheld modes.

Advanced Data Formatting (ADF)
Enables users to modify data prior to sending to host computer, reducing costly modifications to the host software.

 Physical Characteristics
Dimensions 6.0 in. H x 2.5 in. W x 3.3 in. D
15.2 cm. H x 6.4 cm. W x 8.5 cm. D
Weight 5.3 oz./150.0 g
Input Voltage Range 4.5 to 5.5 VDC host powered; 4.5 to
5.5 VDC external power supply
Operating Current at Nominal
Voltage (5.0V)
175 mA (typical)
Standby Current (idle) at
Nominal Voltage (5.0V)
90 mA (typical)
Color Cash Register White, Twilight Black
Supported Host Interfaces USB, RS232, Keyboard Wedge, TGCS
(IBM) 46XX over RS485

Performance Characteristics
Light Source 650 nm Laser Diode Class 2
Scan Pattern Single line
Scan Speed 100 scans per second
Scan Angle 35°
Minimum Print Contrast 20% minimum reflective difference
Skew Tolerance ± 10°
Pitch Tolerance ± 65°
Roll Tolerance ± 6

Retail
• Point of Sale (PoS)
• In-store inventory tracking
• 1D loyalty card processing
• 1D paper coupon redemption
education
• Library book checkout
• Inventory and asset tracking
