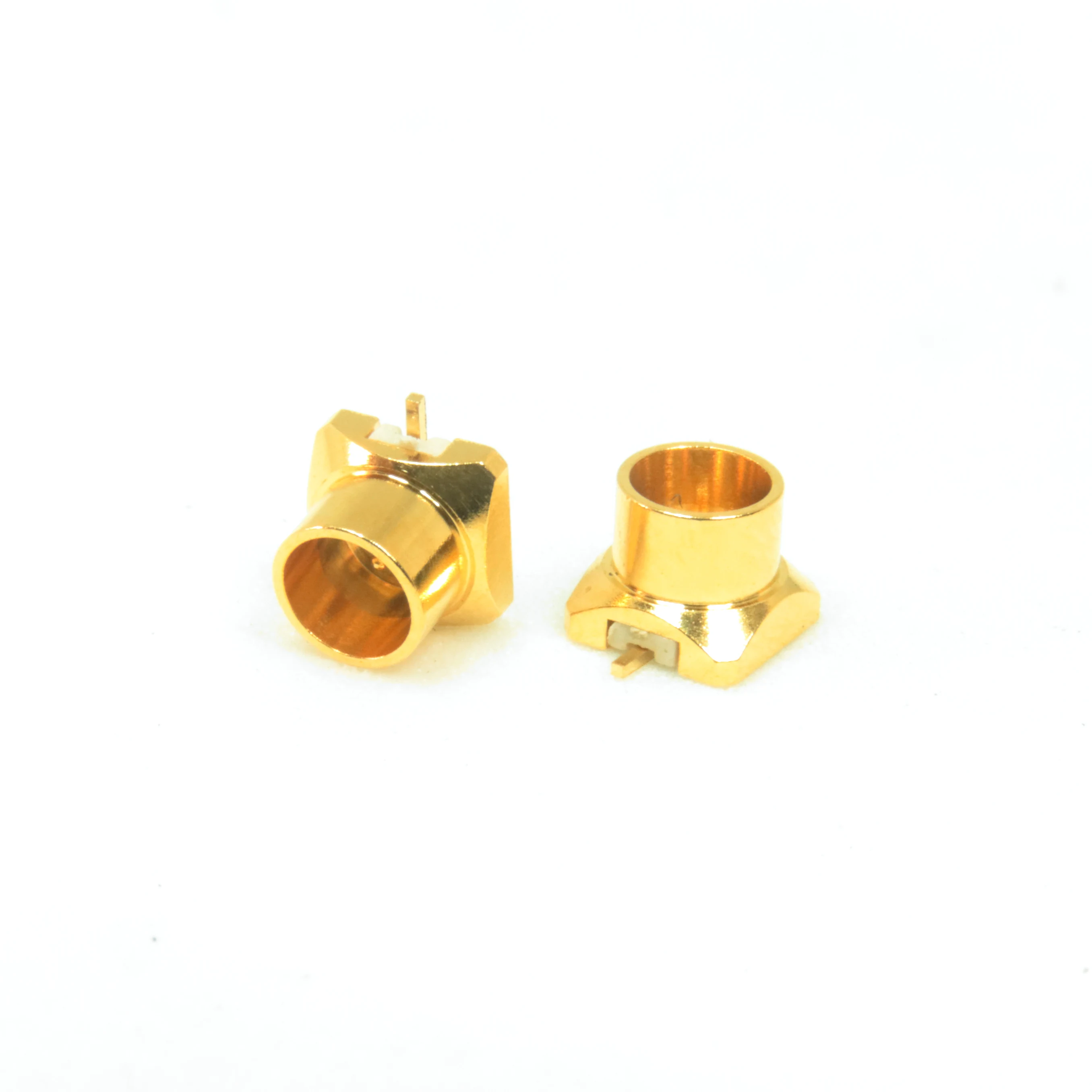

SMP Connector PCB Surface Mount Jack Limited Detent


1. ISO 9001 & IATF 16949 certified
2. RoHS & REACH compliant

3. Made in Taiwan





SMP connectors are subminiature connectors with snap-on mating mechanism.  The connector can deliver excellent frequcny performance up to 40 GHz and high density for board-to-board applications in telecommunication, test & measurement or aerospace applications.  Smooth bore, limited detent and full detent mating forces are optional.

Features:

1. Snap-on mating


2. Weight and space saving


3. High performance up to 40 GHz

Applications:

1. Board-to-board


2. Test & measurement


3. Aerospace

Electronical Specifications

Impedance	50Ω
Frequency Range	0-40 GHz
Working Voltage	335 VRMS max. at sea level
Dielectric Withstanding Voltage	500 VRMS min. at sea level
Return Loss (cable connector straight)	≥ 14 dB (typ.)
Contact Resistance	Center Contact: 6 milliohm Max.
	Outer Contact: 2.0 milliohm Max.
Insulator Resistance	5000 megaohms min.



Material Specifications

Parts Name		Material	Finish
Center Contact	Male	Brass	3μ" Gold / 30 μ" Gold
	Female	BeCu	3μ" Gold / 30 μ" Gold
Outer Contact of Female		BeCu	Thin Gold / 3μ" Gold
Body, Metal Parts		Brass	Thin Gold / 3μ" Gold
Insulators		PTFE / PEEK / LCP	None
Crimp Ferrule		Annealed Copper	Thin Gold / 3μ" Gold

 Note: Other Material/Finish is available on request
