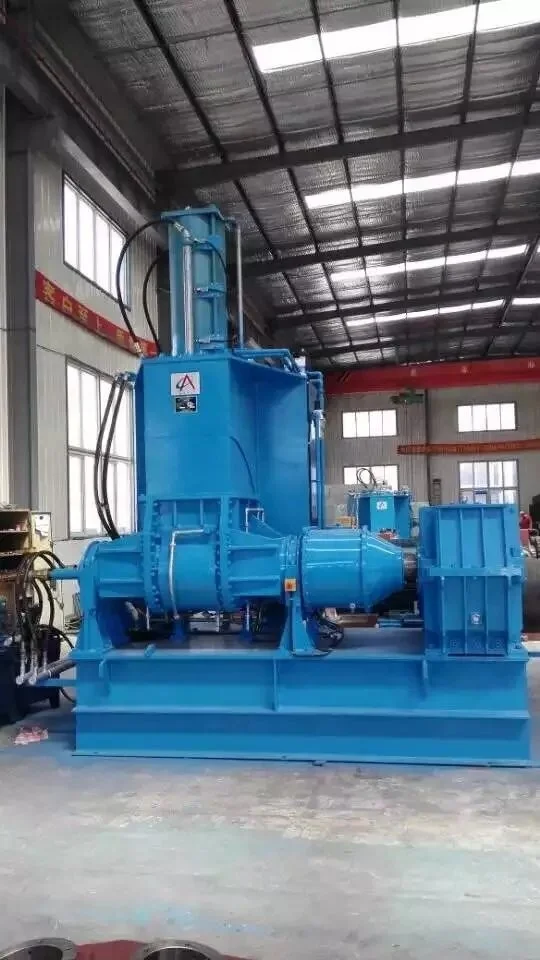

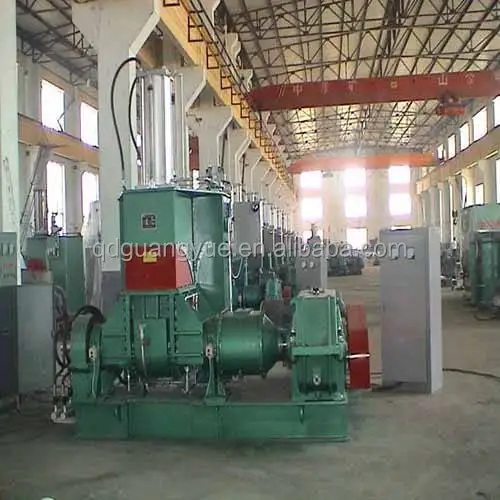

Hard Alloy Coated Chamber Banbury Mixer XN 55

Product Overview

Description

Banbury Mixer (CE Approved, Best Selling.)



NAME: HYDRAULIC RAM PRESSURE RUBBER KNEADER, HARD ALLOY COATED MIXING CHAMBER RUBBER KNEADER MACHINE, RUBBER KNEADER MACHINERY, BANBURY KNEADER, RUBBER INTERNAL MIXER, HARD-TOOTHED SURFACE REDUCER RUBBER INTENAL KNEADER.



TECHNICAL PARAMETER:



Model  /  Parameters	XN-75	XN-55
Net chamber volume	175	125
Working volume	75	125
Front/back rotor friction ration	1:1.22	01:01.2
Kw power	125	95
Main motor rotation speed	985	985
Turn angle	1400	1400
L*W*H	3760*2143*3050	3750*1950*3050
Weight(kg)	1100	9000



Highlights:



1. The spiral angle and the working length of the wing of the rotors are designed intelligently and reasonably, which can make the materials obtaining an optimal kneading effect. The wing ridge and the end surface of rotor are bead welded with the abrasion resistant hard alloy and the faying surface of mixing chamber, rotor and upper ram which directly touching with the materials are all polished after being ground and plated with hard chromium.



2. The mixing chamber consists of W-shape body welded with high quality steel plates and two pieces of side plates. The chamber, rotors and piston ram are all jacketed structure for the ingoing of steam, oil and water for heating and cooling to suit the various requirement for the process of mixing and plastication.



3. Hard toothed surface gear reducer for higher working efficiency, lower noise, wearing resistance; Well-known brand motor with 20 years guarantee.



4. PLC control.



5. Hydraulic pressure turning device adopts the enveloping worm pair to perform high efficiency and bearing strength. The discharging of materials can be carried out consecutively without stop, which avoids the starting up of motor frequently.



6. Chamber is well-sealed by the arc-shaped-plate-groove labyrinth type structure and the shaft end of rotor adopts contact type non-lubricating with spring tightening structure.



7. Temperature adjustable by electric control system; Pneumatic system can protect the motor from the overloading of chamber.



8. Plug-in type thermal resistor can be equiped in the bottom centre of mixing chamber and is connected with the electric-control system.



9. Operation safety, Materials good mixing dispersion, Environmental protection.

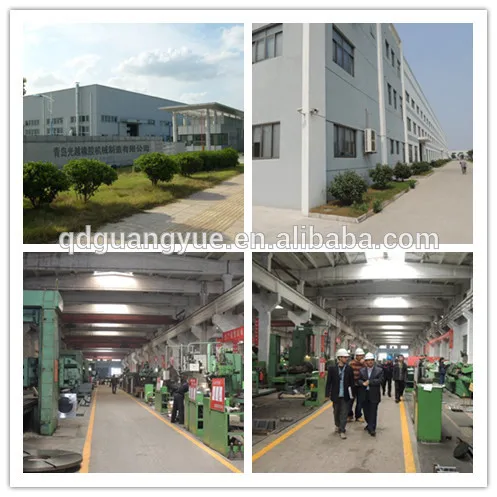

WELCOME TO VISIT OUR FACTORY FOR BUSINESS DISCUSSION.
