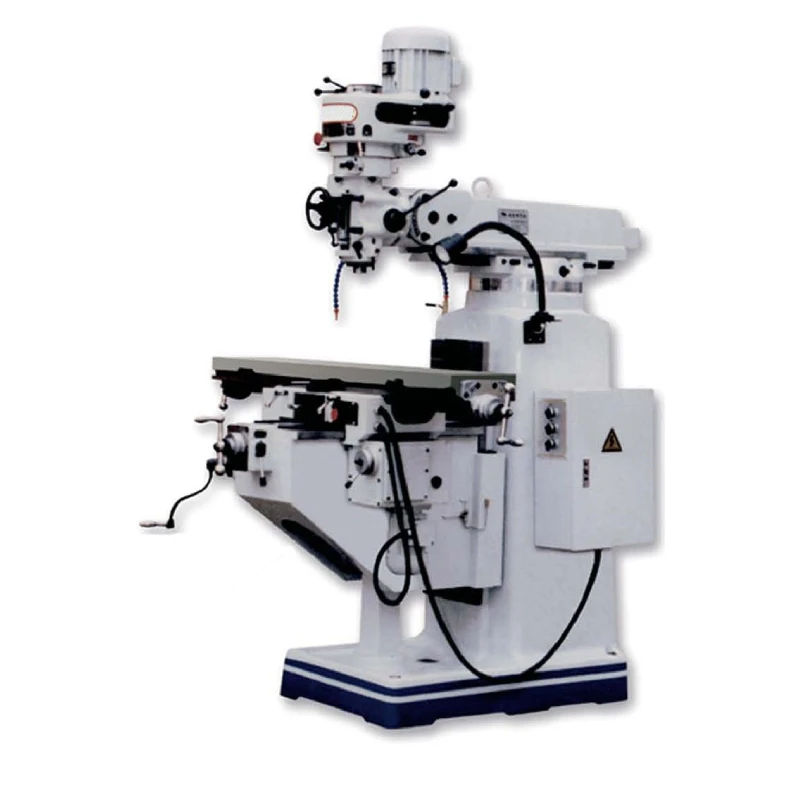

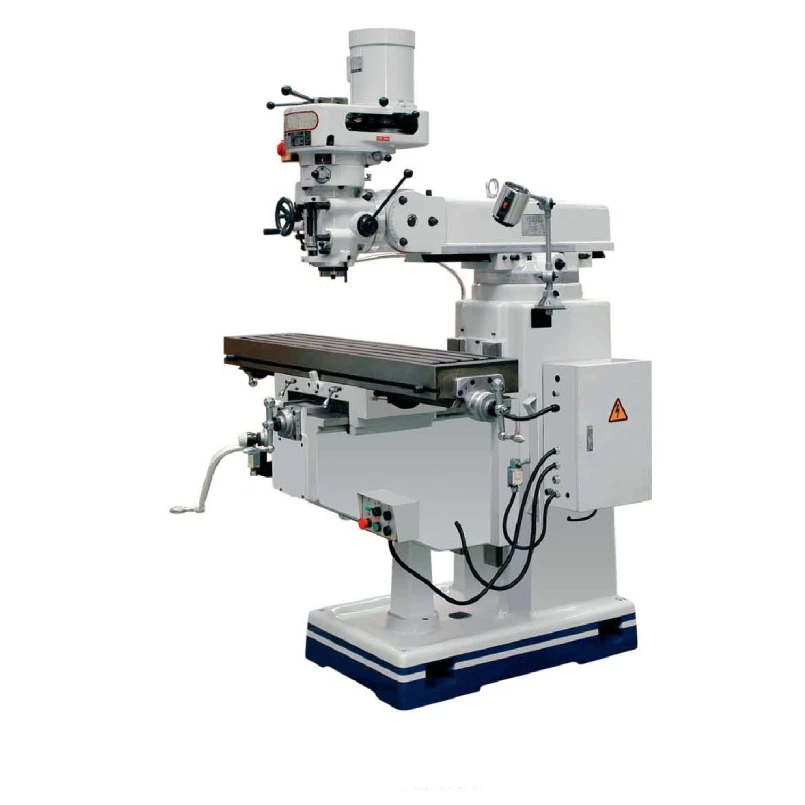

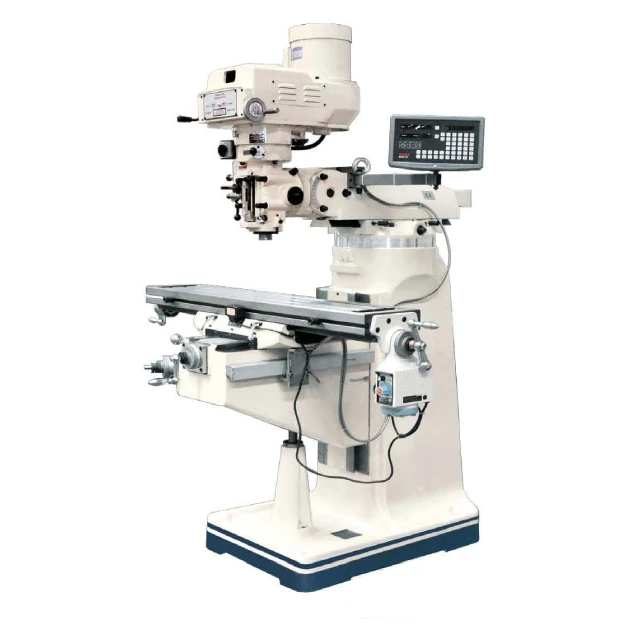

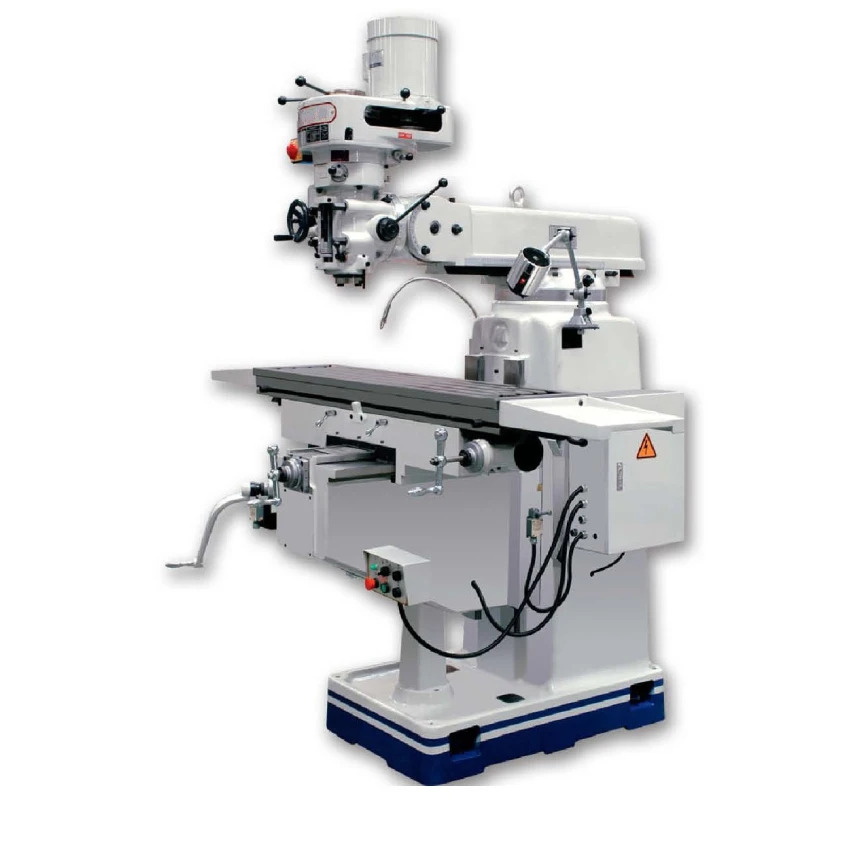

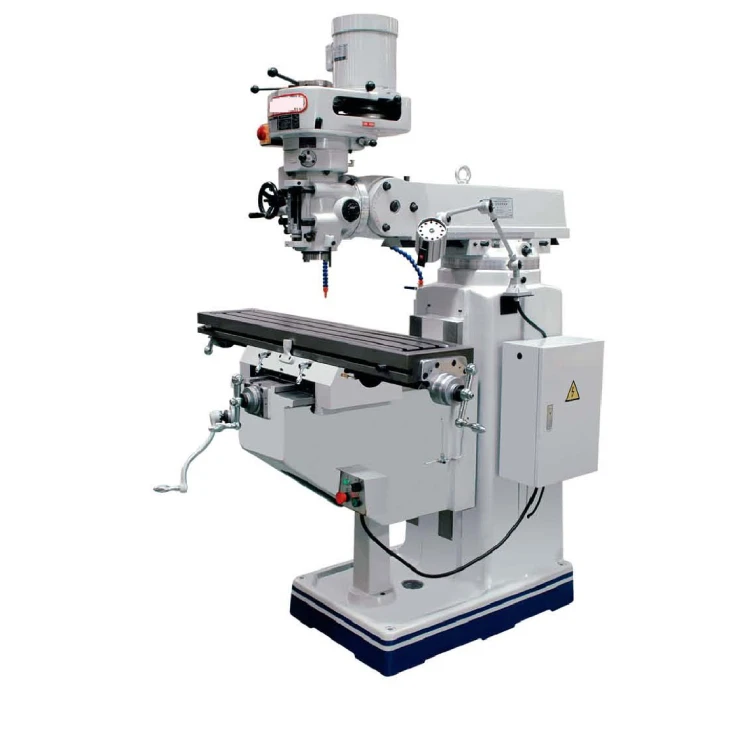

Высокоточный Средний рабочий металлический вертикальный револьверный фрезерный станок
- Category: Milling Machines >>>
- Supplier: Almaco Machine Tool Co. Ltd.
Share on (60252008287):
Product Overview
Description
Recommend Products
Products Description
Brief Introduction

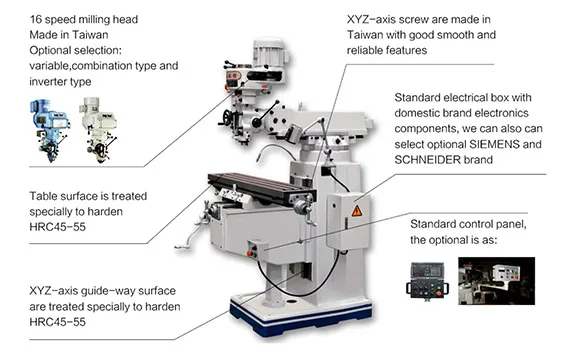

Variable or step pulley mill head are available.
Mehanite cast iron.
T-cuite B cover.
CE
Milling head swivel, front and back, left--right
Leadscrew, milling head, nut from taiwan
Column and base one piece cast iron, more stable milling
X, Y, Z can be with power feed device
Spindle taper can be ISO30, R8, ISO40,
Mehanite cast iron.
T-cuite B cover.
CE
Milling head swivel, front and back, left--right
Leadscrew, milling head, nut from taiwan
Column and base one piece cast iron, more stable milling
X, Y, Z can be with power feed device
Spindle taper can be ISO30, R8, ISO40,
Standard accessories | Optional Accessories |
Coolant | DRO |
work light | milling chuck |
tool and tool box | vice |
chip tray | dividing head |
guideway with splash guard | slotting head |
clamping kit | |
24V CE | |
worktable guieway protection |
Specification
Specification //Code No. | X6323A | X6323B | |||
63008 | |||||
Table size | 230*1067(9*42) 230*1246(9*49) | ||||
Long travel | 650 840 | ||||
Cross travel | 305 | ||||
Vertical travel | 400 | ||||
T-slot No.and size | 3*16 | ||||
Ram travel | 312 | ||||
Distance from spindle nose to table surface | 0-415 | ||||
Spindle hole taper | Standard:R8 optional :ISO30/ISO40 | ||||
Spindle travel | 127 | ||||
Spindle speed | standard: shift grade 16: 50HZ65-4500,60HZ80-5440 | ||||
optional:variable:65-4500 | |||||
Auto.quill feed | Threesteps :0.04(0.0015)/0.08(0.003)/0.15(0.006) | ||||
Spindle motor | 2.25kw/3hp | ||||
Head swivel | 90° | ||||
Head tilting | 45° | ||||
Dimension of package | One miller per case | 1400*1476*2030 | |||
Two miller per case | 1450*1570*2080 | ||||
Three miller per case | 1450*2180*2080 | ||||
G.W/set | 1100 | 1160 | |||
Company Profile
Our Service
Overseas after sales service outlets
TOPTECH SMAC MACHINERY LIMITED（Canada）
Address:Office and showroom, unit 5, 5510 Ambler Dr Mississauga, ON, L4W2V1, CANADA
Office:905 238 8912
Contact: Mrs Merry NA
COMPANY REPRESENTATIVE (EGYPT)
Address: Ibn Khaldon St. -Villa No.16-6th District-Obour City-Cairo-Egypt
Tel & Fax: +20244823499
Cell phone: +201223960211
Contact: Ahmed Refaat
SJR MACHINERY LIMITED（Algeria）
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807
Email:Mezouarstar@gmail.com
TOPTECH SMAC MACHINERY LIMITED（Canada）
Address:Office and showroom, unit 5, 5510 Ambler Dr Mississauga, ON, L4W2V1, CANADA
Office:905 238 8912
Contact: Mrs Merry NA
COMPANY REPRESENTATIVE (EGYPT)
Address: Ibn Khaldon St. -Villa No.16-6th District-Obour City-Cairo-Egypt
Tel & Fax: +20244823499
Cell phone: +201223960211
Contact: Ahmed Refaat
SJR MACHINERY LIMITED（Algeria）
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807
Email:Mezouarstar@gmail.com
Packing & Delivery
We choose the best packaging, the most excellent
logistics services, to ensure that your goods faster and safer to reach the destination.
logistics services, to ensure that your goods faster and safer to reach the destination.
FAQ
Q.What are your normal lead times?
A.Our company typical lead times range from 3-4weeks after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.
Q.What kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".
A.Our company typical lead times range from 3-4weeks after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.
Q.What kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".

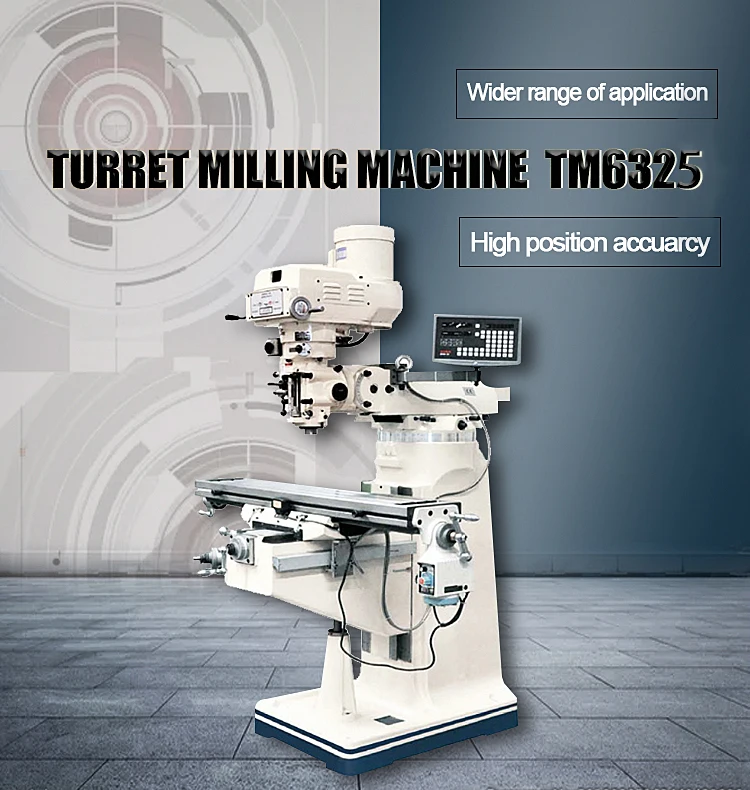

High Precision Medium Duty Metal Vertical Turret Milling Machine
