ZX7045 DRILLING MILLING MACHINE WITH FOOT STAND

Product Overview

Description

ZX7045 DRILLING MILLING MACHINE WITH FOOT STAND:





MAIN FEATURES OF ZX7045 DRILLING MILLING MACHINE WITH FOOT STAND:



1.Gear-driven and square column.



2. Milling, drilling, tapping, boring and reaming.



3. Micro feed precision.



4. Strong rigidity, powerful cutting and precise positioning.







 MAIN SPECIFICATIONS OF ZX7045 DRILLING MILLING MACHINE WITH FOOT STAND:



Item Parameter  Max.drilling capacity(iron/steel)  31.5/45mm  Max.mill capacity(face/end)  80/32mm  Spindle taper  MT3/MT4/R8/ISO30  Worktable size  800×240mm  Worktable travelX/Y  570/230mm  Head tilt left right  90°  Spindle travel  130mm  Spindle nose to worktable  470mm  Spindle center to column surface  285mm  Spindle speeds range(2 steps)  12steps:75-3200r/min  motor  0.85/1.1kw  N.W/G.W  300/350KG  Packing size(L×W×H)  1140×960×2240mm  20’Container  12 sets

Standard Accessories Optional Draw bar,Adapter,Taper shank for drilling chuck ,Drilling chuck ,Arbor ,T slot bolt ,Washer ,Nut ,Tilted wedge ,Spanner ,Oil gun Cooling system,Working light,Spindle power down feeder,DRO,depth indicator,spring collet,vices,milling collet ,milling clamp.

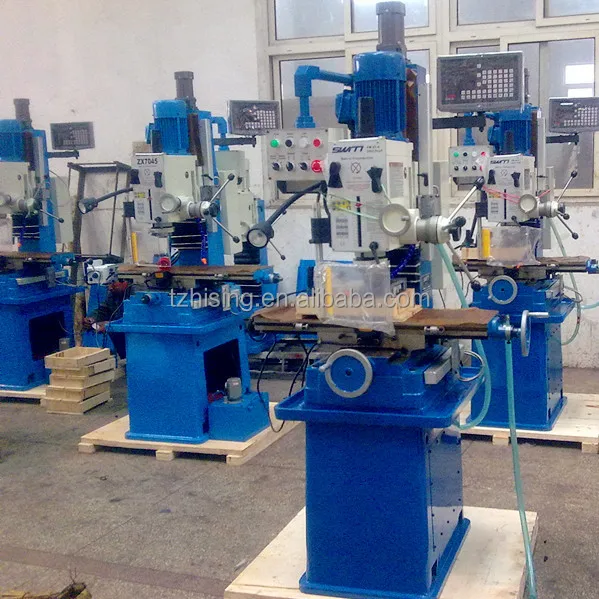

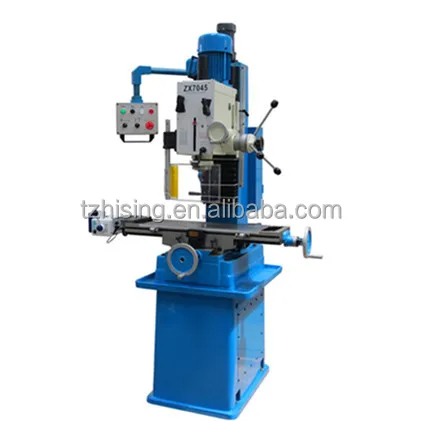

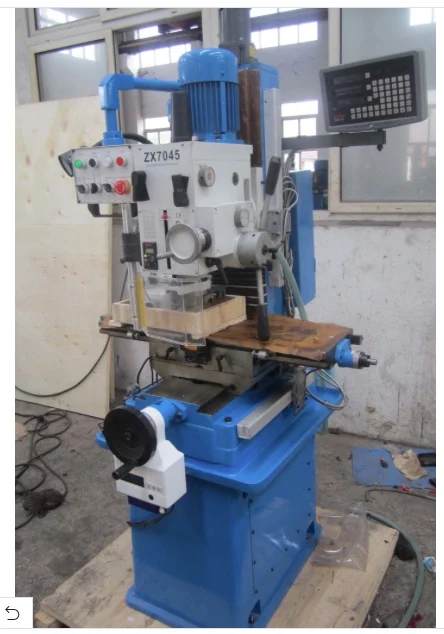

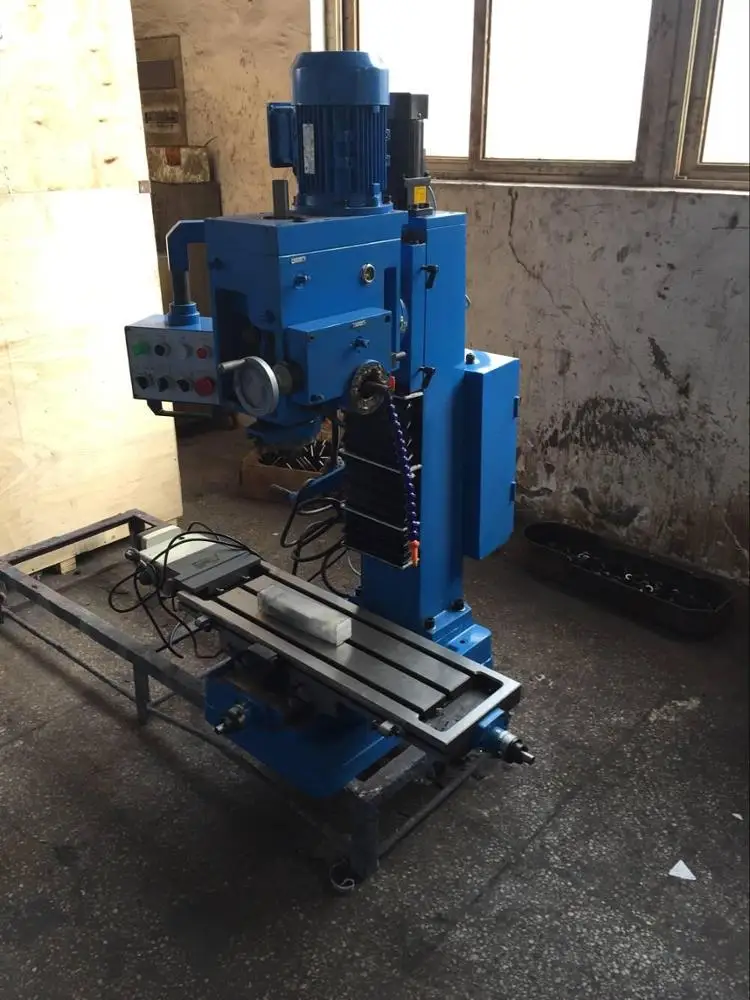

PHOTOS OF ZX7045 DRILLING MILLING MACHINE WITH FOOT STAND:
