Hot selling gear driven ZX45 Milling Machine

Product Overview

Description

ZX45 Milling Machine:

MAIN FEATURES OF Hot selling gear driven ZX45 Milling Machine:



1.Gear-driven and square column.



2. Milling, drilling, tapping, boring and reaming.



3. Micro feed precision.



4. Strong rigidity, powerful cutting and precise positioning.







 MAIN SPECIFICATIONS OF Hot selling gear driven ZX45 Milling Machine:

Item	Parameter
Max.drilling capacity(iron/steel)	31.5/40mm
Max.mill capacity(face/end)	80/32mm
Spindle taper	MT3/MT4/R8/ISO30
Worktable size	800*240mm
Worktable travelX/Y	570/230mm
Head tilt left right	90
Spindle travel	130mm
Spindle nose to worktable	470mm
Spindle center to column surface	285mm
Spindle speed(option)	6steps:60Hz 90~1970rmp 50Hz 75~1600rmp
Motor(option)	1.1kw
N.W/G.W	300/350KG
Packing size(L*W*H,enclude foot and pan)	850*760*1150mm
20’container	30sets







Standard Accessories	Optional
Draw bar,Adapter,Taper shank for drilling chuck ,Drilling chuck ,Arbor ,T slot bolt ,Washer ,Nut ,Tilted wedge ,Spanner ,Oil gun	2 speed motor ,cooling system ,Working light,Spindle power down feeder,Table Power feed,Big Electrical box ,depth indicator , spring collet , vices, milling collet ,milling clamp,DRO(2 aix)

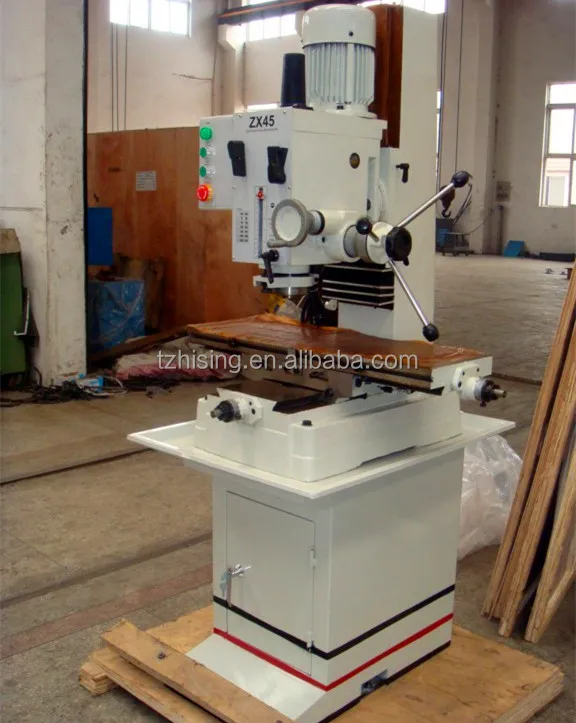

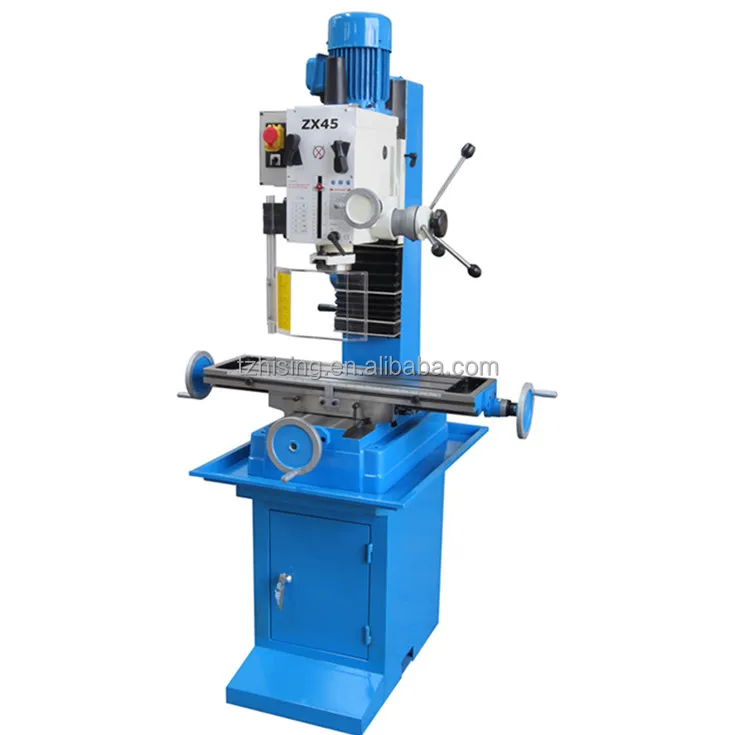

PHOTOS OF Hot selling gear driven ZX45 Milling Machine:
