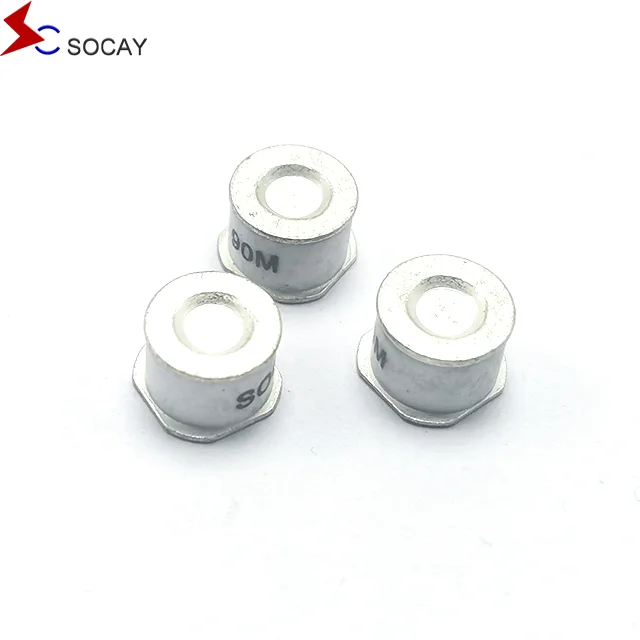

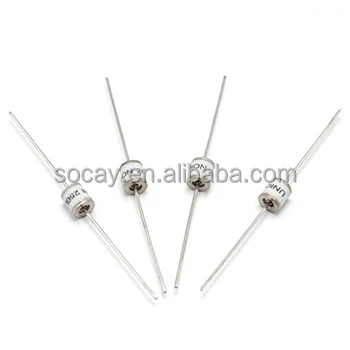

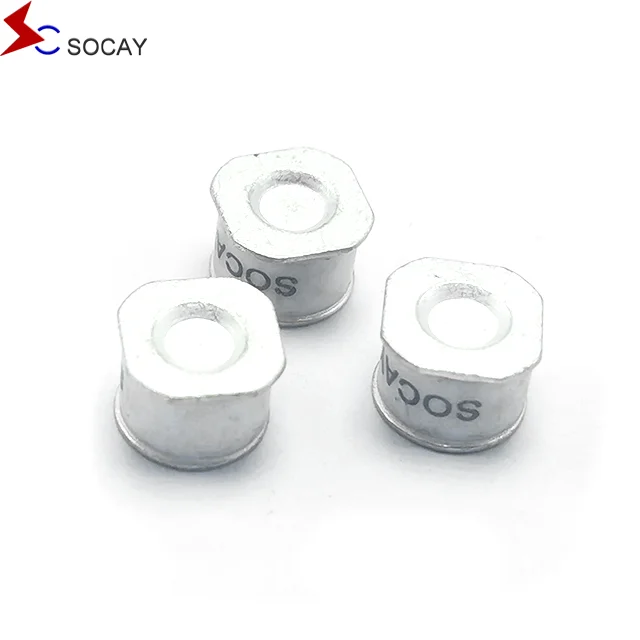

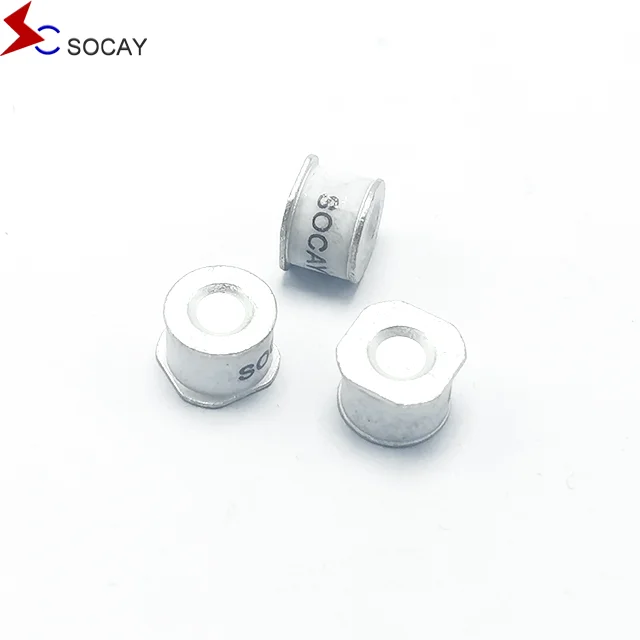

switching Spark Gap surface mount devices gas discharge tube SMD
- Category: Gas Discharge Tubes >>>
- Supplier: Shenzhen Socay Electronics Co. Ltd.
Share on (60266990532):
Product Overview
Description
Product Characteristics
Materials | Leaded Device: Nickel-plated with Tinplated wires Without wire and Surface Mount: Dull Tin-plated |
Product Marking | SOCAY XXXK XXX -Nominal voltage K - Switch Spark Gap |
Max Load Current | 50mA |
Breakdown Time | ≤50mS |
Insulation Resistance at DC100 V | >1GΩ |
Capacitance | 1.5pF |
Storage Temperature | -40 to +90°C |
Operational Temperature | -20 to +125°C |
Weight | SC2K8-XXXL ~1.5g SC2K8-XXX ~1.35g SC2K8-XXXSMD ~1.5g |
Features | Non-Radioactive RoHS Compliant Fast breakdown-time Very high switch speed when switch voltage achieved, High di/dt allows for optimum performance of ignition transformers. Long service life |
Applications | HID Xenon discharge lamps ignite Gas stoves Detonating devices(EBW) Transient Power Other electronic ignition circuit |

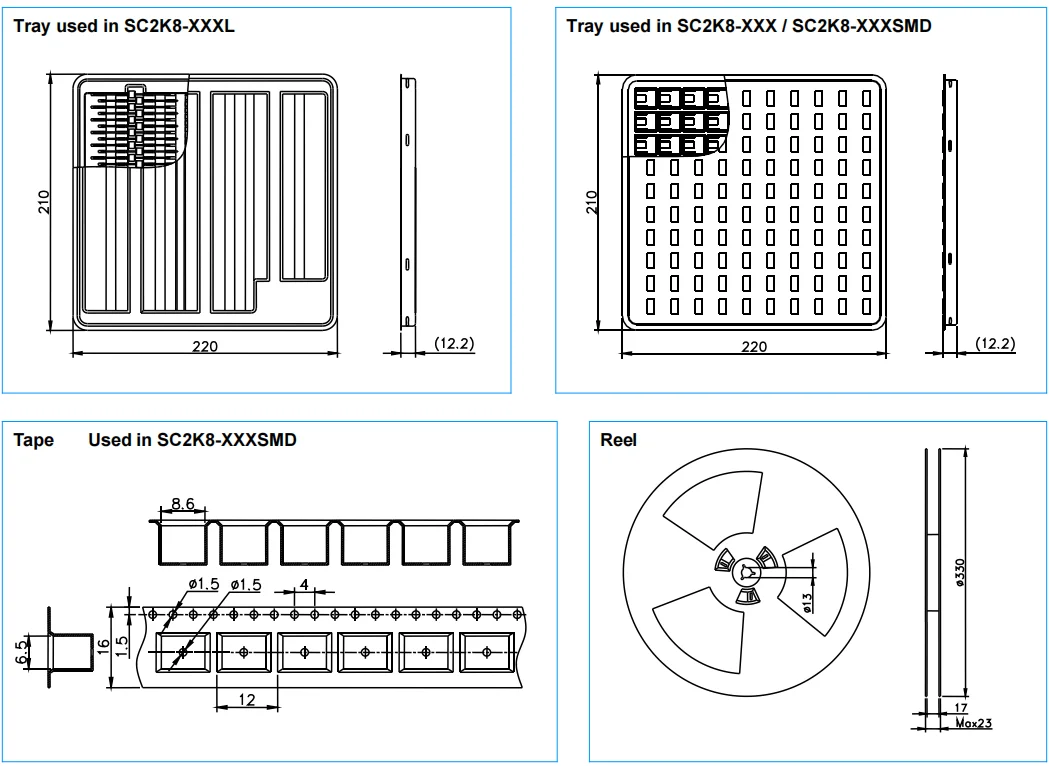

Packaging Information
Part Number | Description | Quantity |
SC2K8-XXXL | 100PCS per Tray, 10 Trays / Inner Carton | 1000PCS |
SC2K8-XXX | 100PCS per Tray, 10 Trays / Inner Carton | 1000PCS |
SC2K8-XXXSMD | 100PCS per Tray, 10 Trays / Inner Carton | 1000 PCS |
Tape & Reel -16mm tape/13″Reel | 500PCS |

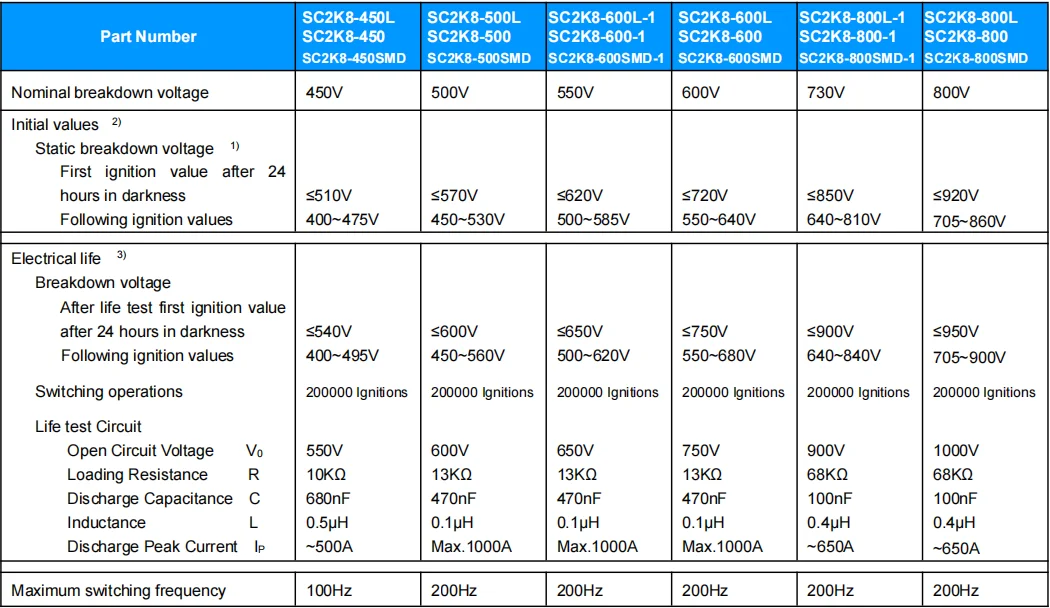

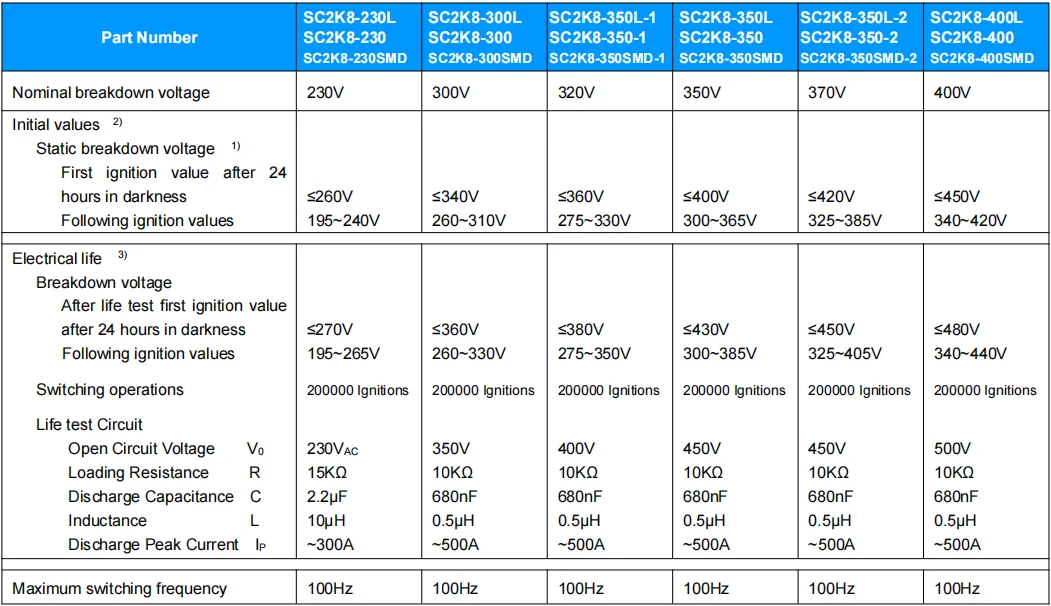

Electrical Specifications
1). At delivery AQL 0,65 level II, DIN ISO 2859
2). Fig. 1
3). Fig. 2
2). Fig. 1
3). Fig. 2

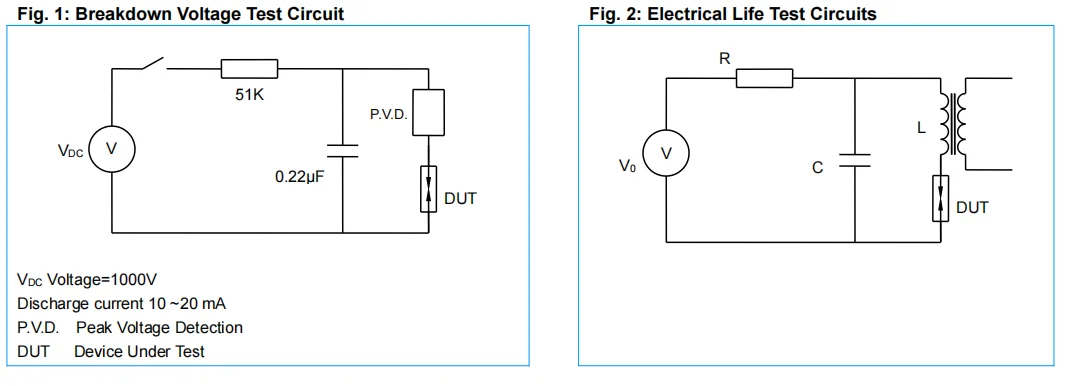

Test Circuit

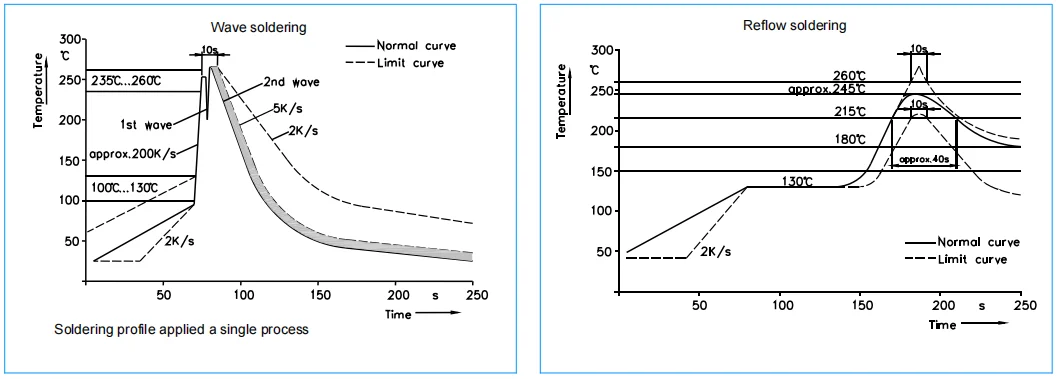

Recommended Soldering Profile
Soldering Parameters - Hand Soldering
Solder Iron Temperature: 350°C +/-5°C
Heating Time: 5 seconds max.
Heating Time: 5 seconds max.
