hot sale SHD250 butt fusion jointing machine
- Category: Butt Welders >>>
- Supplier: Rothenberger (Wuxi) Pipe Technologies Co. Ltd.
Share on (60272699896):
Product Overview
Description
Product Description
USES and features:
* Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF material.

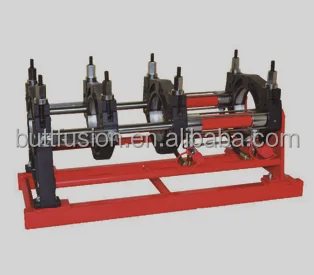

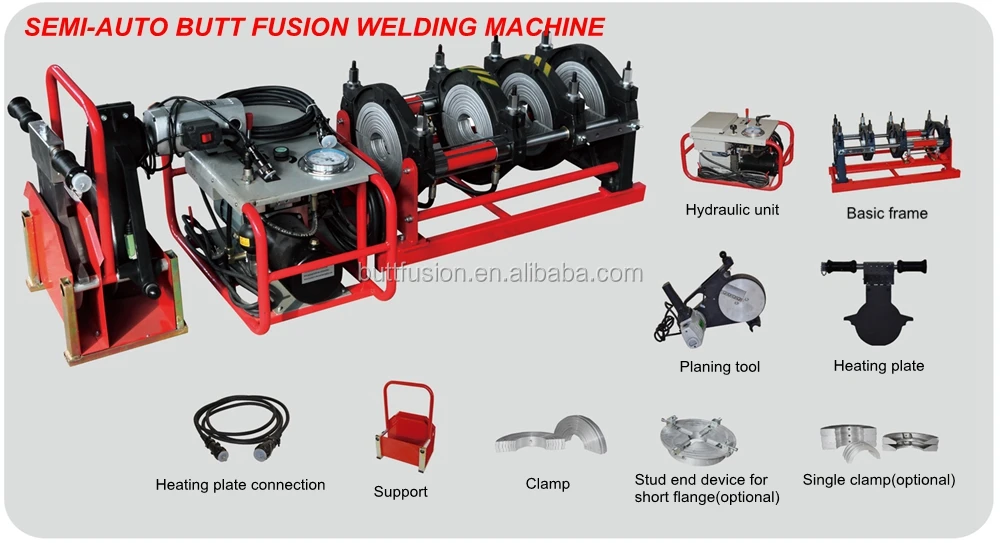

* Consists of basic frame, hydraulic unit, planing tool, heating plate, basket & optional parts.

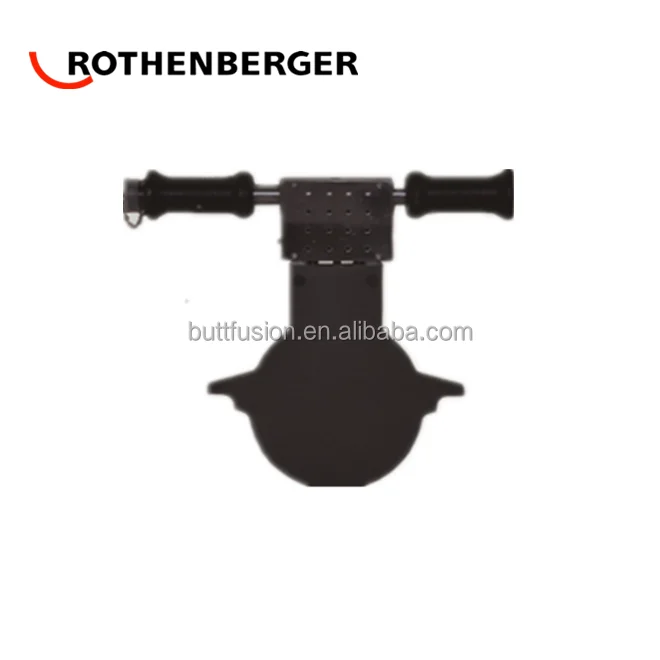

* Removable PTFE coated heating plate with high accurate temperature control system.

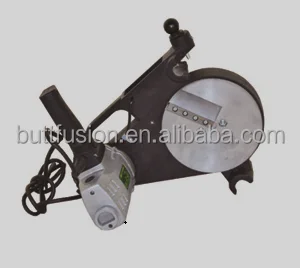

* Electrical planing tool.
* Simple structure, small and delicate, user friendly.
* Low starting pressure ensures reliable welding quality of small pipes.
* Changeable welding position enables to weld various fittings more easily.
* High accurate and shockproof pressure meter.
* Separate two-channel timer records time in soaking and cooling phases.
| SHD 250 | ||
|---|---|---|
| Welding scope (mm) | 63,75,90,110,125,140,160,180,200,225,250 | |
| The highest temperature heating plate (℃) | 270 | |
| Temperature of 170 ~ 250 ℃ heating plate surface (℃) | ≤±5 | |
| Pressure regulating range (Mpa) | 0 - 6.3 | |
| Working voltage (V) | 220 | |
| The heating plate power (kW) | 2 | |
| Milling power (kW) | 1.1 | |
| Hydraulic power station (kW) | 0,75 | |
| The lifting power (kW) | none | |
| The total power (kW) | 3.85 | |
Certificate
Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the machines are in stock. If big worshop fitting machine or special machine, it will take about 15 to 40 days
Q: Can you design and produce special machines according to customer requirement ?
A: Yes, we have strong technical capacity, can develop any new products by ourselves totally.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
contact us
https://buttfusion.en.alibaba.com/contactinfo.html?spm=a2700.icbuShop.0.0.f5b120b49IudXKIf you are interested in our productions, or have any questions, please contact us ,we could provide you more information.
