ROTHENBERGER SHD800 PE pipe welding equipment
- Category: Butt Welders >>>
- Supplier: Rothenberger (Wuxi) Pipe Technologies Co. Ltd.
Share on (60275560360):
Product Overview
Description
ROTHENBERGER SHD800/450 plast pipe butt fusion welding equipment for plastic pipe from 450 to 800mm.(crane included)
Product Description
Application and Features:

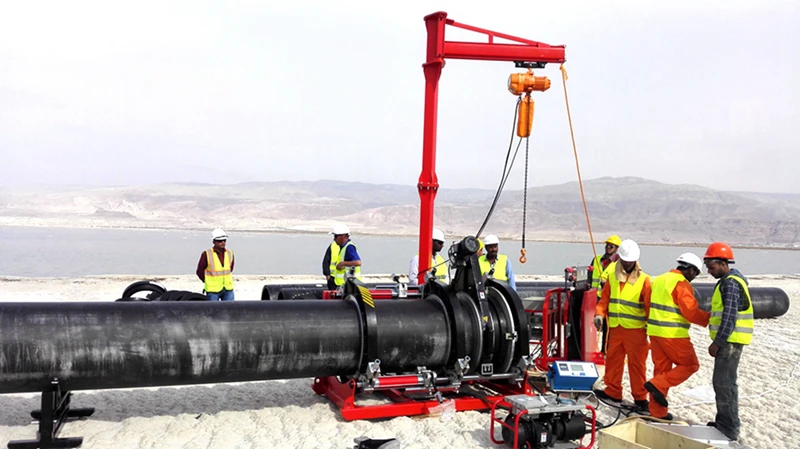

♦ Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop

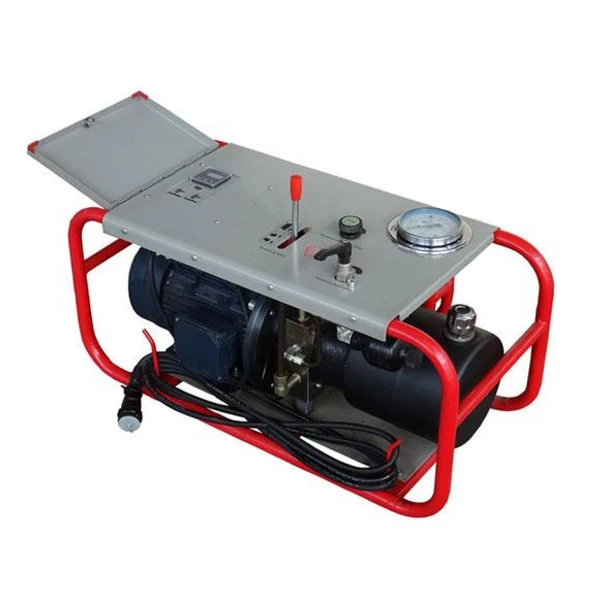

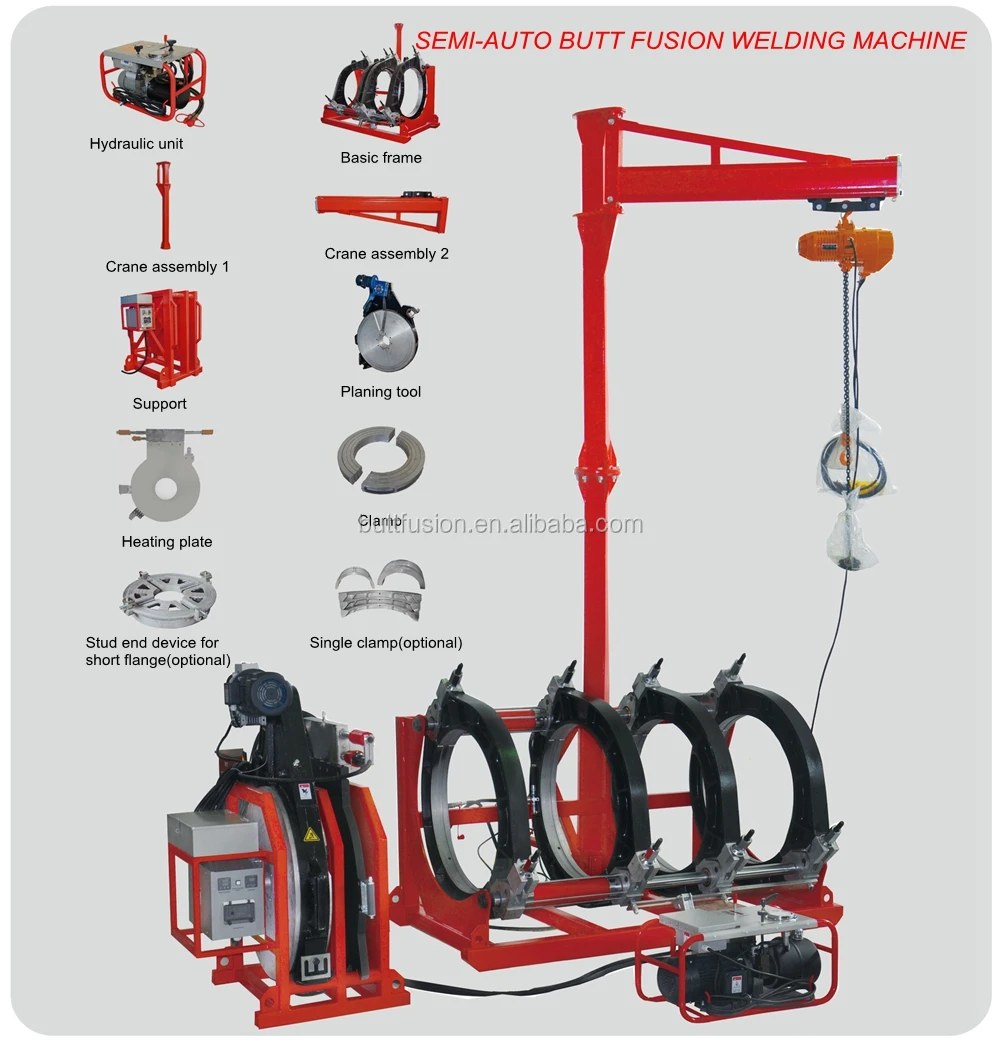

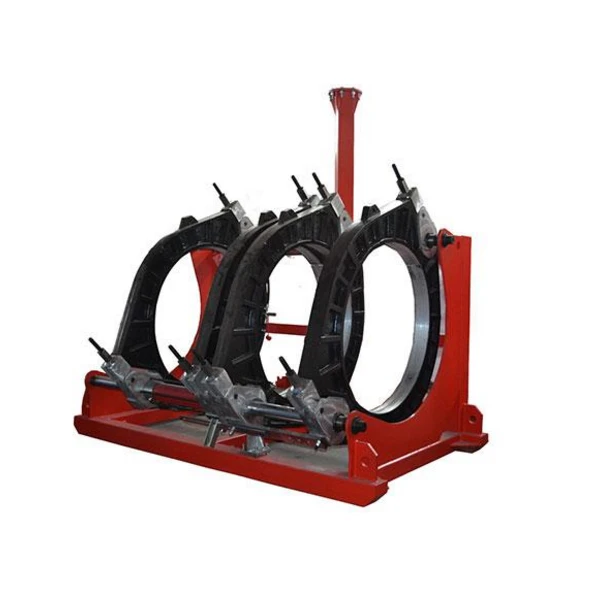

♦ Consists of basic frame, hydraulic unit, planing tool, separate heating plate, support for planing tool & heating plate, crane with hoist and optional parts

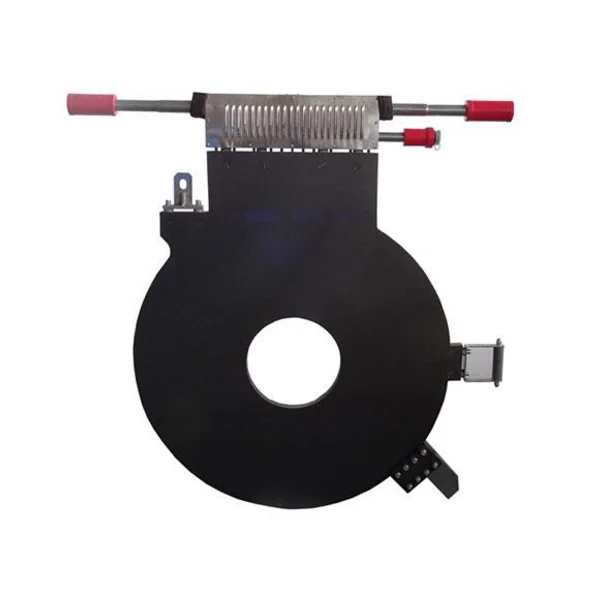

♦ Removable PTFE coated heating plate with high accurate temperature control system.

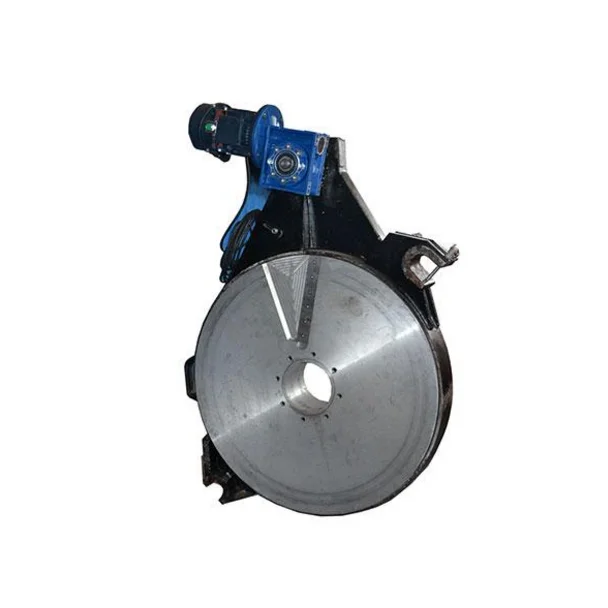

♦ Electric planning tool with safety limit switch enables to start it only when it is locked in operation position.
♦ Made of lightweight and high strength material.
♦ Low starting pressure and high reliable seal structure.
♦ Changeable welding position brings more convenience while welding various fittings.
♦ Separate two-channel timer records times in soaking and cooling phases.
♦ High-accurate and shockproof pressure meter indicates clearer readings.
♦ Labor saving and high efficient crane is available to lift planing tool and heating plate.
The main parameters:
Model | SHD800 |
Pipe size(mm) | 450,500,560,630,710,800 |
Heating plate Max. Temp. | 270°C |
Temp. deviation in surface(170~250°C) | <±7°C |
Pressure adjustable ranges | 0-16Mpa |
Working voltage | 380V,50Hz |
Heating plate power | 12.5KW |
Planing tool Power | 2.2KW |
Hydraulic unit power | 3KW |
Crane power | 0.5KW |
Total power | 18.2KW |

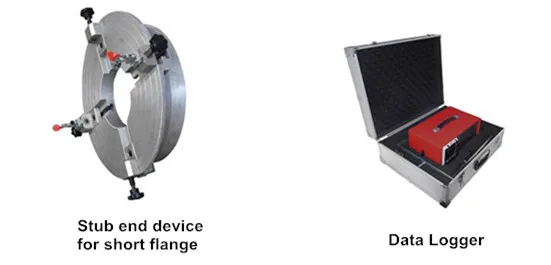

Optional parts:
packing list:
Item | Dimension with packing(mm) | N.W(kg) | G.W(kg) | Remark |
1 | 2160×1560×1580 | 780 | 860 | Basic frame, insert clamps(710~450mm) |
2 | 1390×1110×1730 | 340 | 440 | Heating plate,planing tool, support, attachments and fittings |
3 | 760×510×640 | 67 | 97 | Hydraulic unit and oil hose |
4 | 730×440×520 | 67 | 97 | Motor hoist |
5 | 1930×660×420 | 127 | 177 | lifter |
Total | 8.95CBM | 1314 | 1626 |
|

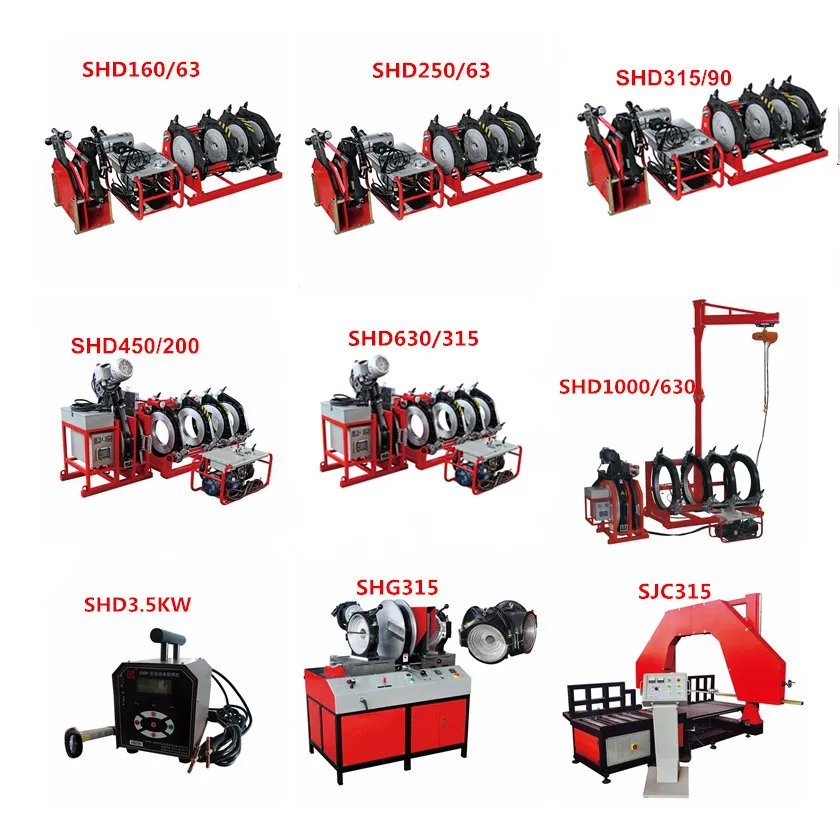

More productions
Certificate
Company profile:
Our company is the leader manufacturer of butt fusion equipment in china.We occupy the 70% domestic market and export to more than 45 countries.we specialize in producing a complete range of international standard butt fusion equipment including field welding machine,workshop fitting machine,pipe saw,all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the machines are in stock. If big worshop fitting machine or special machine, it will take about 15 to 40 days
Q: Can you design and produce special machines according to customer requirement ?
A: Yes, we have strong technical capacity, can develop any new products by ourselves totally.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Our Services
Presales technical assistance
When we get a damande from a customer or a potential customer who wants to buy us a product ,it is our standard procedure to supply the best solution to meet their needs.
The processing of production
When we get a order from our customers ,it is our standard procedure to give our loyal customer one prodection processing table including parts name&its lead time ,total assembling time and testing scheme within 1-2 days
Train
Only by having a perfect knowledge of our products ,pur customers are able to use them in the best way.it is our promises to invest in custom training.These courses are aimed to teach our customers how to operate the products in the best way and how to get the"first aid" when necessary.
After sales technical Assistance
Service centre can solve all kinds og technical issues as well as supply various types of spare parts in the shortest time
