Full automatic concrete pile used wire mesh cage welding machine

Product Overview

Description

Diameter of welded frame	ø250-ø1200( as users require)
Length of welded reinforcement cage	4M-15M
Number of longitudinal reinforcements	6, 7, 10 , 12, 14, etc
Diameter of longitudinal reinforcement	ø7.1, ø9.0, ø10.7, ø12.6MM
Diameter of hoop reinforcement	ø4- ø6
Cage pitch	0-100mm
Driving power	8.4KW-15.2KW
Welding power	200KVA-300KVA
Controller	NC controller

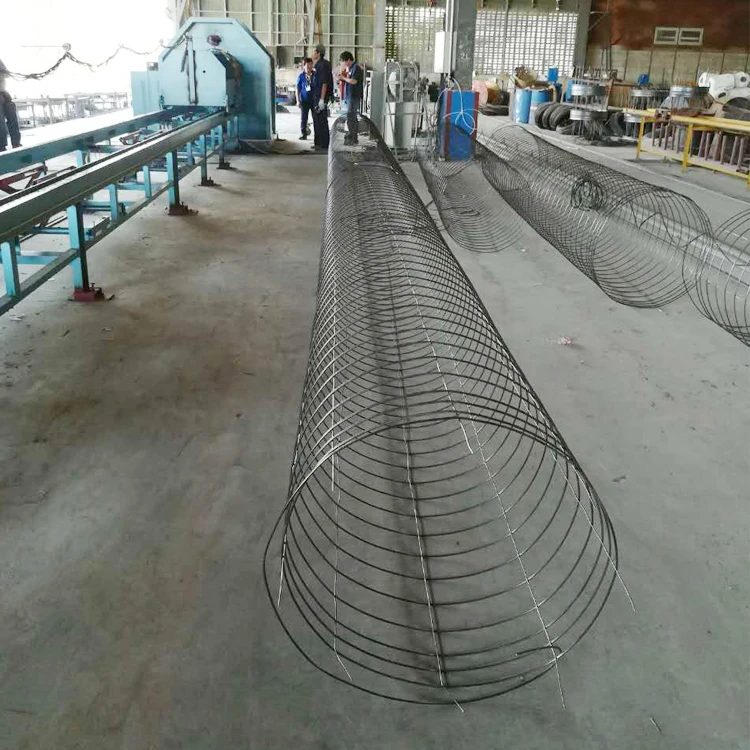

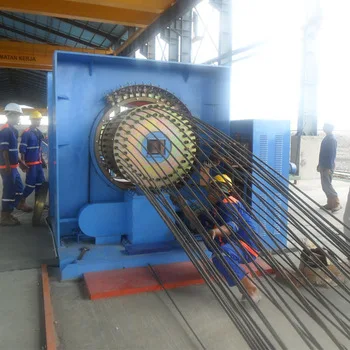

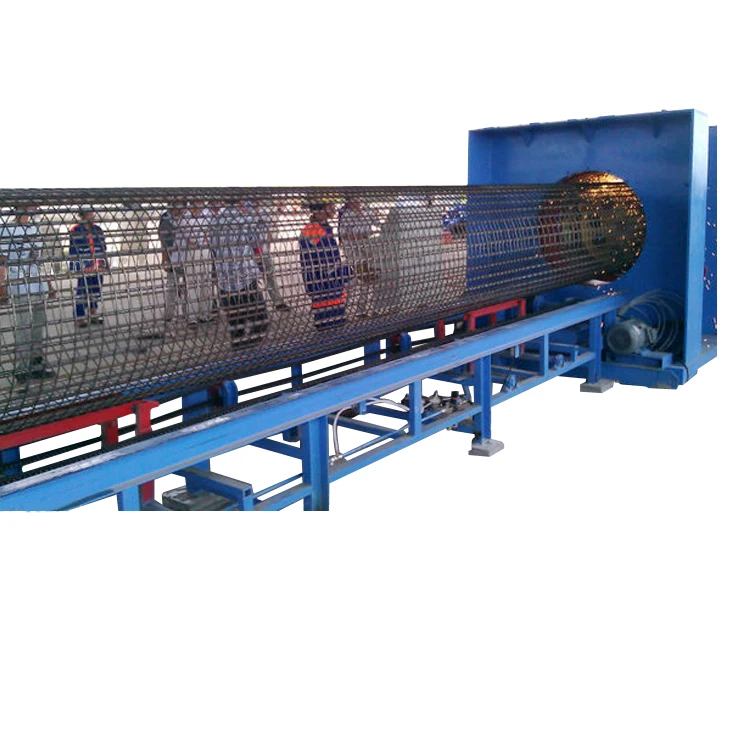

Full automatic concrete pile used wire mesh cage welding machine is a special-purpose welder used to- produce the high-strength concrete pipe pile reinforcement cages. The welder is widely-appliedto reinforcement cage welding by self-stressing and prestressing pretensioning-method and post-tensioning method.

1. Host speed up to 43 r/min, is three times as much as the current domestic similar equipment.

2. Failure rate is extremely low, is 1/20 of the similar products.

3. High weld strength, unlike similar products have a very serious phenomenon of reinforcement.

4.Can cage welding square body, the function, can save factory in hooped cost USD2000-3000-

5. Welding copper head loss was only about 1/30 of the similar products, annual cost saving-

    about USD2000-3000.

6. l general manufacturers use our products to meet the production requirements, compared with similar

    products to save labor costs RMB 100000 per year, energy costs about USD2000-3000.

7.Use this product than use similar equipment can save USD30000-50000.
