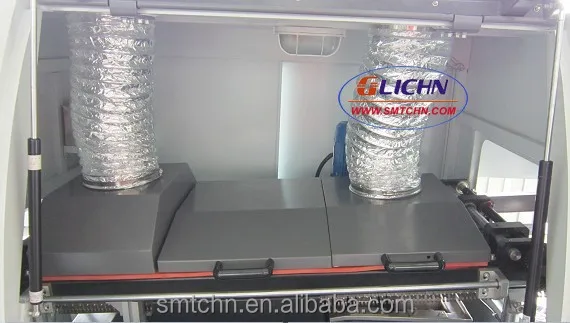

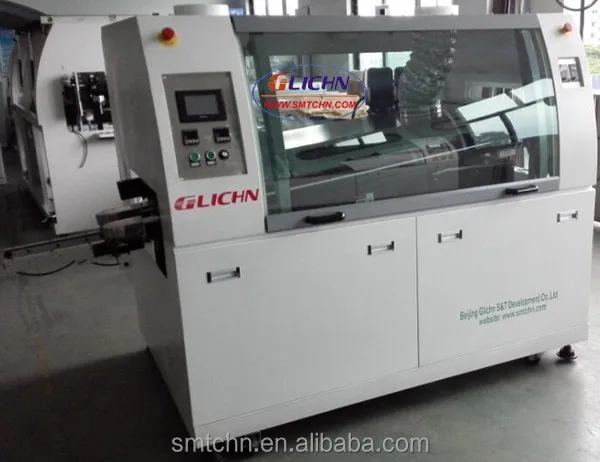

Small wave soldering machine LF250 /flux spray system/ Solder paste 100Kg
- Category: Electronic Products Machinery >>>
- Supplier: Beijing Glichn S&T Development Co. Ltd.
Share on (60278852178):
Product Overview
Description
Product Description

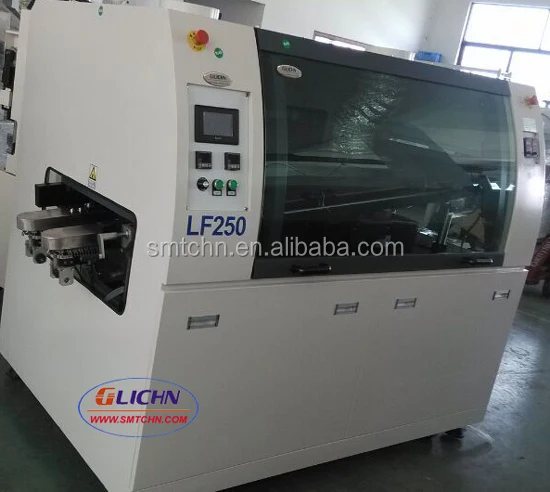

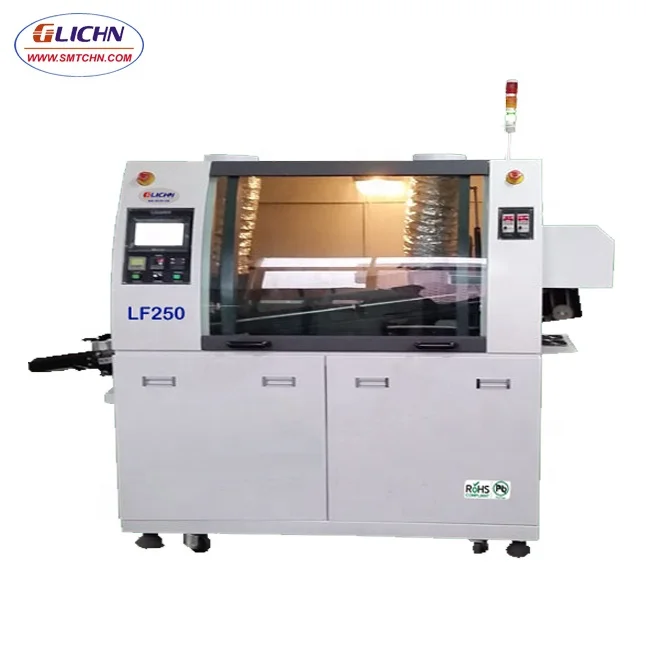

wave soldering machine LF250
Lead free wave soldering machine LF250 with perfect performance, complete with flux spray system, preheating, wave solder and cool modules.
Features
•Compact design; only 2100 mm long;
•Corrosion resistant solder pot, lead-free and lead solders, PID temperature control;

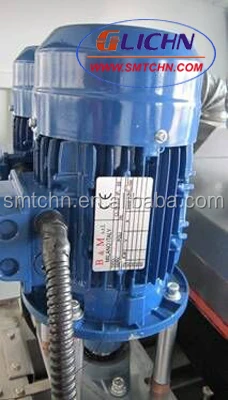

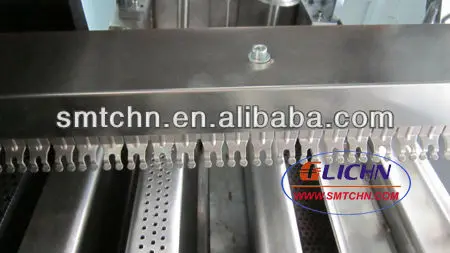

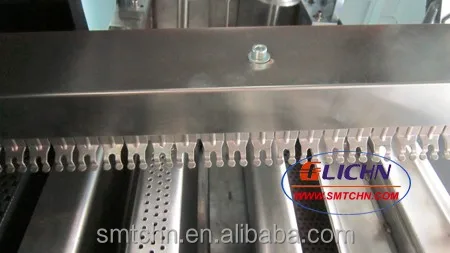

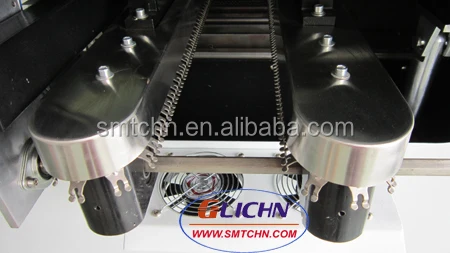

•Dual-wave system with Taiwan variable-frequency controlled motors and independent adjustment of wave crest height up to 8mm;
•Energy-saving mode with automatic board detection and timer to turn off pump motors during periods of inactivity;
Technical parameters
solder type | Lead free |
max PCB | 50—250mm (Can be customized size) |
Components height | Above ≤130mm under ≤8mm |
Capacity | 100KG |
Preheating length | 600mm |
Temperature accuracy | ±2 |
spray way | Foam/spray |
temperature range | room - 300 |
wave height | 0—8mm, keep balance wave crest |
heating controlling | PID |
speed | 0—1800mm/min |
start/normal power | 12KW/6KW |
Power supply | 380V 3 phase 50HZ |
Preheating temperature | room—260°C |
Width adjust | Manual adjusting |
Transmit angle | 3-8 |
Direction | right→left (left→right optional ) |
controlling accuracy | Taiwan motor |
Weight (Kg) | 250KG |
Dimension | 1650*1100*1650MM it is 2100mm when the machine include loading and cooling system. |
Packaging & Shipping
Packing method:
1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;
Shipping way:
1)By air ,for sample and small package ,wordwide express like DHL,UPS,FedFX,EMS....
2)By sea, for large package and quantity;
3)By car or other ways as customer requested;
Company introduction
GLICHN found in 2010,Specializing in SMT equipment manufacturing services and sales of peripheral products. Factory is located in shunyi district of Beijing and shenzhen baoan district
SMT class:pick and place machine,small and middle size reflow oven, manual and semi-automatic solder paste printer,PCB loader and unloader,PCB magazine rack,SMD component counter,solder paste and chip production line etc.
THT Class:wave soldering machine, Spray tin stove,cut foot and forming machine,Plug-in production line etc
Others :Spin coater,Dispensing machine,nozzles,feeder,belt ,driver, motor,cylinder,High temperature tape,valve,etc
Our Service
1. We’ll have a good check and a test before shipping out.
2. We provide you the friendly English User manual or the operating videos for free;
3. 24 hours technical support by email or Skype or Trade Manager or Calling.
4. 1 year machine parts free warranty;
5.Engineers available to service machinery overseas.
FAQ
1 set machine, mixed order is also welcome.
a. How can I buy this machine from you? ( Very easy and flexible !)
b.Consult us about this product on line or by e-mail.
c. Negotiate and confirm the final price , shipping , payment methods and other
terms for machine.
d.Send you the proforma invoice and confirm your machine order.
e. Make the payment according to the method put on proforma invoice.
f. We prepare for your machine order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
g.Send your machine order by air or by sea.
Why choose us ?
a. Best price & Best shipping & Best service
b. Ten years of experience in research and development production and sales
c. Six years of alibaba gold supplier
d. Trade assurance
