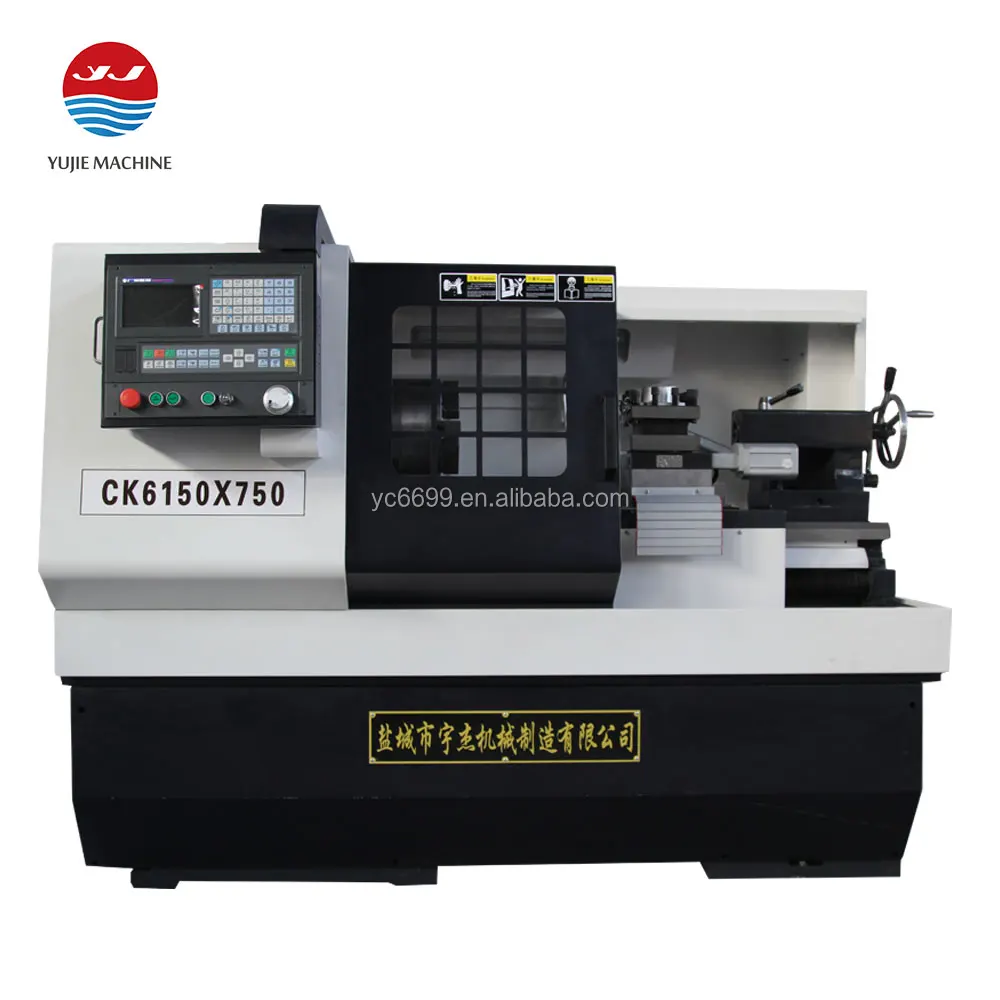

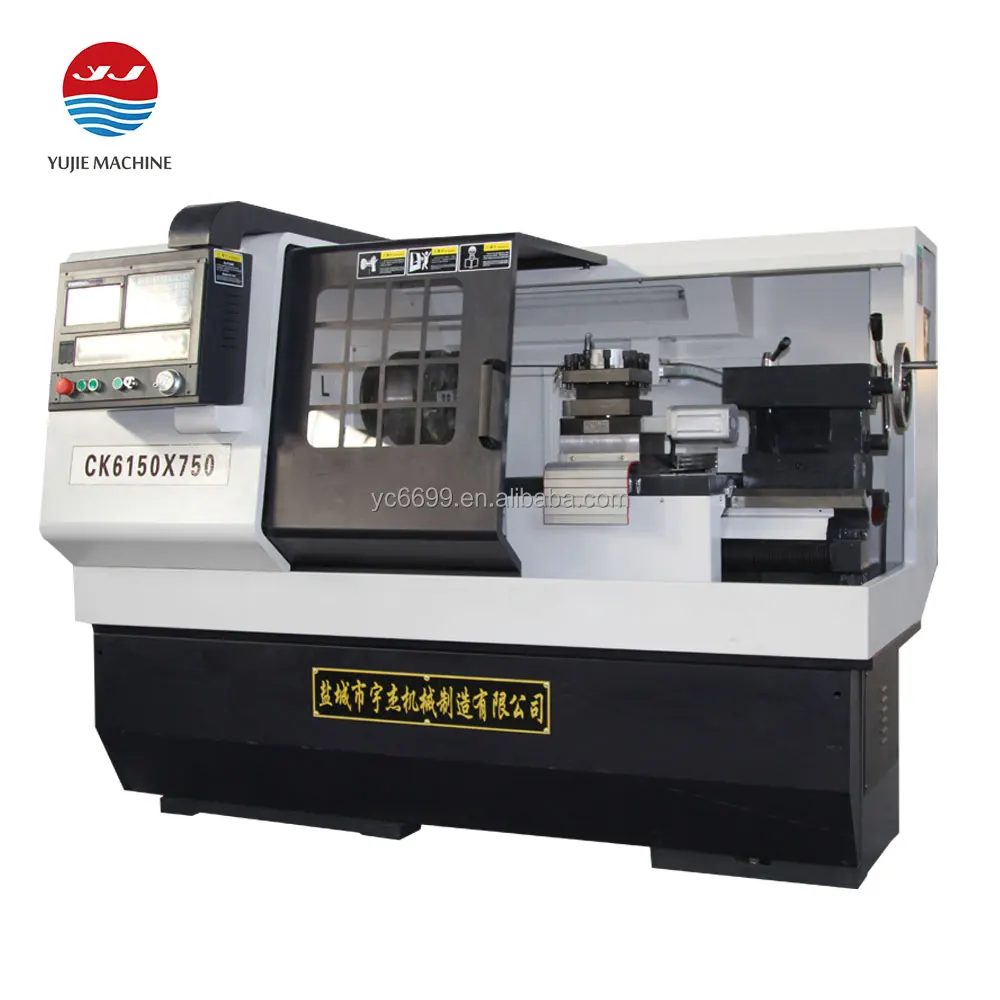

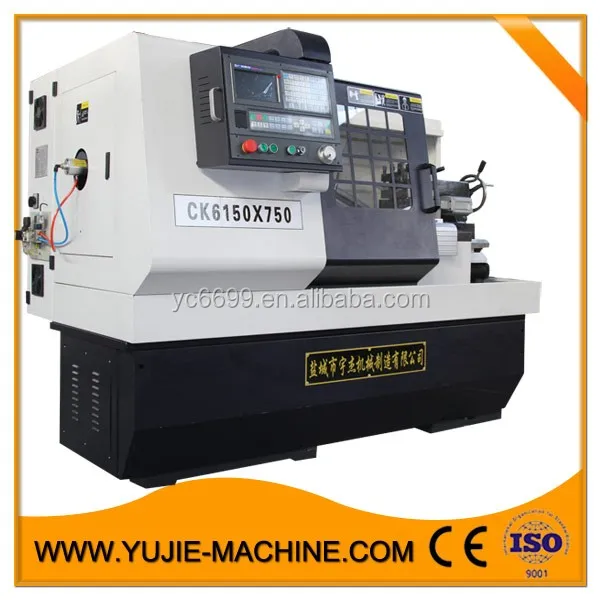

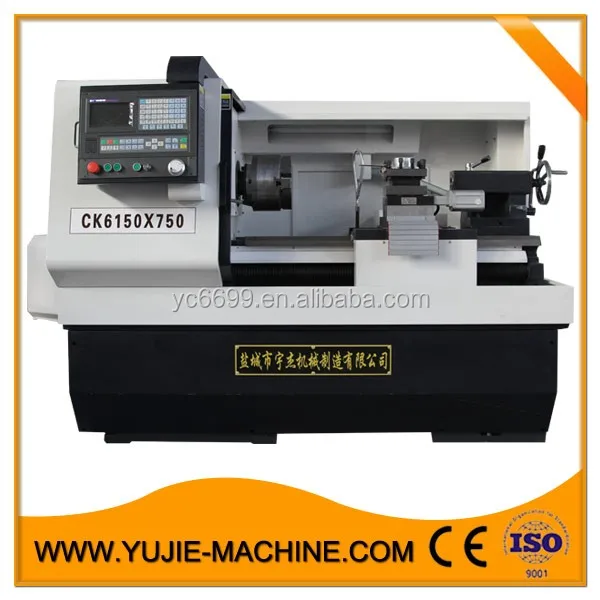

CNC Lathe Machine CK6150

Price:RUB 705,341.91

Quantity:

CK6140 Details

Parameters As Following

Specifications of CNC Lathe CK6150
Items		Unit	CK6150
Capacity	Max.swing over bed	mm	500
	Max.swing over carriage	mm	318
	Max turning length	mm	750
	Bed width	mm	360
Travel	X axis	mm	260
Travel	Z axis	mm	680
Spindle	Spindle speed range	mm	40-1800(2steps)
	spindle nose	mm	C6
	spindle taper	mm	MT6#
	Spindle bore diameter	mm	52
Turret	Tool number	No.	4 or 6
	Tool shank size	mm	25×25
	Change tool times	sec	2.0
Feeds	X -axis rapid traverse	mm/min	4000
	Z -axis rapid traverse	mm/min	6000
	Cutting feed(Xand Z axis)	mm/r	0.005-100
Tailstock	Taper of tailstock sleeve	MT	5#
	Diameter of tail stock sleeve	mm	75
	Travel of tail stock sleeve	mm	150
Motor	Main motor power	kw	5.5
Motor	X and Z axis torque	N.M	4&6
Overall dimension(LWH)and Weight of CNC Lathe CK6150
Center Distance	750mm	235013501800mm/2000kg

CNC Lathe CK6140 Accessories
Standard Accessories	Optional Accessories
GSK980TB2 controller	GSK928TD-L/ GSK980TDc controller
Φ250mmManual 3 jaws chuck	Φ250mm Hydraulic/Pneumatic /Collect chuck
4 position tool turret	6 position tool turret/Hydraulic turret
Manual Tailstock	Hydraulic/Pneumatic Tailstock
X&Z axis AC servo motor	X&Z axis stepping motor
Pump & working lamp	Hydraulic station
Automatic lubricant pump	Automatic bar feeder

CNC Lathe Typical turning parts

Features As Below

1,Spindle adopts HRB high precision double ball bearing, low noise, high precision, good stability.

2, The ultrasonic frequency quenched guide ways have a good wear-resistance.

3, Electric four position turret adopts precision gear position, high repetitive positioning accuracy.

4, The tail frame has the advantages of fast cam clamping device, high work efficiency.

5, Can choose the hybrid stepping motor or AC servo motor drive.
