Heavy Duty High Precision Flat Bed Horizontal 6150 CNC Lathe With CE

Product Overview

Description

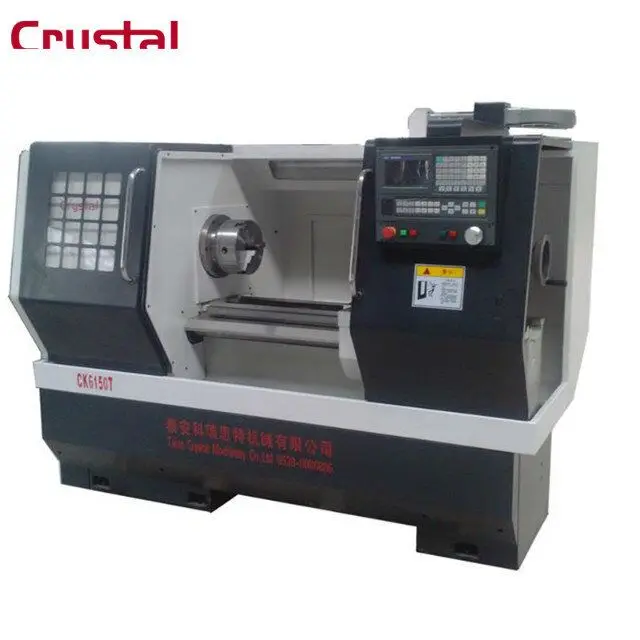

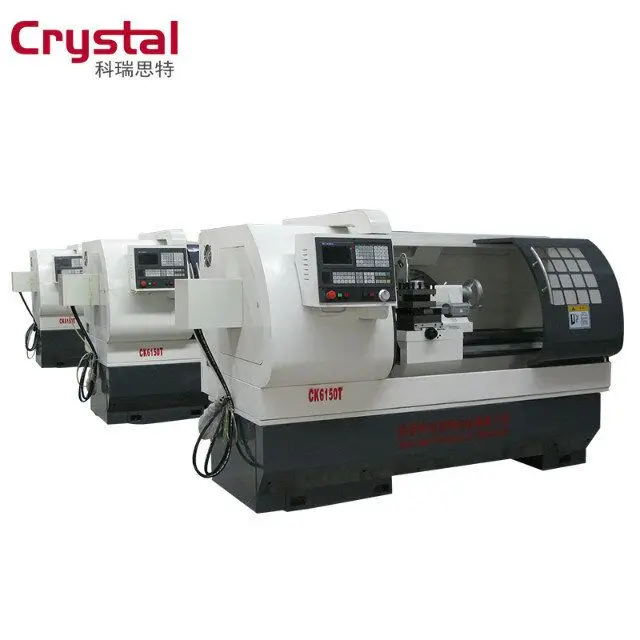

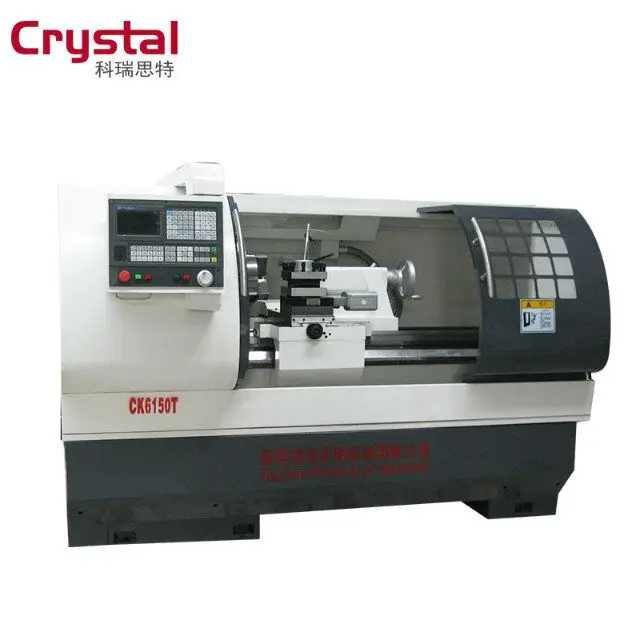

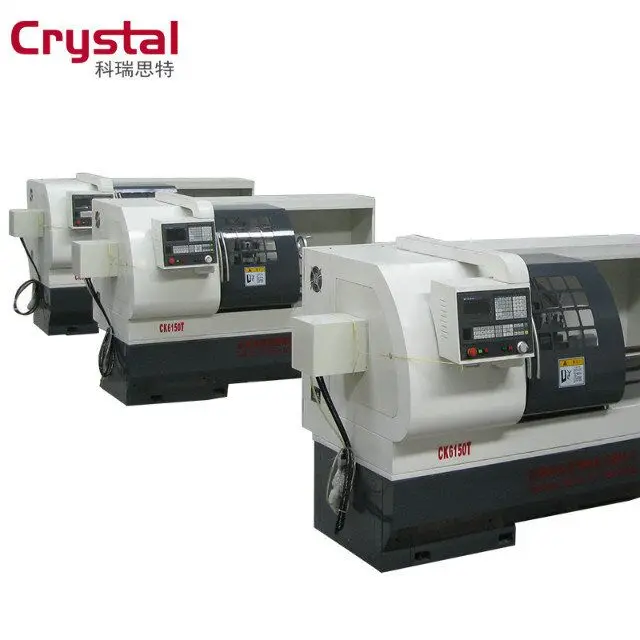

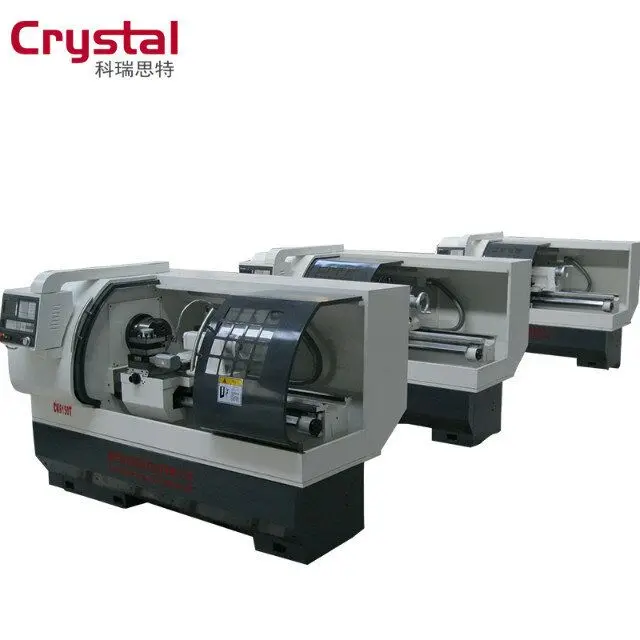

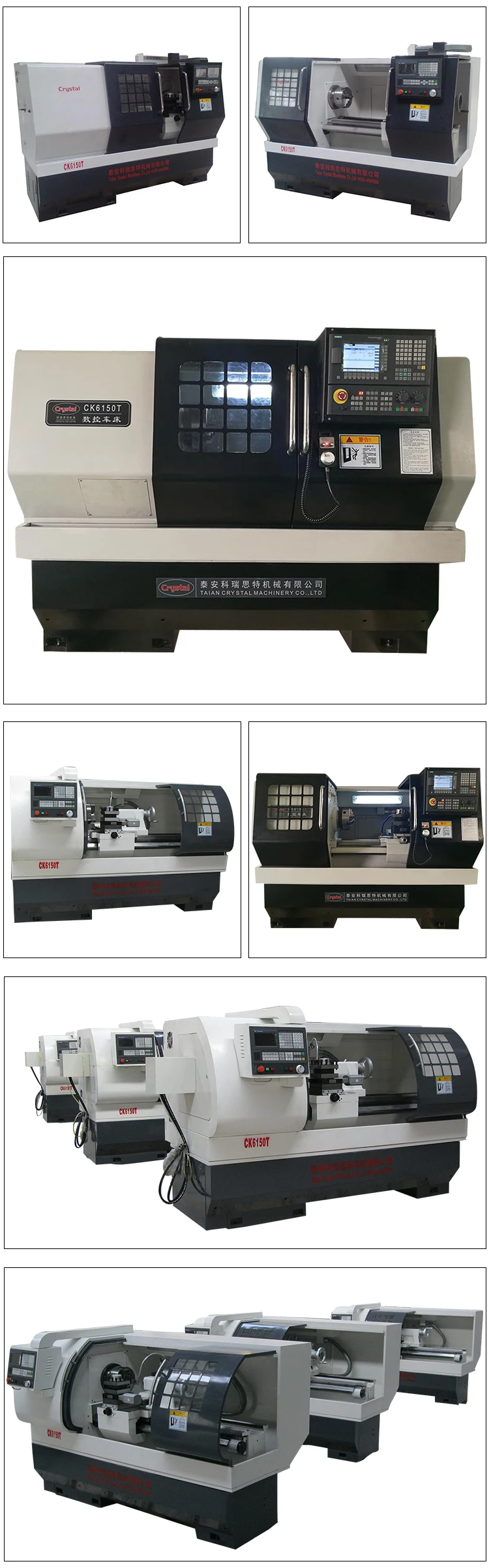

Heavy Duty High Precision Flat Bed Horizontal 6150 CNC Lathe With CE



The machine through the numerical control system could automatically process the inside and outside cylinder surface, cone surface, circular, arc surface, end face etc. Also can process the single and multiple threads in metric, inch and other standards.

2018 hot sale heavy duty precision flat bed



A. Main Features

Cnc Lathe Machine For Sale

1. It is made from the whole cast-iron, which is heavy enough with good rigidity and

    stability.

2. Three gears controlled by a handle, stepless speed regulation, with lower noise and

    high- standard machining accuracy, is an environmental- protective machine.

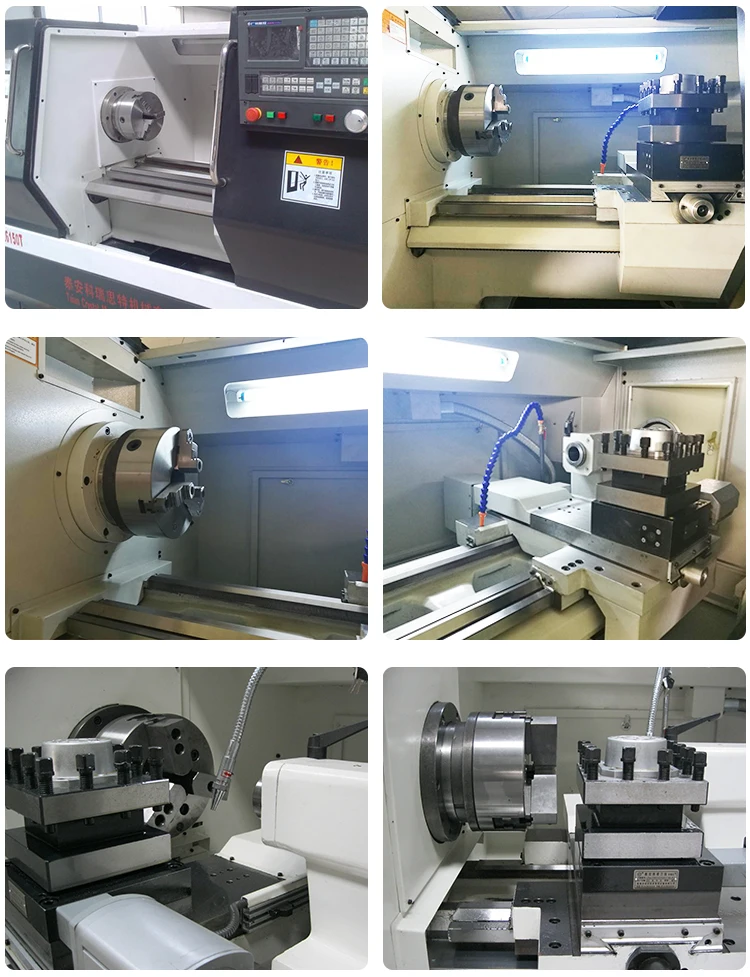

3. The spindle is the high- rotate speed and sophisticated bearing with smooth surface.

    The extra size diameter of the spindle bore is φ72mm while the diameter of chuck is

    φ250mm.

B.Specification of CK6150T

ITEMS	Specifications
Max. swing over bed	Φ500mm
Max. swing over carriage	Φ290mm
Max. length of work piece	1000mm
Width of the machine	360mm
Size of three-jaw chuck	250mm
Range of spindle speed	150-2000rpm
Spindle bore	Φ72mm
Spindle taper	1:20/Φ90
Spindle nose	Type of spindle head D-8
Spindle speed step	step-less
Stations of tool carrier	4 station electric tool carrier
Tool bar section	25X25mm
X/Z axis position accuracy	0.02/0.025mm
X/Z axis repeatability	0.01/0.012mm
X/Z axis torque	6/10N.M
X/Z axis travel	280/1000mm
X/Z axis fast feeding speed	8/10 M/MIN
Taper of tailstock quill	MT5
Max. range of tailstock quill	150mm
Motor power	7.5KW
Packing size(length ×width ×height)	2660mm×1560mm×1730mm
Gross weight	2500kg

C. Standard configurations

1. System:GSK-928TDL,

2. 3 jaw manual chuck

3. 4 station electric tool carrier

4. Manual tailstock

5. Lighting system

6. Cooling system

7. Automatic lubrication system

8. 3 phase 380v 50/60Hz

D. Optional configurations





1.Q:Can we pay by L/C?

   A:Yes, we can do T/T, L/C etc.

2.Q: What is your payment terms?

   A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.

3.Q: What is your delivery time?

   A:Usually, one machine takes 15-20 days. IF we have in stock, we can arrange

       shipment as soon as we receive the payment.

4.Q: Can we go to your factory and learn how to use the machine?

   A:We sincerely welcome you come to our beautiful city. The training is free. It would

       be great honor to us.

5.Q:Can you arrange training in our place after we bought your machine?

   A:We can arrange oversea training. Buyers will be responsible to the costs.

6.Q:How many Voltage ? How many Phases 1 or 3? How many hertz (Hz)? of your

machine?

   A:Our standard is 3 phase, 380V, 50/60Hz. All can be customer made.

7.Q: Do you have CE certification?

   A: yes, we have CE certification, machine quality is guaranteed.

8.Q: Is your company a factory or trading company?

   A: We are factory and have many years production experience.

9.Q: How can I get the quotation?

   A:You can send the inquiry on alibaba.com, or send email to us. It is better if you can

       tell what is your detailed requests. We will reply to you within 1 hour.

10.Q:What is the Control of your lathe? Can I change it to other brand?

   A:The standard control of our lathe is GSK. You also can change other controls,

       such as FANUC,Siemens and so on.
